Selecting the wrong marine rubber fender is a costly mistake. The consequences range from minor hull scrapes to catastrophic damage to both vessel and berth structure, resulting in astronomical repair bills, operational downtime, and serious safety risks. The correct fender is not a commodity; it is a critical engineered component of your mooring system.This ultimate guide cuts through the complexity. We provide a systematic, step-by-step framework to help you specify the optimal marine rubber fender for your project, balancing performance, durability, and total cost of ownership.



Step 1: Define Your Core Requirements

Begin by gathering these non-negotiable project parameters:

1,Vessel Particulars:What is the maximum and most frequent vessel size (DWT, length) calling at the berth? Consider future-proofing for larger ships.

2,Berthing Energy (E): This is the single most critical factor. It's the kinetic energy that must be absorbed during the vessel's impact with the berth. It is calculated based on:

Vessel displacement

Berthing velocity (approach speed)

Eccentricity factor (angle of approach)

Virtual mass factor (water added mass)

3,Pro Tip:Use PIANC 2002 or other recognized guidelines for calculation.Underestimating E is the primary cause of system failure.

4,Berthing Method: Normal (controlled) berthing, or frequent harsh/off-angle impacts?

5,Environmental Conditions: Extreme temperatures, UV exposure, ozone, oil, or chemical spills.



Step 2: Calculate Key Performance Parameters

With the berthing energy (E) known, determine these fender system outputs:

Reaction Force (R): The maximum force transmitted to the quay structure when the fender is fully compressed. Your structure must be designed to withstand this force.

Performance Curve: The relationship between energy absorbed and reaction force. The ideal fender has a low reaction force for a given high energy absorption.

Maximum Deflection: The compression at which the fender reaches its rated capacity. Ensure there is adequate clearance.

The Core Equation: Fender Performance = Energy Absorption (E) vs. Reaction Force (R). Your goal is to select a fender with an Erating greater than your calculated requirement, while keeping Rwithin your structure's safe limits.



Step 3: Select the Fender Type

Match the fender geometry to your energy and space constraints. Here’s a quick comparison:

Fender Type	Best For	Key Advantages	Considerations
Cylindrical	Low to medium energy, versatile applications, small to medium vessels, yacht marinas.	Simple installation, good all-around performance, cost-effective.	Lower energy absorption per unit compared to modern types.

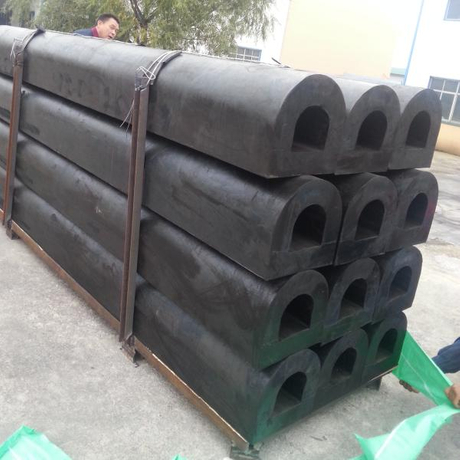

Arch (D-Type)	Medium to high energy, new and retrofit projects on vertical quay walls.	High energy absorption, low reaction force, space-efficient.	Requires precise alignment during installation.

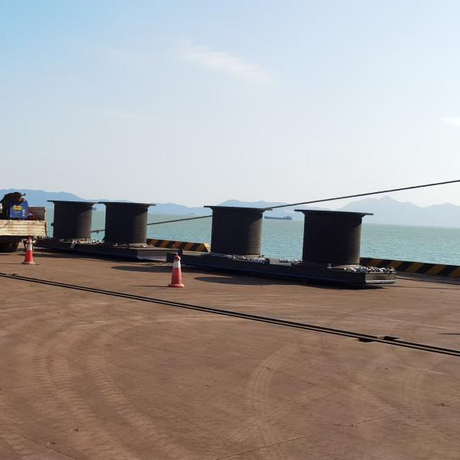

Super Cone / Cell	Very high energy, large container terminals, LNG carriers, offshore terminals.	Exceptional energy absorption with very low reaction (high performance ratio).	Higher unit cost, requires robust panel system.
Wing (Pneumatic)	Extreme energy, very large vessels, situations requiring extremely low reaction forces.	Highest energy absorption capacity available.	Larger footprint, requires more maintenance (air pressure checks).
Square / Rectangular	Small crafts, workboats, inland waterways, as fender strips on pontoons.	Large contact area, easy to mount.	Low energy rating.



Step 4: Consider System Integration & Accessories

A fender doesn't work in isolation. Consider the complete system:

Panels: Choose durable, low-friction facing panels (UHMWPE, timber) to protect both the fender and the vessel hull.

Chains/Brackets: Specify corrosion-resistant (hot-dip galvanized or stainless steel) mounting hardware sized for the loads.

Installation & Spacing: Follow manufacturer guidelines for center-to-center spacing to prevent "pinching" of vessels.



Step 5: Evaluate Total Lifecycle Cost

Do not choose based on initial price alone. Evaluate:

Durability & Warranty:High-quality rubber compounds resist tearing, weathering, and compression set.

Maintenance Needs: A robust fender should require minimal inspection and zero routine maintenance.

Service Life:A premium fender lasting 25+ years offers far better value than a cheaper alternative needing replacement in 10 years.



Common Pitfall to Avoid: The "Oversizing" Myth

Simply selecting a fender with a much higher energy rating than required ("oversizing") seems safe but is often inefficient. It leads to unnecessarily high reaction forces, higher costs, and can make the berth too stiff for smaller, frequent-call vessels. The goal is correct sizing, not maximal sizing.



Your Action Plan & Next Steps

Gather Data: Compile vessel data, structural drawings, and environmental reports.

Perform Calculations: Determine required Eand allowable R. When in doubt, be conservative.

Shortlist Types: Based on energy range and spatial constraints, select 2-3 potential fender types.

Request Detailed Proposals: Contact reputable manufacturers with your project specifications. Ask for:

①Detailed performance curves.

②Test certificates (according to ISO, PIANC, or other standards).

③Case studies from similar projects.

④A complete system design drawing.
