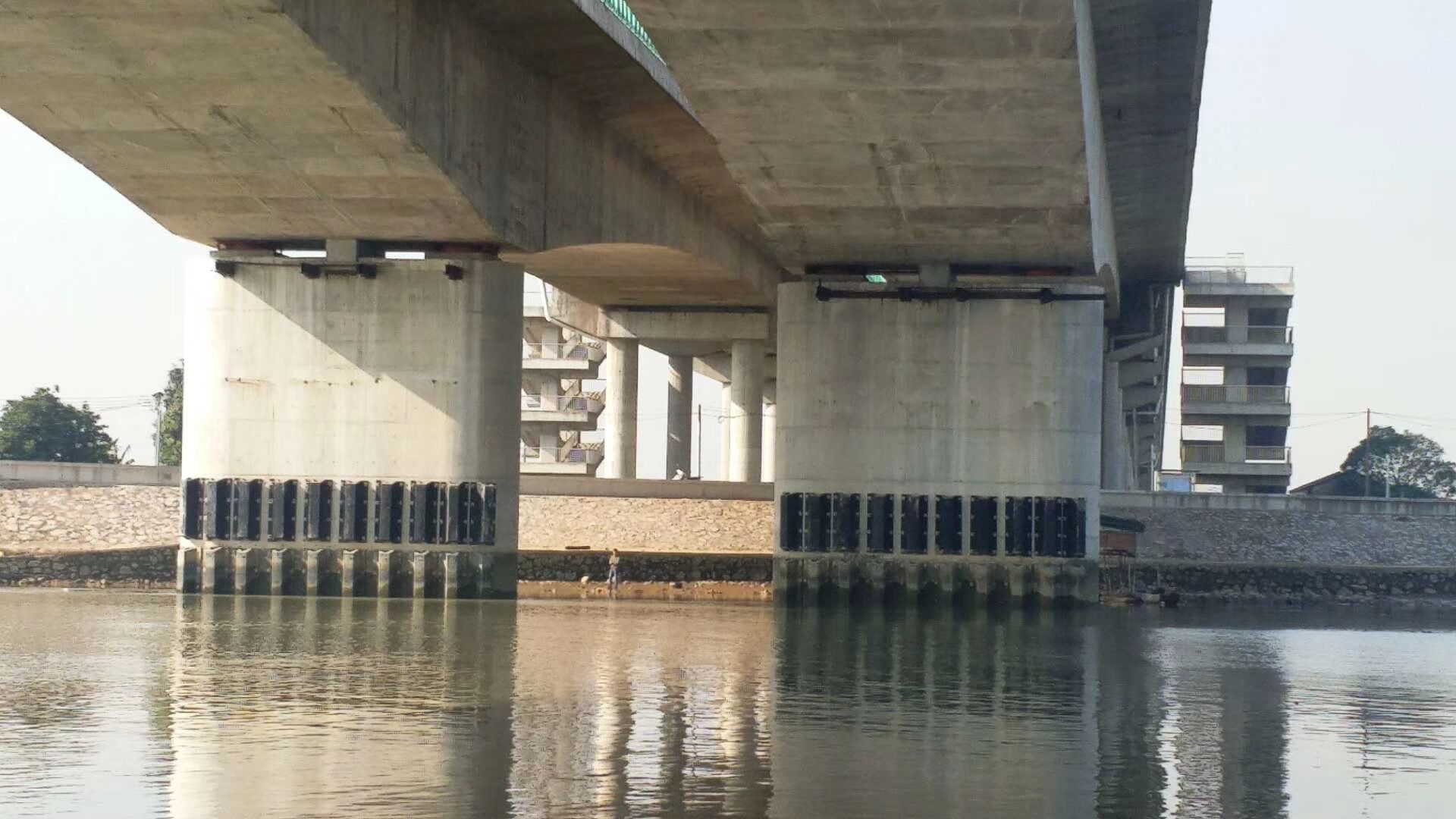

In the world of marine infrastructure, the fender system is your port's first line of defense. It protects vessels, quay walls, and ultimately, your bottom line. But designing a fender system that is both safe and cost-effective is far from simple.
As stated in the British Standard (BS6349), fender design should be entrusted to *'appropriately qualified and experienced people'* . Why? Because effective fender engineering requires a deep understanding of ship technology, civil construction, material properties, environmental factors, and international regulations .
I have spent two decades manufacturing OEM rubber fender systems for global brands. This guide unpacks the core principles of Fender Design — Section 12 as outlined by leading industry references like PIANC and Taidun, providing you with the knowledge to select and design systems that offer the lowest total cost of ownership.
There is a simple reason to use fenders: it is just too expensive not to do so . These are the opening remarks of the PIANC guidelines and the foundation of modern port investment.
While the initial purchase price is visible, the Full Life Cost of a fender system is the true economic driver. Cheap fenders often demand much greater investment in repairs and upkeep over the years .
Choosing a high-quality engineered solution provides quantifiable returns :
1. Safety of staff, ships, and structures
2. Much lower lifecycle costs
3. Rapid, trouble-free installation
4. Quicker turnaround time, greater efficiency
5. Reduced maintenance and repair
6. Berths in more exposed locations
7. Better ship stability when moored
8. Lower structural loads
9. Accommodate more ship types and sizes
10. More satisfied customers
> *"It is rare for the very cheapest fenders to offer the lowest long term cost. Quite the opposite is true. A cheap fender system can cost many times that of a well-engineered, higher quality solution over the lifetime of the berth."*
> — *PIANC Guidelines for the Design of Fender Systems*
Professional fender design is not a guessing game. It follows a logical, multi-step process that integrates operational needs, site conditions, and engineering criteria .
The design process typically involves:
Before any calculations, you must define the functional requirements:
- Cargo type: Container, bulk, liquid, or RoRo?
- Berthing procedures: Frequency, adverse weather limits, vessel size range.
- Special features: Vessel flare, beltings, allowable hull pressures.
The local environment dictates the severity of the design:
- Natural forces: Wind speed, wave height, current speed.
- Topography: Tidal range, swell, fetch.
- Environmental factors: Temperature, corrosivity (C5-M zones require specific materials).
Engineers must set the rules of engagement :
- Codes & standards: PIANC 2002 (or upcoming WG211), ROM, EAU, BS6349.
- Safety factors: Normal vs. abnormal berthing events.
- Performance limits: Maximum reaction force, friction coefficient, desired service life.
The core principle of fender design is the conservation of energy. The kinetic energy of a moving vessel must be converted into strain energy within the fender system.
The most common method for calculating berthing energy is the kinetic energy method, modified by several coefficients :
\[ E = \frac{1}{2} \times M \times V^2 \times C_m \times C_e \times C_c \times C_s \]
Where the variables represent:
| Variable | Name | Function |
|---|---|---|
| M | Displacement (Mass) | Tonnage of the vessel |
| V | Approach Velocity | Speed perpendicular to the berth |
| Cₘ | Virtual Mass Coefficient | Accounts for water moving with the ship |
| Cₑ | Eccentricity Coefficient | Accounts for rotational energy at impact |
| Cₑ | Berth Configuration Coef. | Accounts for cushioning effects |
| Cₛ | Softness Coefficient | Accounts for hull deformation |
Once the *Normal Berthing Energy* is calculated, engineers apply a Safety Factor (FOS) typically between 1.25 and 2.0 to arrive at the *Abnormal Berthing Energy* . The fender must absorb this abnormal energy without exceeding the allowable reaction force of the quay wall or the hull pressure limits of the vessel.
Understanding the mechanical behavior of different fender types is critical for selection. They generally fall into three categories .
- Mechanism: Absorb energy by elastic buckling (controlled collapse) of the rubber body.
- Best for: Container terminals, general cargo.
- Key feature: High energy absorption with relatively low reaction force. Super Cell fenders offer a 15% higher E/R·H value than ordinary cell fenders .
- Mechanism: Compressible air inside a reinforced rubber bag.
- Best for: Ship-to-ship (STS) transfers, exposed terminals.
- Key feature: Lowest reaction force, floats naturally.
- Mechanism: Closed-cell foam core compressed within an elastomer skin.
- Best for: Tugboats, permanent offshore installations.
- Key feature: Unsinkable, zero maintenance (no inflation).
A fender is rarely just a block of rubber. A full system includes :
1. Rubber Fender Element: The primary energy absorber.
2. Steel Panel: Distributes reaction forces into the vessel hull; often faced with UHMW-PE to reduce friction .
3. Restraining Chains: Three specific types exist:
- Tension Chain: Protects the fender under compression.
- Weight Chain: Supports the weight of the frontal panel.
- Shear Chain: Protects against lateral movement.
4. Anchors & Bolts: The critical link to the quay wall.
Recent innovations have changed what is physically possible in fender design. Taidun's Parallel Motion Fender technology breaks the traditional zero-sum game of higher energy vs. higher reaction force .

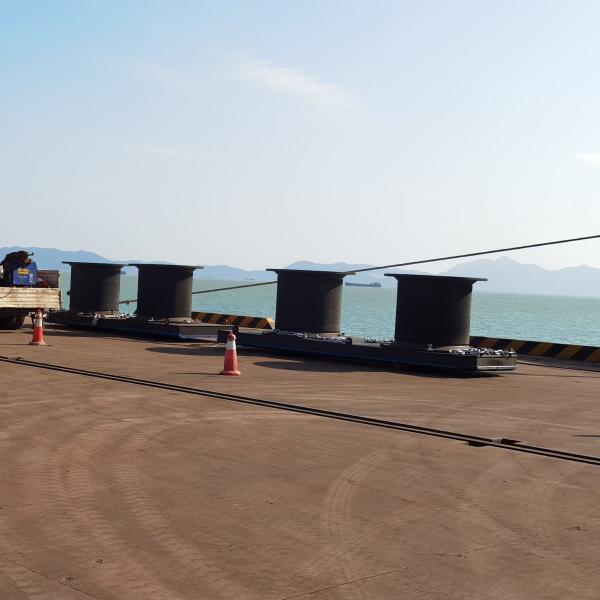

By using two Super Cones positioned back-to-back, the system maintains a vertical panel in contact with the hull while extending deflection travel significantly.
Real-World Performance (20° Berthing Angle) :
| Fender System | Energy Absorption (kN·m) | Reaction Force (kN) |
|---|---|---|
| Parallel Motion (CT1200) | 2,187 | 1,956 |
| Conventional Super Cone | 1,613 | 3,347 |
| Conventional Cell Fender | 1,404 | N/A |
> *"While conventional fenders lose significant performance at real-life berthing angles, Parallel Motion Fenders maintain full energy absorption."*
> — Nanjing Taidun Marine Systems*
The industry is on the cusp of a major change. PIANC is currently updating its 2002 guidelines (WG33) with a new Working Group (WG211) .
Expected changes in WG211 include:
- Updated guidance on durability, maintenance, and repair.
- Stricter lines on the misuse of the term *"PIANC certification"* (which does not actually exist).
- Incorporation of research into velocity and temperature factors.
> Important Note: The transition period ends May 1, 2026. After this date, fender selection must align with the new guidelines.
We asked our global OEM clients about their experience with engineered systems vs. "budget" alternatives:
> *"We learned the hard way that recycled rubber in fenders fails fast. We bought a cheap 'PIANC style' fender that started cracking in 18 months. The Nanjing Taidun's spec unit next to it? Still perfect after 8 years. The initial saving was a lie."*
> — *Port Engineer, Northern Europe*
> *"The biggest issue we see is contractors using carbon steel bolts instead of 316 stainless. The rubber might be fine, but the panel falls off when the hardware rusts through. Installation quality is everything."*
> — *Maintenance Manager, Southeast Asian Terminal*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we understand that proper Fender Design — Section 12 principles are the difference between a 5-year headache and a 25-year asset.
Our Engineering Support Includes:
- Custom Engineering: We don't just sell stock sizes; we design fenders to your specific berthing energy calculations.
- Material Integrity: We use virgin rubber compounds (no recycled material) and specify 316 stainless steel hardware for C5-M environments.
- Compliance: We manufacture to PIANC guidelines and offer third-party certification (BV, ABS, CCS).
- Global OEM Service: White-label manufacturing for brands and distributors in over 80 countries.
Designing a fender system is a complex engineering task that balances energy physics, material science, and economics. By following the rigorous logic of Fender Design — Section 12—defining operational needs, calculating true energy, and selecting verified components—you ensure safety and minimize total lifecycle costs.
Don't rely on guesswork or unverified "PIANC style" claims.
[Contact the Nanjing Taidun Engineering Team] for a consultation. Send us your vessel data and site conditions, and let us perform a professional berthing energy calculation to specify the optimal, cost-effective fender system for your terminal.
Q1: What is the difference between 'Normal' and 'Abnormal' berthing energy?
A: Normal energy is the calculated kinetic energy based on expected conditions. Abnormal energy includes a safety factor (usually 1.25–2.0) to account for excessive speed, equipment failure, or human error. The fender must survive abnormal events without catastrophic failure .
Q2: What are the three types of chains used in fender systems?
A: Tension chains protect the fender during compression, weight chains support the frontal panel's weight, and shear chains protect the fender from lateral movement damage .
Q3: Why does a cheap fender cost more in the long run?
A: Cheap fenders often use recycled rubber and carbon steel hardware. They degrade faster, require frequent replacement, and cause unplanned downtime. A well-engineered system has a higher initial cost but a significantly lower Full Life Cost .
Q4: What is the new PIANC WG211 guideline?
A: It is the update to the 2002 WG33 guidelines, expected to finalize around 2024-2025. It includes stricter definitions for testing, durability, and aims to stop suppliers from falsely claiming 'PIANC certification' .
Q5: How does a steel panel protect the vessel?
A: The steel panel distributes the point-load reaction force of the rubber fender across a wider area of the vessel's hull. It is often faced with UHMW-PE (ultra-high molecular weight polyethylene) to minimize friction and protect the ship's paint .
