How to Replace Super Cell Marine Fenders: Step-by-Step Guide & Key Considerations

How to Replace Super Cell Marine Fenders: Step-by-Step Guide & Key Considerations



Replacing a Super Cell Marine Fender is a critical maintenance task for ensuring the safety of vessels, docks, and offshore structures. When these high-performance fenders wear out or get damaged,a correct replacement procedure is non-negotiable.This comprehensive,step-by-step guide covers everything you need to know—from preparation to execution—to ensure a successful, safe, and long-lasting Super Cell Fender installation.



Why Proper Super Cell Fender Replacement is Crucial

An incorrectly installed marine fender can fail under impact, leading to catastrophic damage and costly repairs. Following a meticulous replacement process guarantees optimal energy absorption, maximizes fender lifespan, and protects your assets. Whether you're a port manager, marine contractor, or vessel operator, this guide is your blueprint for success.

Phase 1: Pre-Replacement Planning & Preparation

Failing to prepare is preparing to fail. Never skip these essential steps before starting your Super Cell Fender replacement.

1. Tools & Equipment Checklist

Gather these items before the operation begins:

①Lifting & Handling Equipment:Certified lifting slings, spreader bars, a crane or davit with adequate capacity, and hydraulic winches.

②Hand Tools: Impact wrenches, calibrated torque wrenches, socket sets, alignment pins, and measuring tools.

③Hardware & Materials:New OEM-approved bolts, nuts, washers, shackles, or chain links as specified. Have anti-seize compound and marine-grade anti-corrosion spray on hand.

④Safety Gear (PPE): Hard hats, safety glasses, steel-toe boots, gloves, and life jackets for all personnel.

2. Site Assessment & Safety Briefing

①Review Design Drawings: Confirm the exact specifications and positioning of the old and new Super Cell fenders.

②Assess Environmental Conditions: Schedule the replacement during a weather window with calm seas and minimal current. Consider tidal changes that affect access and load.

③Secure the Work Zone: Implement clear signage, buoy off the area if needed, and establish a communication protocol for the team.

④Inspect the New Fender: Unpack and thoroughly inspect the new Super Cell Marine Fender for any transit damage. Verify its pressure rating and dimensions against the order.

Phase 2: Step-by-Step Replacement Procedure

Follow this proven installation guide for a seamless switch.

Step 1: Safe Removal of the Old Fender

De-tension and Disconnect: Safely relieve tension from any attached chains, cables, or restraints. Note their configuration for re-installation.

Unfasten Mounting Hardware: Remove all bolts or pins securing the fender to its bracket or panel. Penetrating oil may be needed for corroded fasteners.

Controlled Lifting: Attach lifting equipment correctly (using provided lifting points or with suitable slings) and carefully lift the old fender away. Avoid swinging or impacting adjacent structures.

Step 2: Surface Preparation & Inspection

Clean Mounting Surfaces: Power-wash and scrape the mounting face and back of the fender panel to remove marine growth, rust, and old sealant.

Inspect Hardware & Structure: Check the integrity of the mounting brackets, piles, or dock face. Repair or replace any corroded or compromised structural elements.

Apply Protective Coatings: Treat cleaned metal surfaces with a rust inhibitor. Apply anti-seize compound to new bolt threads.

Step 3: Precision Installation of the New Super Cell Fender

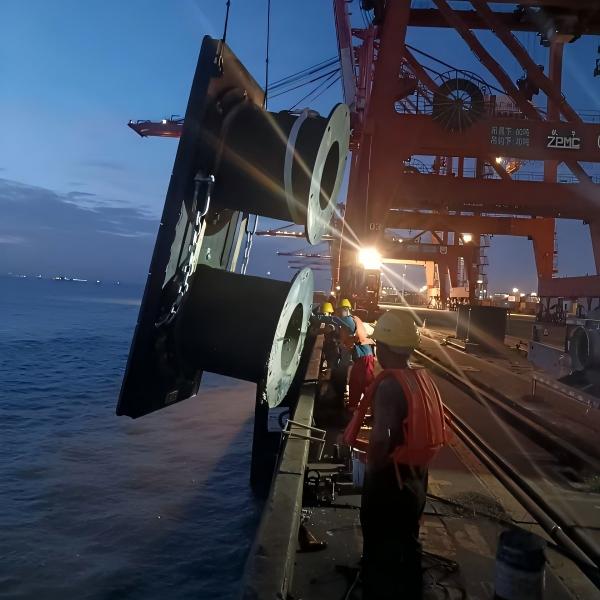

Lift and Position: Using the correct rigging, gently lift the new fender. Use guide ropes to maneuver it precisely into position against the mounting structure.

Align and Secure: Insert alignment pins or bolts to hold the fender in place. Ensure it is flush and correctly oriented according to the design drawings.

Final Tightening: Install all remaining fasteners. Tighten them gradually in a cross-pattern (like a car tire) to ensure even pressure. Finally, torque all bolts to the manufacturer's exact specifications using a calibrated wrench—overtightening is a common cause of failure.

Step 4: Re-attachment & Final Verification

Reconnect Accessories: Reattach chains, cables, or rubbing plates as per the original design, ensuring equal tension on both sides if applicable.

Post-Installation Inspection: Conduct a visual and physical check. Ensure there are no gaps, the fender is not under torsion, and all hardware is secured.

Documentation: Record the installation date, torque values, and any observations in your maintenance log. Take "as-installed" photos.



Critical Attention & Pro Tips for Success

1,Key Safety and Performance Warnings:

Never Compromise on Lifting Safety.Always use certified gear and a trained operator.

Respect the Tidal Clock. Running out of time or working against changing tides is dangerous.

Do Not Deviate from Specs.Use only the recommended hardware and torque values provided by the Super Cell fender manufacturer.

Beware of Hidden Damage. Inspect the substrate thoroughly; a new fender on a rotten panel is useless.

2,Expert Recommendations for High-Quality Installation:

Consult the Manual: Always refer to the official Super Cell Fender installation guide from the supplier (e.g., Trelleborg, Bridgestone, Shibata).

Consider Professional Help: For complex or large-scale replacements, hiring certified marine contractors is a wise investment.

Perform a Test Load: If possible, allow a vessel to berth gently under controlled conditions to verify performance before full use.



FAQs: Your Super Cell Fender Replacement Questions Answered

Q: How do I know when to replace my Super Cell Marine Fender?

A:Schedule replacement if you observe significant cuts (deep enough to expose the inner foam), permanent deflections exceeding 10%, surface cracking from UV degradation, or loss of elasticity.

Q: Can I replace a single Super Cell fender, or must I do the whole row?

A:You can replace individual units. However, it's prudent to inspect adjacent fenders of similar age, as they may have experienced comparable wear.

Q: What impacts the total cost of a Super Cell Fender replacement project?

A:Key factors are fender size/type, site accessibility, required vessel/equipment charter, labor, and disposal/recycling costs for the old unit.



Conclusion

A successful Super Cell Marine Fender replacement hinges on rigorous preparation, adherence to procedure, and unwavering attention to safety and manufacturer details. By using this guide as your framework, you can execute a flawless installation that restores essential protection to your marine infrastructure.

Ready for a replacement? For guaranteed performance, always source genuine Super Cell fenders and certified installation services from authorized marine equipment partners.
