When deep-draft vessels, submarines, semi-submersibles, and other specialized craft need safe mooring, the choice between a hydro-pneumatic fender and a floating donut fender is not a minor detail — it is a system decision. At Nanjing Taidun Marine Equipment Engineering Co., Ltd., we see this choice every day in OEM projects where performance, hull geometry, tidal movement, and installation constraints must all work together.
In general marine berthing, many systems can look "similar" on paper. But deep-draft submersible mooring applications are different. These operations often involve underwater contact zones, variable drafts, special hull profiles, or structures that must remain stable under tidal movement and changing berthing angles.
That is where the real distinction appears:
- Hydro-pneumatic fenders are designed to protect the vessel below the waterline.
- Floating donut fenders are designed to move with the structure and provide 360-degree, self-aligning protection around piles or guide structures.
For OEM buyers, ports, offshore contractors, and marine engineering teams, the question is not simply "which is better?" The real question is which is technically correct for the application.

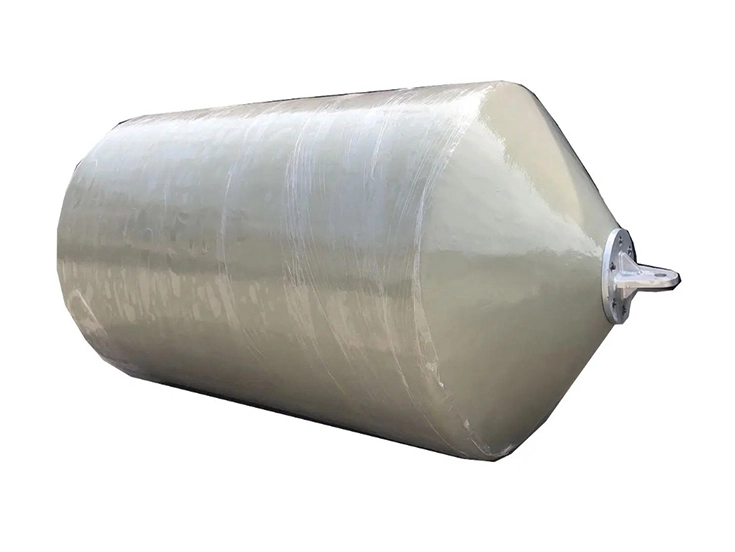

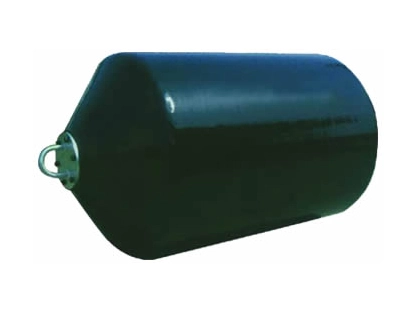

A hydro-pneumatic fender is a specialized floating fender partially filled with water and air. This ballast arrangement allows the fender to remain upright and deliver protection at the underwater hull zone.
This makes it highly suitable for:
- Submarines
- Semi-submersible vessels
- Fast ferries with underwater contact requirements
- Special docking systems with low hull clearance
- Deep-draft vessels requiring below-waterline protection
A key advantage is that the performance can be adjusted through the air-to-water ratio, draft setting, and inflation pressure. In practical terms, this gives project engineers a way to match the fender to the vessel rather than forcing the vessel to adapt to the fender.
- Low reaction force
- High energy absorption
- Better underwater contact area
- Adjustable draft
- Reduced hull pressure
- Suitable for tidal variation
- Effective for complex berthing geometry
Hydro-pneumatic fenders are strongest when the vessel's vulnerable contact point is below the waterline. That is why they are commonly associated with submarine operations and other specialist mooring environments where standard floating fenders cannot protect the target area effectively.
A floating donut fender is a floating ring-style fender that rotates around a fixed pile or vertical guide structure. The donut shape allows it to move with tidal changes and align itself naturally during berthing.
This type of fender is especially useful for:
- Turning structures
- Berthing dolphins
- Lead-in jetty guides
- Pile-supported mooring points
- Structures exposed to changing tide levels
Its design supports frictionless rotation, which helps reduce wear and improves consistency during vessel approach and contact.
- 360-degree rotation
- Self-adjusting with tide
- Smooth vessel guidance
- Low maintenance
- Good visibility
- Suitable for exposed marine environments
- Flexible installation around piles
Floating donut fenders are strongest when the goal is to guide, center, and protect around a fixed marine structure. They are especially useful where vessel motion is influenced by tide, current, or repeated alignment around a mooring point.
The clearest way to compare the two is by application, not by general performance alone.
| Factor | Hydro-Pneumatic Fender | Floating Donut Fender |
|---|---|---|
| Primary purpose | Protect underwater hull zones | Protect and guide around piles or vertical structures |
| Best vessel type | Submarines, semi-submersibles, special craft | Vessels using dolphins, guides, or pile-supported berths |
| Contact zone | Below waterline | Around the pile line / guide structure |
| Motion response | Adjusted by ballast and air pressure | Self-aligning, rotating ring motion |
| Tidal adaptation | Yes, through draft and ballast settings | Yes, through floating ring movement |
| Key benefit | Low reaction force with underwater protection | 360-degree rotation and smooth guidance |
| Typical use case | Deep-draft submersible mooring | Turning structures, dolphin berths, guide piles |
In short, hydro-pneumatic fenders solve an underwater protection problem, while floating donut fenders solve a structural guidance and alignment problem.
Deep-draft mooring is not just about holding a vessel in place. It is about controlling load transfer, contact point geometry, tide response, and safety margins.
For deep-draft submersible applications, the most important engineering priorities are usually:
1. Protecting the correct hull zone.
2. Reducing peak reaction force.
3. Maintaining stable contact during tide change.
4. Avoiding hull damage during angled approach.
5. Ensuring installation reliability over time.
Hydro-pneumatic fenders are often the better fit when the vessel's contact zone lies beneath the surface. Floating donut fenders, by contrast, are more relevant when the project relies on guide piles, dolphins, or structural centering rather than underwater hull cushioning.
From an OEM and project engineering perspective, the right choice starts with the vessel and berth data.
- What is the vessel type?
- Where is the actual contact point on the hull?
- What draft range must be supported?
- How much tidal variation exists?
- Is the berth a fixed wall, dolphin, or pile-supported layout?
- Is the main risk hull impact or alignment loss?
- Do you need underwater protection or structural guidance?
- Choose hydro-pneumatic fenders if the berth needs underwater hull protection.
- Choose floating donut fenders if the berth needs self-aligning rotational guidance around a pile or vertical structure.
- Choose both in a combined design if the project has different contact zones above and below the waterline.
This decision process is especially important in OEM projects, because a technically wrong product can look acceptable initially but underperform after installation.
The marine industry is placing more emphasis on project-specific customization rather than one-size-fits-all products. Buyers now want solutions that are:
- Engineered for the vessel
- Optimized for lifecycle cost
- Compatible with tidal environments
- Simple to install and maintain
- Supported by reliable factory production
This is where experienced OEM manufacturers have a real advantage. A supplier is no longer judged only by price. They are judged by whether they can translate operating conditions into a product that performs consistently in the field.
At Nanjing Taidun Marine Equipment Engineering Co., Ltd., we support international brands, wholesalers, and manufacturers with OEM marine equipment solutions. Our production background covers marine fenders, bollards, and marine anchors, with strong manufacturing capacity and engineering support.
For project buyers, this matters because a high-performance fender system depends on more than the product shape. It depends on:
- Material consistency
- Dimensional accuracy
- Controlled fabrication
- Testing and inspection
- Reliable factory output
- Application-based design support
When deep-draft mooring is involved, even small deviations in manufacturing can affect performance, installation fit, and long-term service behavior.
Both systems are designed to solve different problems, but each has practical maintenance implications.
- Require correct pressure and ballast configuration.
- Should be checked for draft stability and system balance.
- Need performance confirmation before commissioning.
- Benefit from periodic inspection of fittings and shell condition.
- Need pile compatibility and proper guide sizing.
- Should be checked for smooth rotation and bearing condition.
- Require inspection of wear surfaces and structural alignment.
- Benefit from routine checks after major tidal or storm events.
For procurement teams, the best approach is to request application drawings, berth data, vessel particulars, and maintenance expectations before finalizing the product.
If your project involves deep-draft submersible mooring applications, the safest rule is simple:
- Use hydro-pneumatic fenders for underwater hull protection.
- Use floating donut fenders for self-aligning pile-based guidance.
- Use a custom engineered combination when the berth has mixed operational zones.
For offshore operators, shipyards, and marine OEM buyers, choosing the right system is not only a performance decision. It is a safety, maintenance, and lifecycle cost decision.
If you are planning a submarine docking, deep-draft mooring system, or custom marine fender OEM project, contact Nanjing Taidun Marine Equipment Engineering Co., Ltd. to discuss a tailored solution built around your vessel data and berth conditions.
A hydro-pneumatic fender protects the vessel below the waterline, while a floating donut fender rotates around a pile or guide structure to provide alignment and protection.
Hydro-pneumatic fenders are generally better for submarines because they are designed for underwater hull protection and low reaction force.
Yes. They are designed to float and rotate with changing tide levels, which makes them suitable for pile-supported marine structures.
Yes. Their performance can be adjusted by changing the air-to-water ratio and inflation settings to match the vessel and berth.
Yes. In some projects, hydro-pneumatic fenders and floating donut fenders may be used together when different contact zones and structural requirements exist.
You should provide vessel type, draft range, tidal conditions, berth structure, contact zone, and mooring layout to ensure correct selection.
