Views: 265 Author: NANJING TAIDUN Publish Time: 2026-10-16 Origin: Site
Content Menu
● Introduction: The Hidden Threat in Cold-Climate Berthing
● Why Standard Rubber Fails at Arctic Temperatures
>> Documented Performance Degradation
● What Makes Low-Temperature Formulation Rubber Different
>> The Polymer Chemistry Solution
>> Formulation Strategies from Patent Research
● Comparative Analysis: Arctic Port Application
>> Performance Comparison Table
>> Application Suitability Matrix
● Third-Party Verification and Documentation
>> What to Request from Suppliers
● Expert Perspective: Specification Recommendations
>> For OEM Procurement Specialists
● Conclusion: Matching Material Science to Operational Reality
● Frequently Asked Questions (FAQ)
>> 1. What is the glass transition temperature (Tg) and why does it matter for fender performance?
>> 2. How much does reaction force increase for standard rubber at -30°C?
>> 3. What polymer type is best for Arctic fender applications?
>> 4. Can I use standard rubber fenders in Arctic ports with additional safety factors?
>> 5. What documentation should I request for Arctic fender procurement?
>> 6. How does PIANC WG211 address temperature effects in fender design?
When a 50,000-tonne bulk carrier approaches a berth in Murmansk or Churchill, the fender system has one job: absorb the berthing energy without transmitting destructive forces to the vessel or the quay. At -30°C, that job becomes dramatically harder.
I have reviewed fender specifications from ports across the Arctic Circle, and the same oversight appears repeatedly: standard rubber formulations that perform flawlessly in laboratory conditions at 23°C become dangerously stiff in real-world Arctic operations. The reaction force can increase by 50% or more—a margin that can mean the difference between a safe berthing and structural damage.
This article compares low-temperature formulation rubber against standard rubber for fender systems in Arctic ports. Drawing on PIANC WG211 guidelines and patent-level material science data, it provides port engineers and OEM procurement specialists with the technical foundation for specification decisions that protect assets and ensure operational reliability.
Rubber appears solid, but at the molecular level, it consists of long polymer chains that are constantly in motion. At normal temperatures, these chains slide and stretch freely, absorbing energy through elastic deformation.
As temperature drops, molecular motion slows. The chains cannot slide as easily. Rubber becomes stiffer. At a critical threshold—the glass transition temperature (Tg)—rubber stops behaving like rubber entirely and begins acting more like hard plastic.
The practical consequence: A fender that absorbs 1,000 kNm at 23°C may absorb significantly less at -30°C, while transmitting much higher reaction forces to the vessel hull and supporting structure.
Patent research from fender manufacturers has quantified this effect. A standard rubber fender compressed to 50% deflection at -30°C exhibited reaction forces more than twice the value measured at 23°C.
| Temperature Condition | Reaction Force (Relative) | Energy Absorption | Design Implication |
|---|---|---|---|
| +23°C (standard test) | 1.0× (baseline) | 1.0× (baseline) | Catalogue performance |
| 0°C | ~1.05–1.10× | Slightly reduced | Minor correction needed |
| -10°C | ~1.15–1.25× | Reduced | Significant TF application |
| -20°C | ~1.30–1.45× | Significantly reduced | Design must account |
| -30°C | ~1.50–2.00× | Severely compromised | Standard rubber inadequate |
Key insight: PIANC WG211 requires applying a Temperature Factor (TF) to convert catalogue performance to site-specific conditions. Most standard fender compounds have TF values that make them unsuitable for Arctic deployment without significant over-design.
Low-temperature formulation rubber is not simply "softer" rubber. It is a re-engineered compound with specific molecular characteristics:
1. Lower Glass Transition Temperature (Tg)
The polymer base is selected or modified to push Tg well below the expected service temperature. Where standard natural rubber compounds may have Tg in the -40°C to -50°C range, low-temperature formulations target Tg below -60°C.
2. Optimized Base Polymer Selection
Research shows that 100% natural rubber (NR) compounds demonstrate superior low-temperature performance compared to synthetic (SBR) compounds or blends.
| Polymer Type | TF at -10°C | TF at -20°C | Arctic Suitability |
|---|---|---|---|
| 100% NR | 1.080 | 1.142 | Preferred for low temperature |
| NR/SBR Blend | 1.130 | 1.249 | Moderate |
| 100% SBR | 1.206 | 1.410 | Not recommended |
Low-temperature formulations incorporate plasticizers and molecular modifiers that maintain chain mobility even at extreme cold. This preserves the elastic behavior essential for energy absorption.
Fender patents describe specific formulation strategies for cold-climate performance:
Strategy 1: Rubber Blend Optimization
Blending butadiene rubber (BR) with natural rubber improves low-temperature properties. BR is effective in concentrations of 0 to 50 parts by weight, with higher concentrations improving low-temperature performance but potentially reducing mechanical properties.
Strategy 2: Additive Concentration Control
Reducing carbon black (reinforcing agent) and oil (softener) concentrations improves low-temperature flexibility. However, this must be balanced against strength requirements.
Strategy 3: Performance Metrics
Patent claims specify target properties for low-temperature fenders:
- R₋₃₀/R₂₃ ≤ 1.3: Reaction force at -30°C should not exceed 1.3× the 23°C value
- R₀/R₂₃ ≤ 1.05: Reaction force at 0°C should not exceed 1.05× baseline
- tan δ < 0.07: Dynamic mechanical properties indicating good elasticity
| Criterion | Standard Rubber | Low-Temperature Formulation |
|---|---|---|
| Base polymer | NR/SBR blend or 100% SBR | 100% NR or NR/BR optimized blend |
| Tg | -40°C to -50°C | Below -60°C |
| Reaction force at -30°C | 1.5–2.0× baseline | ≤1.3× baseline |
| Energy absorption at -30°C | Significantly reduced | Maintained near baseline |
| Compression set | May increase in cold cycles | Stable across temperature range |
| Service life in Arctic | 5–8 years (estimated) | 12–15+ years |
| Manufacturing cost | Baseline | 10–20% premium |
| Certification | ISO 17357 standard | ISO 17357 + cold-climate validation |
| Port Condition | Standard Rubber | Low-Temp Formulation | Recommendation |
|---|---|---|---|
| Minimum temp > -10°C | ✓ Acceptable | ✓ Optimal | Standard may suffice |
| Minimum temp -10°C to -20°C | ⚠ With high TF | ✓ Optimal | Low-temp recommended |
| Minimum temp -20°C to -35°C | ✗ Not recommended | ✓ Required | Low-temp mandatory |
| Minimum temp < -35°C | ✗ Unsuitable | ⚠ Specialized required | Custom formulation needed |
For Arctic port applications, standard ISO 17357 certification is necessary but insufficient. Require:
1. Temperature Factor (TF) data specific to the compound formulation

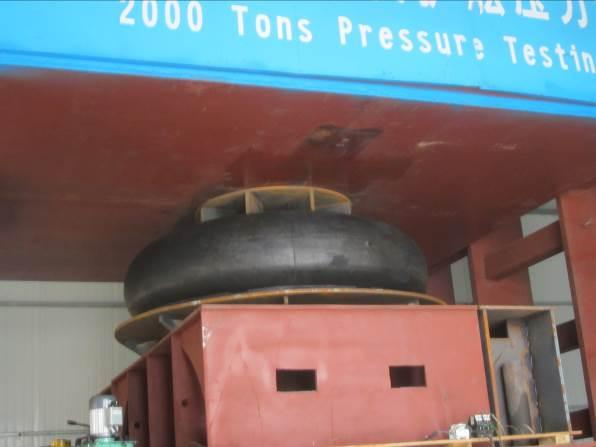

2. Low-temperature compression test reports at expected minimum temperature
3. Dynamic mechanical analysis (DMA) showing Tg and tan δ values
4. Third-party witness of low-temperature testing (BV, SGS, ABS, LR, DNV)
5. Material traceability from raw polymer to finished product
Critical note: PIANC WG211 requires that temperature factors be manufacturer-specific and compound-specific. A TF table from one manufacturer cannot be applied to another manufacturer's product.
Based on two decades of experience manufacturing fender systems for global ports, the following recommendations apply to Arctic deployments:
1. Calculate design berthing energy using PIANC WG211 methodology with site-specific temperatures
2. Obtain TF data from the fender manufacturer for the specific compound proposed
3. Verify TF application — TF must be applied alongside velocity factor (VF)
4. Specify minimum performance requirements at the lowest expected operating temperature
5. Require third-party verification of low-temperature performance
1. Request compound documentation — not just product certificates
2. Verify base polymer type — 100% NR preferred for Arctic applications
3. Audit manufacturing consistency — formulation variations between batches create performance risks
4. Include low-temperature testing in purchase specifications
5. Plan for lifecycle cost — higher initial cost of low-temperature formulations is offset by extended service life
The choice between standard rubber and low-temperature formulation rubber for Arctic ports is not a marginal specification detail. It is a fundamental engineering decision that determines whether a fender system performs as designed or becomes a liability.
Standard rubber, optimized for temperate conditions, exhibits reaction force increases of 50–100% at -30°C—loads that can exceed vessel hull pressure limits and structural design assumptions.
Low-temperature formulation rubber, engineered with 100% natural rubber bases and optimized molecular mobility, maintains reaction force within 30% of baseline values while preserving energy absorption capacity.
At NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD, we manufacture fender systems for global ports across diverse climate zones. Our 23+ years of experience, 100,000㎡ production facility, and third-party certifications (CCS, BV, LR, TUV, SGS, INTERTEK, GL) support OEM and ODM partnerships with brand owners, wholesalers, and manufacturers worldwide.
[CTA]
Need low-temperature fender systems for Arctic or cold-climate ports?
Contact NANJING TAIDUN:
- Email: service@taidunmarine.com
- Website: www.taidunmarine.com
- Services: Custom rubber formulation, low-temperature testing, OEM/ODM manufacturing, third-party certification coordination
1. Google Patents. "Fender and a production method for the same." [https://patents.google.com/patent/US20020042460]
2. PIANC Australia. "Insights into PIANC Fender Guidelines 2024 (WG211)." [https://pianc.org.au/wp-content/uploads/2024/08/PIANC-ANZ_Insights-into-PIANC-Fender-Guidelines-2024_July2024.pdf]
3. Google Patents. "Fender and manufacturing method thereof." [https://patents.google.com/patent/JP2002013121A/en]
4. Canadian Government. "Pneumatic Fender Specifications." [https://canadabuys.canada.ca/documents/pub/att/2014/06/17/80ef8f7561840b3bf3e86eb8ddabff70/ABES.PROD.PW_HAL.B217.E9291.EBSU000.PDF]
5. ISO 17357-1:2014. "Ships and Marine Technology – Floating Pneumatic Rubber Fenders." [https://www.ratchakitcha.soc.go.th/DATA/PDF/2560/E/106/7.PDF]
Tg is the temperature at which rubber transitions from elastic (rubber-like) behavior to brittle (glass-like) behavior. Below Tg, rubber loses its ability to absorb energy through elastic deformation. Standard rubber compounds may have Tg in the -40°C to -50°C range, which is close to typical Arctic winter temperatures. Low-temperature formulations target Tg below -60°C to maintain elasticity in extreme cold.
Patent research documents that standard rubber fenders can exhibit reaction forces more than twice the 23°C value when compressed at -30°C. For a fender with 1,000 kN rated reaction force, the actual force at -30°C could reach 2,000 kN—potentially exceeding vessel hull pressure limits and structural design assumptions.
100% natural rubber (NR) compounds demonstrate superior low-temperature performance compared to synthetic rubber (SBR) or NR/SBR blends. Temperature Factor data shows 100% NR has a TF of 1.142 at -20°C, while 100% SBR has a TF of 1.410—meaning SBR requires 41% over-design compared to 14% for NR.
Technically possible but economically inefficient. Applying large safety factors to standard rubber requires oversized fender systems that may not fit berth geometry, transmit excessive reaction forces to the structure, and still may not perform reliably at extreme temperatures. Low-temperature formulation rubber provides a more direct engineering solution.
Require: (1) Temperature Factor (TF) data specific to the proposed compound, (2) low-temperature compression test reports at expected minimum temperature, (3) Dynamic Mechanical Analysis (DMA) showing Tg and tan δ, (4) third-party witness reports (BV, SGS, ABS, LR, DNV), and (5) full material traceability documentation.
PIANC WG211 requires applying Temperature Factor (TF) during fender selection to convert catalogue performance to site-specific conditions. TF must be applied alongside Velocity Factor (VF) — not instead of it. TF values are compound-specific and must be obtained from the fender manufacturer.
