Introduction: The Cost of Getting It Wrong

Selecting the correct marine rubber fender is not merely a procurement exercise; it is a critical engineering decision that directly impacts the safety, operational efficiency, and longevity of your dock or vessel. An undersized fender can lead to catastrophic structural damage to your berthing structure,while an oversized, overly stiff fender can impose excessive reaction forces on a vessel’s hull, causing costly repairs.

This guide provides a systematic approach to selecting the optimal fender type for your project. We will focus on the three most common configurations—Cylindrical, Cell, and Arch fenders—analyzing their unique performance characteristics, ideal applications, and key selection criteria. By the end, you will have a clear framework for making an informed choice that balances energy absorption, reaction force, and total cost of ownership.



1. Understanding Core Performance Metrics

Before comparing fender types, it is essential to understand the two key parameters that define their performance:

①Reaction Force (R)-Measured in kN (kilonewtons):This is the force exerted by the fender against the vessel's hull during berthing. A lower reaction force is generally preferable as it minimizes stress on both the vessel and the dock structure.

②Energy Absorption (E)-Measured in kNm (kilonewton-meters):This is the amount of kinetic energy the fender can safely absorb during impact. It is the fender’s primary function—to safely decelerate a vessel.

The relationship between these two metrics defines a fender's performance curve.The ideal fender provides high energy absorption with a low reaction force.



2. Deep Dive into Three Main Fender Types

2.1 Cylindrical Fenders

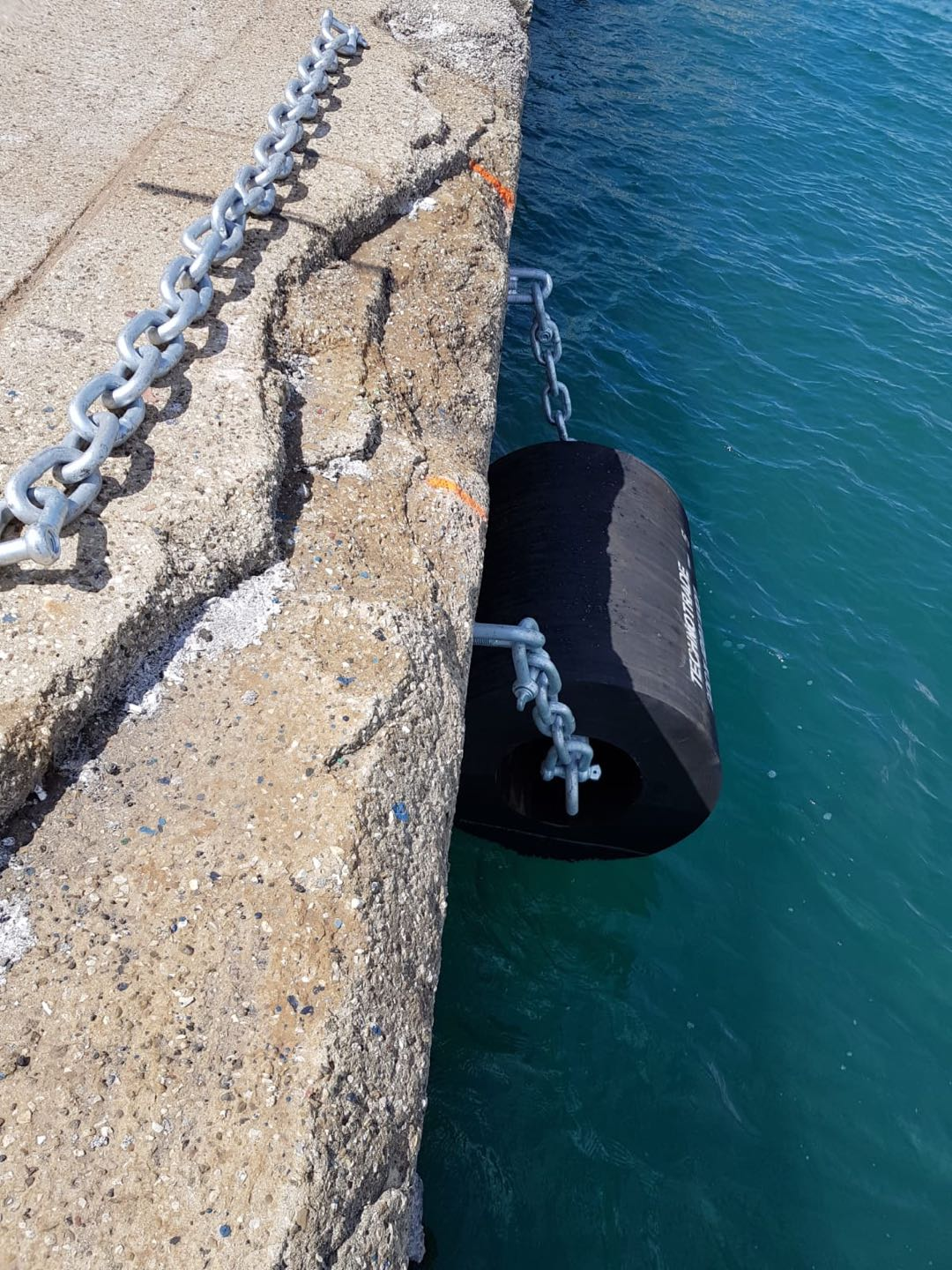

Description:Cylindrical fenders are the most widely used type globally. They are simple, durable, and typically installed by suspending them with chains or ropes from a wharf or quay.

2.1.1Key Characteristics:

①Performance:They offer a moderate energy absorption capacity with a high reaction force. Their performance curve is relatively "stiff," meaning they provide firm resistance quickly.

②Flexibility:Their greatest advantage is flexibility. When suspended, they can roll with the vessel's hull, accommodating large tidal ranges and berthing angles, making them highly tolerant of misalignment.

③Maintenance:Installation and replacement are straightforward due to their simple design and use of chains.

2.1.2 Ideal Applications:

①Large Tidal Range Berths:Where water levels fluctuate significantly, requiring fenders that can adapt vertically.

②Multi-Purpose Docks:Serving a variety of vessels with different hull shapes and freeboards.

③Small to Medium-Sized Vessels:Such as tugs, barges, and fishing boats.

④Retrofit Projects:Where simple, cost-effective installation is a priority.

2.1.3 Common Variants:

①Plain Cylindrical:Standard, all-rubber construction.

②Wing Type (or G-Cylindrical):Features rubber wings on the sides to prevent the chain from rubbing against the fender body, significantly extending service life.

③With Steel End Plates:For high-load applications, steel plates distribute pressure and protect the rubber ends.

2.2 Cell Fenders

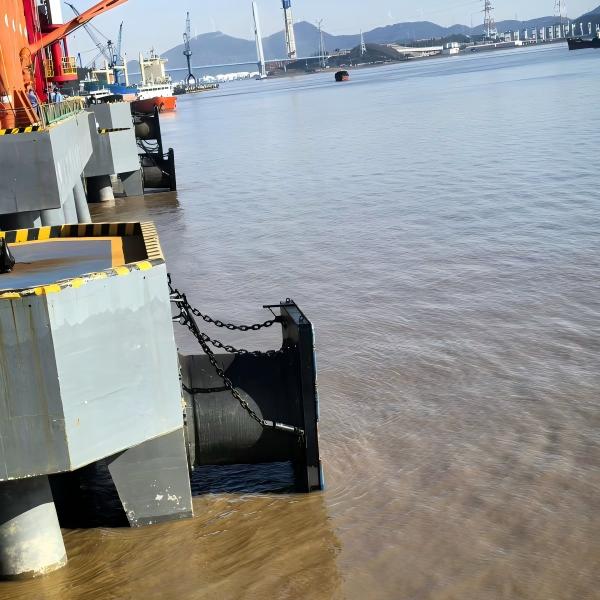

Description:Cell fenders are a type of "buckling" fender, available in various shapes (e.g., D-type, Square, Super-Cell). They are typically made from high-quality natural rubber and are known for their superior energy absorption efficiency.

2.2.1Key Characteristics:

①Performance:They possess an exceptional energy absorption-to-reaction force ratio. Their performance curve is "soft," meaning they absorb a large amount of energy while exerting a relatively low force on the hull. This is their defining advantage.

②Stability:They are designed for fixed, rigid installation (bolted directly to the quay wall), offering excellent lateral stability.

③Durability:The "buckling" action distributes stress evenly across the rubber body, leading to excellent fatigue resistance.

2.2.2 Ideal Applications:

①Large Vessels:Such as container ships, bulk carriers, tankers, and LNG carriers where high energy absorption is critical.

②Fixed Quays and Piers:Where the fender is permanently bolted to a rigid structure.

③High-Traffic Ports:Where frequent, high-energy berthings occur, demanding superior durability and performance.

④Projects with Strict Structural Limits:Where the dock structure itself has a limited capacity for reaction force.

2.2.3Common Variants:

①D-Type Cell:The most common cell fender, ideal for general cargo and container terminals.

②Super-Cell Fender:An advanced version with even higher energy absorption and lower reaction force, often used for the largest vessels.

③Square Cell:Offers a very flat face pressure distribution, suitable for vessels with sensitive hull plating (e.g., aluminum hulls).

2.3 Arch Fenders

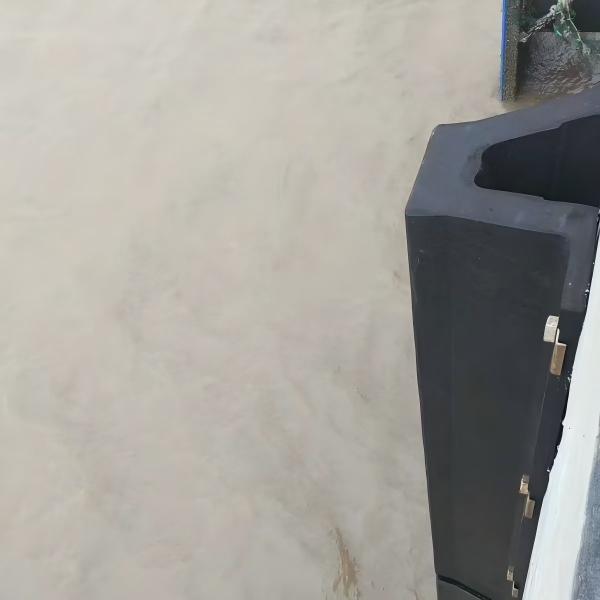

Description:Arch fenders are compact, high-energy absorption fenders with a distinctive arched profile. They are designed for both fixed and panel-type installations.

2.3.1Key Characteristics:

①Performance:They offer a balanced performance profile, providing good energy absorption with a moderate reaction force. Their unique shape allows for a relatively flat face pressure distribution.

②Versatility:They can be used in various configurations, including direct mounting on quay walls or as the core element in pile-type fenders(where they are mounted on a steel pile).

③pace Efficiency:Their compact design makes them suitable for projects with space constraints on the quay surface.

2.3.2 Ideal Applications:

①Pile-Mounted Systems:When combined with steel piles, they create flexible, standalone fender systems ideal for dolphin structures or corners of docks.

②Barge and Ro-Ro Ramps:Their flat face and good pressure distribution make them suitable for the vertical movements associated with ramps.

③Where Hull Protection is Paramount:Their design minimizes point loading, reducing the risk of hull damage.

④Upgrading Existing Structures:Can be added to existing quays where a retrofit solution is needed.

2.3.3Common Variants:

①Standard Arch:For direct mounting on concrete or steel.

②Arch with Steel Panel:The steel panel spreads the load over a wider area, further reducing hull pressure and providing additional protection against abrasion.



3. Comparative Analysis: Cylindrical vs. Cell vs. Arch

To simplify your decision, refer to the table below based on typical project drivers:

Feature / Application	Cylindrical Fender	Cell Fender	Arch Fender
Primary Advantage	Flexibility, cost-effectiveness	Superior energy absorption per unit reaction force	Versatility, flat face pressure
Installation Type	Chain-suspended	Fixed, bolted	Fixed, bolted, or pile-mounted
Ideal Vessel Size	Small to Medium	Large to Very Large (Ultra-Large)	Small to Medium (with pile option for Large)
Tidal Range Tolerance	Excellent (due to chain suspension)	Low (fixed installation)	Medium (depends on configuration)
Reaction Force	High (stiff curve)	Low (soft curve)	Moderate
Total Cost of Ownership	Low initial cost, medium maintenance (chains)	Higher initial cost, low maintenance	Medium initial cost, low maintenance



4. A Step-by-Step Selection Process

Follow these steps to finalize your fender selection:

①Define the Vessel Profile:Determine the largest vessel type, its displacement (tonnage), and its typical berthing velocity. The product `1/2*Mass*(Velocity)^2` gives you the required Energy Absorption (E) .

②Assess the Dock Structure:Understand the quay wall's design. What is the maximum Reaction Force (R) it can safely withstand?

③Calculate Required Performance:With the values for E and R, you can now review manufacturer data sheets to find a fender size and type that meets both criteria.

④Consider Operational Constraints:

Is there a large tidal range? Cylindrical fenders are likely your best option.

Is the dock structure old or limited in capacity? Prioritize Cell fenders for their low reaction force.

Is hull protection a critical concern? Consider Arch fenders with a steel panel for optimal pressure distribution.

⑤Validate with Installation:Determine how the fender will be installed. Is there space for chain suspension? Or does the quay have pre-embedded bolts for a fixed system?



Conclusion & Next Steps

Selecting the right marine rubber fender is a balance of physics, project constraints, and operational needs. Cylindrical fenders offer flexibility and simplicity, Cell fenders provide superior performance for large vessels, and Arch fenders deliver versatile, hull-friendly solutions.

Selecting the wrong fender can lead to expensive repairs and operational downtime. To ensure you make the right choice, the final and most critical step is to validate your selection with precise project data.
