A century-old port at the mouth of the Thames Estuary faced a familiar problem: larger Roll-on/Roll-off (RoRo) vessels were arriving, but the existing fender systems simply couldn't keep up. The mounting space on the jetty was tight. The vessels had hull beltings that could snag on traditional fenders. And downtime for major construction was not an option.
The solution? Modular element rubber fenders.
At Nanjing Taidun Marine Equipment Engineering Co., Ltd., we manufacture OEM modular element fender systems for global brands and wholesale distributors. We have seen firsthand why these compact, high-performance units are rapidly becoming the preferred retrofit product for compact berths worldwide. This guide explains why—and how to determine if they are right for your next project.
Before examining their advantages, let's define exactly what we're discussing.

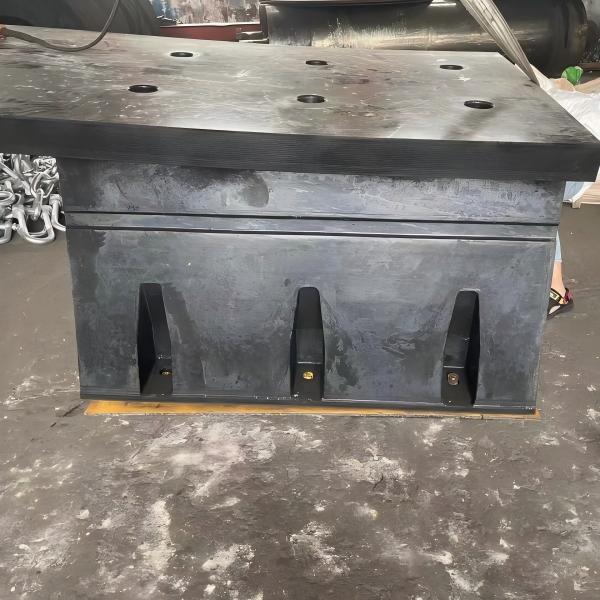

Modular element rubber fenders are fully molded rubber legs with embedded mounting plates . They represent a modular evolution of traditional V-type fenders, but with a critical difference: the legs are separated rather than connected at the base .
| Feature | Description |
|---|---|
| Construction | Fully molded rubber legs with embedded steel mounting plates |
| Mounting | Vertical, horizontal, or combined orientation |
| Footprint | Extremely small—ideal for space-constrained installations |
| System types | Single elements (pile fenders), paired elements (V-fenders), or arrays (steel panels) |
Available sizes: Heights from 250mm to 1,600mm, standard lengths from 500mm to 2,000mm . Multiple rubber hardness grades enable precise energy absorption tuning.
Older ports face a specific set of challenges when upgrading:
- Limited mounting space behind existing quay walls
- Pile foundations that cannot accommodate wide, heavy fenders
- Operational pressure to minimize downtime
- Vessel evolution—ships are larger and have different hull profiles than when the original fenders were installed
Traditional fender types—cone, cell, and cylindrical—often require significant mounting area. For older berths, that space simply does not exist.
Modular element rubber fenders solve these problems through three fundamental advantages.
The separated leg design creates a smaller mounting footprint than traditional leg fenders . This is critical for:
- Pile-mounted installations with limited real estate
- Retrofitting behind existing quay structures
- Dolphin and monopile applications
Elements can be mounted vertically, horizontally, or in combination . This adaptability means a single fender type can address multiple berthing geometries within the same project.
Individual damaged elements can be replaced without dismantling the entire system . For retrofit projects where minimizing downtime is paramount, this feature is invaluable.
The Port of Sheerness provides an excellent demonstration of why modular element rubber fenders have become the preferred retrofit product for compact berths.
Located at the mouth of the Thames Estuary, the Port of Sheerness is part of the London Medway cluster operated by Peel Ports. Originally constructed in the early 19th century, the port handles automotive, steel, timber, and RoRo cargo .
Berth No. 1 faced a specific problem: the existing fender systems had become inadequate for the larger RoRo vessels now docking at the berth. The jetty had limited mounting space, ruling out larger fender types .
NANJING TAIDUN designed and delivered a customized solution consisting of 9 sets of Pile Fenders, each featuring an Element Fender (ME 1600×1500 G2.8) and a closed-box steel panel measuring 2200×7650 mm .
Why element fenders? The in-house engineering team selected them specifically for their compact, modular design—perfectly suited to the project's space constraints .
The Port of Sheerness project illustrates that proper retrofit design goes beyond selecting the fender itself :
| Engineering Feature | Purpose |
|---|---|
| Large steel panel clamped over pile | Distributed loads; lasting stability |
| Shear chains | Resist horizontal forces from berthing maneuvers |
| Chamfers | Prevent hull beltings from snagging on/below the panel |
| Specially engineered pile construction | Driven deep into seabed for stability |
> *"The Port of Sheerness continues to build on its proud legacy as a hub for international trade, showcasing how heritage and state-of-the-art fender systems can seamlessly coexist."*
> — *Marine Construction Magazine*
This historic port is now prepared to welcome larger vessels—demonstrating that element fenders are not just a compromise for tight spaces but a legitimate high-performance solution.
The Port of Ngqura, a deep-water port in South Africa capable of serving Super Post-Panamax container vessels up to 12,500 TEU, faced a different retrofit challenge .
The four container berths were originally equipped with different fender systems from various suppliers. A new requirement from Transnet National Port Authority (TNPA) mandated that all fenders on the berths should be of the same type—requiring replacement of approximately half the existing systems .
Stefanutti Stocks Coastal selected element fenders. NANJING TAIDUN delivered 15 sets of Element Fender Systems (H 1000mm × L 1200mm) with steel panels measuring 2800mm × 4000mm. Ten sets were installed, while five remain in stock as spare parts .
| Metric | Detail |
|---|---|
| Order confirmed | July 2021 |
| Design & manufacturing | Rapid turnaround |
| Arrival on site | February 2022 |
| Compliance | On schedule with rehab timeline |
| Quality verification | TGA testing performed on-site by independent lab |
The project demonstrates element fenders' suitability for standardization across multiple berths—a significant advantage for port authorities managing large facilities.
The most important performance metric for any marine fender is the energy absorption to reaction force ratio (E/R) . Element fenders excel here.
| Performance Metric | Element Fender Advantage |
|---|---|
| Energy absorption per weight of rubber | High—efficient material utilization |
| Reaction force | Low relative to energy absorbed |
| Angular performance | Good—accommodates off-center impacts |
| Lengthwise shear strength | Strong—critical for pile-mounted systems |
This combination—high energy absorption with low reaction force—means element fenders protect both the vessel hull and the quay structure while fitting into spaces where larger fenders cannot.
Quality element fenders are tested and certified to international standards :
| Certification | Scope |
|---|---|
| BV / PIANC 2002 | Performance testing and test protocol verification |
| ASTM F2192-05 | Rated Performance Data confirmation |
| ISO 14401:2004 | Quality management |
| CCS Factory Certification | Manufacturing quality |
> *"ALL NANJING TAIDUN'S UNIT ELEMENT MARINE FENDERS ARE APPROVED BY BUREAU VERITAS TO PIANC 2002 AND ASTM FZ192-05 PROTOCOLS."*
> — *NANJING TAIDUN Product Documentation*
Based on industry documentation and real-world project data, element fenders are suitable for :
| Application | Why Element Fenders Excel |
|---|---|
| Container Terminals | Modular layout; easy replacement |
| Tanker Berths | High energy absorption with low hull pressure |
| RoRo & Cruise Berths | Accommodates hull beltings; shear chains integration |
| Dolphins & Monopiles | Small footprint critical |
| Bulk Terminals | Durable; handles frequent impacts |
| Fender Walls | Uniform performance across length |
| Parallel Motion Fenders | Compatible with advanced systems |
| Small Ship Berths | Cost-effective; appropriately scaled |
Not every berth needs element fenders. According to industry buyer's guides, here are the signs that an upgrade to element rubber fenders is warranted :
| Sign | What It Indicates |
|---|---|
| Visible cracking, chunking, or permanent deformation | Existing fenders have exceeded service life |
| Fender panels “hook” or snag the hull | Geometry mismatch with modern vessels |
| Limited dock space prevents larger fender types | Cell/cone fenders won‘t fit; elements will |
| Rising maintenance costs | Frequent repairs indicate system inadequacy |
| Docking incidents are increasing | Existing system no longer provides adequate protection |
> *"Delaying an upgrade means facing higher repair bills, compromised safety, and potential downtime. In fast-paced marine operations, every day lost to damaged fendering is revenue slipping through the cracks."*
> — *Taidun Marine Buyer's Guide*
We asked our OEM clients about their experience with modular element rubber fenders. Here is what they shared:
> *"We retrofitted our older container berth with element fenders two years ago. The mounting space was extremely tight—we couldn't have fit cone fenders without major concrete work. The element system went in with minimal disruption, and performance has been excellent."*
> — *Terminal Operations Manager, Southeast Asia*
> *"What sold us on element fenders was the modular replacement capability. We keep a few spare elements in inventory. When a unit gets damaged—which hasn't happened yet, by the way—we can replace just that leg instead of shutting down the entire berth."*
> — *Maintenance Director, Middle East Port*
> *"The Port of Sheerness case study convinced our engineering team. If a historic port with tight space constraints could make element fenders work for modern RoRo vessels, our application was certainly feasible."*
> — *Project Engineer, European Port Authority*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we manufacture modular element rubber fenders that deliver the performance characteristics described above—with OEM flexibility for global brands.
Our element fender capabilities include:
| Service | Description |
|---|---|
| Custom sizes | Heights 250mm–1,600mm; lengths to 2,000mm+ |
| Multiple rubber grades | Tailored energy absorption and reaction force profiles |
| Embedded mounting plates | Galvanized or stainless steel per specification |
| Full accessory packages | Steel panels, shear chains, mounting hardware |
| Third-party certification | BV, PIANC, ASTM, CCS available |
| Global OEM support | Brand owners, wholesalers, production facilities in 80+ countries |
We serve clients who sell under their own brand. When you partner with Taidun, you get factory-direct pricing, custom engineering, and documented certification—not a one-size-fits-all catalog product.
Modular element rubber fenders have become the preferred retrofit product for compact berths for good reason: compact footprint, flexible mounting orientation, excellent energy-to-reaction ratio, modular replacement capability, and proven performance in real-world projects like the Port of Sheerness and Port of Ngqura.
If you are facing space constraints, vessel evolution challenges, or rising maintenance costs with your current fendering, element fenders may be the solution you've been searching for.
[Contact the Nanjing Taidun Engineering Team] for a free retrofit consultation. Send us your berth dimensions, vessel types, and energy requirements—and we will recommend the optimal element fender configuration for your project.
Q1: What are modular element rubber fenders?
A: Element rubber fenders are fully molded rubber legs with embedded mounting plates. They are a modular evolution of V-type fenders, designed for installation behind steel panels or in confined spaces where traditional fenders won't fit .
Q2: Why are element fenders preferred for compact berth retrofits?
A: They offer a small footprint, flexible vertical/horizontal orientation, high energy absorption per weight of rubber, and modular replacement capability—allowing upgrades without major structural modifications .
Q3: What certifications should quality element fenders have?
A: Look for BV approval to PIANC 2002 and ASTM F2192-05 protocols, ISO 14401:2004, and CCS Factory Certification. These ensure published Rated Performance Data is verified .
Q4: How long do element rubber fenders last?
A: Expect 10–20 years depending on berth type, vessel traffic, and environmental conditions. The modular design allows individual element replacement without full system replacement .
Q5: Can element fenders handle large tidal ranges or rough seas?
A: Yes. Their high elastomeric quality tolerates significant deflection. When properly installed with appropriate steel panels and shear chains, they perform reliably in challenging conditions .
