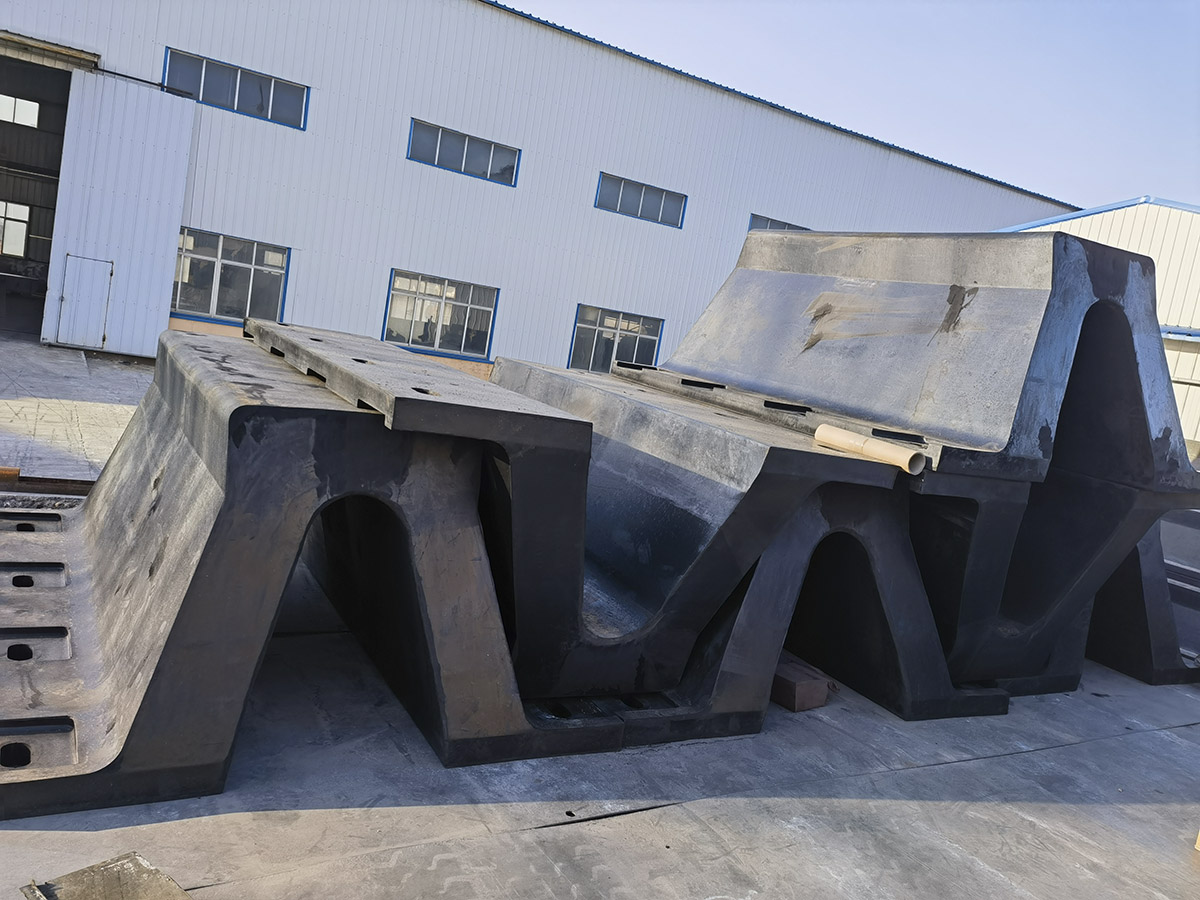

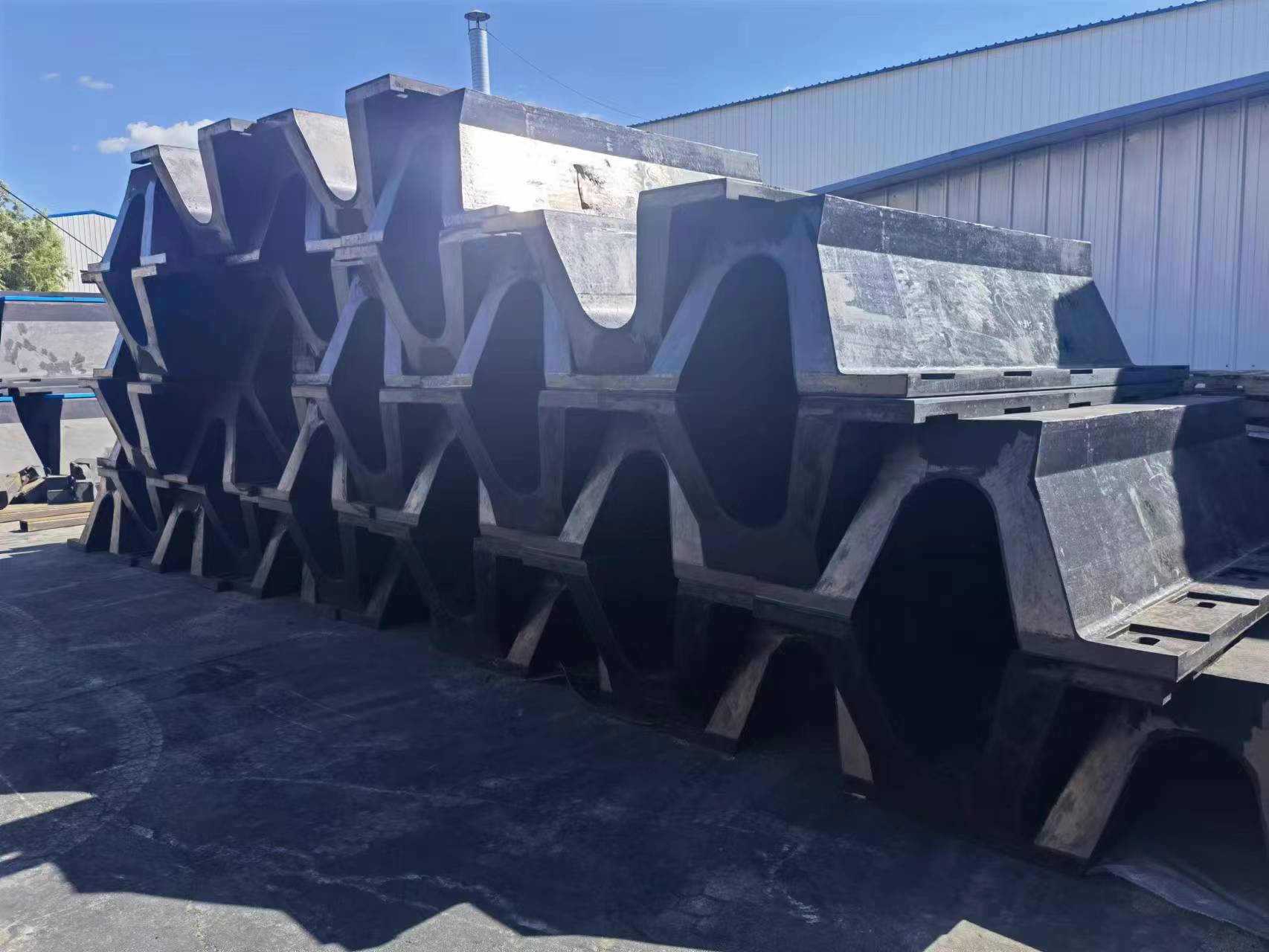

Super Arch Rubber Fender

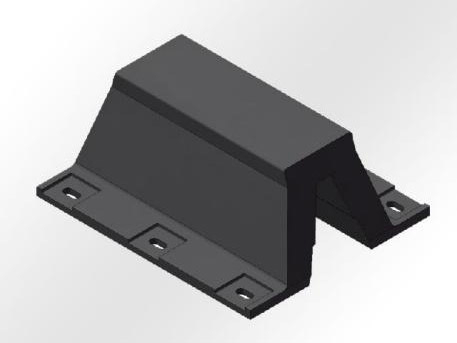

DA-A type Arch Fender
Arch fenders are new generation of V type fenders. Super Arch fenders get bigger compression ratio, higher energy absorption and lower reaction force. Arch fenders are simple and rugged which make them can be used in most severe conditions.

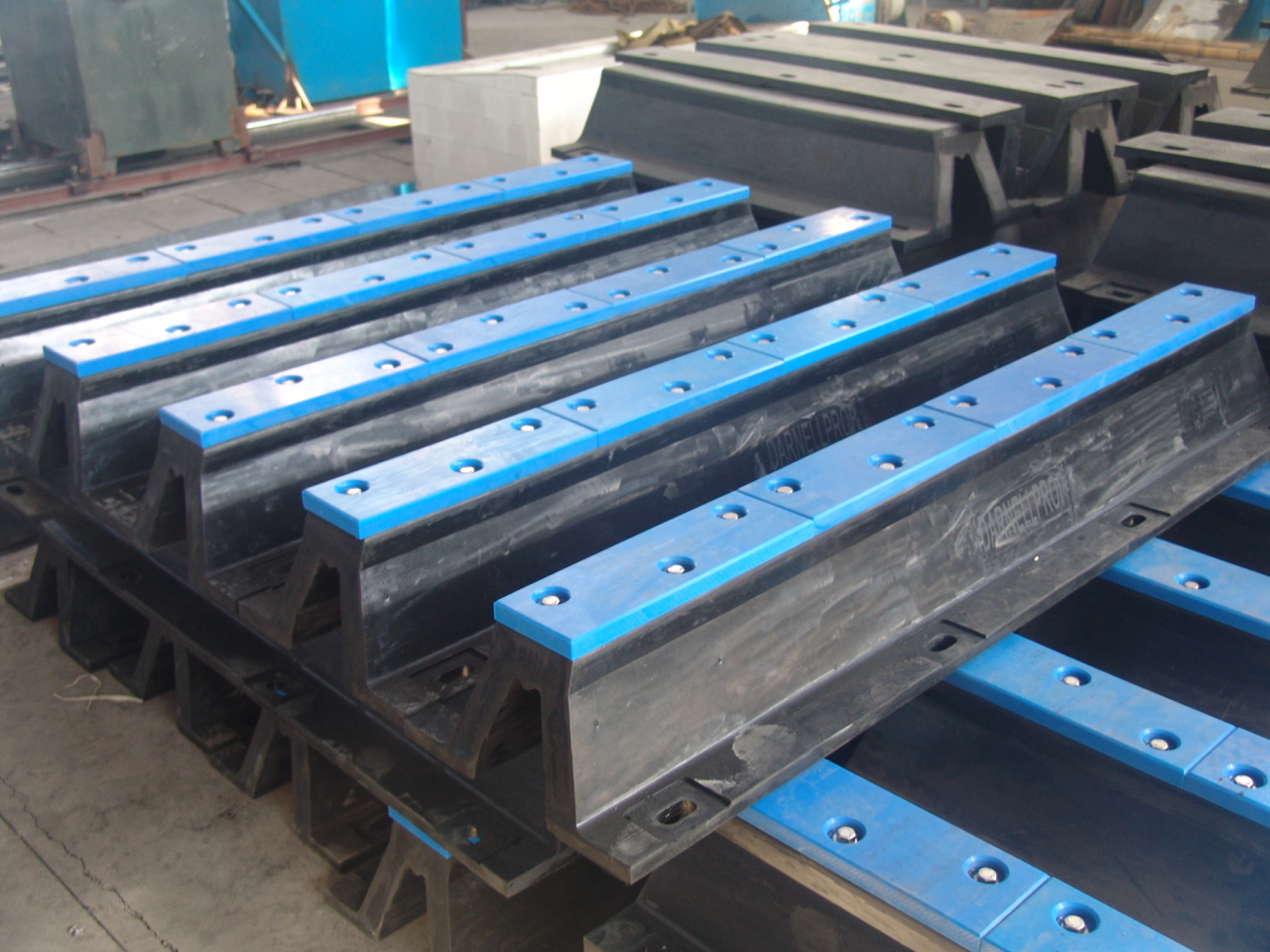

Arch fenders can be added with either UHMW-PE face pads or steel panels
Availability:

Features

Low reaction force, high energy absorption

Strong and hard wearing

Excellent shear performance

Large range of standard sizes

Simple and reasonable structure, long life span

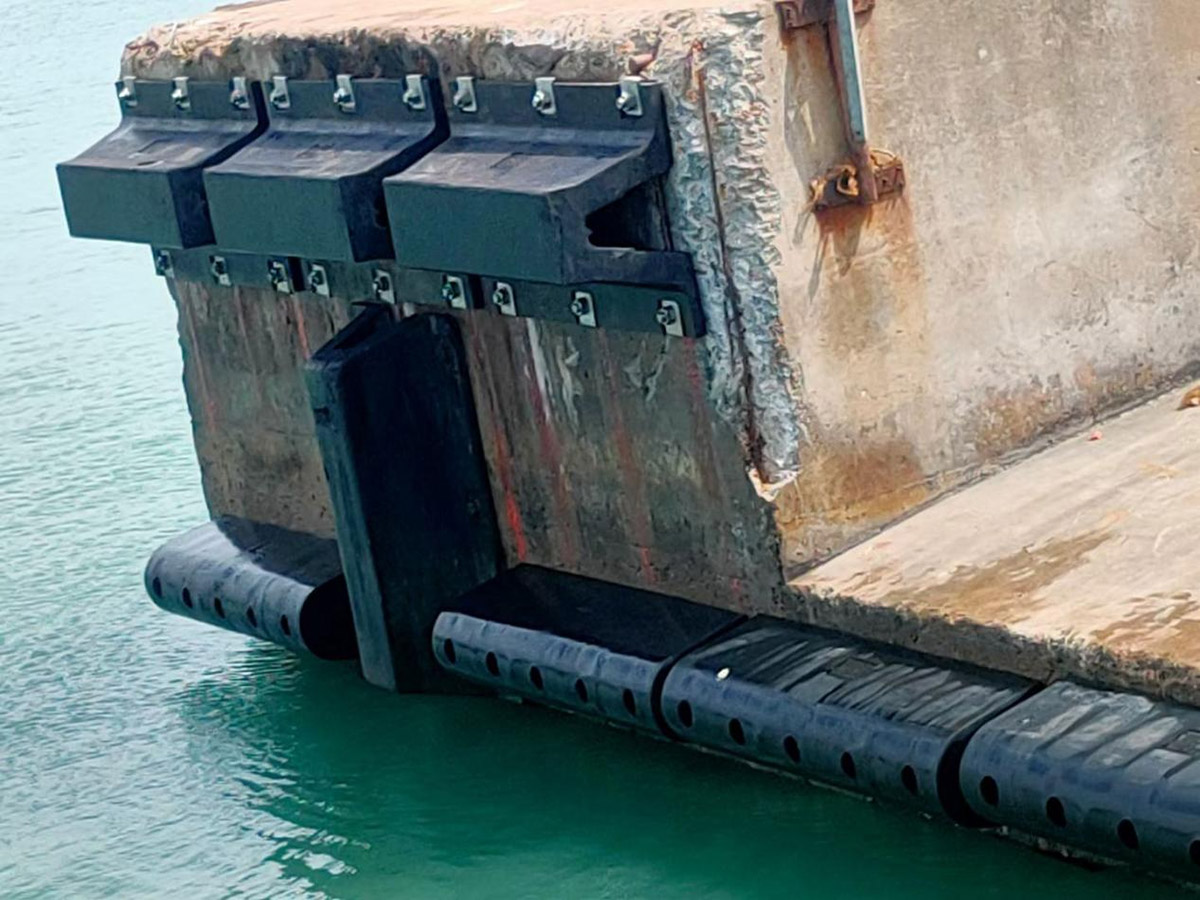

Applications

RoRo berths

General Cargo berths

Workboat harbors

Barge and tug berths

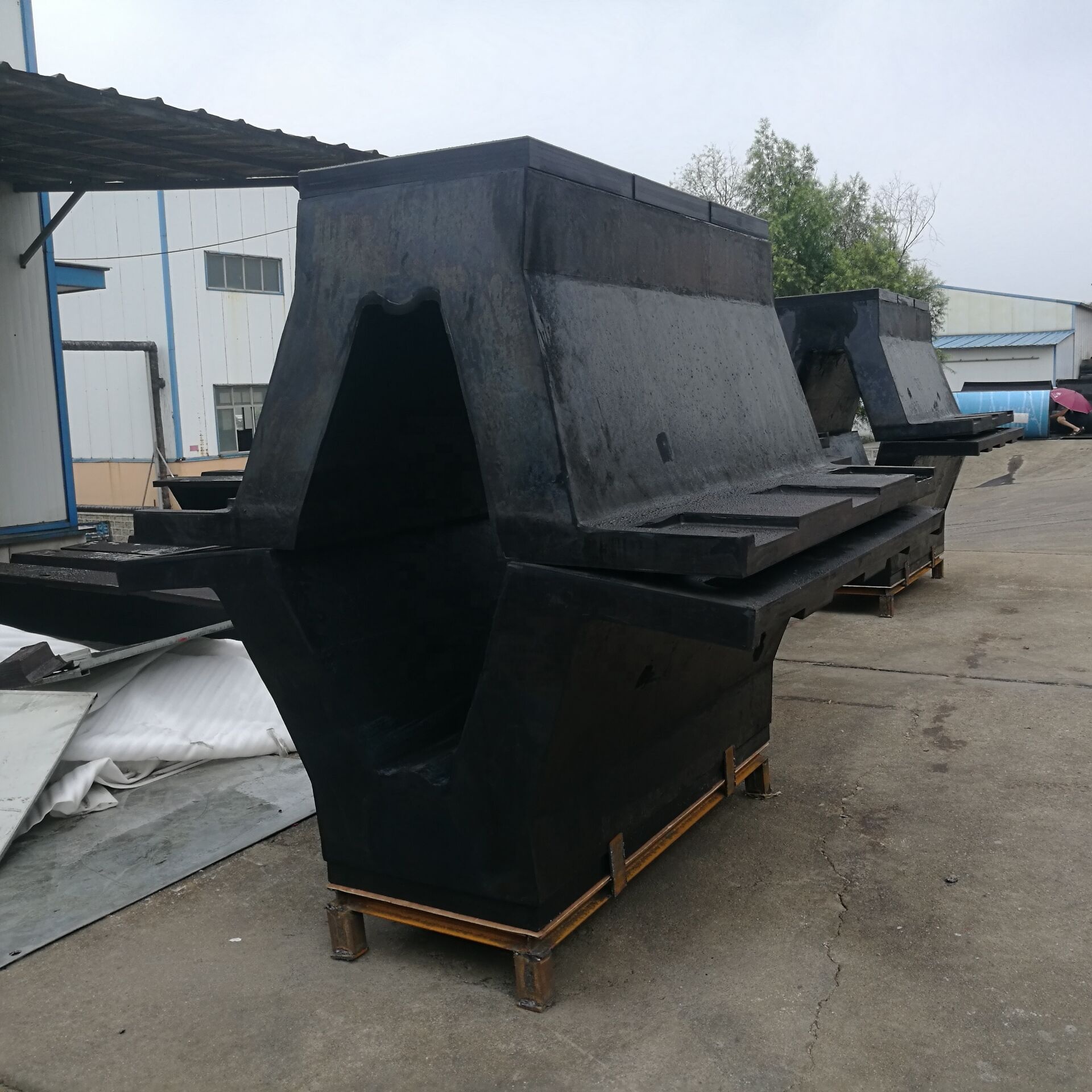

Super Arch Rubber Fender (7)

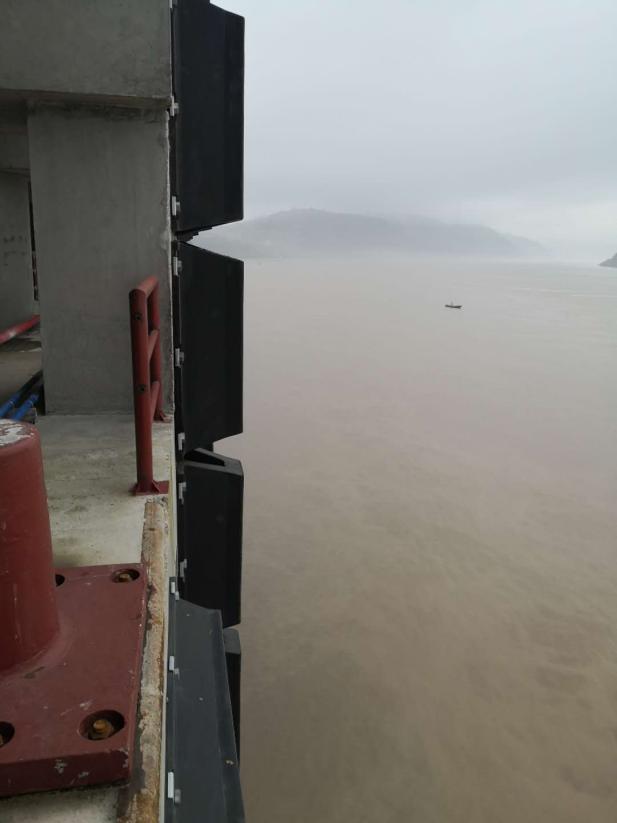

Super Arch Rubber Fender (8)

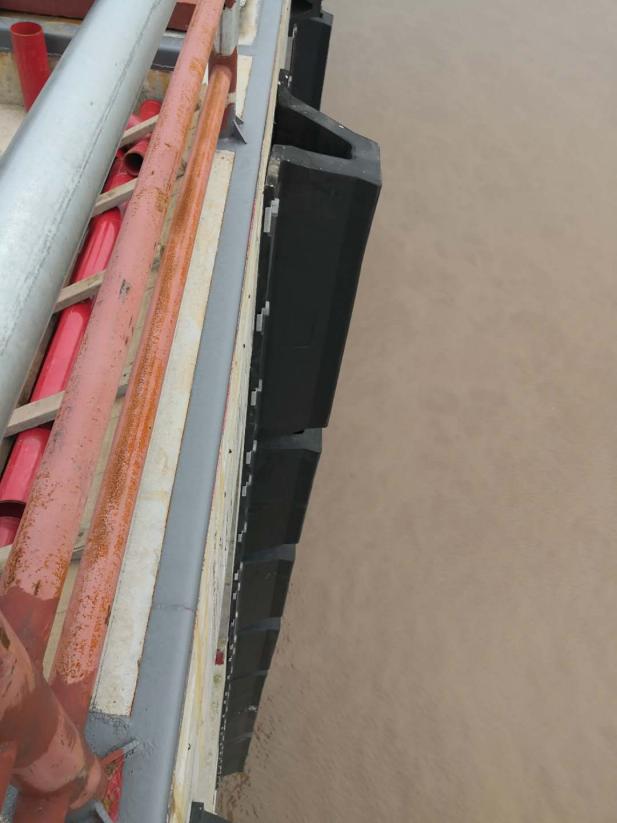

Super Arch Rubber Fender (9)

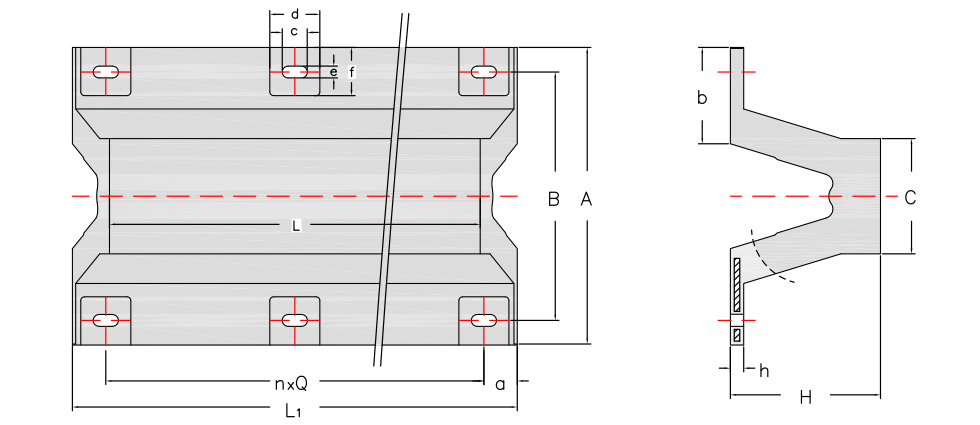

Specifications

Super Arch Rubber Fender


Specification

H

A

B

C

b

h

c

d

e

f

Weight(KG)

DA200H

200

400

320

130

128

30

58

105

29

75

64

DA250H

250

500

410

164

160

30

64

125

32

90

86

DA300H

300

600

490

225

195

33

70

140

35

105

129

DA400H

400

800

670

300

260

40

82

165

41

120

210

DA500H

500

1000

840

375

325

45

94

180

47

140

328

DA600H

600

1200

1001

450

390

54

100

195

50

160

486

DA800H

800

1600

1340

600

520

72

136

270

68

260

883

DA1000H

1000

2000

1680

750

650

90

136

290

68

300

1411


Performance

R/F:KN

E/A:KN-M

200H

250H

300H

400H

500H

600H

800H

1000H


RS

52.5%

R(KN)

170

270

318

423

529

634

847

1058

E(KN.M)

11

28

40

72

111

160

284

445

55%

R(KN)

230

375

441

588

735

881

1176

1470

E(KN.M)

14

30

43

76

119

172

305

476


RH

52.5%

R(KN)

150

208

244

325

407

488

651

813

E(KN.M)

10

22

30

55

86

124

219

342

55%

R(KN)

200

288

339

451

565

678

904

1130

E(KN.M)

12

23

32

59

91

132

234

367


RO

52.5%

R(KN)

110

172

201

270

337

404

539

675

E(KN.M)

8

18

25

45

71

102

181

283

55%

R(KN)

150

239

288

347

468

561

749

937

E(KN.M)

9

19

26

48

76

109

194

305


RL

52.5%

R(KN)

75

148

174

231

289

347

463

578

E(KN.M)

5

16

22

39

61

87

156

243

55%

R(KN)

100

205

241

321

402

482

643

803

E(KN.M)

6

17

24

42

65

93

167

261

Note: Tolerance±10%


Super Arch Rubber Fender

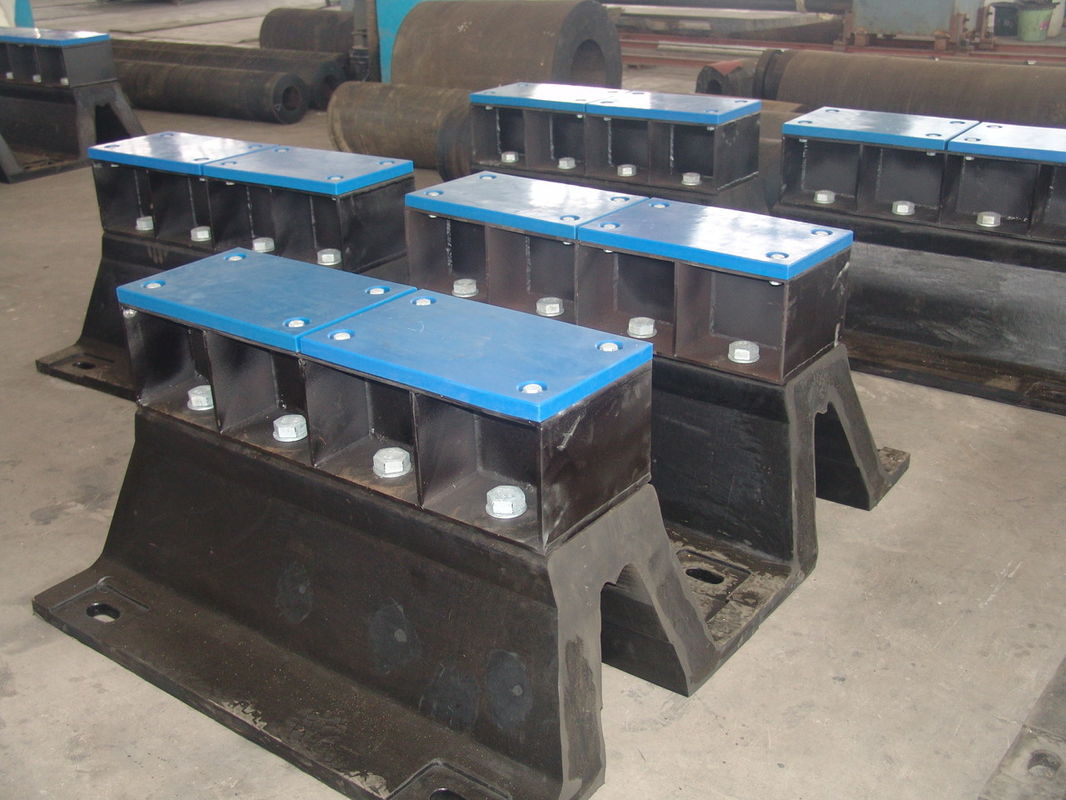

DA-B type Arch fender

DA-B Super Arch fenders are embedded with steel frame and sleeve inside the top part of DA Super Arch Fenders to bolt with frontal panel(bolts with UHMW-PE pad) in order to lessen the friction factor to protect the ship and enhance the fenders life span.

DA-B type Arch fender


Performance

R/F:KN

E/A:KN-M

200H

250H

300H

400H

500H

600H

800H

1000H

RS

50%

R(KN)

241

257

326

413

511

613

831

1015

E(KN.M)

13

24

35

64

102

133

265

417

RH

50%


R(KN)

196

208

242

316

401

462

621

788

E(KN.M)

11

19

27

49

78

108

200

312

RO

50%


R(KN)

157

165

200

261

354

386

510

638

E(KN.M)

8

15

21

41

64

83

150

262

RL

50%


R(KN)

103

144

158

229

269

299

456

539

E(KN.M)

6

12

16

31

54

71

126

221

Note: Tolerance±10%
