Introduction

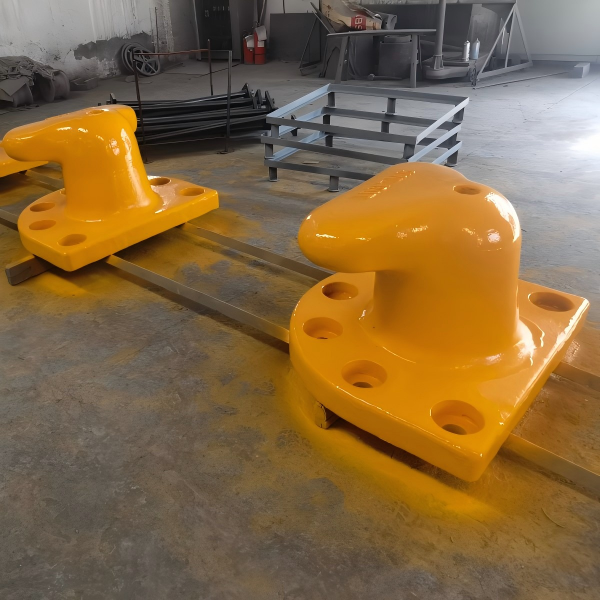

Understanding Mooring Bollard Load Capacity Is Vital for Port Safety

Every year, improper mooring calculations lead to vessel drift, equipment failure, and costly downtime at ports worldwide. Whether you manage a busy container terminal or a small marina, knowing how to accurately calculate mooring bollard load capacity ensures safer berthing, protects infrastructure, and minimizes operational risks. In this comprehensive guide, we break down the essentials — so you can make informed decisions that boost safety and efficiency.



Why Load Capacity Matters？

The mooring bollard is the primary connection point between a vessel and the shore. If its load capacity is underestimated, it may fail under stress, causing accidents such as:

①Vessel collisions with adjacent ships or quay walls

②Damage to mooring lines and fenders

③Injuries to crew and stevedores

④Delays and financial losses due to port shutdowns

Accurate load calculations help you choose the right bollard type and installation method for your specific berthing conditions.



Key Factors Influencing Mooring Bollard Load

1. Vessel Size and Displacement (H3)

Larger vessels exert significantly higher loads due to greater mass and wind surface area. Always consider:

①Deadweight tonnage (DWT)

②Length overall (LOA)

③Beam width

2. Environmental Forces

Wind, currents, tides, and waves contribute dynamic loads. For precise calculations, assess:

①Average wind speed at berth location

②Current velocity

③Wave height during mooring

3. Mooring Line Angles

Lines pulling at acute angles increase horizontal forces on bollards. Ideal angles range between 15°–30° to reduce stress concentration.

4. Fender Reaction Forces

Fenders absorb part of the kinetic energy when a ship approaches the berth. However, their reaction force must be included in total load calculations.



Step-by-Step Load Capacity Calculation

Formula for Total Mooring Load (Simplified):

F_total = F_wind + F_current + F_tide + F_fender - F_mooring_line_absorption

Where:

F_wind = 0.5 × ρ_air × Cd × A × V²

F_current = 0.5 × ρ_water × Cd × A × V²

ρ_air ≈ 1.225 kg/m³ (air density)

ρ_water ≈ 1025 kg/m³ (seawater density)

Cd = Drag coefficient (varies by vessel shape)

A= Projected frontal area

V= Wind or current velocity

Example Calculation:

For a vessel with frontal area 500 m², wind speed 25 knots (~12.86 m/s), seawater drag coefficient 1.2:

F_wind≈ 0.5 × 1.225 × 1.2 × 500 × (12.86)² ≈ 59,880 N

Repeat similar steps for current forces and sum them up. Always apply a safety factor (typically 1.5–2.0).



Material & Design Impact on Capacity

Material	Typical Yield Strength	Corrosion Resistance	Recommended Use
Cast Iron	~250 MPa	Moderate	Dry docks, low salinity
Ductile Steel	~450 MPa	Good	Heavy-duty terminals
Stainless Steel	~520 MPa	Excellent	Marine environments

Choosing the correct material ensures the bollard retains structural integrity throughout its service life.



Testing & Certification Standards

Trusted certifications include:

①DNV GL Rules for Mooring Equipment

②ISO 3913: Shipbuilding — Mooring equipment

③PIANC Guidelines

Certified products undergo static and cyclic load testing to guarantee performance under extreme conditions.



Practical Tips for Accurate Assessment

①Conduct site-specific wind and tide surveys.

②Use certified marine engineers for load analysis.

③Regularly re-assess capacity after environmental changes.

④Install load-monitoring sensors for real-time data.



Frequently Asked Questions (FAQ)

Q1: What happens if mooring bollard load capacity is too low?

A: It may deform or break under pressure, causing vessel drift and potential accidents.

Q2: Can one bollard handle multiple mooring lines?

A: Yes, but total combined load must remain within rated capacity with proper angle distribution.

Q3: How often should load capacity be recalculated?

A: At least annually, or after any significant change in vessel class, berth layout, or environmental conditions.
