When a major container terminal operator undertakes an EPC (Engineering, Procurement, and Construction) project, the berthing and mooring system is not merely an accessory—it is the critical infrastructure that determines operational safety, vessel turnaround time, and long-term asset value.
Yet I have seen too many EPC projects treat fenders and bollards as afterthoughts. The result? Premature failures, costly retrofits, and millions in downtime.
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we specialize in delivering full turnkey solutions that integrate rubber fender systems, mooring bollards, installation, and foundation design into a seamless package for container terminal EPC projects.
This guide draws from PIANC WG211 (2024) guidelines, ISO standards under development, and real-world project case studies—including the Rio de Janeiro Port Expansion—to provide a comprehensive framework for turnkey fendering solutions.
A container terminal is a high-stakes environment. Vessels exceeding 400 meters in length, with capacities over 20,000 TEU, berth at speeds that generate immense kinetic energy. The fendering and mooring system must absorb this energy reliably, every time, for decades.
The problem with fragmented procurement:
| Issue | Consequence |
|---|---|
| Fenders from Supplier A, bollards from Supplier B | Interface mismatches, warranty gaps |
| Installation by unqualified contractor | Slack chains, improper torque, corrosion points |
| Foundation design separate from fender selection | Undersized anchors, concrete blowout |
| No single point of accountability | Finger-pointing when failures occur |
The turnkey advantage:
A full turnkey solution provides single-source accountability for engineering, manufacturing, installation, and foundation design. This approach aligns with what industry leaders like ShibataFenderTeam call the "Holistic Approach" —considering the entire fender system, including project conditions, components, design, and manufacturing, in the selection and design process.
The rubber fender is the primary energy absorber. For container terminals, cell fenders, cone fenders, and super arch fenders are the most common choices.
Recommended fender types for container terminals:
| Fender Type | Best Application | Energy Range | Key Advantage |
|---|---|---|---|
| Super Cell Fender | Post-Panamax container vessels | 500–2,000+ kJ | High E/R·H value (0.450), 52.5% deflection |
| Cone Fender | Large container ships, high tidal range | 500–1,500 kJ | Long stroke, low reaction force |
| Arch / V-Type | Standard container berths | 300–800 kJ | Compact, cost-effective |
Key engineering considerations:
1. Kinetic energy calculation (per PIANC M-23-2018):
- Vessel mass × berthing velocity⊃2; × eccentricity factor
- Pro tip: Overestimate by 20% to account for weather and wind
2. Hull pressure limitation:
- Super Post-Panamax vessels: <200 kN/m²
- This constraint directly impacts frontal panel design
3. Material specifications:
- Natural rubber blend: 60–70% natural + 30–40% synthetic (SBR/EPDM)
- Hardness: 60–70 Shore A
- Tensile strength: ≥20 MPa (per ISO 4664)
Bollards are the vessel's connection to the terminal. A bollard failure during mooring operations can be catastrophic.
Bollard selection framework:
| Application | Safe Working Load (SWL) | Recommended Safety Coefficient |
|---|---|---|
| Container/Bulk terminals | 100–150 tons | 3.5 – 4.0 |
| LNG terminals | 150–200 tons | 4.0 – 5.0 |
| General cargo | 50–100 tons | 3.0 – 3.5 |
Critical specifications:
- Material: Cast steel (ASTM A27 or equivalent) or fabricated steel (S355JR)
- Corrosion protection: Hot-dip galvanizing (≥85μm) or epoxy coating (ISO 12944 C5-M)
- Anchor bolts: Grade 8.8 or higher, 316 stainless steel for marine environment
The foundation connection:
> *"Most bollard failures I have investigated traced back to foundation issues, not bollard defects. Corroded anchor bolts, inadequate edge distance, and poor grouting are the usual suspects."*
The frontal steel panel is the interface between the rubber fender and the vessel hull. It is often the weakest link in poorly designed systems.
Design requirements (PIANC WG211 compliant):
The hull pressure formula:
> P = ΣR / (A1 × B1) ≤ Py
Where Py (allowable hull pressure) for Super Post-Panamax container vessels is <200 kN/m².
Foundation design is the most overlooked—yet most critical—component of any turnkey fendering solution.
Critical foundation parameters:

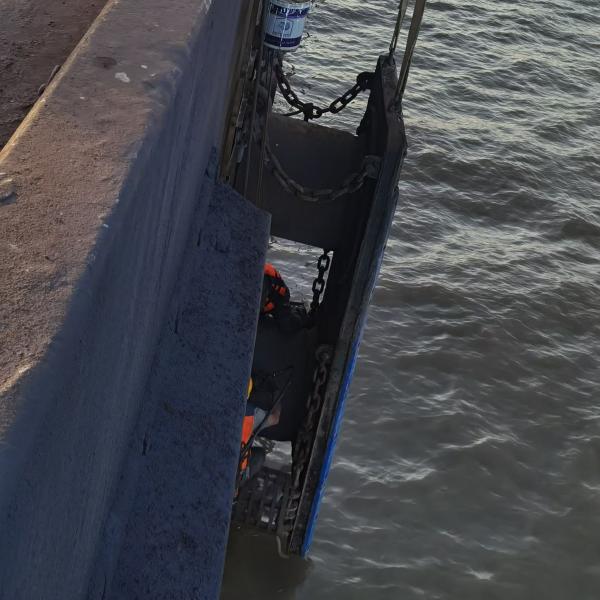

Installation best practices from the field:
1. Use epoxy grout beneath base plates
2. Verify anchor bolt torque with calibrated tools
3. Install corrosion protection on exposed threads
4. Document installation with photos and torque reports
The ICTSI Terminal 1 expansion at the Port of Rio de Janeiro exemplifies the value of a turnkey, engineering-led approach.
Project scope:
- 100-meter berth extension
- Accommodate simultaneous berthing of larger vessels
Solution delivered:
- 5 Cone Fender systems (CT 1300, G2.5) with closed-box panels (3300×4250 mm)
- 17 bollards with 100- and 150-ton capacities
Key engineering decision:
The existing installation featured Cone Fenders in an inverted orientation—a configuration that typically leads to increased maintenance expenses and reduced lifespan. SFT's in-house engineering team advocated for the standard orientation as recommended by the new PIANC Guidelines, ensuring greater durability and extended design life.
Takeaway: This project demonstrates why engineering expertise—not just product supply—is essential for successful fendering systems. The turnkey provider's role extends beyond manufacturing to include design validation and PIANC compliance verification.
A full turnkey solution follows a structured, phased approach:
| Phase | Activities | Deliverables |
|---|---|---|
| 1. Engineering | Berthing energy calculation, fender selection, foundation design | PIANC-compliant design package |
| 2. Manufacturing | Rubber fender molding, steel panel fabrication, bollard casting | Factory acceptance test (FAT) reports |
| 3. Quality assurance | Third-party inspection (BV, ABS, DNV, LR) | Certification documentation |
| 4. Logistics | Packaging, shipping, customs clearance | On-time delivery to site |

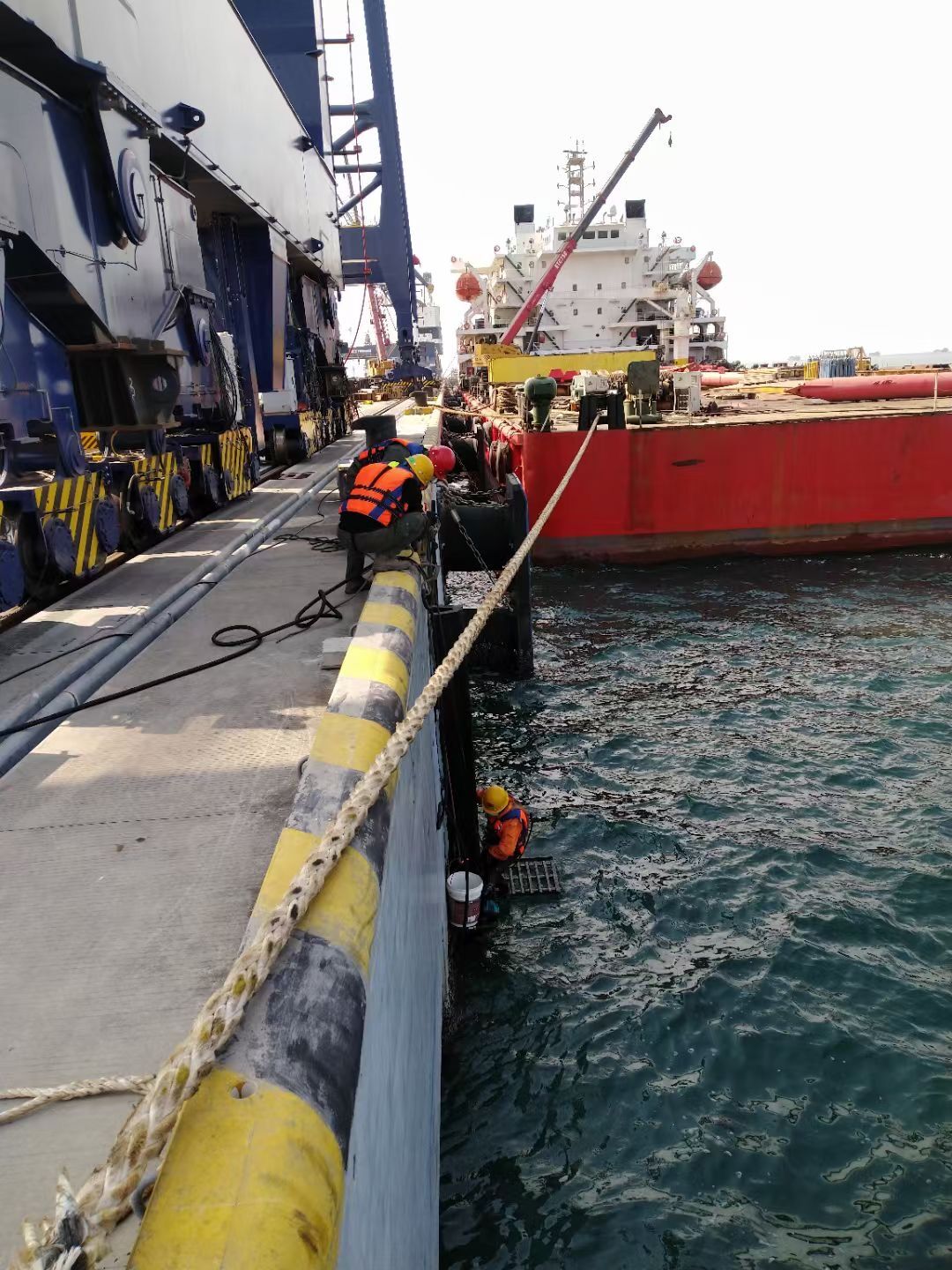

| 5. Installation | Foundation preparation, anchor installation, fender mounting | Installation completion certificate |
| 6. Commissioning | Load testing, pressure testing, system validation | Ready-for-operation status |
Quality verification milestones:
- Material certifications: Traceable to approved mills
- In-process inspections: Dimensional checks, hardness testing
- Final testing: Static load (150% rated), dynamic impact, environmental
The new PIANC WG211 guidelines (2024) represent a fundamental shift in fender system design.
Key changes from WG33 to WG211:
| Aspect | WG33 (Old) | WG211 (New) |
|---|---|---|
| Safety approach | Global safety factor | Partial safety factors |
| Berthing velocities | Lower estimates | Higher for large vessels |
| Testing requirements | Basic | Enhanced (temperature, angle, velocity factors) |
Transition deadline: The transition period ends May 1, 2026. After this date, fender suppliers' catalogues must be reorganized according to the new guidelines.
A turnkey provider must demonstrate WG211 proficiency—not just product availability.
We asked our global OEM clients about their experience with turnkey solutions. Here is what they shared:
> *"We previously sourced fenders, bollards, and installation from three different vendors. Coordination was a nightmare, and when a foundation issue arose, everyone blamed everyone else. Switching to Nanjing Taidun's turnkey solution gave us one point of contact, one warranty, and peace of mind."*
> — *Procurement Manager, Southeast Asian Port Operator*
> *"The engineering support made the difference. Their team visited our site, analyzed our vessel mix, and recommended fender sizes we hadn't considered. The PIANC WG211 calculations were thorough and defensible."*
> — *Project Director, Middle East Container Terminal*
> *"The frontal panel design was the biggest value-add. Our previous panels had inadequate thickness and corroded within five years. The new S355JR panels with C5-M coating are still like new after three years."*
> — *Maintenance Manager, European Port Authority*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we are marine fenders manufacturers in China that have expanded into comprehensive EPC support.
Our turnkey capabilities include:
| Service | Description |
|---|---|
| Engineering | PIANC WG211-compliant design, berthing energy calculation, foundation specification |
| Manufacturing | Rubber fenders (cell, cone, arch, pneumatic), steel panels (S355JR, C5-M coated), bollards (50–200 tons) |
| Quality | BV, ABS, DNV, LR, CCS inspection available; full test documentation |
| Installation | Foundation preparation oversight, anchor installation, fender mounting |
| After-sales | Maintenance training, spare parts, repair services |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun for your container terminal EPC project, you get end-to-end accountability from a single, trusted source.
A full turnkey solution: rubber fender system, mooring bollards, installation & foundation design for container terminal EPC projects is not a luxury—it is a necessity for projects that demand reliability, safety, and long-term value.
The keys to success:
- PIANC WG211-compliant engineering
- Integrated fender, bollard, and foundation design
- Single-source accountability
- Third-party quality verification
- Proper installation with documented torque and grouting
[Contact the Nanjing Taidun Engineering Team] for a free turnkey solution consultation. Send us your project specifications, and we will deliver a complete, PIANC-compliant fendering and mooring package tailored to your container terminal.
Q1: What is included in a full turnkey fendering solution for container terminals?
A: A complete turnkey solution includes engineering (berthing energy calculations, PIANC compliance), manufacturing (rubber fenders, steel panels, bollards), foundation design specifications, installation oversight, and commissioning testing—all from a single supplier with single-point accountability.
Q2: What fender types are best for container terminals?
A: Super Cell fenders (high E/R·H value, 52.5% deflection) and Cone fenders (long stroke, low reaction force) are the most common choices for container terminals handling large vessels.
Q3: What safety coefficient should container terminal bollards have?
A: For container and bulk terminals, the recommended safety coefficient is 3.5–4.0. LNG terminals require 4.0–5.0.
Q4: Why is frontal steel panel design critical?
A: The frontal panel directly interfaces with the vessel hull. Poor design leads to excessive hull pressure (>200 kN/m² for large container vessels), premature corrosion, and system failure. PIANC WG211 provides specific design guidelines.
Q5: What is the transition deadline for PIANC WG211?
A: The transition from WG33 to WG211 ends May 1, 2026. After this date, fender systems must comply with the new guidelines for regulatory acceptance.
