Tugboats are the workhorses of every major port. They push, pull, and guide massive vessels—tankers, container ships, LNG carriers—into berths with precision. But during every pushing operation, a controlled collision occurs. The tug's bow meets the assisted ship's hull. And the only thing preventing damage to either vessel is the fender system.
Understanding pressure and stress is not just an engineering exercise. It is the difference between a safe, efficient operation and costly hull damage, premature fender failure, or even accidents.
In this guide, I will draw on two decades of OEM manufacturing experience, insights from major tug designers like Damen Shipyards, and the latest PIANC 2024 guidelines to explain exactly how pressure and stress drive tug fender design.
When a tug pushes against a ship, the force is distributed over the contact area between the fender and the vessel's hull. The critical metric is hull pressure—the force per unit area measured in tonnes per square meter (t/m²).
The industry standard: For large vessels like container ships, gas carriers, and tankers, fixed port fenders are commonly designed for 20 t/m² or less. This same requirement is now increasingly appearing in tug specifications .
Why this matters: Exceed this pressure, and you risk:
- Denting or puncturing the assisted vessel's hull
- Localized damage to the tug's own structure
- Premature fender wear or catastrophic failure
> *"The combination of W-block fenders and cylindrical fenders is designed to exert a maximum pressure of less than 20 t/m² on the assisted vessel's hull."*
> — Marc Baken, Manager for Proposal Tugs, Damen Shipyards
Damen Shipyards, one of the world's largest tug builders, selects fender types based on the vessel's operational profile, the types of ships it will assist, and the expected forces involved .
Cylindrical fenders are mounted on the bow (fore ship) and extend along the sides. They absorb the initial contact between the tug and assisted vessel.
| Specification | Typical Value |
|---|---|
| Outside diameter | 800 mm |
| Inside diameter (hollow) | 450 mm |
| Side extension diameter | 600 mm × 300 mm |
| Mounting method | Hoisting tight slings |
Pressure characteristic: Cylindrical fenders concentrate force over a smaller area. A standard cylindrical fender will typically exert about 65 t/m²—more than three times the recommended maximum for many assisted vessels .
Best application: Open sea conditions, pushing against flared hulls where higher pressure is acceptable.
W-block fenders are designed specifically to spread the total force over a larger area, reducing hull pressure.
Design features:
- Secured by galvanized steel pins between robust flat bars
- Vertical flat bars fitted every second block to prevent lateral movement
- Pins secured by welded rings—not directly welded—for easy maintenance
Pressure characteristic: When combined with cylindrical fenders, W-block designs achieve the target <20 t/m² at maximum bollard pull over the bow's centerline.
Best application: Pushing operations where hull protection is paramount—LNG terminals, tanker berths, and naval support.
D-type fenders serve a different purpose. They are bumpers—not designed for pushing forces.
| Specification | Typical Value |
|---|---|
| Profile size | 300 mm × 300 mm |
| Location | Sides and stern |
| Mounting | Between flat bars welded to sheer strake; galvanized bolts |
> *"D-fenders are purely intended as a bumper to prevent steel on steel and paint from being damaged."*
> — Marc Baken, Damen Shipyards
Pressure characteristic: Low. Side fendering primarily provides protection when tugs are moored or during light contact.
Best application: Side protection, berthing at unfendered docks, and preventing paint damage during alongside operations.
The RAstar 3000-W class tug—designed by Robert Allan Ltd. and delivered to Tug Malta for LNG terminal operations—provides a perfect real-world example of pressure-focused fender design .
Vessel particulars:
| Parameter | Specification |
|---|---|
| Length overall | 29.70 m |
| Beam | 13.30 m |
| Bollard pull | 81.5 tonnes ahead / 81 tonnes astern |
| Speed | 13.8 knots |
Fendering system specification:
> *"The bow fendering system is designed for a low contact pressure requirement of 20 T/m²."*
Fender configuration on this vessel:
- Upper bow: 800 × 500 mm cylindrical fender
- Lower bow: 600 × 300 mm "M" block fendering
- Sheer line/knuckle: 300 × 300 mm hollow "D" fender
- Stern: 600 × 300 mm "M" block fendering
Key takeaway: Even for high-performance tugs with 80+ tonnes of bollard pull, designers prioritize low hull pressure—specifying a 20 t/m² maximum as a contract requirement.
In March 2024, PIANC (the International Navigation Association) published WG 211 Fender Guidelines 2024, completely replacing the previous WG33 guidelines from 2002 .
| Aspect | WG33 (2002) | WG211 (2024) |
|---|---|---|
| Design approach | One-size-fits-all | Site-specific, data-driven |
| Safety distribution | Shared between fender and structure | Safety primarily in rubber |
| Berthing velocity | Standardized values | Most critical factor – use local data |
| Fender contact | Single-point assumption | Multiple fender contact modeled |
1. Site-specific information is now mandatory
> *"WG211 strongly recommends the use of site-specific information. Always talk to pilots, harbourmasters, and tug masters if present."*
For tug operators, this means your fender design should reflect:
- Actual push forces at your specific berths
- Types of vessels you assist (tankers, bulk carriers, LNG)
- Local environmental conditions (currents, wind, waves)
2. Smaller fenders may be adequate – if you use local data
> *"When site-specific information is used, fenders will be slightly smaller than those determined using WG33. If local knowledge is ignored, fenders might be overdesigned."*
This is a significant departure from the "bigger is safer" approach. Proper data allows optimized, cost-effective designs.
3. Transition period ends May 1, 2026
Suppliers must reorganize their catalogs and conduct new type approval testing under WG211 by this date .
Fenders do not perform the same in all conditions. According to Damen's Marc Baken, several environmental factors degrade or alter fender performance :
| Factor | Effect on Fender |
|---|---|
| Ultraviolet (UV) light | Causes tears and cracks; changes fender characteristics |
| Cold environments / ice | Rubber hardens; becomes brittle; loses elasticity |
| Salt water | Accelerates deterioration of rubber compounds |
| Hot weather | Softens rubber; changes performance characteristics |
> *"Ultraviolet light causes tears in fendering and therefore changes the characteristics of the fendering."*
OEM Recommendation: Specify UV-stabilized rubber compounds for tugs operating in sunny climates. For cold-weather operations (North Sea, Baltic, Canada), request low-temperature compounds that remain flexible below -20°C.
The relationship between force and pressure is simple physics:
> Pressure = Force ÷ Contact Area
To stay under the 20 t/m² threshold, designers have two options:
1. Reduce the force (lower bollard pull – rarely practical)
2. Increase the contact area (larger or differently shaped fenders)
The challenge: Cylindrical fenders naturally concentrate force. At 65 t/m², they exceed the recommended limit by over 300%.

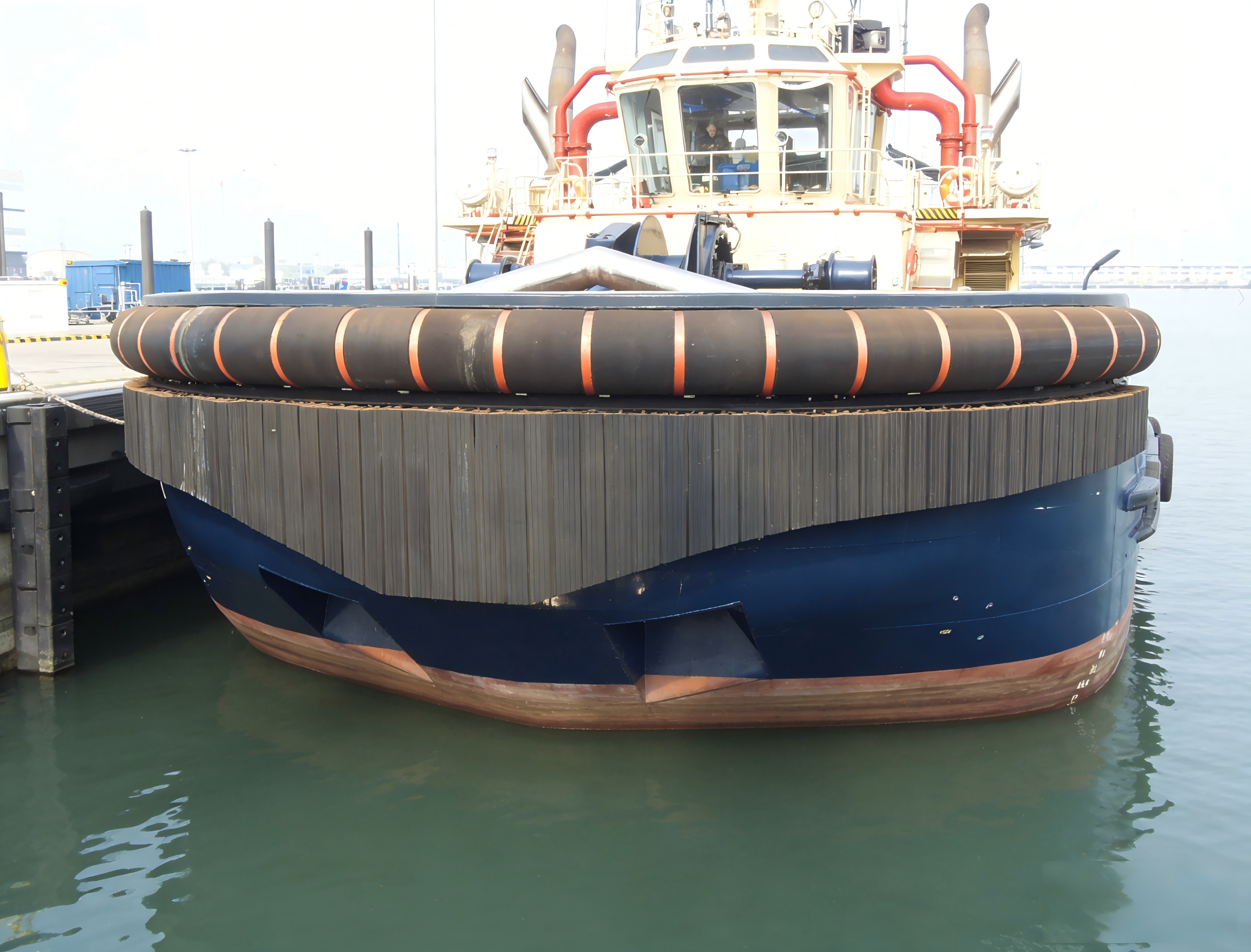

The solution: Combine fender types. The W-block + cylindrical combination spreads the total force across a larger footprint, bringing pressure down to acceptable levels.
Advanced research: A TU Delft thesis on fender design noted that the current PIANC guidelines may be too optimistic for fender panels with large widths, recommending a geometry-specific allowable force rather than a one-size-fits-all pressure limit .
We asked our global OEM clients about their tug fender experiences. Here is what they shared:
> *"We were using cylindrical fenders only on our harbor tugs. The assisted vessels kept complaining about hull marks and, in one case, a small dent. We switched to a W-block + cylindrical combination per Damen's design. Zero complaints since."*
> — Fleet Manager, Middle East Port Operator
> *"The 20 t/m² requirement is now in every tender we see for LNG and tanker work. If your fenders cannot guarantee that, you won't get the contract. We upgraded all our tugs to meet this spec."*
> — Technical Director, European Towage Company
> *"We learned the hard way that UV degradation is real. Our fenders in the Caribbean were cracking after 18 months. Now we specify UV-stabilized compounds and have covers for idle periods. Fenders now last 5+ years."*
> — Operations Manager, Caribbean Marine Services
Use this matrix to guide your fender selection based on operational profile :
| Operation Type | Primary Fender | Secondary Fender | Target Hull Pressure |
|---|---|---|---|
| LNG terminal escort | W-block (lower bow) | Cylindrical (upper bow) | <20 t/m² |
| Tanker assistance | W-block + Cylindrical combo | D-type (sides) | <20 t/m² |
| Open sea towing | Cylindrical (large diameter) | D-type (stern) | <40 t/m² |
| Harbor general duty | Cylindrical (standard) | D-type (sides + stern) | <40 t/m² |
| Naval vessel support | Colored fenders (non-marking) | W-block for delicate hulls | <20 t/m² for grey hulls |
Note: U.S. Navy tugs use grey-colored rubber above the waterline specifically to prevent marking grey Navy hulls .
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we understand that pressure and stress are the key to tug fender design. Our OEM solutions include:
| Service | What We Provide |
|---|---|
| Custom fender design | Cylindrical, W-block, D-type, and M-block per your vessel specifications |
| Pressure-optimized compounds | Formulations that balance hardness (for wear resistance) with softness (for low hull pressure) |
| UV and cold-temperature protection | Specialized rubber for extreme environments |
| PIANC WG211 readiness | Fenders designed to meet 2024 guidelines |
| Third-party certification | BV, ABS, DNV, LR, CCS inspection available |
We serve tug owners, shipyards, and marine operators in over 80 countries. When you partner with Taidun, you get fenders designed for optimal pressure distribution and maximum service life.
Pressure and stress are not just engineering terms—they are the keys to safe, efficient tug operations. The industry standard is clear: keep hull pressure below 20 t/m² for sensitive vessels like tankers and LNG carriers. Use the right combination of fender types: cylindrical for energy absorption, W-block for pressure distribution, and D-type for protection.
And with PIANC WG211 now in effect (transition period ending May 2026), it is time to review your fender specifications.
[Contact the Nanjing Taidun Engineering Team] for a free tug fender design consultation. Send us your vessel specifications and operating environment, and we will recommend the optimal fender configuration to meet pressure requirements and maximize service life.
Q1: What is the maximum allowable hull pressure for tug fenders?
A: For large vessels like tankers, container ships, and LNG carriers, the industry standard is 20 t/m² or less. This requirement is now appearing in many tug specifications. Cylindrical fenders alone can exert ~65 t/m², which is why W-block combinations are often necessary .
Q2: Why do tug fenders need to be replaced over time?
A: Fender replacement "fully depends on the wear and tear of the fender over its lifetime." UV light causes cracking, cold temperatures cause hardening, hot weather causes softening, and salt water accelerates deterioration. Regular inspection is essential .
Q3: What is the difference between cylindrical and W-block fenders?
A: Cylindrical fenders absorb impact energy but concentrate pressure (~65 t/m²). W-block fenders are designed to spread total force over a larger area, reducing hull pressure to <20 t/m² when combined with cylindrical fenders. They serve complementary roles .
Q4: What changed with the new PIANC 2024 fender guidelines?
A: PIANC WG211 (2024) completely replaces WG33 (2002). Key changes: site-specific data is now mandatory, safety is placed more in rubber than supporting structure, and berthing velocity is recognized as the most critical design factor. Transition period ends May 1, 2026 .
Q5: What fender configuration is used on modern LNG terminal tugs?
A: The RAstar 3000-W class (Robert Allan design) uses: upper bow 800×500mm cylindrical, lower bow 600×300mm M-block, sheer line 300×300mm hollow D-fender, and stern 600×300mm M-block. The entire bow system is designed for <20 t/m² .
