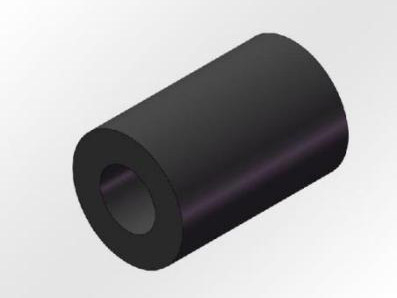

Cylindrical Rubber Fender

Cylindrical Fenders are simple to install and operate which makes these units an economical solution for remote locations and for multi user berths where vessel types cannot always be predicted.
Availability:

Features

Simple and economic design

Easy to install, allowing multiple usage at different berths

Low reaction, reasonable energy absorption, low hull pressure

Versatile installation, vertical, horizontal, diagonal

Applications

Bulk cargo berths

General cargo quays

Ro-Ro and ferry terminals

Fishing and workboat berths

Pontoons and floating structures

Tug havens



Cylindrical Rubber Fender (3)

Specifications

Cylindrical Rubber Fender

Fender size

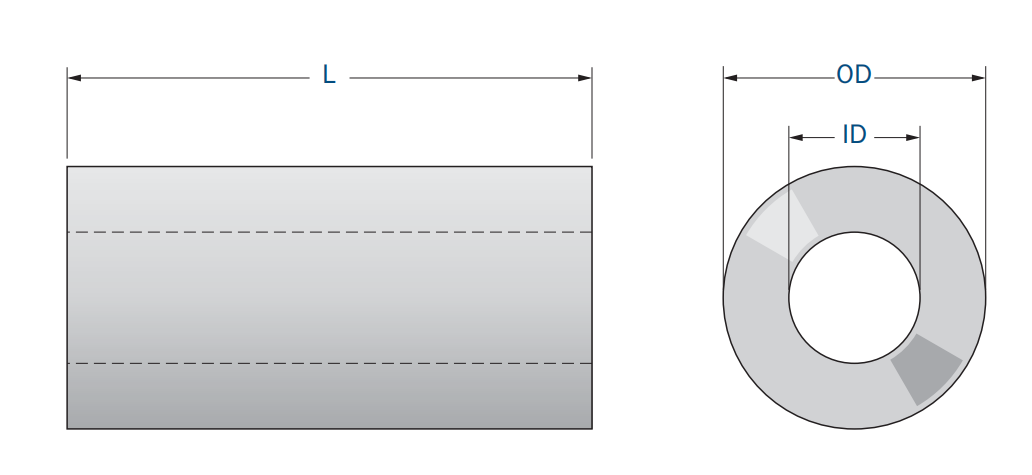

Dimensions

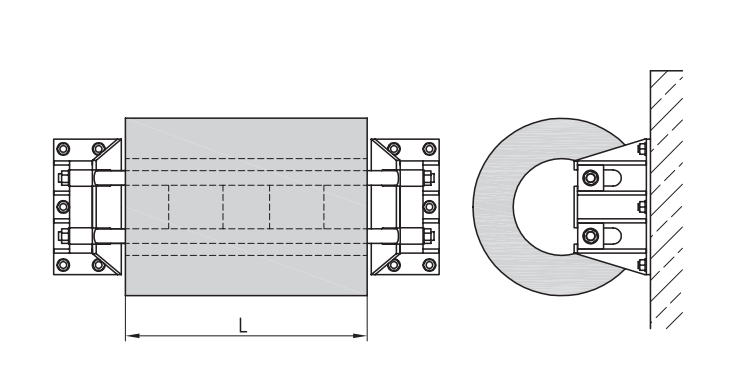

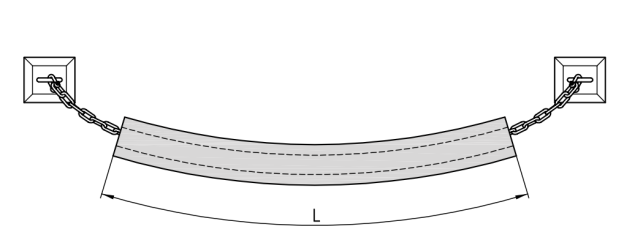

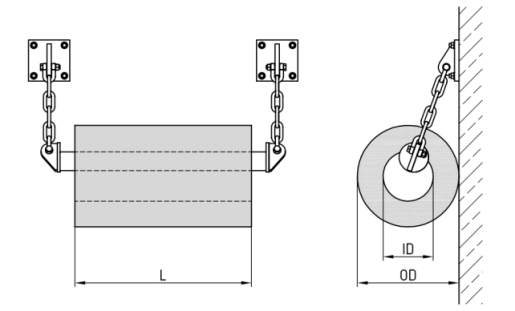

Typical Fixing Arrangements

D(mm)

d(mm)

Max Length

(mm)

Approx weight(kg/m)

CY150 x L

150

75

10000

17.2

Cylindrical Rubber Fender1

CY200 x L

200

100

10000

29

CY250 x L

250

125

10000

45.3

CY300 x L

300

150

10000

65.2

CY350x L

350

175

10000

94

CY400 x L

400

200

8000

116

CY500 x L

500

250

8000

181

CY600 x L

600

300

3000

255


Cylindrical Rubber Fender2

CY700 x L

700

350

3000

375

CY800 x L

800

400

3000

453

CY900 x L

900

450

3000

620

CY1000 x L

1000

500

3000

707

CY1100xL

1100

550

3000

766

CY1200 x L

1200

600

3000

1018

CY1300x L

1300

650

3000

1294

CY1400 x L

1400

700

3000

1386

CY1500xL

1500

750

3000

1591

Cylindrical Rubber Fender3

CY1600 x L

1600

800

3000

1810

CY1700 x L

1700

850

3000

2210

CY1800xL

1800

900

3000

2480

CY1900xL

1900

950

3000

2765

CY2000xL

2000

1000

3000

3063

Note:Length are available on requests


Performance

Specification

Performance(Rate Compression Deformation50%)

RO

RH

R(KN)

E(KN.M)

R(KN)

E(KN.M)

CY150 x 1000

44

1.5

73

2.3

CY200 x 1000

60

2.6

95

4.2

CY250 x 1000

75

4

120

6.5

CY300 x 1000

89

6.0

143

9

CY350 x 1000

104

8

167

13

CY400 x 1000

119

10

191

17

CY500 x 1000

148

16

239

26

CY600 x 1000

179

24

286

37

CY700 x 1000

208

31

334

50

CY800 x 1000

237

41

383

66

CY900 x 1000

268

52

430

84

CY1000 x 1000

297

64

479

103

CY1100 x 1000

331

77

528

129

CY1200 x 1000

363

95

574

152

CY1300 x 1000

392

108

623

179

CY1400 x 1000

422

128

670

208

CY1500 x 1000

451

147

718

238

CY1600 x 1000

481

176

776

282

CY1700 x 1000

511

206

824

338

CY1800 x 1000

541

247

872

406

CY1900 x 1000

570

288

920

487

CY2000 x 1000

653

321

1054

584


Hot Tags: Cylindrical Rubber Fender, Cylindrical Fenders, Hollow Fenders, Cylindrical Boat Fenders, Dock Fender Systems, Marine Dock Fenders, Dock Fenders, Engineered Rubber Products, Circular Marine Fender, Oem Rubber Products, China, Customized, OEM, manufacturing company, manufacturers, suppliers, factory, for sale, price, made in China
