Views: 315 Author: NANJING TAIDUN Publish Time: 2026-10-18 Origin: Site
Content Menu
● Why Tropical Ports Are Uniquely Harsh on Rubber Fenders
● SBR Fenders: The Heat Resistance Argument
>> Where SBR Excels in Tropical Conditions
>> The Critical Limitation: Crack Growth Resistance
● Natural Rubber Fenders: The Fatigue Resistance Champion
>> Where NR Excels in Tropical Conditions
>> The Critical Limitation: Heat and Ozone Vulnerability
● The Engineering Reality: Why Blends Outperform Both Extremes
>> The Synergy of NR/SBR Blends
>> Velocity and Temperature Factors: Why Blend Ratio Matters Beyond Degradation
● Practical Selection Framework for Tropical Ports
>> When to Specify NR-Dominant Compounds (70%+ NR)
>> When to Specify SBR-Enhanced Blends (20–40% SBR)
>> When 100% SBR Is Considered
● The Quality Control Variable: Why Compounding Matters More Than Material Name
● Conclusion: Longevity Is Engineered, Not Inherited
● Frequently Asked Questions (FAQ)
>> 1. Is SBR or natural rubber better for tropical port fenders?
>> 2. What percentage of SBR is recommended in fender compounds for tropical climates?
>> 3. Why does natural rubber resist cracking better than SBR?
>> 4. How does temperature affect fender performance in tropical ports?
>> 5. What quality control tests should I require for tropical-grade fenders?
>> 6. Can 100% SBR fenders be used in tropical ports?
Introduction: The Question Every Tropical Port Engineer Eventually Asks
Walk through any port in Southeast Asia, West Africa, or the Caribbean, and you will notice something: fenders that look identical on the outside often perform very differently after five or ten years in service. Some develop deep ozone cracks along the compression zone. Others harden and lose energy absorption capacity. A few simply fail.
The root cause frequently traces back to one decision made during compounding: SBR (Styrene Butadiene Rubber) versus Natural Rubber (NR).
As an OEM manufacturer at NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD, we have supplied fender systems to ports across 80+ countries, including many in tropical climates. This article provides an engineering-grounded comparison of SBR and natural rubber fenders specifically for tropical port longevity—not laboratory conditions, but the heat, humidity, UV exposure, and ozone levels that define real tropical operations.
Before comparing materials, it is essential to understand what "tropical" actually means for rubber degradation.
Tropical ports expose fenders to a combination of stressors that accelerate aging:
- Sustained high temperatures (28–35°C ambient, with surface temperatures on black rubber often exceeding 60°C)
- Intense UV radiation year-round
- High humidity and salt spray
- Elevated ozone concentrations in industrial port atmospheres
- Constant biological activity (mold, bacteria, marine growth)
These factors do not act independently. Heat accelerates oxidation. UV breaks polymer chains at the surface. Ozone attacks unsaturated bonds, causing characteristic cracking. The result is a compounding degradation effect that shortens service life far more rapidly than in temperate climates.
SBR (Styrene Butadiene Rubber) is a synthetic copolymer widely used in rubber products for its consistent properties and cost efficiency. In fender applications, SBR offers specific advantages for tropical environments.
Heat resistance is SBR's primary strength. Research on fender rubber compounds indicates that SBR improves heat resistance compared to pure natural rubber formulations . In high-temperature environments, fenders with appropriate SBR content maintain better balance of rubber properties and are less prone to cushioning performance degradation or cracking during long-term use .
Taidun's fender design manual confirms this: 100% SBR compounds are preferred for high-temperature applications where impact of reaction force is not critical . The manual notes that SBR-based compounds offer "less damage from ozone/oxygen/heat/UV" and "better aging properties" compared to pure NR .
Abrasion resistance is another SBR advantage. SBR composites excel in abrasion resistance, flex resistance, and crack initiation resistance compared to natural rubber . For fenders in high-traffic terminals where repeated vessel contact causes surface wear, this property extends service life.
Here is where the SBR story becomes more nuanced—and where many specifications get it wrong.
Natural rubber possesses a unique property called strain-induced crystallization (SIC). When NR is stretched, its molecular chains align and crystallize, significantly increasing strength at the point of stress . This mechanism is extraordinarily effective at arresting crack growth.
SBR does not exhibit strain-induced crystallization. As a result, SBR is weaker in fatigue resistance than NR . Crack growth in SBR compounds is predominantly time-dependent, proceeding at a constant rate under a given tearing energy, whereas NR introduces a cyclic component that dramatically improves fatigue properties .
The practical consequence for tropical fenders: An SBR fender may resist heat and UV degradation well, but once a crack initiates—from ozone attack, mechanical damage, or manufacturing defect—it is more likely to propagate. In a tropical port where ozone levels are elevated and surface cracking is common, this becomes a significant liability.

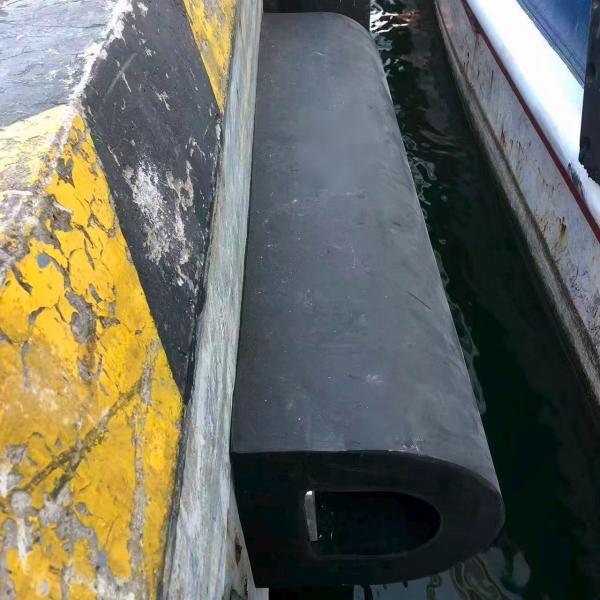

Natural Rubber (NR) remains the benchmark for mechanical strength and fatigue resistance in fender applications.
Crack growth resistance is NR's defining advantage. The strain-induced crystallization mechanism means that NR fenders can tolerate localized stress concentrations without catastrophic crack propagation . For fenders that experience repeated compression cycles at varying angles and contact points—exactly what happens in real port operations—this property is invaluable.
Tear strength and tensile strength also favor NR. Ranking rubber materials by tear resistance places NR at the top, followed by filled SBR, unfilled SBR, and BR . In a tropical environment where fenders may contact rough hull surfaces, debris, or damaged panels, higher tear strength translates directly to longer service life.
NR's Achilles heel in tropical ports is environmental degradation resistance.
Natural rubber is highly unsaturated, making it vulnerable to ozone attack. Ozone cracking in NR is a well-documented failure mode, particularly in stressed regions of the fender. The DPWH standard specification for rubber dock fenders requires static ozone aging testing with "no cracks after elongation by 20 percent and exposure to 50 pphm at 40°C for 96 hours" . This standard exists precisely because NR alone cannot reliably meet it without protective compounding.
Heat aging is the second vulnerability. At sustained high temperatures, NR can undergo both physical and chemical relaxation processes that reduce performance over time . The surface of NR can become sticky and degraded under combined oxygen, radiation, and temperature exposure.
Here is the insight that separates expert fender specification from amateur material selection: the question is not "SBR or NR" but "what blend ratio and compounding system optimize for this specific tropical application."
Research and field experience converge on a clear finding: NR/SBR blends deliver performance neither material achieves alone.
A patent for fender rubber composition describes the optimal range precisely: SBR content below 10 parts per hundred rubber (phr) provides insufficient heat resistance improvement, while SBR above 40 phr reduces the natural rubber proportion too much, compromising crack growth suppression and cushioning performance . The patent specifies that SBR with vinyl content of 30–45% and styrene content of 25–40% is preferred, with a particularly effective range of vinyl 35–42% and styrene 29–34% .
This is not academic. It reflects decades of field failures and successes distilled into formulation science.
Trelleborg's design manual confirms the practical advantages of NR/SBR blends: they are "useful in achieving stable compound properties and fender performance over the years," with "less damage from ozone/oxygen/heat/UV" and "better aging properties" .
The NR/SBR ratio also affects how the fender performs during berthing, not just how it ages.
Taidun's velocity factor (VF) data reveals that 100% SBR compounds exhibit significantly higher velocity factors than NR compounds or blends :
| Compression Time | NR/SBR Blend VF | 100% NR VF | 100% SBR VF |
|---|---|---|---|
| 1 second | 1.20 | 1.14 | 1.31 |
| 2 seconds | 1.16 | 1.10 | 1.25 |
| 3 seconds | 1.14 | 1.09 | 1.22 |
A higher velocity factor means the fender's reaction force increases more during rapid berthing. In tropical ports where fast ferry operations or high-speed berthing are common, 100% SBR compounds may produce reaction forces that exceed the wharf structure's design capacity—even if the energy absorption is adequate.
Temperature factors (TF) also vary by polymer type. As temperature rises, fenders become softer and energy absorption decreases, while reaction force drops. The magnitude of this effect depends on whether the base polymer is SBR, NR, or a blend . For tropical ports where ambient temperatures are consistently high, understanding TF is essential for accurate fender selection.
Based on engineering analysis and field experience, here is the decision framework we recommend to OEM partners and port engineers:
- Berths with frequent, repeated low-energy contacts (RoRo, ferries)
- Terminals where crack propagation risk is high (rough hull surfaces, debris exposure)
- Structures sensitive to reaction force (older wharves, load-limited piles)
- Applications requiring maximum fatigue life under cyclic loading
- Consistently high ambient temperatures where heat aging is the dominant degradation mode
- High-UV exposure locations with minimal shade or water spray
- Berths where abrasion from vessel contact is severe
- Applications where reaction force tolerance is generous (new structures designed with margin)
Taidun's guidance is clear: 100% SBR is "preferred for berthing at high speed and impact of reaction force is not critical" and "high temperature applications" . This is a narrow window. For most tropical ports, a blend in the 20–35% SBR range offers the optimal balance of heat resistance, crack growth suppression, and predictable velocity behavior.
A critical insight from our OEM experience: the difference between a 15-year fender and a 7-year fender is often not the SBR/NR ratio, but the compounding discipline.
Two fenders can both claim "NR/SBR blend" and perform completely differently based on:
- Anti-ozonant and antioxidant packages: Essential for tropical UV/ozone resistance
- Vulcanization system: Sulfur vs. peroxide vs. radiation curing affects thermal stability
- Carbon black type and loading: Influences abrasion resistance and heat buildup
- Process control: Mixing temperature, cure time, and batch consistency
PIANC WG211 emphasizes TGA (Thermogravimetric Analysis) testing as a quality control tool precisely because rubber compound composition is sensitive to manufacturing and curing history . Consistent TGA results indicate continuous quality level; significant deviations should trigger additional property testing .
The question "SBR or Natural Rubber?" is the wrong starting point. The right question is: "What compounding strategy best addresses the specific degradation mechanisms at this tropical berth?"
SBR offers superior heat and UV resistance. Natural rubber offers unmatched crack growth resistance and fatigue life. Neither material alone is optimal for tropical ports. The engineering consensus—supported by patent literature, manufacturer design manuals, and field experience—points to NR/SBR blends in carefully controlled ratios, with comprehensive anti-degradant packages and rigorous quality control.
At NANJING TAIDUN MARINE EQUIPMENT ENGINEERING CO., LTD, we manufacture fender systems to specification for OEM partners worldwide. Our compounding team can support material selection for tropical applications, and our testing protocols include TGA verification and batch-specific performance documentation.
[CTA]
Sourcing fenders for tropical port applications?
Contact NANJING TAIDUN for OEM manufacturing support:
- Email: service@taidunmarine.com
- Website: www.taidunmarine.com
- Services: Custom rubber compounding, NR/SBR ratio optimization, TGA verification, third-party testing coordination
1. Google Patents. "Rubber composition for fender." [https://patents.google.com/patent/JP6718589B2/en]
2. ScienceDirect. "Influence of different curing systems on the physico-mechanical properties and stability of SBR and NR rubbers." [https://www.sciencedirect.com/science/article/abs/pii/S0969806X01004868]
3. Lawrence Berkeley National Laboratory. "Chapter 7: Rubber Durability." [https://www-eng.lbl.gov/~shuman/NEXT/CURRENT_DESIGN/EP/rubber_durability.pdf]
4. DPWH. "Standard Specification for Item 1403 – Rubber Dock Fenders." [https://dpwh.gov.ph/DPWH/sites/default/files/issuances/DO_007_s2018.pdf]
5. ScienceDirect. "The steady state abrasion of rubber: Why are the weakest rubber compounds so good in abrasion?" [https://www.sciencedirect.com/science/article/abs/pii/S0043164809006036]
6. PIANC MarCom WG 211. "PIANC Fender Guidelines 2024." [https://www.kscoe.or.kr/!/download/?path=/media/51/board/2025/01/31/7._PIANC_MarCom_WG_211.pdf]
7. ScienceDirect. "Multiaxial failure of dual-phase elastomeric composites." [https://www.sciencedirect.com/science/article/abs/pii/S0013794424007884]
8. Universitat Politècnica de Catalunya. "Resistència al deteriorament – Elastòmers." [https://upcommons.upc.edu/server/api/core/bitstreams/5855c8cf-8f80-4be5-b6b9-71a38305fea3/content]
Neither material is universally "better." SBR offers superior heat and UV resistance, making it valuable in tropical environments. Natural rubber offers superior crack growth resistance and fatigue life due to strain-induced crystallization. NR/SBR blends (typically 20–35% SBR) deliver the optimal balance for most tropical applications, combining heat resistance with crack suppression.
Patent literature on fender rubber composition indicates that SBR content should not exceed 40 phr in the total rubber content, because above this level the natural rubber proportion becomes insufficient to suppress crack growth effectively . An effective range for tropical applications is 20–35 phr SBR, depending on the specific heat exposure and berthing profile of the port.
Natural rubber exhibits strain-induced crystallization (SIC). When stretched, its molecular chains align and crystallize, significantly increasing local strength at the point of stress . This mechanism arrests crack propagation. SBR lacks this property, and its fatigue behavior is time-dependent rather than cyclic, meaning cracks can propagate more readily under sustained or repeated loading .
As temperature rises, rubber fenders become softer, which reduces energy absorption capacity and lowers reaction force . The magnitude of this effect depends on the base polymer: SBR, NR, and blends each have different temperature factors. For accurate fender selection in tropical ports, the temperature factor must be applied to catalogue performance values.
At minimum, require:
- TGA (Thermogravimetric Analysis) to verify compound composition consistency
- Compression set testing (ISO 815) at elevated temperature (70°C, 22 hours)
- Static ozone aging test (no cracks after 20% elongation at 50 pphm, 40°C, 96 hours)
- Tensile and tear strength before and after heat aging
- Batch-specific compression test reports verifying energy absorption and reaction force
Yes, but with caution. Trelleborg specifies 100% SBR for "high temperature applications" where "impact of reaction force is not critical" . The critical limitation is that 100% SBR compounds have significantly higher velocity factors (up to 1.31 at 1-second compression vs. 1.14 for NR). This means reaction forces during rapid berthing may exceed wharf design limits. For tropical ports with fast ferry operations or load-sensitive structures, a blend is generally safer.
