When a 200,000-ton tanker approaches an LNG terminal, the only thing standing between safe berthing and catastrophic hull damage is a rubber fender. But how do you know that fender will perform as promised?
The answer lies in ASTM F2192-05(2022) – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders. This international standard ensures that every manufacturer's published performance data is based on a common, repeatable testing framework .
I have spent two decades manufacturing OEM rubber fender systems for global brands, wholesalers, and production facilities. In this guide, I will demystify ASTM F2192, explain its requirements, and show you why understanding this standard is essential for any port operator, procurement specialist, or marine engineer.
ASTM F2192-05(2022) is the standard test method that establishes recommended procedures for quantitative testing, reporting, and verifying the energy absorption and reaction force of marine fenders .
Published by ASTM International and reaffirmed in 2022, this standard applies to fenders used in berthside and ship-to-ship (STS) applications for marine vessels .
The primary purpose of ASTM F2192 is straightforward but critical: to ensure that engineering data reported in manufacturers' catalogues are based upon common testing methods .
Without this standardization, comparing fenders from different manufacturers would be impossible. One supplier's "high energy absorption" claim might be based on slow, gentle testing, while another's "moderate" rating might come from aggressive, high-speed conditions. ASTM F2192 eliminates this confusion.
| Included in Scope | Excluded from Scope |
|---|---|
| Berthside (ship-to-quay) fenders | Small “bumpers” for pleasure boat marinas |
| STS (ship-to-ship) fenders | Fenders mounted to workboat hulls |
| All basic fender types and variations | Durability testing |
| Fenders with steel, composite, or plastic components | — |
The standard does not address safety concerns; users are responsible for establishing appropriate safety and health practices prior to use .
Every marine fender has three fundamental performance characteristics that must be quantified under ASTM F2192 :
| Variable | Definition | Why It Matters |
|---|---|---|
| Berthing Energy | The kinetic energy the fender can absorb during vessel impact | Determines whether the fender can stop a vessel safely |
| Reaction Force | The force transferred back to the vessel hull | Lower reaction force means less hull stress |
| Deflection | The amount the fender compresses under load | Determines required standoff distance from quay wall |
These three variables are interconnected. For any given fender, as deflection increases, both energy absorption and reaction force increase. The relationship between these variables defines the fender's performance curve .
Under ASTM F2192, every manufacturer must establish Rated Performance Data (RPD) for their fenders. RPD serves as the published baseline that engineers use for fender selection .
ASTM F2192 specifies five mandatory conditions for RPD testing :
| Condition | Specification | Rationale |
|---|---|---|
| Initial velocity | 0.15 m/s, decreasing to ≤0.005 m/s at test end | Simulates realistic berthing deceleration |
| Fender condition | Fully “broken-in” (except pneumatic) | Eliminates initial stiffness anomalies |
| Temperature | 23 ± 5°C (pneumatic fenders excluded) | Standardized thermal environment |
| Angle of approach | 0° (direct impact) | Provides baseline performance |
| Test frequency | ≥1 hour between cycles (5 min for pneumatic) | Allows rubber to recover |
One of the most critical aspects of ASTM F2192 is the requirement that testing must define fender performance under velocities that decrease linearly or that are proportional to the square root of percent of remaining rated energy .
This reflects real-world physics: as a vessel contacts the fender, it slows down. The deceleration is not constant—it follows a specific pattern based on energy dissipation. The standard accommodates both linear and square-root deceleration profiles .
No two ports are identical. Berthing speeds vary, temperatures fluctuate, and vessels approach at angles. ASTM F2192 requires manufacturers to provide adjustment factors for these variables .
Manufacturers must provide adjustment factors for these initial berthing velocities :
| Velocity (m/s) | Typical Application |
|---|---|
| 0.05 | Very slow, protected berths |
| 0.10 | Calm inland ports |
| 0.15 | Standard RPD condition |
| 0.20 | Moderate open-water berths |
| 0.25 | Exposed terminals |
| 0.30 | High-energy, exposed locations |
Rubber properties change with temperature. ASTM F2192 requires adjustment factors for temperatures from +50°C down to -30°C :
| Temperature Range | Effect on Fender Performance |
|---|---|
| +40 to +50°C | Rubber softens; reduced reaction force |
| +20 to +30°C | Optimal RPD range |
| 0 to +10°C | Moderate stiffening |
| -10 to -20°C | Significant stiffening; reduced energy absorption |
| -30°C | Maximum stiffening; consult manufacturer |
> *"Adjustment factors for velocity and temperature shall be provided for every catalogue compound or other energy absorbing material offered by each manufacturer."*
> — *ASTM F2192-05(2022), Section 3.1.4*
Vessels rarely hit fenders perfectly perpendicular. ASTM F2192 requires adjustment factors for contact angles up to 15° :
| Angle of Approach | Typical Scenario |
|---|---|
| 0° | Baseline RPD |
| 3°, 5°, 8° | Typical berthing angles |
| 10°, 15° | Challenging berthing conditions |
At angles beyond 15°, side-loading becomes significant, and designers should consult the manufacturer directly.
ASTM F2192 requires RPD to contain a cautionary statement that published data do not necessarily apply to constant-load and cyclic-loading conditions. In such cases, designers must contact fender manufacturers for design assistance .
Manufacturers may use either of two methods to establish RPD :

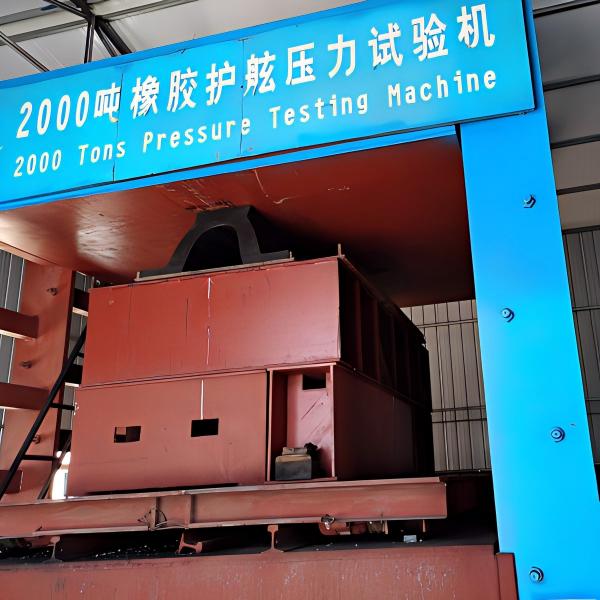

Method A involves deflecting full-size fenders at velocities that are:
- Inversely proportional to the percent of rated deflection, or
- Directly proportional to the square root of percent of remaining rated energy
RPD tests start at 0.15 m/s. Tests to establish adjustment factors for other velocities start at those specified velocities .
Best for: Most standard fender types where full-scale testing is feasible.
Method B involves deflecting full-size fenders at constant velocity, with performance adjusted by velocity factors developed from model tests.
Velocity factors are calculated as the ratio of model performance test results under two conditions :
1. Constant strain rate similar to the full-size fender at its test speed
2. Decreasing speed deflection with initial strain rate similar to full-size RPD conditions
Best for: Very large fenders where full-scale testing at varying speeds is impractical.
Pneumatic (Yokohama-type) fenders have unique testing requirements :
- Break-in testing is not required (unlike solid rubber fenders)
- Temperature stabilization is handled differently (see standard Section 6.3)
- RPD may use miniature-size fenders with air compression performance extrapolated from reduced-scale model data
This is because pneumatic fender performance is governed primarily by air compression, which scales predictably with size.
Marine fender testing is governed by two primary frameworks: ASTM F2192 and PIANC Guidelines. Understanding the differences is essential for proper specification .
| Aspect | ASTM F2192-05(2022) | PIANC Guidelines |
|---|---|---|
| Primary focus | Product testing and reporting | System design and application |
| Velocity regime | Linear or square-root decreasing | Similar, but less prescriptive |
| Adjustment factors | Required for velocity, temperature, angle | Recommended |
| Test duration | Standardized (≥1 hour cycles) | May be shorter |
| Realism | Laboratory repeatability | Field condition accuracy |
A 2022 study by Andrew T. Metzger of the United States Naval Academy compared ASTM F2192-05(2017) with actual berthing physics and PIANC guidelines .
Key findings:
- The velocity regime for an actual berthing scenario is nonlinear
- Current ASTM testing duration is longer than actual berthing scenarios
- The energy-based approach in ASTM F2192 is identical to the physics of a berthing scenario
- However, the equation in the standard is in terms of energy, which is difficult to program into testing equipment controllers
The study concludes: *"The methodology presented here will yield input values for testing that are a realistic description of a vessel coming to rest at berth."*
This research suggests that while ASTM F2192 provides a solid foundation, ongoing refinement is needed to fully capture real-world conditions.
We asked our global OEM clients about their experience with ASTM F2192-compliant fenders. Here is what they shared:
> *"Before we started requiring ASTM F2192 test reports from our suppliers, we received fenders with wild performance variations. One batch would work fine; the next would feel completely different. Now, with certified test data, we know exactly what we are getting."*
> — *Procurement Manager, Southeast Asian Port Operator*
> *"The adjustment factors are invaluable for our terminal. We operate in extreme temperatures—from near-freezing winters to 45°C summers. Without temperature adjustment factors, we couldn't confidently select fenders for year-round operation."*
> — *Engineering Director, Middle East Terminal*
> *"We learned the hard way that not all 'ASTM-compliant' claims are equal. One supplier provided a certificate but couldn't produce the underlying test data. Now we always request the full test report, not just the certificate."*
> — *Technical Manager, European Port Authority*
Not all claims of compliance are equal. Here is how to verify that a fender truly meets ASTM F2192-05(2022) – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders.
| Step | Action |
|---|---|
| 1 | Request the full test report, not just a certificate |
| 2 | Confirm that the report includes RPD for all three performance variables (energy, reaction, deflection) |
| 3 | Verify that the test conditions match ASTM requirements (0.15 m/s initial velocity, 23±5°C, 0° angle) |
| 4 | Request adjustment factor tables for velocity, temperature, and angle |
| 5 | Check for the required cautionary statement about constant-load and cyclic-loading conditions |
| 6 | For pneumatic fenders, confirm whether Method A or Method B (with miniature fenders) was used |
| Red Flag | Why It‘s Concerning |
|---|---|
| Certificate without test data | No way to verify actual performance |
| Missing adjustment factors | Cannot select fenders for site-specific conditions |
| No cautionary statement | RPD may be misapplied to constant-load scenarios |
| Inconsistent units | Standard requires SI units (not imperial) |
| No velocity deceleration data | May not reflect realistic berthing physics |
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , compliance with ASTM F2192-05(2022) – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders is built into every fender we manufacture.
Our compliance process includes:
| Stage | Actions |
|---|---|
| Material formulation | Compounds tested to ASTM standards |
| Prototype testing | Full RPD development under Method A or B |
| Production validation | Sample testing per batch to verify consistency |
| Adjustment factor development | Velocity, temperature, and angle factors for every compound |
| Third-party verification | BV, SGS, LR, or ABS witnessing available |
| Full documentation | Complete test reports, not just certificates |
We supply fenders that meet ASTM F2192, ISO 17357-1:2014, and PIANC guidelines, with full test documentation provided for every order.
ASTM F2192-05(2022) – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders is the foundation of reliable fender selection. It ensures that published performance data is comparable, verifiable, and applicable to real-world conditions.
When selecting fenders, demand ASTM compliance. Request full test reports. Verify adjustment factors. And partner with a manufacturer who can provide documented proof of performance.
[Contact the Nanjing Taidun Engineering Team] for a compliance consultation or to request ASTM F2192 test documentation for our marine fender products. We support ports, terminals, and marine operators worldwide.
Q1: What is the most current version of ASTM F2192?
A: The most current version is ASTM F2192-05(2022), reaffirmed in 2022. The original 2005 version has been superseded. The standard is maintained by ASTM Committee F25 on Shipbuilding .
Q2: What are the three performance variables measured under ASTM F2192?
A: The three performance variables are berthing energy (energy absorption capacity), reaction force (force transferred to hull), and deflection (compression distance). All three must be reported for RPD .
Q3: What is the difference between Method A and Method B in ASTM F2192?
A: Method A uses full-size fenders with decreasing velocity proportional to energy. Method B uses constant velocity with performance adjusted by model test-derived velocity factors. Method B is often used for very large fenders where full-scale variable-speed testing is impractical .
Q4: Are pneumatic fenders tested differently under ASTM F2192?
A: Yes. Pneumatic fenders do not require break-in testing, have different temperature stabilization requirements, and may use miniature-size fenders with air compression performance extrapolated from reduced-scale models .
Q5: What adjustment factors must manufacturers provide under ASTM F2192?
A: Manufacturers must provide adjustment factors for initial velocities (0.05 to 0.30 m/s), temperatures (+50°C to -30°C), and contact angles (3° to 15°). These factors allow engineers to select fenders for site-specific conditions .
1. ASTM International. (2022). *ASTM F2192-05(2022) – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders*. ASTM International.
2. ASTM International. (2017). *ASTM F2192-05(2017) – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders*. ASTM International.
3. ASTM International. (2005). *ASTM F2192-05 – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders*. ASTM International.
4. Metzger, A. T. (2022). *A Forcing Function for Testing Marine Fenders with Comparison to ASTM F2192-05(17) and PIANC Guidelines*. Journal of Testing and Evaluation, 50(3), 1265–1277.
5. ASTM International. (2002). *ASTM F2192-02 – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders*. ASTM International.
6. ASTM International. (2022). *ASTM F2192-05(2022) – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders*. Standards.ie.
7. ASTM International. (2011). *ASTM F2192-05(2011) – Standard Test Method for Determining and Reporting the Berthing Energy and Reaction of Marine Fenders*. ASTM International.
8. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (2026). *OEM Guide: ASTM F2192 Compliance for Marine Fenders*. (Internal product documentation)
