When an LNG carrier approaches a terminal, the margin for error is zero. These vessels—often exceeding 300 meters in length—carry cargo that demands the highest safety standards in the maritime industry. The fender system separating that vessel from disaster must perform flawlessly, every time.
At the heart of every high-performance LNG berth lies a critical component that often goes unnoticed: the steel frontal panel. This rugged structure absorbs impact forces, distributes berthing energy across the fender system, and protects both the vessel hull and the quay wall.
I have spent two decades manufacturing OEM rubber fender systems and steel structures for global brands, wholesalers, and production facilities. In this guide, I will explain why steel frontal panels for marine fenders must meet LNG terminal grade specifications—and how to ensure your system delivers the safety, durability, and performance these critical facilities demand.
Before diving into LNG-specific requirements, let's establish the fundamentals.

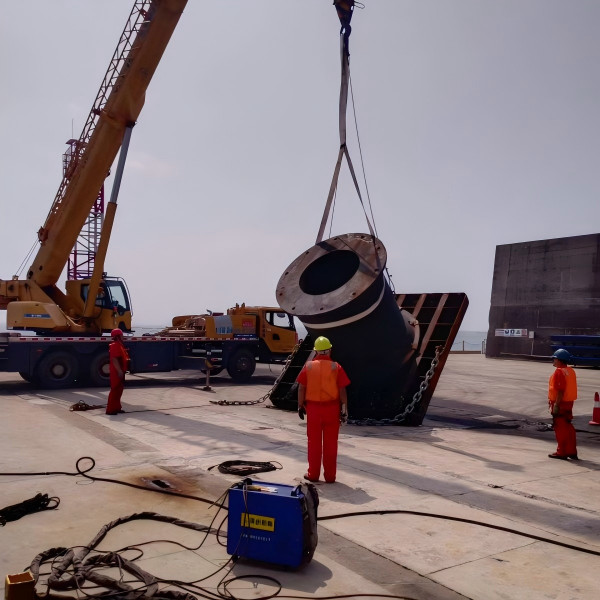

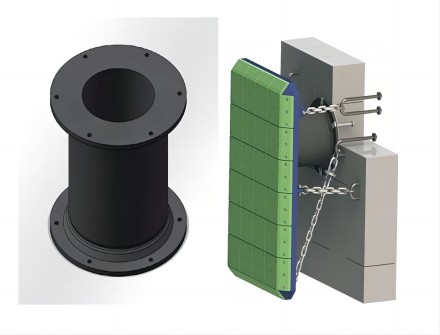

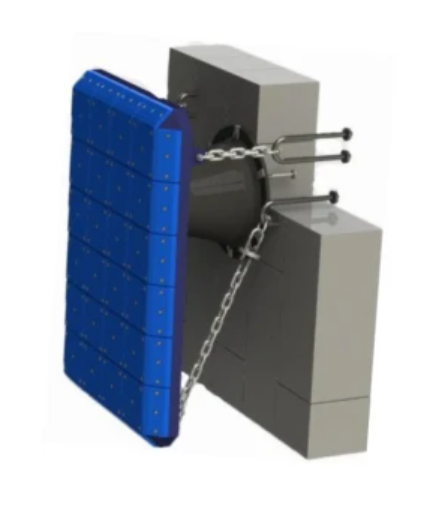

A steel frontal panel (also called a frontal frame or fender panel) is the steel structure mounted between the rubber fender unit and the vessel's hull. It serves as the interface between the ship and the fender system.
| Component | Function |
|---|---|
| Steel panel structure | Provides structural rigidity and distributes impact forces |
| UHMW-PE facing pads | Reduce friction and protect vessel hull coating |
| Mounting brackets | Connect panel to rubber fender and quay wall |
| Chain attachments | Secure panel orientation during berthing |
> *"The main function of frontal panel is to distribute the reaction forces from fender units into the ship's hull."*
Steel frontal panels come in two primary configurations:
| Panel Type | Construction | Best Application |
|---|---|---|
| Open type | Steel pad, H-beam, and cross steel | Cost-effective; general cargo berths |
| Closed type | Steel pad with back steel plate, H-beam | LNG terminals; high-corrosion environments; longer service life |
> *"Closed panel offers longer service life and stronger anti-corrosion."*
LNG berthing presents unique challenges that standard marine fender components cannot address.
| Challenge | Implication for Steel Frontal Panels |
|---|---|
| Extreme vessel size | LNG carriers exceed 300m length; require wider panels for full contact |
| High berthing energy | Steel structure must withstand massive impact forces |
| Strict hull pressure limits | LNG carriers have thinner hull plating than oil tankers |
| Anti-static requirements | UHMW-PE pads must prevent static buildup |
| Low-temperature operation | Steel and rubber compounds must perform below -30°C |
| No metal-to-metal contact | LNG terminals (especially in Australia) prohibit spark generation |
> *"For LNG and other gas terminals that Taidun has supplied with the SISO system, the product has been further developed and refined to prevent metal to metal contact, thus reducing the possibility of spark ignition onsite."*
When we say a steel frontal panel is LNG terminal grade, it must meet:
| Requirement | Specification |
|---|---|
| Low-temperature rubber compound | Maintains flexibility below -30°C |
| Anti-static UHMW-PE | Prevents electrostatic discharge |
| Non-sparking design | No metal-to-metal contact points |
| Closed-box construction | Fully sealed against water ingress |
| C5-M corrosion protection | Highest marine corrosion classification |
| Third-party certification | ABS, BV, DNV, LR, or CCS approved |
No steel frontal panel for an LNG terminal is complete without UHMW-PE (Ultra-High Molecular Weight Polyethylene) facing pads.
UHMW-PE pads act as the contact face between the steel panel and the vessel hull. They provide:
- Low friction coefficient – Allows vessel to slide along the fender during berthing
- Hull protection – Prevents damage to expensive LNG carrier coatings
- Even load distribution – Spreads reaction forces across the hull
- Abrasion resistance – Withstands repeated contact without rapid wear
> *"Cone fenders, when paired with large steel fender panels and UHMW-PE face pads, spread the load evenly across the hull. This prevents local damage and meets hull pressure limits set by LNG ship operators."*
Taidun's patented SISO (Slide In, Slide Out) system represents a major advancement in frontal panel maintainability.
How it works:
- UHMW-PE wear pads are bolted onto two stainless steel removable panels
- Panels slide into guide rails on the frontal frame
- Replacement takes less than two hours
> *"The sliding panels can then be easily lifted out of the frontal frame and replacements reinserted within two hours – reducing downtime on the berth and keeping operations running punctually."*
LNG-specific refinement: For gas terminals, the SISO system prevents metal-to-metal contact, eliminating spark ignition risk.
Based on industry standards and LNG terminal requirements, here are the critical specifications.
| Parameter | LNG Terminal Grade | Standard Marine Grade |
|---|---|---|
| Panel width | Wider to ensure full vessel contact | Standard sizing |
| Closed-box construction | Mandatory | Optional |
| Weld inspection | 100% NDT (non-destructive testing) | Spot checks |
| Design margin | 25% above calculated max load | 15% |
> *"The design for frontal frame shall be considered quay structure type, berthing vessel, hydrologic condition and fender arrangement etc. – the fixed standard specification is not applicable."*
LNG terminals operate in the C5-M marine environment (very high corrosivity).
Required protection layers:
1. Sandblasting to Sa 2.5 standard
2. Zinc-rich primer (80-100 microns)
3. Epoxy intermediate coat (150-200 microns)
4. Polyurethane topcoat (50-80 microns)
Alternative: Hot-dip galvanizing with epoxy touch-up
> *"After sand blasting, the frame is painted for resisting corrosion."*
Steel frontal panels can be configured in multiple arrangements depending on fender count:
| Arrangement | Configuration | Typical Application |
|---|---|---|
| Horizontal | 1×1, 2×1, 3×1 | Single fender per panel |
| Vertical | 1×1, 1×2, 1×3 | Multiple fenders stacked |
| Custom | Per project | Large or complex berths |
The Kitimat LNG terminal construction required a 550-meter Material Offloading Facility (MOF) to receive building materials and support construction.
The challenge: Vessels calling at the MOF had special requirements regarding pressure on hulls when mooring. The fender design required multiple load cases and berthing angles, leading to LNG fenders with two distinct setups.
The solution: A customized combination of 35 double cone fender systems for the MOF and 4 cone fender systems for the LNG terminal itself – all with exceptionally large closed-box panels.
> *"All of them with exceptionally large closed box panels which were shipped to Prince Rupert, British Columbia, and then transported by truck another 200 km before reaching final destination."*
Taidun's SISO system was installed at a site in Dampier, Western Australia.
Key results:
- Fully assembled fender modules supplied (SISO frontal frame + CT2000H super cone fender)
- All operational chain systems connected and secured before shipping
- Reduced assembly time on-site
- No metal-to-metal contact – critical for LNG safety
Cone fenders are the preferred rubber fender type for LNG terminals – and they require steel frontal panels to perform optimally.
| Advantage | Why It Matters for LNG |
|---|---|
| High energy absorption, low reaction force | Protects thin LNG carrier hulls |
| Stability at angled compression | Handles tidal variations and off-center berthing |
| Uniform hull pressure | Prevents local coating damage |
| Long service life | 20-25 years with proper maintenance |
> *"Cone fenders stand out for LNG docks due to their unique balance of high performance, safety, and adaptability."*
Super cone fenders represent the latest evolution of cone fender technology.
| Feature | Benefit |
|---|---|
| Optimized geometry | Highest energy absorption per fender weight |
| Single-piece molding | No seams; exceptional durability |
| High shear stability | Maintains performance under lateral loads |
| No loss of performance up to 10° contact angle | Tolerant of angled berthing |
> *"Cone Fender is the latest generation of 'Cell Fender' combining excellent energy capacity with low reaction force to give the most efficient performance of any fender type."*
Even the highest-grade steel frontal panels require regular maintenance to deliver 20-25 years of service life.
| Inspection Type | Frequency | Key Actions |
|---|---|---|
| Daily visual | Every shift | Check for visible damage, loose bolts |
| Weekly detailed | High-traffic terminals | Inspect UHMW-PE wear patterns |
| Monthly comprehensive | All terminals | Coating condition, fastener torque |
| Post-storm | After extreme events | Structural integrity check |
| Component | What to Look For | Red Flag |
|---|---|---|
| Steel surface | Cracks, pitting, deformation | Hairline crack near bolt holes |
| Coating | Peeling, rust spots, thinning | 20%+ coating loss in any area |
| UHMW-PE pads | Excessive wear, chunking | <10mm thickness remaining |
| Fasteners | Loose or missing bolts | Any bolt below torque spec |
| Edges/seals | Water intrusion points | Gaps allowing debris ingress |
> *"A 2023 study by the International Association of Ports and Harbors (IAPH) found that 62% of fender system failures stemmed from neglected frontal steel panel maintenance."*
For LNG terminals, anti-static properties must be tested regularly.
Test procedure:
1. Verify grounding continuity between panel and quay
2. Test UHMW-PE pad surface resistivity
3. Document readings for compliance records
When procuring steel frontal panels for marine fenders for an LNG terminal, ensure your specification includes:
| Specification Item | Requirement |
|---|---|
| Panel type | Closed-box construction |
| Steel grade | Marine-grade structural steel (e.g., S355J2) |
| Corrosion protection | C5-M coating system or hot-dip galvanizing |
| UHMW-PE facing | Anti-static grade; thickness ≥30mm |
| Fasteners | 316 stainless steel (not 304) |
| Design standard | PIANC WG211 (2024) compliant |
| Third-party certification | ABS, BV, DNV, LR, or CCS |
| Non-sparking design | No metal-to-metal contact points |
| Low-temperature rating | Suitable for site minimum temperature |
We asked our global OEM clients about their experience with LNG-grade steel frontal panels:
> *"Our previous frontal panels used 304 stainless bolts. Within 18 months at our LNG terminal, they showed tea-staining and thread galling. We switched to 316 stainless on our Taidun supplied panels. Four years later – like new."*
> — *Maintenance Manager, Middle East LNG Terminal*
> *"The closed-box panel design was a game-changer for us. Our old open-type panels would collect water and debris, accelerating corrosion from the inside. The sealed design eliminated that failure mode entirely."*
> — *Port Engineer, Southeast Asian LNG Facility*
> *"We require ABS certification for all our fender components. Taidun's ability to provide third-party witnessed testing and full documentation made the procurement process seamless."*
> — *Procurement Director, European Energy Company*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we manufacture steel frontal panels for marine fenders that meet the rigorous demands of LNG terminals worldwide.
Our LNG-grade capabilities include:
| Service | Description |
|---|---|
| Closed-box panel fabrication | Fully sealed; no water ingress |
| C5-M coating systems | Sandblasting + zinc epoxy + polyurethane |
| 316 stainless steel hardware | No corrosion; no galling |
| Anti-static UHMW-PE | Custom formulation for LNG safety |
| Third-party certification | ABS, BV, DNV, LR, CCS witnessed |
| Design compliance | PIANC WG211 (2024) |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get factory-direct pricing, custom engineering, and full certification documentation for every LNG-grade component.
Steel frontal panels for marine fenders are not commodity components – especially at LNG terminals. They require closed-box construction, anti-static UHMW-PE facing, C5-M corrosion protection, and non-sparking design.
Don't compromise on safety or performance. Specify LNG-grade from the start.
[Contact the Nanjing Taidun Engineering Team] for a free frontal panel consultation. Send us your berthing energy calculations and site conditions, and we will design, manufacture, and certify the optimal steel frontal panel system for your LNG terminal.
Q1: What is the difference between open and closed steel frontal panels?
A: Open-type panels use H-beams with open spaces between members, allowing water and debris to pass through. Closed-type panels have a back steel plate that seals the structure, preventing water ingress and providing superior corrosion protection – making them mandatory for LNG terminals.
Q2: Why is UHMW-PE required on steel frontal panels for LNG?
A: UHMW-PE (Ultra-High Molecular Weight Polyethylene) provides a low-friction interface between the steel panel and vessel hull, prevents coating damage, distributes loads evenly, and can be formulated as anti-static for LNG safety. Without UHMW-PE, metal-to-hull contact would damage expensive LNG carrier coatings.
Q3: What corrosion protection is required for LNG terminal frontal panels?
A: LNG terminals operate in C5-M marine environments (very high corrosivity). The minimum requirement is sandblasting to Sa 2.5, followed by zinc-rich primer, epoxy intermediate coat, and polyurethane topcoat. Hot-dip galvanizing with epoxy touch-up is an acceptable alternative.
Q4: How long do steel frontal panels last at LNG terminals?
A: With proper maintenance (regular cleaning, coating touch-ups, fastener torque checks), LNG-grade steel frontal panels can last 20-25 years. Neglected panels may fail in 5-8 years.
Q5: What is the SISO system and why is it relevant for LNG?
A: SISO (Slide In, Slide Out) is a patented frontal panel design where UHMW-PE pads are bolted onto removable stainless steel panels that slide into guide rails. Replacement takes less than two hours, and the system is refined for LNG to prevent metal-to-metal contact, eliminating spark ignition risk.
