● Why Aging Concrete Piles Change the Fender Selection Process
● Super Cone Rubber Fender vs Cell Fender: What Actually Differs?
>> Why Cone Fenders Deserve Consideration
>> When Cell Fenders Remain a Practical Choice
● Understanding Energy Absorption and Reaction Force
● Compare Corrected Performance, Not Headline Catalog Values
>> A Current Guideline Issue for Retrofit Buyers
● Worked Example: Screening Two Fender Proposals
● Six Steps to Minimize Reaction on an Existing Berth
>> 1. Establish the Structure's Present Condition
>> 2. Rebuild the Operating Design Basis
>> 3. Set a Structural Reaction Constraint
>> 4. Compare Multiple Fender Configurations
>> 5. Verify the Complete Load Path
>> 6. Define Acceptance and Monitoring
● Three Overlooked Risks in Low-Reaction Fender Retrofits
>> Unequal Multiple-Fender Contact
>> Loads After the Vessel Has Berthed
● Request a Project-Specific OEM Fender Comparison
>> Is a cone fender always better for aging concrete piles?
>> Can I replace a cell fender with an equal-height cone fender?
>> Will a larger frontal panel reduce pile reaction?
>> How is the allowable reaction for old concrete piles determined?
>> What evidence should an OEM buyer request?
>> Can lower berthing speed avoid a structural upgrade?
Nanjing Taidun Marine Equipment Engineering Co., Ltd. provides OEM marine rubber fenders, bollards, and anchoring products for overseas brands, wholesalers, and manufacturers. For buyers evaluating "Super Cone Rubber Fender vs Cell Fender: Minimizing Reaction Force on Aging Concrete Piles," the most important question is not which shape looks more advanced. It is which complete fender system absorbs the required berthing energy without exceeding the existing structure's verified capacity.
My starting recommendation is straightforward: compare corrected energy absorption and maximum reaction across the working stroke—not nominal dimensions or catalog energy alone.
A cone fender can be a strong candidate for a load-sensitive berth. However, a properly selected cell fender may remain suitable. Neither geometry automatically makes deteriorated concrete piles safe.
New construction allows engineers to coordinate pile capacity, fender reaction, and connection design. An existing berth presents a different challenge: its remaining capacity may be lower or less certain than its original design suggests.
Marine concrete structures can experience reinforcement corrosion, cracking, spalling, and deterioration around connections. These conditions can affect stiffness, load resistance, and the way forces travel through a pile-cap assembly.
A replacement fender must therefore suit the berth as it exists today—not simply reproduce the original installation.
Before requesting quotations, establish:
- The assessed lateral resistance of the supporting structure.
- Acceptable pile-head displacement and rotation.
- The condition of pile caps, brackets, and anchor zones.
- Current vessel displacement, approach conditions, and contact geometry.
- Whether moored-vessel loads could govern over berthing loads.
The critical concept is compatibility: the fender, panel, connections, and aging structure must work together.
Both cone and cell fenders absorb energy through controlled rubber deformation. Both require selection against project-specific energy, reaction, geometry, and operating conditions.
"Super Cone" is also used as a manufacturer-specific product designation. Buyers should identify the actual OEM model, compound, and verified performance rather than assume equivalent performance from a similar product name.
| Selection factor | Cone rubber fender | Cell rubber fender |
|---|---|---|
| Geometry | Conical rubber body | Cylindrical cellular rubber body |
| Potential advantage | Efficient energy absorption and favorable angular behavior in appropriate designs | Established configuration that may suit existing layouts |
| Reaction-force assessment | Requires model-specific corrected curves | Requires model-specific corrected curves |
| Retrofit consideration | Check available stroke, projection, panel, and anchors | Check whether existing interfaces remain suitable |
| Main purchasing mistake | Assuming every cone unit produces lower reaction | Assuming a familiar replacement needs no structural reassessment |
The comparison must use equal design duties. Comparing equal-height fenders alone can mislead because rubber grade, allowable stroke, angular behavior, and performance corrections may differ.
Conical geometry can provide stable compression at substantial angles and favorable energy-to-reaction performance. This makes cone fenders worth evaluating where structural reaction is tightly constrained.
That is a selection opportunity, not a universal guarantee.
Ask the supplier to demonstrate the required performance for the proposed size and compound under the actual site conditions.

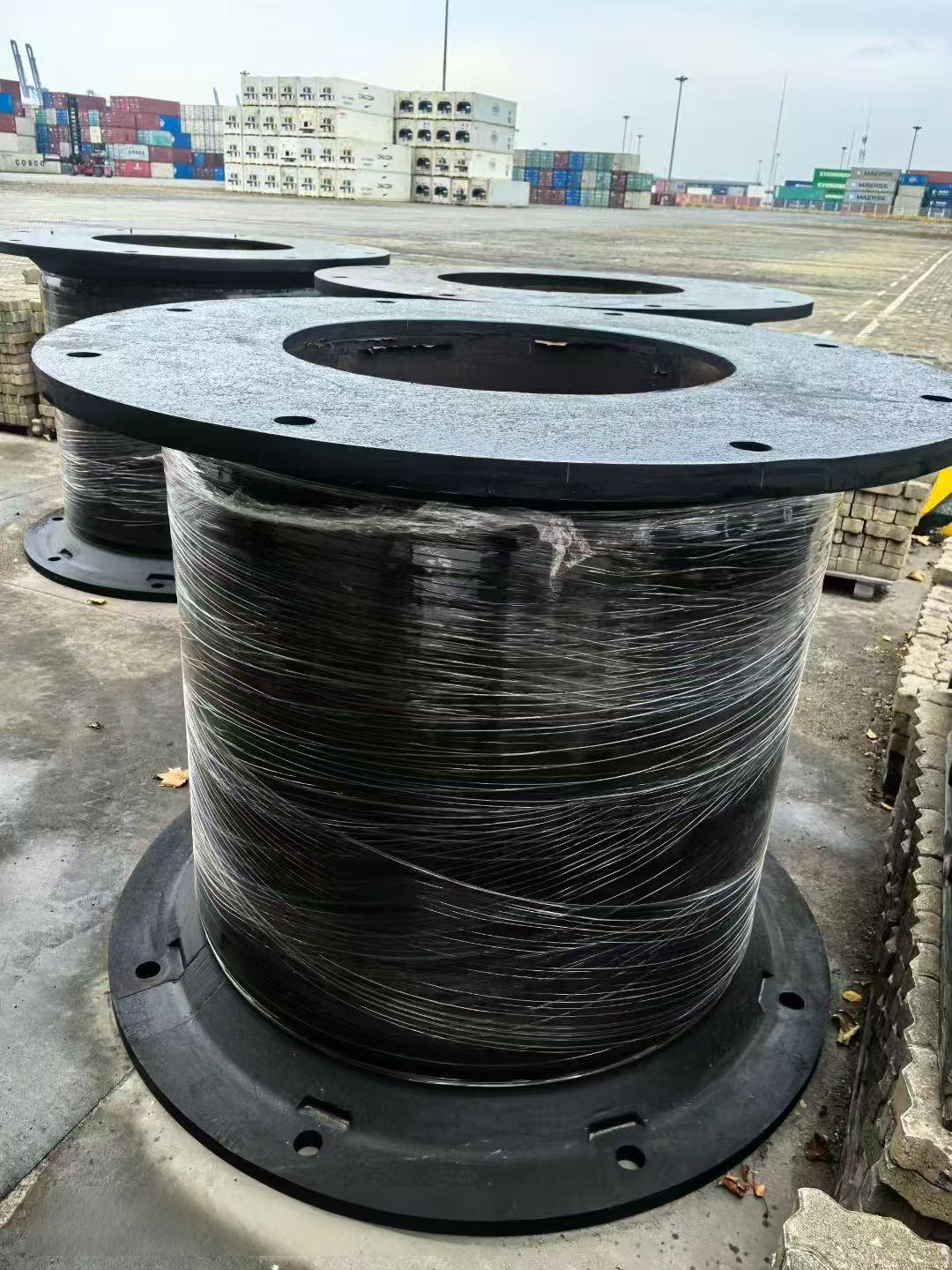

A cell fender remains viable when its corrected energy capacity meets demand and its governing reaction fits the assessed structural limit.

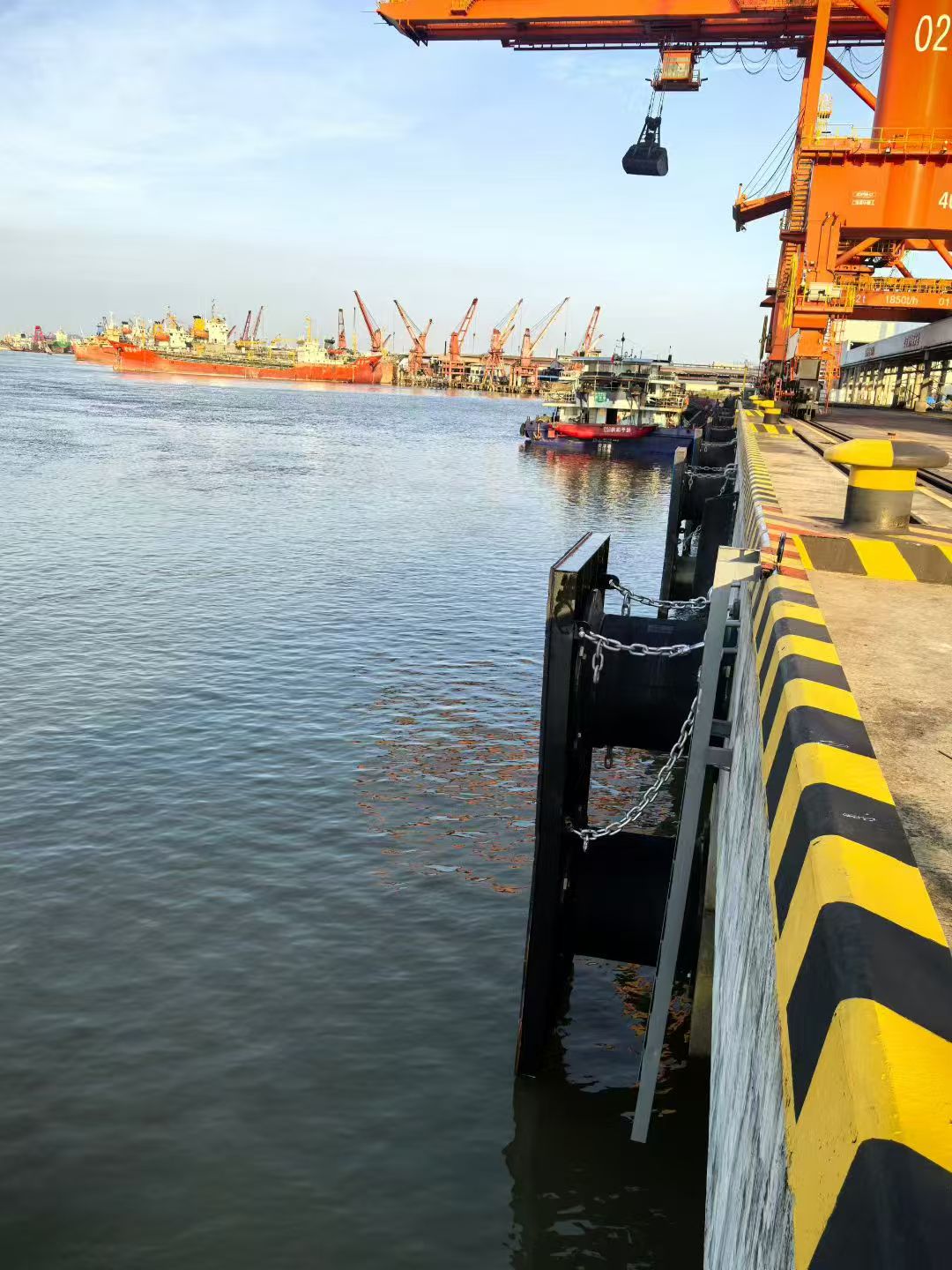

Existing panel geometry, available space, installation access, and replacement logistics may also support retaining a cell configuration.
The engineering objective is not to replace every older cell fender with a cone. It is to select the lowest-risk, verifiable system for the berth.
Energy absorption and reaction are related, but they are not interchangeable.
A system can absorb substantial energy through a longer controlled stroke without requiring the highest peak force. This explains why available compression distance matters when protecting load-sensitive structures.
However, extra stroke must remain compatible with:
- Vessel-to-structure clearance.
- Panel rotation and restraint.
- Bow flare and hull geometry.
- Tidal operating range.
- Chain movement and connection details.
Also distinguish total reaction from hull pressure. A larger panel can reduce average hull pressure by spreading contact force. It does not, by itself, reduce the total reaction transferred into the berth.
A useful low-reaction marine fender comparison separates three performance levels:
1. Base performance under defined testing conditions.
2. Characteristic performance after relevant site corrections.
3. Design performance incorporating the applicable safety framework.
Temperature, compression velocity, angular compression, and multiple-fender contact can affect selection. Manufacturing variability must also be addressed through the specified design and acceptance approach.
For aging concrete piles, request the complete force–deflection curve. A reaction value quoted only at final compression can conceal an earlier peak.
The specification should establish the maximum acceptable reaction throughout the relevant stroke, together with the required energy absorption.
Avoid combining factors from different guideline generations without a consistent engineering basis. An apparently conservative mixture can produce an incoherent design rather than a safer one.
PIANC Fender Guidelines 2024, developed by Working Group 211, supersedes WG33. Its approach emphasizes site-specific information and integrated consideration of the vessel, fender, and supporting structure.
This matters when a replacement tender copies an old specification.
Updating the document requires more than changing "WG33" to "WG211." The engineer should review the design basis, performance definitions, correction factors, and acceptance requirements together.
The following is an illustrative screening example, not Taidun product data or a completed customer project.
Assume an engineer has established these limits for one fender location:
- Required design energy absorption: 300 kNm.
- Maximum permitted reaction: 650 kN.
- Both limits use a consistent design basis.
- Clearance and connection checks remain separate requirements.
| Illustrative proposal | Design energy capacity | Governing reaction | Screening result |
|---|---|---|---|
| Cone option A | 320 kNm | 610 kN | Meets both stated limits |
| Cell option B | 330 kNm | 690 kN | Exceeds reaction limit |
| Alternative cell option C | 310 kNm | 630 kN | Meets both stated limits |
The lesson is not that cone always wins. It is that energy capacity alone cannot determine suitability.
Option B absorbs enough energy but fails the stated reaction constraint. Options A and C deserve further evaluation for geometry, connections, mooring behavior, testing evidence, and lifecycle cost.
Do not treat a passing reaction check as final structural approval.
Commission a condition assessment appropriate to the berth. Review records, inspect accessible and submerged components, and investigate deterioration where necessary.
Do not assign an allowable reaction from age or photographs alone.
Confirm the current vessel fleet, displacement range, approach conditions, tug assistance, and berth exposure.
Use reliable site observations where available. Vessel deadweight is not a substitute for operating displacement in the berthing-energy assessment.
Translate the structural assessment into clear fender-system requirements.
The engineer should identify governing load directions, combinations, connection limitations, and displacement criteria—not merely provide one unexplained force limit.
Evaluate cone and cell alternatives against the same duty.
Where space permits, consider different sizes or compounds. Do not select a softer compound without checking energy capacity, stroke, creep, and moored-vessel behavior.
Trace forces from vessel contact through the panel, rubber, chains, brackets, anchors, pile cap, and piles.
A lower rubber reaction does not automatically resolve a weak anchor zone or an unfavorable connection moment.
Agree on testing, inspection, installation checks, and commissioning requirements before production.
After installation, establish baseline photographs and inspection records so future movement, damage, and wear can be identified.
Buckling rubber fenders can behave differently during initial compression than after conditioning.
For load-sensitive structures, specify the applicable break-in or precompression requirements and supporting records. Confirm that delivered units meet the agreed conditioning and acceptance procedure.
Adding fenders does not guarantee equal energy sharing.
Hull curvature, approach angle, spacing, and installation tolerances influence which units engage first and how far each compresses. Verify contact geometry instead of dividing total energy equally by the number installed.
A berth may experience demanding fender loads while a vessel remains moored.
Wind, waves, currents, passing vessels, and mooring-line pretension can create sustained or cyclic compression. A system selected only for one berthing event may be unsuitable for these operating conditions.
These checks are particularly important at exposed terminals and flexible dolphins.
Send Nanjing Taidun Marine Equipment Engineering Co., Ltd. your berth drawings, existing fender details, vessel information, environmental conditions, and engineer-approved energy and reaction requirements.
Request a cone-versus-cell comparison showing:
1. Corrected energy absorption.
2. Maximum reaction across the working stroke.
3. Required compression and remaining clearance.
4. Panel and connection interfaces.
5. Proposed testing and documentation.
This creates a more useful purchasing discussion than asking for a cone fender with the same height as the existing cell unit.
Final selection and approval should remain with the appropriately qualified project engineer.
No. A cone fender can offer useful performance advantages, but suitability depends on the selected model, corrected reaction, available stroke, and structural capacity. A cell fender that satisfies the same requirements may also be appropriate.
Not without checking performance and interfaces. Equal height does not establish equal reaction, energy capacity, compressed clearance, bolt compatibility, or panel behavior. Treat the replacement as a system review rather than a dimensional substitution.
Not by itself. A larger effective contact area can reduce average hull pressure. Total reaction still depends on fender compression and system behavior. Additional panel weight and restraint loads also require consideration.
A qualified engineer determines it from the structure's condition, materials, reinforcement, geometry, foundation behavior, connections, and applicable assessment framework. There is no reliable universal reaction limit based only on pile age.
Request traceable performance curves, defined test conditions, correction-factor information, acceptance criteria, conditioning records where required, inspection documentation, and interface drawings. Confirm which evidence applies to the proposed product and which checks remain project-specific.
It may reduce energy demand, but only a justified, enforceable operating regime can support that assumption. The engineer must assess uncertainty, operating practicality, and moored-vessel loads. An informal instruction to approach slowly is not sufficient.
