Introduction: Why the Manufacturing Process Determines Frontal Steel Panel Quality

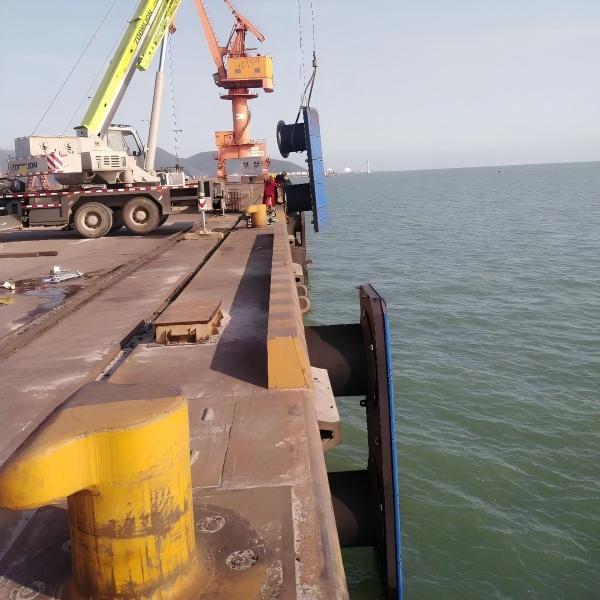

In port infrastructure, marine fender frontal steel panels are the critical interface between a vessel’s hull and the berthing structure. A poorly manufactured panel—with weak welds, inconsistent thickness, or subpar coatings—can fail under impact, leading to costly fender damage, vessel injuries, and port downtime.

Yet, most buyers focus solely on the final product, overlooking the manufacturing process that defines performance. This guide takes you inside a certified facility to reveal how every step—from raw steel selection to final load testing—is engineered to deliver corrosion-resistant, high-strength, and perfectly fitted frontal steel panels for marine fenders. Whether you’re a port engineer, procurement manager, or shipyard owner, understanding this process will help you select a supplier that prioritizes quality over shortcuts.



1. Raw Material Selection: The Foundation of Durability

The journey of a marine fender frontal steel panel begins with choosing the right steel grade. Not all steel is created equal—especially in marine environments where saltwater, UV radiation, and constant impact take their toll.

Key Steel Grades for Frontal Panels

Steel Grade	Tensile Strength (MPa)	Yield Strength (MPa)	Best For
Q235/SS400	370–500	235	Light-duty ports, small craft berths
Q345B/A572 Gr.50	470–630	345	Medium/heavy-duty ports, container terminals
S355J2+N/ASTM A588	490–630	355	Major seaports, offshore platforms, bulk carriers

Why Material Certification Matters

Reputable manufacturers provide Mill Test Certificates (MTC) for every steel batch, verifying:

①Chemical composition (e.g., carbon, manganese, silicon content)

②Mechanical properties (tensile/yield strength, elongation)

③Compliance with international standards (ASTM, EN, GB/T)

Red Flag: Avoid suppliers that cannot provide MTCs—this often indicates recycled or substandard steel.

Pro Tip: For tropical or Arctic ports, request steel with enhanced low-temperature toughness (e.g., S355J2+N) or salt-spray resistance.



2. Cutting & Shaping: Precision Starts Here

Once the steel arrives, it’s transformed into a panel that fits your fender system like a glove. Precision cutting and shaping prevent stress concentrations and ensure uniform load distribution.

Step 1: CNC Plasma/Laser Cutting

Plasma Cutting: Ideal for thick plates (≥20mm); fast and cost-effective.

Laser Cutting: Used for thin plates (<20mm) or complex shapes; delivers smoother edges (±0.1mm tolerance).

Result: Panels are cut to exact dimensions (length × width × thickness) specified in your fender design.

Step 2: Edge Preparation

Rough edges from cutting are smoothed via:

Deburring: Removes sharp burrs that could puncture rubber fenders.

Beveling: Angles edges (typically 30°–45°) to improve welding penetration and reduce crack risks.

Case Study: A Chinese port saved $12,000/year in fender repairs after switching to laser-cut panels—eliminating 85% of edge-related failures.



3. Drilling & Mounting Prep: Ensuring Perfect Fit

Frontal steel panels must align with fender bolt holes, chain lugs, or pin connectors. Even a 2mm misalignment can cause installation delays or structural weakness.

Precision Drilling Techniques

CNC Drilling Machines: Drill holes to exact coordinates (±0.05mm tolerance) using CAD drawings provided by engineers.

Hole Types:

Bolt Holes: For securing panels to fenders or docks (diameter matches bolt size + 1mm clearance).

Chain Lug Holes: Reinforced with gussets to handle lashing rod tension.

Drainage Holes: Small holes (3–5mm) to prevent water pooling (reduces internal rust).

Quality Check:

Each panel undergoes a fit-test with a sample fender or mounting fixture to confirm hole alignment.

Pro Tip: Request 3D CAD models of your panel before production—this avoids costly rework if dimensions are off.



4. Surface Treatment: The First Line of Defense Against Corrosion

A panel’s coating determines how long it survives in a marine environment. Skipping or rushing this step is the #1 cause of premature failure.

Step 1: Surface Preparation

Sandblasting: Blasts the steel with abrasive media (e.g., steel grit) to remove mill scale, rust, and oil. Achieves SA 2.5 (near-white metal) finish—critical for coating adhesion.

Dust Removal: Cleans the surface with compressed air to eliminate residual particles.

Step 2: Coating Application

Three primary coating methods are used, depending on the port’s environmental demands:

Coating Type	Process	Thickness (DFT)	Lifespan	Best For
Hot-Dip Galvanizing	Steel is dipped in molten zinc (450°C)	80–120 µm	20–30 years	High-corrosion zones (tropical ports)
Epoxy Powder Coating	Electrostatic spray + oven curing (180°C)	100–200 µm	15–25 years	Chemical/UV resistance (offshore platforms)
Marine-Grade Polyurethane Paint	Primer + topcoat (sprayed)	150–250 µm	10–20 years	Aesthetic customization (marinas)

Step 3: Curing & Inspection

Galvanizing: Cooled slowly to prevent brittleness.

Epoxy/Polyurethane: Cured in a temperature-controlled oven.

Coating Thickness Test: Measured with a magnetic gauge (per ISO 2808).

Adhesion Test: Cross-hatch tape test (per ASTM D3359) to ensure coating doesn’t peel.

Critical Note: Never mix coating types (e.g., galvanizing + epoxy)—this causes delamination.



5. Welding & Assembly: Strength Through Skill

For panels requiring additional reinforcement (e.g., chain lugs, gussets), welding is the next step. Poor welding creates weak points that crack under impact.

Welding Standards

Process: Shielded Metal Arc Welding (SMAW) or Gas Metal Arc Welding (GMAW) for thick plates.

Certification: Welders hold AWS D1.1 (structural steel) or EN 1090 (CE marking) certifications.

Procedure:

Preheat steel to 100–150°C (prevents cracking in high-carbon steels).

Use low-hydrogen electrodes (e.g., E7018) to minimize porosity.

Post-weld heat treatment (stress relief) for heavy-duty panels.

Visual & Non-Destructive Testing (NDT)

Visual Inspection: Checks for cracks, undercuts, or incomplete fusion.

NDT Methods:

Magnetic Particle Testing (MT): Detects surface cracks.

Ultrasonic Testing (UT): Identifies internal flaws (for critical applications).

Pro Tip: Request weld procedure specifications (WPS) and NDT reports for your order—this proves compliance with safety standards.

6. Quality Control: Every Panel Is Tested, Not Just Sampled

Top-tier manufacturers don’t rely on random sampling—they test 100% of panels to ensure consistency.

Key QC Tests

Test	Purpose	Standard
Dimensional Check	Verify length, width, thickness, hole placement	ISO 2768-mK
Load Bearing Test	Simulate berthing impact (static/dynamic)	PIANC WG33
Coating Thickness	Confirm DFT meets specs	ISO 2808
Salt Spray Test	Accelerated corrosion resistance (500–1000 hours)	ASTM B117
Hardness Test	Measure steel hardness (Rockwell/Brinell)	ASTM E18

Documentation

Every panel receives a Certificate of Conformance (CoC) detailing:

Batch number & steel grade

Coating type/thickness

Test results

Inspector signature

Red Flag: Suppliers that skip QC tests or provide generic CoCs often cut corners—avoid them.



7. Packaging & Logistics: Delivering Damage-Free Panels

Even a perfectly manufactured panel can be ruined by poor packaging.

Protection Measures

Anti-Corrosion Wrapping:VCI (Volatile Corrosion Inhibitor) paper or polyethylene film.

Edge Guards: Plastic or rubber guards to prevent chipping during transit.

Reinforced Pallets: Steel-banded wooden pallets for heavy panels (≥500kg).

Shipping Options

Flat Rack Containers: For oversized panels (avoids bending).

Breakbulk Shipping: For urgent orders (faster than container shipping).

GPS Tracking: Real-time monitoring to prevent loss/theft.

Pro Tip:Specify “fragile” labels and require the carrier to use shock-absorbent packaging—this reduces transit damage claims by 70%.



Conclusion: Choose a Manufacturer That Masters Every Step

The manufacturing process of marine fender frontal steel panels is a blend of metallurgy, precision engineering, and quality control. By understanding each stage—from raw material selection to final QC—you can identify suppliers that deliver panels built to withstand decades of marine abuse.
