Frontal panels—also known as frontal frames or steel facing panels—are the critical interface between a marine rubber fender and the vessel hull. This article combines engineering standards, patented maintenance innovations, and real-world project data to provide a comprehensive guide for port engineers, terminal operators, and marine contractors. Drawing from PIANC guidelines, Trelleborg's SISO patented system, the Igoumenitsa Port expansion in Greece (2025), and field-verified practices, we cover frontal panel design types (closed-box vs. open), UHMW-PE material selection, load distribution principles, chamfer requirements for Ro-Ro vessels, and emerging trends in modular and smart fender systems. Whether you are specifying frontal panels for a new container terminal or upgrading an existing berth, this guide delivers actionable insights from both industry experts and end users.
In marine fender systems, the rubber unit gets all the attention. It absorbs energy, compresses under load, and protects the vessel. But there is another component just as critical: the frontal panel.
I have seen a fender system fail not because the rubber cone cracked, but because the frontal panel's UHMW-PE pads wore through and the steel frame made direct contact with the vessel hull. The result? Hull damage exceeding $500,000 and three days of lost berth operations.
The frontal panel is the only component that touches the vessel. It distributes loads, provides a low-friction sliding surface, and protects both the rubber fender and the ship's hull. When designed and maintained correctly, it is invisible. When it fails, the consequences are immediate and expensive.
This guide draws from patented innovations, recent port projects, and material science to help you select, specify, and maintain frontal panels that deliver decades of reliable service.
A frontal panel (frontal frame) is a rigid structure—typically fabricated from steel—mounted on the face of a rubber fender. It serves as the direct contact point between the fender system and the vessel hull .
| Component | Function |
|---|---|
| Steel Frame | Provides structural rigidity and load transfer to rubber fender |
| UHMW-PE Pads | Low-friction sliding surface; protects hull and reduces shear forces |
| Fastening System | Bolts, capnuts, or recessed hardware securing pads to frame |
| Mounting Brackets | Connect frontal panel to rubber fender or quay structure |
1. Load Distribution: Spreads the concentrated reaction force from the rubber unit across a wider hull area, keeping hull pressure below safe limits (typically ≤200 kN/m²) .
2. Low-Friction Interface: UHMW-PE pads allow vessels to move vertically with tides and horizontally during mooring without damaging rubber or steel .
3. Rubber Protection: Prevents direct abrasion of the rubber fender, extending service life significantly.
4. Hull Protection: Non-marking, smooth surface protects vessel coatings and plating.
Image Suggestion 1: *Figure 1 – Complete frontal panel assembly showing steel frame, UHMW-PE pads, and mounting hardware*
Frontal panels are manufactured in two primary configurations, each with distinct performance characteristics .
Characteristics: Fully welded, sealed perimeter, internal stiffeners
| Advantage | Limitation |
|---|---|
| Superior torsional rigidity | Higher weight |
| Enhanced corrosion protection (sealed interior) | Higher fabrication cost |
| Excellent edge load resistance | Complex manufacturing |
Best for: High-energy container terminals, exposed locations, large vessel traffic
Characteristics: Structural members with open spaces, accessible internal surfaces
| Advantage | Limitation |
|---|---|
| Lighter weight | Lower torsional rigidity |
| Lower initial cost | All surfaces exposed to corrosion |
| Easy inspection access | Reduced edge load resistance |
Best for: Low-energy berths, budget-constrained projects, small craft harbors
The Igoumenitsa Port expansion—one of Greece's most important transport hubs—required frontal panels capable of handling both Ro-Ro vessels and ferries. ShibataFenderTeam delivered 26 Cone Fender Systems with closed-box frontal panels measuring 2,050 x 2,750 mm .
Critical design feature: The steel panels were designed with large chamfers to prevent hull beltings from getting caught beneath panel edges. Additionally, shear chains were incorporated to absorb horizontal forces during berthing .
> *"The selected models were specifically adapted to ensure optimal performance and adaptability, providing a reliable solution for mixed-traffic operations."* — Marine Construction Magazine, reporting on Igoumenitsa Port expansion
Image Suggestion 2: *Figure 2 – Closed-box frontal panel with chamfered edges, similar to Igoumenitsa Port installation*
The UHMW-PE (Ultra-High Molecular Weight Polyethylene) pad is the only component that contacts the vessel. Its properties directly impact fender system performance and vessel safety.
Trelleborg's FQ1000 UHMW-PE is considered the industry benchmark, combining :
- Very low friction coefficient (self-lubricating)
- Excellent abrasion resistance (10x better than carbon steel)
- UV and ozone resistance – does not degrade in marine environments
- Impact strength – 150-200 kJ/m², will not crack under impact
- 100% recyclable at end of service life
| Grade | Features | Best Application |
|---|---|---|
| FQ1000-DS (Double-sintered) | Work-hardened, extra durable | High-traffic commercial terminals |
| FQ1000-V (Virgin) | Available in multiple colors (yellow, white, grey, blue, green, red) | Applications requiring color coding or aesthetics |
| Standard UHMW-PE | Good general-purpose | Low to medium traffic |
| Thickness | Expected Service Life | Best Application |
|---|---|---|
| 20-30 mm | 5-10 years | Low-traffic, small vessels |
| 40-60 mm | 10-15 years | Medium-traffic commercial |
| 70-100 mm | 15-25 years | High-traffic terminals, large vessels |
> *"UHMW fender facings bolted or bonded to a fender front creates an unbreakable, low friction shield which protects surfaces from impact and abrasion."* — Nytef Plastics material specification
Image Suggestion 3: *Figure 3 – UHMW-PE pad close-up showing surface texture and recessed fasteners*
One of the most significant innovations in frontal panel maintenance comes from Trelleborg's patented SISO (Slide-In, Slide-Out) system .
In a conventional fender system, UHMW-PE wear pads are bolted directly to a fixed frontal frame. When pads wear out:
- The entire berth may need to be shut down
- Replacement requires working from a workboat (safety risks)
- Downtime typically 1-2 days per pad replacement
In Trelleborg's patented design :
1. UHMW-PE pads are bolted onto two stainless steel removable panels
2. These panels slide into guide rails on the front face of the fixed frontal frame
3. Worn panels are lifted out and replacements inserted within two hours
4. Original panels are transported onshore for maintenance and refurbished as spares
> *"The sliding panels can then be easily lifted out of the frontal frame and replacements reinserted within two hours – reducing downtime on the berth and keeping operations running punctually."* — Richard Hepworth, President of Trelleborg's marine operation
The SISO system also reduces safety risks:
- All activities are undertaken from the berth (not from a workboat subjected to wave movements)
- No offshore maintenance required during pad replacement
The SISO system is now in operation at a site in Dampier, Western Australia. Each fender module was hoisted into position and bolted onto the supporting dolphin headstock structure. By removing final assembly from the offshore environment, both time and labor costs were considerably reduced .
For LNG and gas terminals, Trelleborg has further refined the SISO system to prevent metal-to-metal contact, reducing the possibility of spark ignition onsite .
Image Suggestion 4: *Figure 4 – SISO system diagram showing removable sliding panels and guide rail mechanism*
A properly designed frontal panel ensures that hull pressure remains within safe limits.
According to PIANC guidelines and manufacturer specifications, frontal panels should keep surface pressure below 200 kN/m² when berthing large vessels .
| Factor | Without Frontal Panel | With Frontal Panel |
|---|---|---|
| Contact area | Small (rubber unit only) | Large (full panel face) |
| Peak pressure | High (risk of hull damage) | Controlled (<200 kN/m²) |
| Load uniformity | Concentrated at rubber contact | Distributed across multiple mounting points |
When a vessel berths, the frontal panel transfers impact forces to the rubber fender, which compresses and absorbs energy. The panel must be sized to ensure the rubber unit achieves its design compression without bottoming out (metal-to-metal contact between panel and quay).
Frontal panels can be arranged in several configurations depending on fender type and berth geometry .
| Configuration | Description | Best Application |
|---|---|---|
| Horizontal arrangement | Fenders arranged horizontally (e.g., 1×1, 2×1, 3×1) | Standard quay walls |
| Vertical arrangement | Fenders arranged vertically (e.g., 1×1, 1×2, 1×3) | High-tidal-range locations |
| Multiple fender arrangement | Complex configurations for special applications | Dolphins, corner berths |
- Quay structure type – Determines mounting method and load transfer
- Berthing vessel characteristics – Size, displacement, hull form
- Hydrologic conditions – Tidal range, wave exposure, current
- Fender arrangement – Spacing and orientation
Marine environments are extremely corrosive. Frontal panel material selection directly impacts service life.
| Material | Corrosion Protection | Best Application |
|---|---|---|
| Carbon steel | Hot-dip galvanizing or epoxy coating | Most commercial terminals |
| Stainless steel (304/316) | Inherent corrosion resistance | LNG terminals, aggressive environments |
| Composite materials | Inherent corrosion resistance | Emerging technology, lightweight applications |
For carbon steel frontal panels:
- Surface preparation: Sa 2.5 (near-white metal blast cleaning)
- Primer: Epoxy zinc-rich
- Intermediate: High-build epoxy
- Topcoat: Polyurethane for UV resistance
- Total DFT: 200-400 microns minimum
All bolts, nuts, and washers should be:
- Stainless steel (316 grade) or
- Hot-dip galvanized with coating thickness meeting ASTM A153
As noted by Trelleborg, over time—due to high usage, large ships, arduous weather conditions, or a combination—UHMW-PE wear pads wear away because of abrasion with the ship's hull .
| Task | Frequency | Method |
|---|---|---|
| Visual inspection | Monthly | Check for pad wear, loose fasteners, corrosion |
| Wear measurement | Quarterly | Measure remaining pad thickness |
| Detailed inspection | Annually | Full system inspection including frame and mounting |
| Pad replacement | As needed (typically 5-15 years) | Use SISO-type system for rapid change-out |
If your frontal panel does not have a slide-in/slide-out design:
1. Berth may require shutdown for 1-2 days
2. Replacement requires workboat access
3. Safety precautions for working over water
4. Consider upgrading to modular design during next refurbishment
Composite materials offer:
- Corrosion resistance superior to coated steel
- Lighter weight – easier handling and installation
- Lower maintenance – no coating repair required
Future frontal panels may incorporate:
- Wear sensors embedded in UHMW-PE pads to alert when replacement is needed
- Load cells to measure berthing energy in real-time
- RFID tags for maintenance tracking

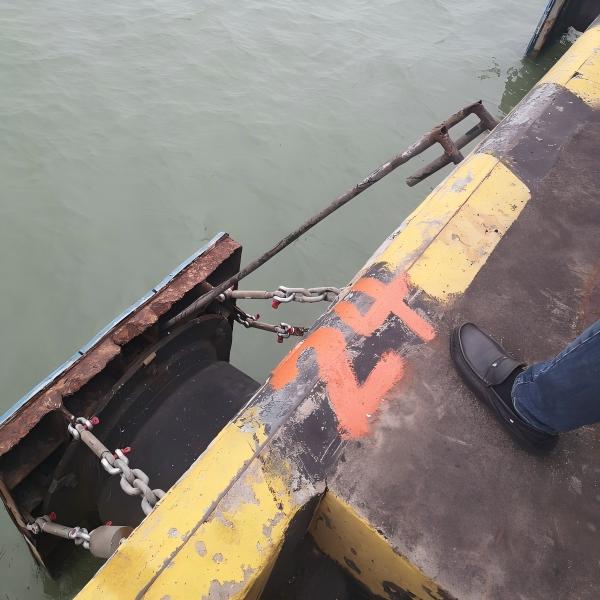

Image Suggestion 5: *Figure 5 – Complete frontal panel installation at a container terminal*
Use this checklist when specifying frontal panels for your fender system:
- [ ] Determine berthing energy (vessel size, speed, approach angle)
- [ ] Calculate required hull pressure (target ≤200 kN/m²)
- [ ] Assess environmental conditions (salinity, tidal range, UV exposure)
- [ ] Verify quay structure capacity for reaction forces
- [ ] Select configuration (closed-box vs. open frame)
- [ ] Determine dimensions (height, width, thickness)
- [ ] Specify chamfer requirements for Ro-Ro vessels
- [ ] Design pad layout (coverage area, fastener pattern)
- [ ] Choose steel grade (carbon vs. stainless)
- [ ] Specify corrosion protection (coating system or galvanizing)
- [ ] Select UHMW-PE grade (FQ1000-DS, FQ1000-V, or equivalent)
- [ ] Determine pad thickness (based on expected traffic and life)
- [ ] Specify fastener material (316 stainless steel minimum)
- [ ] Design recessed capnuts or protected hardware
- [ ] Verify torque specifications
- [ ] Plan for pad replaceability
- [ ] Consider SISO-type removable panel system for easy replacement
- [ ] Establish inspection schedule
- [ ] Define pad wear limits (typically 50-60% of original thickness)
- [ ] Budget for periodic replacement
The frontal panel is far more than a simple steel plate on the front of a rubber fender. It is a precision-engineered component that determines how loads are distributed, how vessels interact with the berth, and how long the entire fender system will last.
Key takeaways from this guide:
1. Closed-box panels offer superior rigidity and corrosion protection for demanding applications
2. UHMW-PE material selection directly impacts wear life and hull protection
3. Patented SISO systems can reduce pad replacement downtime from days to hours
4. Chamfered panels are essential for Ro-Ro terminals to prevent catching
5. Regular maintenance of pads and coatings extends system life significantly
Whether you are specifying frontal panels for a new LNG terminal, upgrading a container berth, or maintaining a small harbor, the principles in this guide will help you make informed decisions that prioritize safety, durability, and lifecycle value.
For assistance with frontal panel selection, design, or procurement, consult with experienced marine fender engineers who can evaluate your specific berth conditions and operational requirements.
Q1: What is the difference between a closed-box and open frontal panel?
Closed-box panels have fully welded, sealed perimeters with internal stiffeners, offering superior torsional rigidity and corrosion protection. Open frames have structural members with open spaces, making them lighter and less expensive but with reduced rigidity and more exposed surfaces requiring maintenance. Closed-box is preferred for high-energy terminals; open frames suit low-energy applications .
Q2: How thick should UHMW-PE pads be for my fender system?
Pad thickness depends on traffic intensity and vessel size. For low-traffic small craft: 20-30 mm (5-10 year life). For medium-traffic commercial: 40-60 mm (10-15 years). For high-traffic terminals with large vessels: 70-100 mm (15-25 years). Thicker pads have higher initial cost but lower lifecycle cost due to less frequent replacement.
Q3: What is the SISO system and why does it matter?
SISO (Slide-In, Slide-Out) is a patented system where UHMW-PE pads are mounted on removable stainless steel panels that slide into guide rails. Worn pads can be replaced within two hours from the berth (not from a workboat), dramatically reducing downtime and improving safety. For LNG terminals, the system is adapted to prevent metal-to-metal contact and spark ignition .
Q4: How do I know when UHMW-PE pads need replacement?
Monitor pad thickness regularly. Replace when thickness reaches 50-60% of original (e.g., 40mm pad replaced at 20-24mm remaining). Also replace if cracking, delamination, or excessive grooving is visible, or if fasteners are damaged. Some advanced systems incorporate wear sensors for predictive maintenance alerts.
Q5: Why are chamfered frontal panels important for Ro-Ro terminals?
Ro-Ro vessels have hull beltings that can catch beneath standard square-edged frontal panels, causing damage to both the vessel and the fender system. Chamfered edges (typically 30-60 degree angles) prevent catching, allowing the vessel to move vertically with tides without snagging. The Igoumenitsa Port project in Greece (2025) specifically used large chamfers for this reason .
