Steel panels for marine rubber fenders are the critical interface between vessel hulls and berthing infrastructure. This article combines engineering standards, real-world project case studies, and field-verified maintenance practices to provide a comprehensive guide for port engineers, terminal operators, and marine contractors. Drawing from the Angola Fuel Terminal project (2025), the Port of Rønne offshore wind expansion (2025), and the Alaska Marine Highway System retrofit, we cover steel panel design principles, closed-box vs. open configurations, UHMW-PE pad selection, installation best practices, and a 5-step problem-solving framework for common failures like corrosion, delamination, and bolt loosening. Whether you are specifying steel panels for a new LNG terminal or maintaining an existing berth, this guide delivers actionable insights from both industry experts and project data.
In marine fender systems, the rubber unit gets the attention—it compresses, absorbs energy, and protects the vessel. But there is another component that is equally critical: the steel panel.
I have seen a fender system fail not because the rubber cone cracked, but because the steel panel's coating was compromised and corrosion ate through the mounting plate. The result? Six months of accelerated wear, emergency replacement, and 72 hours of unplanned berth downtime.
Steel panels serve as the structural backbone of the fender system. They distribute berthing energy across the rubber unit, provide a mounting surface for UHMW-PE sliding pads, and protect the quay wall from direct vessel impact. When designed and maintained correctly, they deliver 15–25 years of reliable service. When neglected, they fail in 5–8 years .
This guide draws from recent global projects, industry standards (PIANC 2024, BS 6349), and field-verified practices to help you select, install, and maintain steel panels that deliver decades of reliable performance.

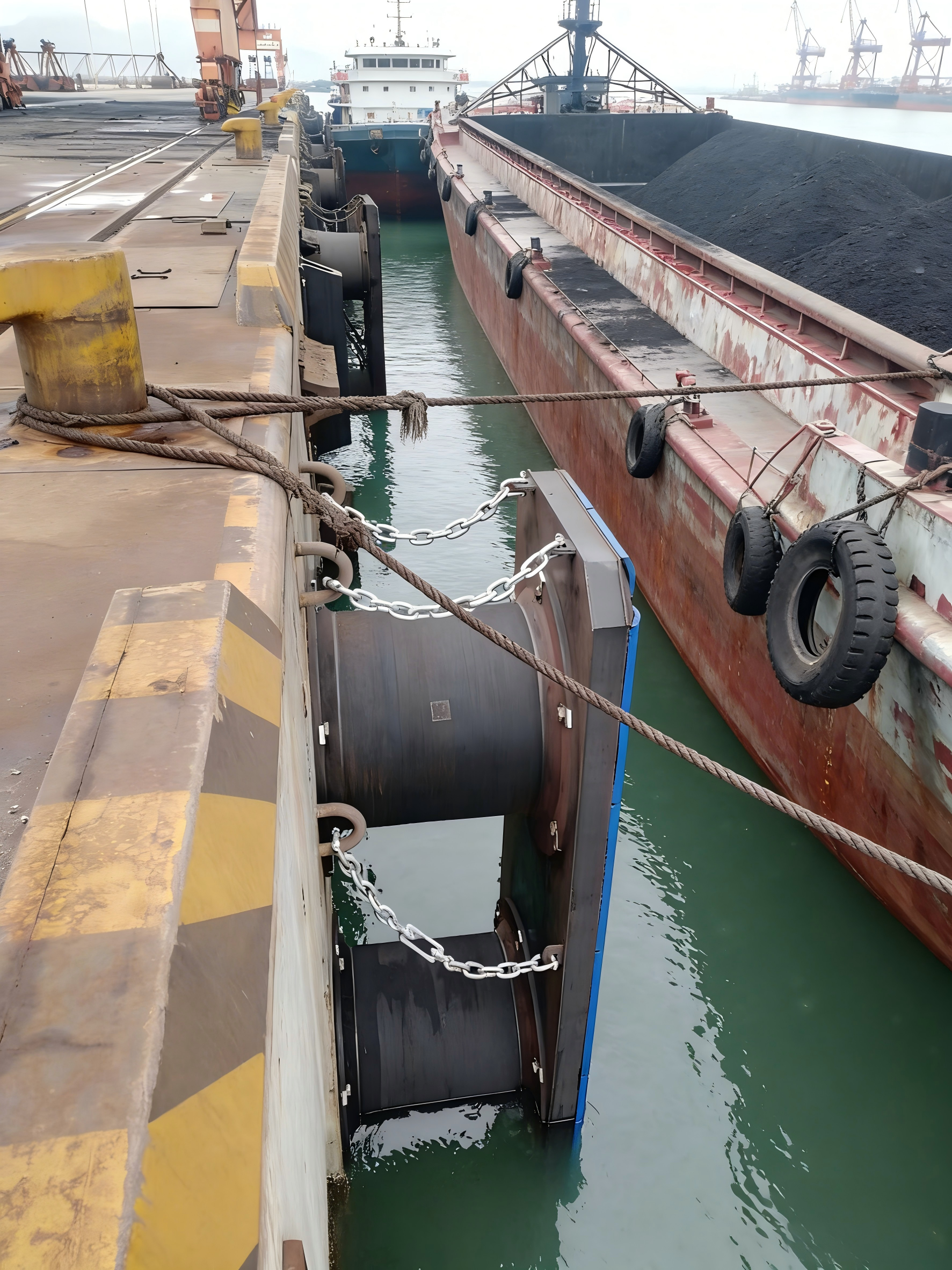

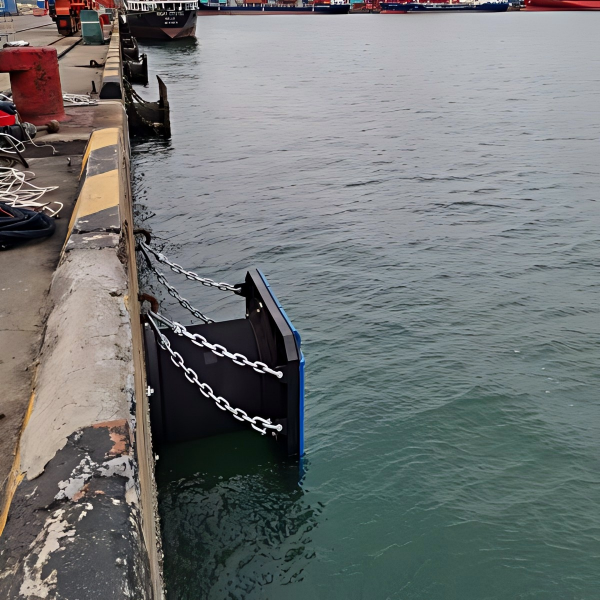

A steel panel (frontal panel or steel facing panel) is a rigid steel structure mounted on the face of a rubber fender. It serves as the direct contact point between the fender system and the vessel hull .
| Component | Function |
|---|---|
| Steel Frame | Provides structural rigidity and load transfer to rubber fender |
| UHMW-PE Pads | Low-friction sliding surface; protects hull and reduces shear forces |
| Fastening System | Bolts, capnuts, or recessed hardware securing pads to frame |
| Mounting Hardware | Anchor bolts, washers, and lock nuts attaching panel to quay |
1. Load Distribution: Spreads the concentrated reaction force from the rubber unit across a wider hull area, keeping hull pressure below safe limits .
2. Abrasion Protection: Acts as a "sacrificial layer" against hull chafing, rope scuffs, and debris—protecting the rubber fender from premature wear .
3. Structural Integrity: Prevents fender deformation under heavy loads from bulk carriers, tankers, and container ships .
4. Safety Compliance: Damaged panels can lead to fender failure, risking vessel damage, dock destruction, and legal liability .
Image Suggestion 1: *Figure 1 – Complete steel panel assembly with UHMW-PE pads and mounting hardware*
Steel panels are manufactured in two primary configurations, each with distinct performance characteristics .
Characteristics: Fully welded, sealed perimeter, internal stiffeners
| Advantage | Limitation |
|---|---|
| Superior torsional rigidity | Higher weight |
| Enhanced corrosion protection (sealed interior) | Higher fabrication cost |
| Excellent edge load resistance | Complex manufacturing |
Best for: High-energy container terminals, exposed locations, large vessel traffic, LNG facilities
Characteristics: Structural members with open spaces, accessible internal surfaces
| Advantage | Limitation |
|---|---|
| Lighter weight | Lower torsional rigidity |
| Lower initial cost | All surfaces exposed to corrosion |
| Easy inspection access | Reduced edge load resistance |
Best for: Low-energy berths, budget-constrained projects, small craft harbors
The Angola Fuel Terminal, located in Dande Municipality north of Luanda, is a critical infrastructure project ensuring the country's fuel supply while enabling fuel exports. The facility includes a 1,700-meter jetty designed to accommodate large vessels .
OECI (Odebrecht Engenharia e Construção Internacional), the project contractor, entrusted Nanjing Taidun with designing fender systems for the new berth. The project required steel panels capable of handling reaction forces up to 1,929 kN while maintaining vessel hull pressure below 200 kN/m²—the PIANC-recommended limit for large vessels .
Nanjing Taidun designed and delivered:
- Two Cone Fender Systems (SCN 1600, G1.4) with closed-box steel panels measuring 2,300 x 5,200 mm
- Four Cone Fender Systems (SCN 1300, G1.5) with steel panels measuring 2,300 x 3,600 mm
Critical design features:
- 80 mm thick UHMW-PE pads — an unusual thickness selected to support the intended service life of the fendering application .
- Optimized pressure distribution — the in-house engineering team designed panels to ensure energy absorption within hull pressure limits without compromising safety .
To meet rigorous quality requirements, Nanjing Taidun conducted combined compression and shear testing of the rubber units at their facility in Malaysia. The testing confirmed full compliance with international standards, including the updated PIANC Fender Guidelines 2024 .
> *"The ability to carry out these tests and witness the results firsthand reinforced confidence in the reliability of the fender systems."* — Marine Construction Magazine, reporting on Angola Fuel Terminal
The Port of Rønne, located on the Danish island of Bornholm, plays a central role in supporting offshore wind projects across the Baltic Sea. Phase 3 of the port's futureproofing project added over 100,000 m² of project space, a 280-meter quay, and a new Ro-Ro ramp .
The project required fender systems capable of handling offshore wind turbine shipment logistics—heavy, oversized cargo with demanding berthing requirements. Nanjing Taidun was selected to collaborate with contractor MT Højgaard, continuing a partnership built over previous development phases .
The delivery prominently featured:
- 24 Element Fenders (FE 1,250 x 1,000 mm, G2.4) with closed-box steel panels measuring 2,250 x 2,850 mm
- 10 steel ladders and 28 T-head bollards (24 with 125-tonne capacity, 4 with 200-tonne capacity)
Critical design features:
- Tension chains — incorporated to control deflection, ensuring efficient energy absorption, durability, and structural integrity during berthing impacts .
With Phase 3 completed, the port has doubled its capacity to handle concurrent offshore wind shipments—a milestone strengthening its role in the Baltic Sea. Phase 4 is already in planning .
Proper installation is critical. Industry data shows that poor installation accounts for over 60% of premature fender failures, including loose mounting, steel-rubber delamination, uneven impact pressure distribution, and bolt breakage .
Full Product Inspection: Examine every steel panel for chipped coating, rust spots, dents, or bending. Check the rubber core for cracks, tears, or weak bonding. Verify dimensions and hole spacing match engineering drawings .
Mounting Surface Preparation: Clean the concrete dock wall or quay face thoroughly. Remove debris, salt deposits, marine growth, loose concrete, and old adhesive. Repair any cracks or uneven sections with high-strength marine-grade concrete .
Tool Preparation: Gather calibrated torque wrench, lifting equipment, marine-grade polyurethane sealant, level, measuring tape, and full PPE .
| Step | Action | Critical Requirement |
|---|---|---|
| 1 | Lifting & Positioning | Use certified lifting equipment; align holes with anchor points; verify vertical/horizontal level |
| 2 | Hardware Installation | Use 316 stainless steel bolts with flat and lock washers—never carbon steel |
| 3 | Torque Tightening | Use calibrated torque wrench (80–120 Nm typical); tighten in crisscross pattern |
| 4 | Gap Sealing | Apply marine-grade polyurethane sealant around all edges and bolt holes |
| 5 | Stability Test | Apply light pressure to test for movement; adjust before finalizing |
For panels mounted directly on vessel hulls:
- Install only over reinforced, load-bearing hull framing—never on thin, unsupported plating
- Use a dual-security method: heavy-duty marine adhesive + 316 stainless steel bolts
- Seal all edges and bolt holes with hull-specific sealant to maintain watertight integrity
- Inspect every bolt for accurate torque
- Check the steel-rubber bond line for signs of separation
- Perform a controlled light impact test to confirm proper energy absorption
- Document inspection and torque values for warranty validation
Schedule a follow-up torque inspection and bolt retightening after 30 days of initial use—rubber may settle slightly after absorbing regular berthing impact .
A properly designed steel panel ensures that hull pressure remains within safe limits for the vessel type.
| Vessel Type | Maximum Hull Pressure (kN/m²) |
|---|---|
| 5th/6th generation container vessels (Super Post Panamax) | < 200 |
| LNG/LPG carriers | < 200 |
| Bulk carriers | < 200 |
| VLCC tankers | < 200 |
| 3rd generation container (Panamax) | < 300 |
| Oil tankers > 60,000 DWT | < 350 |
| General cargo > 20,000 DWT | < 400 |
*Source: PIANC guidelines via Dolphin Marine Industrial *
For berths fitted with steel panel systems:
P = ΣR / (A₁ × B₁) ≤ P_P
Where:
- ΣR = Combined reaction forces of all rubber fenders
- A₁ = Valid panel width excluding lead-in chamfers (m)
- B₁ = Valid panel height excluding lead-in chamfers (m)
- P_P = Permissible hull pressure (kN/m²)
In the Angola project, the SCN 1600 systems generated reaction forces up to 1,929 kN. To meet the vessel hull pressure limit of < 200 kN/m², engineers designed panels over five meters in length with optimized pressure distribution .
Based on field data and maintenance records, these are the most frequent issues affecting marine steel panels .
Causes: Saltwater exposure, chipped coatings, inadequate sealing, low-grade steel.
Early Warning Signs: Orange/brown rust spots, flaking coating, pitted holes, rust buildup around bolt holes .
Step-by-Step Fix:
1. Surface Preparation: Clean corroded area; remove rust and flaking coating using wire brush or sandblaster
2. Rust Treatment: Apply marine-grade rust converter
3. Re-Coating: Apply two coats of saltwater-resistant epoxy primer, followed by marine-grade polyurethane topcoat
4. Seal Bolt Holes: Re-seal all edges and bolt holes with polyurethane sealant
Prevention: Monthly visual inspections, quarterly cleaning, use only 316 stainless steel hardware .
Causes: Poor manufacturing (low-pressure vulcanization), saltwater intrusion, repeated extreme impact.
Warning Signs: Visible gaps between rubber and steel, bulging rubber sections, loose feel when pressure applied .
Fixes:
- Minor delamination: Clean gap, dry completely, inject marine-grade structural adhesive, clamp until cured
- Major delamination: Replace panel immediately—no safe repair exists
Prevention: Source panels with certified high-pressure vulcanized bonding; never overload beyond rated capacity .
Causes: UV radiation exposure, temperature extremes, chemical pollutants, use of recycled rubber .
Warning Signs: Visible surface cracks, hardened rubber that does not compress, brittle edges that chip easily .
Fixes:
- Minor cracks: Clean and fill with marine-grade rubber repair sealant
- Major cracking: Full panel replacement required
Prevention: Choose UV-stabilized EPDM rubber for tropical areas; install UV-protective covers for exposed panels .
Causes: Improper torque during installation, vibration, corrosion of carbon steel bolts, weak mounting surfaces .
Warning Signs: Visible movement when pressure applied, wobbly edges, loose or missing bolts, rattling noises during berthing .
Step-by-Step Fix:
1. Bolt Inspection: Replace all corroded bolts with 316 stainless steel + lock washers
2. Calibrated Torque: Tighten to manufacturer spec (80–120 Nm) in crisscross pattern
3. Surface Reinforcement: Repair weak concrete/steel mounting surfaces
Prevention: Retighten bolts 30 days after installation; monthly bolt inspections .
Causes: Low-quality rubber, constant overloading, prolonged static compression, high-temperature degradation .
Warning Signs: Rubber stays permanently flattened, does not return to original shape, uneven impact transfer .
Fixes & Solutions: No effective repair — replace panel immediately with high-quality virgin rubber rated for your vessel's impact requirements .
Prevention: Select panels with 65–75 Shore A hardness; never exceed rated impact load; rotate panels in static berthing positions .
Image Suggestion 5: *Figure 5 – Corrosion inspection and coating repair process on steel panel*
A well-maintained steel panel can last 15–25 years, while neglected ones fail in 5–8 years .
| Inspection Type | Frequency | Focus Areas |
|---|---|---|
| Daily Visual | High-traffic ports | Obvious damage, loose hardware |
| Weekly Detailed | Medium-use ports | Coating condition, bolt tightness |
| Monthly Comprehensive | All ports | Full system inspection, wear measurement |
| Post-Storm | After extreme weather | Storm damage, debris impact |
- [ ] Quarterly cleaning — remove salt deposits and marine growth; avoid high-pressure washers that damage coatings
- [ ] Bolt torque verification — monthly for first 6 months, then quarterly
- [ ] Coating touch-up — immediately on chips or scratches to prevent rust spread
- [ ] UHMW-PE wear measurement — replace when thickness reaches 50–60% of original
- [ ] Spare parts inventory — keep 1–2 spare panels and critical fasteners on-site
A 2023 study by the International Association of Ports and Harbors (IAPH) found that 62% of fender system failures stemmed from neglected frontal steel panel maintenance .
A novel parallel motion fender system combined with contiguous fender panels was implemented at an Alaska Marine Highway ferry berth in Ketchikan. The original design—a concrete float with a steel superstructure supporting rigid individual panels—experienced repeated damage because berthing reactions were underestimated .
The Innovation: The guide structure was retrofitted by replacing the original berthing face with three contiguous panels interconnected by hinges and supported by parallel motion mechanisms. This eliminated snagging risks, simplified hinge design, and prevented double contact with belted hulls .
Key Takeaway: Dynamic analysis demonstrated actual berthing forces were more than twice the predicted level. This technique can be applied to both new construction and retrofitting existing structures .
Future steel panels may incorporate:
- Wear sensors embedded in UHMW-PE pads to alert when replacement is needed
- Load cells to measure berthing energy in real-time
- RFID tags for maintenance tracking
For extreme environments, consider:
- Thermal sprayed aluminum (TSA) — superior corrosion protection for splash zone applications
- Epoxy/polyurethane multi-coat systems — with total DFT of 200–400 microns
- Hot-dip galvanizing — sacrificial zinc protection lasting 20–30 years
Use this checklist when specifying steel panels for your fender system:
- [ ] Determine berthing energy (vessel size, speed, approach angle)
- [ ] Calculate required hull pressure (target ≤200 kN/m² for large vessels)
- [ ] Assess environmental conditions (salinity, tidal range, UV exposure)
- [ ] Verify quay structure capacity for reaction forces
- [ ] Select configuration (closed-box vs. open frame)
- [ ] Determine dimensions (minimum steel thickness: 12mm for two-surface exposure, 9–10mm for one-surface)
- [ ] Specify chamfer requirements for Ro-Ro vessels
- [ ] Design pad layout (coverage area, fastener pattern)
- [ ] Choose steel grade (carbon with coating vs. stainless)
- [ ] Specify corrosion protection (hot-dip galvanizing or epoxy/polyurethane)
- [ ] Select UHMW-PE grade (80 mm thickness for long service life)
- [ ] Verify UHMW-PE UV stabilization for exposed locations
- [ ] Specify fastener material (316 stainless steel minimum)
- [ ] Design recessed capnuts or protected hardware
- [ ] Verify torque specifications (80–120 Nm typical)
- [ ] Plan for pad replaceability
- [ ] Material test certificates
- [ ] Factory inspection report
- [ ] Proof load test certificate (combined compression and shear testing)
- [ ] Coating thickness report
- [ ] Installation instructions
Steel panels for marine rubber fenders are far more than simple steel plates. They are precision-engineered components that determine how loads are distributed, how vessels interact with the berth, and how long the entire fender system will last.
Key takeaways from this guide:
1. Closed-box panels offer superior rigidity and corrosion protection for demanding applications—as demonstrated at Angola Fuel Terminal and Port of Rønne .
2. UHMW-PE pad thickness matters — 80 mm pads selected for Angola project support extended service life .
3. Proper installation is critical — poor installation accounts for over 60% of premature failures .
4. Regular maintenance extends life — well-maintained panels last 15–25 years; neglected ones fail in 5–8 years .
5. Hull pressure management — keep below 200 kN/m² for large vessels per PIANC guidelines .
6. Innovative designs — contiguous panel systems (Alaska) and smart monitoring are shaping the future .
Whether you are specifying steel panels for a new LNG terminal, upgrading a container berth, or maintaining an offshore wind facility, the principles in this guide will help you make informed decisions that prioritize safety, durability, and lifecycle value.
For assistance with steel panel selection, design, or procurement, consult with experienced marine fender engineers who can evaluate your specific berth conditions and operational requirements.
Contact Nanjing Taidun Marine Equipment Engineering Co., Ltd.:
- Email: service@taidunmarine.com
- Phone/WhatsApp: +86-18751950876
1. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (2026, February 27). *Maintenance for Marine Fender Frontal Steel Panels*. [https://www.taidunmarine.com/maintenance-for-marine-fender-frontal-steel-panels.html]
2. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (2026, March 18). *Common Problems with Marine Rubber Fender Steel Panels & How to Fix Them*. [https://www.taidunmarine.com/common-problems-with-marine-rubber-fender-steel-panels-how-to-fix-them.html]
3. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (2026, March 18). *Installation Best Practices for Marine Rubber Fender Steel Panels*. [https://www.taidunmarine.com/installation-best-practices-for-marine-rubber-fender-steel-panels.html]
4. Doggett, T. (2025). *A Novel Design of Parallel Motion Fenders and Contiguous Panels Preserves an Alaska Marine Highway Berth in Ketchikan, Alaska*. In Ports 2025: Proceedings, 682–695. ASCE. [https://ascelibrary.org/doi/10.1061/9780784486146.061]
Q1: What is the difference between closed-box and open steel panels for marine fenders?
Closed-box panels have fully welded, sealed perimeters with internal stiffeners, offering superior torsional rigidity and corrosion protection—ideal for high-energy terminals like Angola Fuel Terminal. Open frames have structural members with open spaces, making them lighter and less expensive but with reduced rigidity and more exposed surfaces requiring maintenance .
Q2: How thick should UHMW-PE pads be on my steel panel?
Pad thickness depends on traffic intensity and expected service life. For high-traffic commercial terminals, 70–100 mm thickness is recommended—the Angola Fuel Terminal project used 80 mm pads to support extended service life. For medium-traffic applications, 40–60 mm (10–15 years) is typical .
Q3: What are the most common causes of steel panel failure?
According to industry data, the top five problems are: (1) steel surface corrosion and rust (most prevalent), (2) steel-rubber delamination (critical structural failure), (3) rubber core cracking/hardening, (4) loose mounting and bolt failure, and (5) permanent rubber compression set. Poor installation accounts for over 60% of premature failures .
Q4: How often should steel panels be inspected and maintained?
Daily visual checks for high-traffic ports; weekly detailed inspections for medium-use ports; monthly comprehensive audits for all ports. A 2023 IAPH study found 62% of fender system failures stemmed from neglected steel panel maintenance. Well-maintained panels last 15–25 years; neglected ones fail in 5–8 years .
Q5: What hull pressure limits should steel panels be designed for?
Per PIANC guidelines, for large vessels (5th/6th generation container ships, LNG carriers, bulk carriers, VLCCs), hull pressure must remain below 200 kN/m². The Angola Fuel Terminal project achieved this with 2,300 x 5,200 mm closed-box panels that distributed reaction forces up to 1,929 kN safely .
