The Ultimate Guide to Marine Rubber Fender Systems: Why Steel Panel Integration is Key for Modern Ports

The Ultimate Guide to Marine Rubber Fender Systems: Why Steel Panel Integration is Key for Modern Ports



Article Overview

This guide explores the critical role of marine rubber fenders in port infrastructure, focusing specifically on the steel fender panel combination. By analyzing global case studies from 2024-2025, we explain how closed-box steel panels, UHMW-PE pads, and advanced rubber units work together to protect vessels and berthing structures, ensuring safety and efficiency for terminals handling large container ships, Ro-Ro vessels, and tankers.



Introduction

In the demanding environment of modern ports, the integrity of berthing structures and vessels relies heavily on one crucial component: the marine rubber fender. As vessels grow larger and port operations intensify, traditional stand-alone fenders are no longer sufficient. Today, the industry standard for high-performance berthing involves the strategic combination of rubber fender systems with robust steel panels.

Whether it is a busy container terminal or a specialized Ro-Ro berth, the integration of steel facing panels with rubber elements is the key to extending service life, distributing loads evenly, and meeting the stringent hull pressure limits set by international standards like the PIANC Fender Guidelines 2024.

This article delves into why the marine fender and steel panel combination is essential, supported by real-world engineering applications.



Why Combine Rubber Fenders with Steel Panels?

Rubber fenders (such as Cone, Cell, or Arch types) are designed to absorb kinetic energy. However, when used alone, they create point loads that can damage ship hulls or the fender system itself. Here is where steel panels come into play.

Steel panels serve as a rigid face plate that:

1. Distributes Reaction Forces: They spread the load over a larger surface area, keeping the vessel hull pressure below safe limits (e.g., < 200 kN/m²).

2. Provides a Low-Friction Surface: Often fitted with UHMW-PE pads, steel panels allow vessels to move vertically with tides and horizontally during mooring without wearing down the rubber.

3. Handles Angular Berthings: Large panels, especially those with chamfers, protect the fender system from shear forces when vessels approach at an angle.



Critical Applications: Where Steel Panels Matter Most

1. Container and Tanker Terminals

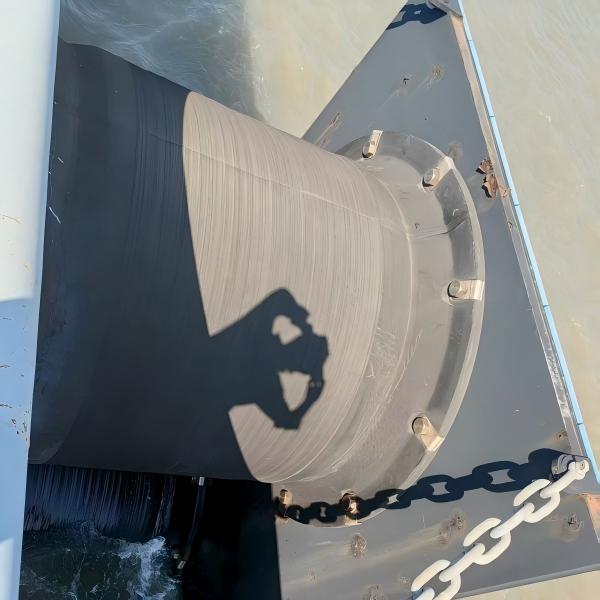

High tidal ranges and large vessels require massive energy absorption. For instance, at the Angola Fuel Terminal, engineers utilized Cone Fender Systems (SPC 1600) paired with closed-box steel panels measuring 2,300 x 5,200 mm. This setup was necessary to handle reaction forces of up to 1,929 kN while maintaining safety. The use of 80 mm thick UHMW-PE pads on the steel panels also ensures a long service life despite heavy usage.

2. Ro-Ro and Cruise Vessel Berths

Ro-Ro vessels present a unique challenge: hull beltings can get caught under traditional panels. During the Port of Vigo expansion in Spain, engineers solved this by designing steel panels with 500 mm-high chamfers. This prevents the vessel’s belting from snagging, enhancing the durability of the marine rubber fender system.

Similarly, at Igoumenitsa Port in Greece, which handles mixed traffic of Ro-Ro vessels and ferries, large chamfers were also integrated into the steel panels to minimize the risk of damage. Shear chains were additionally incorporated to absorb horizontal forces during berthing.

3. Infrastructure with Structural Constraints

Not all docks are built to handle massive loads. At the Port of Oakland (Berth 10), the aging substructure had limited load capacity. The solution was a custom fender system where the rubber fenders absorb the energy, while the steel panels and clamp systems distribute the loads into new piles driven specifically for that purpose. This approach extended the terminal’s service life without over stressing the original structure.

4. High-Tidal and Corrosive Environments

In locations like Shannon Foynes, Ireland, tidal variations demand large fender panels to ensure consistent energy absorption regardless of water levels. Here, Double CSS Cell Fenders were paired with 7,600 x 2,000 mm closed-box steel panels. To combat harsh marine conditions, capnuts were used to secure UHMW-PE pads, providing additional shear resistance and durability.

For environments with extreme corrosion concerns, such as naval bases, stainless steel panels are employed. The first installation of its kind in the U.S. occurred at Pearl Harbor, where stainless steel fender panels were used to avoid corrosion on the submerged camel system.



Technical Considerations for Your Fender System

When specifying a marine rubber fender system with a steel panel, consider the following:

- Rubber Unit Type: Cone fenders offer high energy absorption with low reaction force, making them ideal for large vessels. Arch fenders are versatile for mixed traffic, while Cell fenders provide stability.

- Steel Panel Design: Closed-box panels provide superior structural integrity. The dimensions must be calculated based on vessel size, tidal range, and berthing energy.

- UHMW-PE Pads: These sliding plates are critical for reducing friction. Thicker pads (like the 70-80 mm used in recent projects) significantly extend the lifespan of both the steel panel and the rubber unit.

- Chamfers: Essential for Ro-Ro terminals to prevent catching.



Conclusion

The evolution of port infrastructure demands that marine rubber fenders are not viewed as isolated components but as part of an integrated system. The combination of high-performance rubber units with custom-engineered steel panels—whether for a massive fuel terminal in Angola, a mixed-traffic port in Greece, or a refurbished berth in California—is the definitive solution for safety, longevity, and efficiency.

By investing in a complete fender system that includes robust steel panels and UHMW-PE pads, port operators and terminal owners can ensure their facilities are future-proofed against the increasing demands of global maritime traffic.
