Marine fender systems are the unsung guardians of port infrastructure. When a 300,000 DWT tanker approaches a berth at 0.15 m/s, the kinetic energy that must be safely absorbed can exceed 1,000 kJ. A single fender failure under these conditions can cause hull damage exceeding $500,000, operational downtime measured in weeks, and regulatory scrutiny that no port authority wants.
Yet the industry continues to make a fundamental mistake: treating fenders as a commodity component rather than what they truly are—a mission-critical system. The rubber unit is only one part of a complex architecture that includes front panels, chains, low-friction facing pads, fastening systems, and the berth structure itself.
This guide presents a whole system approach to fender performance, drawing on the latest PIANC WG211 guidelines (2024), ISO 17357 standards, and real-world engineering practice. Whether you are a port engineer specifying a new berth, a procurement specialist evaluating OEM suppliers, or a terminal operator planning an upgrade, this article will give you the technical intelligence to make decisions that protect assets, optimize throughput, and reduce total lifecycle cost.
A whole system approach means treating fender design, manufacturing, installation, and maintenance as interconnected stages of a single engineering process. Taidun's framework, which has become the industry benchmark, identifies four critical elements:
1. Application Engineering: Collecting berthing data, site conditions, and environmental parameters to define requirements
2. Detailed Fender System Design: Optimizing every component—rubber unit, panel, chain, facing pad—for the specific application
3. Production and Quality Control: Ensuring manufactured components meet design specifications
4. Installation, Operations, and Maintenance: Preserving performance throughout the system's service life
When procurement decisions focus solely on the rubber unit's price per kilogram, several critical factors get overlooked:
- Reaction force distribution: A poorly designed front panel concentrates stress, increasing hull pressure beyond safe limits
- Chain and fastening integrity: The most common failure point in pneumatic fender systems is not the rubber body but the chain connection
- Facing pad performance: Low-friction UHMW-PE pads determine how smoothly vessels slide along the fender during berthing—a factor that directly impacts turnaround time
- Corrosion protection: For steel components, inadequate coating leads to premature failure, often before the rubber reaches mid-life
The system perspective transforms fender procurement from a cost-per-unit exercise into a lifecycle value calculation.
Every fender system design begins with a single question: How much energy must be absorbed?
The fundamental equation is deceptively simple:
E = ½ × M × V⊃2; × Ce × Cs × Cf
Where:
- M = Vessel displacement + added mass (typically 1.5–2.0× for transverse berthing)
- V = Berthing velocity (the dominant factor—small velocity errors have large energy consequences)
- Ce = Eccentricity coefficient (accounts for berthing angle and fender spacing)
- Cs = Softness coefficient (vessel hull stiffness)
- Cf = Berthing configuration factor
Critical insight from PIANC WG211: Berthing velocity is the dominant variable in fender sizing—more influential than displacement, angle, or material properties. A 20% error in assumed velocity produces a 44% error in required energy absorption.
When selecting a fender system, two criteria must be satisfied simultaneously:
| Criterion | Requirement | Consequence of Failure |
|---|---|---|
| Energy Capacity | Fender energy absorption ≥ abnormal design berthing energy | Fender bottoms out; hull contacts berth structure |
| Reaction Force | Fender reaction force ≤ vessel hull pressure limit AND berth structure capacity | Hull deformation OR berth structural damage |
The design tension: Increasing energy capacity typically increases reaction force. The whole system approach resolves this through:
- Optimized fender geometry (larger diameter reduces reaction force for same energy)
- Appropriate internal pressure selection (50 kPa vs. 80 kPa)
- Front panel design that distributes load over larger hull area
Published fender catalog data assumes ideal conditions. Real-world performance requires correction factors:
| Factor | Effect | Typical Adjustment |
|---|---|---|
| Angular Factor (AF) | Oblique contact reduces effective area | 0.8–1.0 depending on angle |
| Temperature Factor (TF) | Cold rubber stiffens, increases reaction force | Up to 1.3× at -25°C |
| Velocity Factor (VF) | High-speed contact increases reaction force | 1.0–1.2 depending on velocity |
| Manufacturing Tolerance | Dimensional variation from nominal | 1.0–1.1 |
Procurement implication: A fender rated for 1,500 kJ at 60% deflection may only deliver 1,050 kJ under cold, angular berthing conditions. Specifying without correction factors is a recipe for underperformance.
The PIANC WG211 Fender Guidelines 2024 represent the most significant update to fender design practice in over two decades. The shift is fundamental:
| Aspect | WG33 (2002) | WG211 (2024) |
|---|---|---|
| Approach | Generic, prescriptive | Site-specific, risk-based |
| Velocity | Fixed tables by vessel type | Measured data preferred; tables as fallback |
| Safety Factors | Global factor | Partial factors by consequence class |
| Contact Model | Single fender assumption | Multiple fender contact modeling |
| Component Scope | Rubber-focused | Full system (panel, chain, facing, fastening) |
| Operator Role | Limited | Active input required (pilot, berthing logs) |
One of WG211's most impactful innovations is the consequence class system (A–E):
- Class A: Redundant berths—single fender failure does not halt operations
- Class B: Single berth—failure means berth closure
- Class C–E: Increasing severity, including risk to personnel and significant socio-economic consequences
Practical outcome: A fender on a redundant industrial berth does not require the same safety margin as a fender on a single-berth ferry terminal. WG211 allows—actually requires—the asset owner to define the consequence class before design begins.
WG211 explicitly states that site-specific data must override generic tables when available. This means:
- Berthing velocity measurements from actual vessel approaches
- Pilot and captain feedback on maneuver difficulty
- Historical berthing logs (even handwritten records have value)
- Environmental data (currents, wind exposure, tidal patterns)
For OEM manufacturers: This creates an opportunity to differentiate through engineering support services—helping clients collect and interpret site-specific data rather than simply quoting catalog numbers.

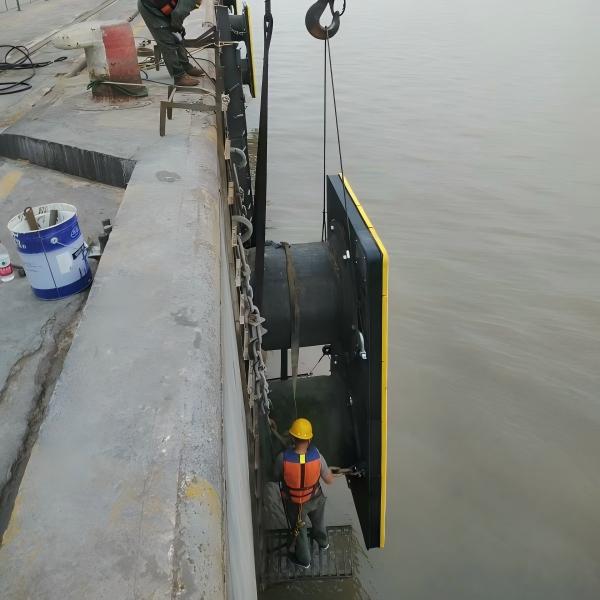

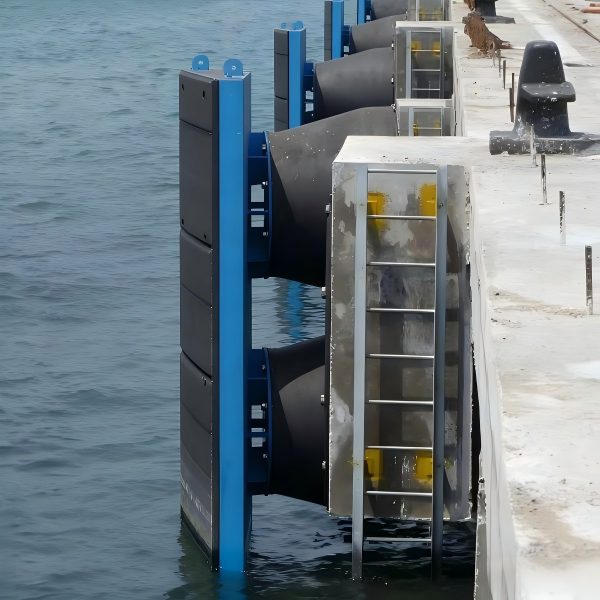

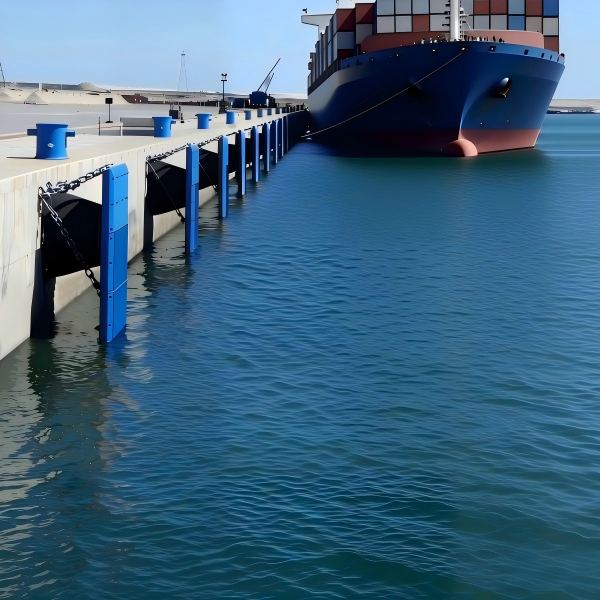

The front panel is the interface between vessel hull and fender system. Its design determines hull pressure distribution, sliding performance, and overall system durability.
Critical panel design considerations:
- Contact pattern: Full-face contact vs. double contact (bow/stern) requires different panel stiffness
- Load distribution: The panel must spread reaction force to keep hull pressure below allowable limits (typically 200–350 kPa for commercial vessels)
- Lead-in bevels: Reduce snagging risk when vessels approach at angles
- Bracket design: Provides secure chain connection points—a common failure location
Verification requirements: Panel design should be checked for bending, shear, local buckling, and weld strength per applicable codes (EN 1993 Eurocode 3, AISC, AS 4200).
UHMW-PE (Ultra-High Molecular Weight Polyethylene) facing pads serve two functions:
1. Friction reduction: Allow vessels to slide along the fender during berthing, reducing shear forces on both hull and fender
2. Wear protection: Sacrificial layer that protects the underlying panel
Quality matters: Thickness and material grade determine replacement interval. Low-quality pads can wear through in 2–3 years, requiring berth downtime for replacement.
In pneumatic fender systems, chain failure is the most common mode of system failure. Design considerations include:
- Restraining chain design: Must handle not only static load but dynamic surge during berthing
- Corrosion protection: Hot-dip galvanizing or equivalent; coating thickness matters
- Fastening system: Bolted connections must resist vibration loosening
- Accessibility for maintenance: Chains should be inspectable and replaceable without fender removal
Specification tip: Require mill certificates for chain components and witness testing of critical fastenings.
A whole system approach requires verification at multiple stages:
| Aspect | WG33 (2002) | WG211 (2024) |
|---|---|---|
| Approach | Generic, prescriptive | Site-specific, risk-based |
| Velocity | Fixed tables by vessel type | Measured data preferred; tables as fallback |
| Safety Factors | Global factor | Partial factors by consequence class |
| Contact Model | Single fender assumption | Multiple fender contact modeling |
| Component Scope | Rubber-focused | Full system (panel, chain, facing, fastening) |
| Operator Role | Limited | Active input required (pilot, berthing logs) |
PIANC WG211 and asset owner best practices increasingly recommend independent witness testing. This means:
- Engaging a classification society (BV, LR, CCS) or independent lab
- Witnessing critical tests with calibrated equipment
- Obtaining signed test reports that can be referenced in warranty claims
Red flag: Suppliers who resist third-party testing or cannot provide traceable test documentation.
For OEM procurement, demand:
- Material certificates (rubber batch, steel grade, chain certification)
- Test reports (signed, with equipment calibration records)
- Dimensional inspection records
- Warranty terms with clear performance guarantees
For brand owners, distributors, and large end-users, OEM manufacturing offers cost efficiency without compromising quality—provided the partner is selected correctly.
Evaluation framework:
| Criterion | What to Look For | Red Flag |
|---|---|---|
| ISO 17357 compliance | Valid certification, not self-declaration | Inability to provide test reports |
| Production scale | Facility size, annual output capacity | Small workshop operations |
| Engineering capability | FEA analysis, custom design support | "One size fits all" approach |
| Testing infrastructure | In-house lab, third-party partnerships | No testing capability |
| Export experience | References from similar markets | Limited or unverifiable references |
| Quality management | ISO 9001, documented procedures | No formal QMS |
When comparing OEM quotations, calculate TCO over a 10-year horizon:
- Initial cost: Unit price + shipping + installation
- Maintenance cost: Inspection, chain replacement, pad replacement
- Downtime cost: Berth closure for fender replacement
- Risk cost: Probability × consequence of failure
Example: A fender priced 30% lower but requiring pad replacement in 3 years instead of 5 years may have higher TCO when downtime is valued.
Maintenance accessibility must be designed in from the beginning:
- Chain inspection access: Can inspectors reach connection points?
- Pad replacement procedure: Can facing pads be changed without fender removal?
- Corrosion allowance: Are wear allowances specified for steel components?
| Interval | Action | Responsibility |
|---|---|---|
| Pre-berthing | Visual inspection, pressure check | Port operations |
| Monthly | Surface inspection, chain lubrication | Maintenance team |
| Annually | Pressure verification, structural review | Engineering |
| Every 3–5 years | Full inspection per PIANC guidelines | Third-party |
| Failure Mode | Root Cause | Prevention |
|---|---|---|
| Pressure loss | Valve failure, puncture | Protective net, valve inspection |
| Chain corrosion | Inadequate coating | Hot-dip galvanizing, annual inspection |
| Pad wear-through | Low-quality UHMW-PE | Material specification, thickness check |
| Panel deformation | Under-designed for point loads | FEA verification, load case review |
Traditional selection focuses on the rubber unit's energy absorption and reaction force data. A whole system approach considers the entire assembly—rubber, panel, chain, facing pad, fastening—and how these components interact under real berthing conditions. It also incorporates installation, maintenance, and lifecycle cost into the design decision.
WG211 (2024) shifts from generic, prescriptive design to site-specific, risk-based engineering. Key changes include: measured berthing velocities preferred over tables, consequence classes that calibrate safety margins to actual risk, and explicit requirements for operator input and local knowledge.
At minimum: Angular Factor (AF), Temperature Factor (TF), Velocity Factor (VF), and manufacturing tolerance. These factors account for the difference between ideal test conditions and real-world berthing scenarios.
Demand: (1) Valid ISO 17357 certification from a recognized body; (2) Signed test reports for hydrostatic pressure, air leakage, and compression-recovery; (3) Third-party witness testing for critical projects; (4) Material certificates with traceability.
The chain and fastening system, not the rubber body. Corrosion, fatigue, and inadequate connection design are the leading causes of premature failure. This is why the whole system approach emphasizes chain design and corrosion protection as critical components.
With proper design, installation, and maintenance: 10–15 years for the rubber unit, with chain and pad replacement at 5–7 year intervals. Actual service life depends on berthing frequency, environmental exposure, and maintenance quality.
Per PIANC WG211 and best practice: Design conditions (vessel type, berthing velocity, angle), wharf and vessel details (hull pressure limits, structure capacity), energy requirements with correction factors, material and testing requirements, supplier qualification criteria, and consequence class definition.
Yes, with low-temperature rubber compounds rated for -45°C or below. Standard fenders may become brittle below -25°C. Specify low-temperature formulations for Arctic or sub-Arctic operations, and apply the Temperature Factor (TF) in design calculations.
The difference between a fender that performs reliably for 15 years and one that fails prematurely often comes down to decisions made before the first rubber compound is mixed. A whole system approach—grounded in site-specific data, verified through testing, and maintained throughout the lifecycle—transforms fender procurement from a commodity transaction into a strategic asset management decision.
For port authorities, terminal operators, and OEM partners, the message is clear: the system is the solution. Component-level thinking leads to component-level failures. System-level thinking delivers safety, efficiency, and sustainability.
