When a 200,000-ton tanker approaches a container terminal, the rubber fender absorbs the impact. But without a properly designed A36 steel frontal panel for rubber fender, that energy would concentrate on a single point—causing rapid rubber failure, hull damage, or worse.
I have spent two decades manufacturing OEM rubber fender systems and mooring bollards for global brands. In this guide, I will explain the engineering principles behind load distribution design for A36 steel frontal panels, including material selection, structural calculations, and real-world application insights.
A frontal steel panel is the rigid interface mounted between the rubber fender and the vessel hull. Its primary function is impact force distribution—spreading concentrated berthing loads uniformly across the rubber fender surface .
Before diving into proper design, let's understand what happens when frontal panels fail:
| Design Flaw | Consequence |
|---|---|
| Uneven force distribution | Localized rubber cracking, tearing, and permanent deformation |
| Insufficient structural strength | Panel bending, weld failure, or complete detachment |
| Incompatible mounting dimensions | Misalignment, bolt shear, and installation delays |
| Substandard material selection | Rapid corrosion, thickness reduction within 2–3 years |
| Non-compliance with standards | Rejection by classification societies, insurance issues |
Source: Nanjing Taidun Engineering Manual
A properly designed frontal steel panel must accomplish five critical functions:
| Function | Description |
|---|---|
| Impact Force Distribution | Spread concentrated berthing forces uniformly across the rubber fender surface |
| Stable Mounting & Fixation | Provide rigid, flat base preventing fender displacement or rotation |
| Structural Reinforcement | Boost impact resistance and load-bearing capacity |
| Corrosion Protection | Create barrier isolating rubber from concrete, saltwater, and debris |
| Hull Protection | Distribute reaction forces to prevent vessel hull damage |
Source: Nanjing Taidun Engineering Manual
ASTM A36 steel is the most widely used structural steel grade for marine fender frontal panels. Here is why.
| Property | Value | Why It Matters |
|---|---|---|
| Yield strength | 250 MPa (36,000 psi) | Adequate for most berthing loads |
| Tensile strength | 400–550 MPa | Safety margin for overload scenarios |
| Weldability | Excellent | Easy fabrication and field repair |
| Cost-effectiveness | Moderate | Affordable for large-scale projects |
| Availability | Global | Readily available in all markets |
Depending on application requirements, other steel grades may be specified :
| Steel Grade | Application | Key Characteristics |
|---|---|---|
| Q235B / A36 / SS400 | Small to medium ports, vessels <5,000 tons | Good weldability, cost-effective |
| Q355B / S355JR / A572 Gr50 | Large commercial ports, vessels 5,000–10,000 tons | Higher yield strength, superior fatigue resistance |
| Corten A / B | High-corrosion environments, offshore terminals | Forms protective patina, 20+ year service life |
| 316L Stainless Steel | Ultra-corrosive environments, chemical/LNG terminals | Complete saltwater resistance, premium cost |
A 2015 finite element analysis study at Institut Teknologi Sepuluh Nopember (ITS) used ASTM A36 steel for fender panel design in a Pertamina–Medco E&P condensate and sulfuric acid berth project .
Key findings: A36 steel provided reliable structural performance under impact loads, with proper stress distribution verified using ANSYS software. The conclusion of the investigation was stress and deformation analysis for the fender system structure analysis .
Load distribution design is the most critical aspect of frontal panel engineering. Without proper distribution, the rubber fender will fail prematurely.
The permissible hull pressure is the single most important constraint in frontal steel panel design. The governing formula is :
> P = ΣR / (A1 × B1) ≤ Py
Where:
| Variable | Description |
|---|---|
| P | Actual hull pressure (kN/m²) |
| ΣR | Sum of maximum reaction forces of all fenders (kN) |
| A1 | Valid panel width excluding lead-in chamfers (m) |
| B1 | Valid panel height excluding lead-in chamfers (m) |
| Py | Allowable hull pressure (kN/m²) |
Why this matters: Exceeding allowable hull pressure damages vessel coatings and, in extreme cases, the hull structure itself.
Steel panel design must be rooted in actual site-specific berthing loads, calculated in accordance with PIANC WG211 guidelines :
| Load Type | Description | Design Consideration |
|---|---|---|
| Berthing Impact Load | Horizontal force from vessel velocity and displacement | Core load for structural strength and thickness design |
| Mooring Horizontal Load | Lateral forces from wind, waves, currents | Critical for long-term structural stability |
| Vertical Load | Self-weight + installation/maintenance loads | Affects attachment design |
| Fatigue Load | Cyclic repeated loads from frequent berthing | Requires formal fatigue strength checking |
In well-designed A36 steel frontal panels, the load distribution across the rubber fender surface should follow this principle:
| Zone | Target Load Percentage | Design Strategy |
|---|---|---|
| Panel center (primary contact zone) | 60% | Maximum stiffness, minimal deflection |
| Panel edges (transition zone) | 40% | Graduated stiffness to prevent stress concentration |
This graduated approach prevents localized rubber cracking by ensuring no single point absorbs disproportionate energy.
| Parameter | Recommended Practice |
|---|---|
| Panel thickness | 12–25 mm depending on vessel size |
| Lead-in chamfers | 15–30° angles for smooth vessel contact |
| Stiffener spacing | 300–500 mm based on panel span |
| Weld reinforcement | Full penetration at critical stress zones |
| Flatness tolerance | ±3 mm over panel length |
The valid panel area (A1 × B1) excludes lead-in chamfers. This is a critical distinction:
> *"Valid panel width excluding lead-in chamfers" directly impacts hull pressure calculations. If chamfers are incorrectly included, the calculated pressure will be artificially low—leading to underestimation.*
Example: A panel with total width 2,000 mm and 150 mm chamfers on each side has a valid width of only 1,700 mm.
A36 steel requires proper corrosion protection in marine environments. The marine splash zone is classified as C5-M (very high corrosion) under ISO 12944-2.
| Protection Layer | Specification | Purpose |
|---|---|---|
| Surface preparation | Sa 2.5 (near-white metal blast cleaning) | Ensures coating adhesion |
| Primer | Epoxy zinc-rich (80–100 μm) | Cathodic protection |
| Intermediate coat | High-build epoxy (150–200 μm) | Barrier protection |
| Topcoat | Polyurethane or epoxy (80–100 μm) | UV and abrasion resistance |
| Total DFT | 310–400 μm | Industry standard |
According to industry practice, all steel accessories (including frontal panels, U-rings, bolts, nuts, and chains) should be A36 with hot-dip galvanizing .
Galvanizing specifications:
- Coating thickness: 80–100 μm minimum
- Standard: ASTM A123 / ISO 1461
- Best for: Bolts, nuts, washers, and small components
A UHMW-PE (Ultra-High Molecular Weight Polyethylene) face pad is typically attached to the frontal steel panel to:
| Benefit | Description |
|---|---|
| Reduce friction coefficient | Protects vessel hull paint |
| Prevent steel-to-hull contact | Eliminates scratching and coating damage |
| Absorb minor impacts | Provides additional cushioning |
| Extend panel life | Reduces direct abrasion on steel |
> *"The material of the face pad is UHMW-PE. The friction coefficient is less than 0.2, providing excellent hull protection."*

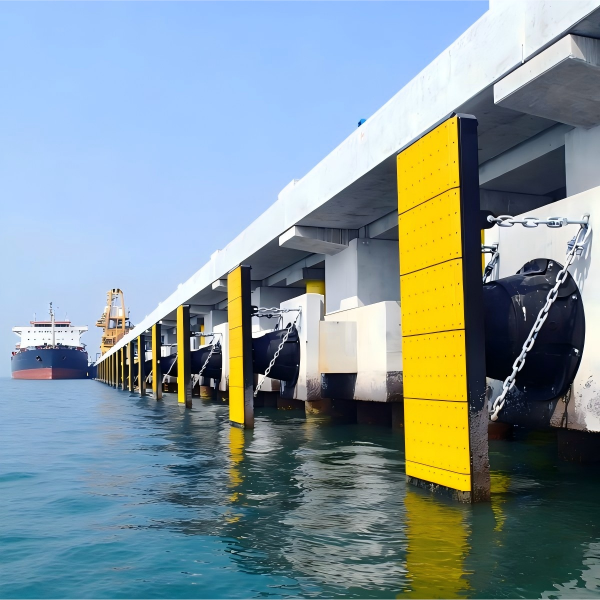

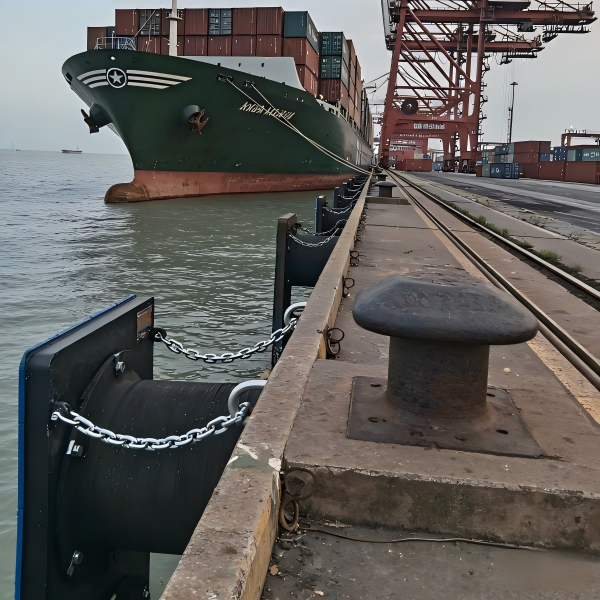

A typical A36 steel frontal panel system includes multiple components working together :
| Component | Function |
|---|---|
| Frontal steel panel | Primary impact surface, distributes loads |
| UHMW-PE face pad | Reduces friction, protects hull |
| Connector hardware | Connects fender to panel and face pad |
| Tension chains | Limit fender deflection under strain |
| Weight chains | Support panel weight, prevent sagging |
| Shear chains | Prevent shear deflection |
| Anchor bolts (U-rings) | Pre-built into concrete for chain attachment |
A 2015 finite element analysis study provides real-world validation of A36 steel frontal panel design .
Project: Condensate and sulfuric acid berth for PT. Pertamina – Medco E&P (JOB PMTS) in Senoro Block, Indonesia
Fender system: Cell-type fender, diameter and height 2 meters
Materials used:
- Structural steel: ASTM A36 for fender panel
- Rubber: Styrene Butadiene Rubber (SBR) with 16 MPa tensile strength
Analysis method: Finite Element Analysis (FEA) using ANSYS software
Key finding: The A36 steel frontal panel provided reliable structural performance with proper stress distribution verified through ANSYS analysis.
Real-world application impact: This project demonstrated that A36 steel, when properly designed, meets the demanding requirements of chemical berth applications—where safety margins are highest.
We asked our global OEM clients about their experience with A36 steel frontal panels from Nanjing Taidun:
> *"We previously purchased frontal panels from a local fabricator who used unknown steel grades. Within two years, we saw rust perforation and bending. After switching to Nanjing Taidun's A36 panels with hot-dip galvanizing, we are at year five with zero structural issues."*
> — *Port Engineer, Southeast Asia*
> *"The load distribution calculation provided by Taidun's engineering team was eye-opening. We had been under-sizing our panels, which was causing rubber cracking every 18 months. With the redesigned A36 panel, our rubber fenders are now lasting 5+ years."*
> — *Maintenance Manager, Middle East Terminal*
> *"The UHMW-PE face pad is not optional. We tried running without it to save costs—bad idea. The steel panel abraded the vessel hulls and we ended up with paint damage claims. Now we always specify UHMW-PE facing with every A36 panel."*
> — *Operations Director, European Port Authority*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we specialize in OEM manufacturing of A36 steel frontal panels with precision load distribution design.
Our manufacturing capabilities include:
| Service | Description |
|---|---|
| Material sourcing | Certified ASTM A36 steel with mill test certificates |
| Precision fabrication | CNC cutting, robotic welding, dimensional inspection |
| Corrosion protection | Hot-dip galvanizing or C5-M epoxy coating systems |
| UHMW-PE facing | High-quality face pad with anti-skid surface |
| Standard compliance | PIANC WG211, ASTM, ISO 17357 |
| Third-party inspection | BV, SGS, LR, CCS, ABS available |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get factory-direct pricing, custom engineering, and full certification documentation.
The A36 steel frontal panel for rubber fender is a critical component that directly impacts fender system performance, rubber lifespan, and vessel safety. Proper load distribution design—governed by the hull pressure formula P = ΣR / (A1 × B1) and validated by FEA—ensures that your fender system performs as engineered.
Do not leave frontal panel design to guesswork.
[Contact the Nanjing Taidun Engineering Team] for a free frontal panel design consultation. Send us your berthing energy requirements, and we will provide optimized A36 steel panel specifications with load distribution calculations.
Q1: What is the standard steel grade for marine fender frontal panels?
A: ASTM A36 (or equivalent Q235B/SS400) is the industry standard for most applications. For larger vessels or higher loads, A572 Gr50 or S355JR may be specified.
Q2: How thick should an A36 steel frontal panel be?
A: Thickness typically ranges from 12–25 mm depending on vessel size and berthing energy. A 12 mm panel suits vessels under 5,000 tons; 20+ mm panels are used for large container ships and tankers.
Q3: How is the A36 frontal panel attached to the rubber fender?
A: The rubber fender is mounted to the panel using connector hardware (bolts, nuts, and washers). The panel itself is suspended by chain systems attached to pre-installed U-rings in the quay wall.
Q4: What is the purpose of the UHMW-PE face pad?
A: UHMW-PE provides a low-friction surface (coefficient <0.2) that protects vessel hulls from abrasion and prevents steel-to-hull contact. It is essential for painted and coated vessel surfaces.
Q5: Can A36 steel frontal panels be galvanized?
A: Yes. Hot-dip galvanizing per ASTM A123 provides excellent corrosion protection and is recommended for all steel accessories in marine environments. Alternatively, epoxy coating systems meeting ISO 12944 C5-M standards can be specified.
