I still remember the site visit to a major container terminal in Northern Europe three years ago. The port had invested over €500,000 in a new fender system, but within 18 months, three of the steel panels showed visible deformation, one had developed cracks along the weld lines, and the UHMW-PE face pads were wearing unevenly. The rubber fenders themselves were flawless. The problem lay entirely in the design of the frontal steel panels—insufficient thickness, inadequate corrosion protection, and improper load distribution calculations.

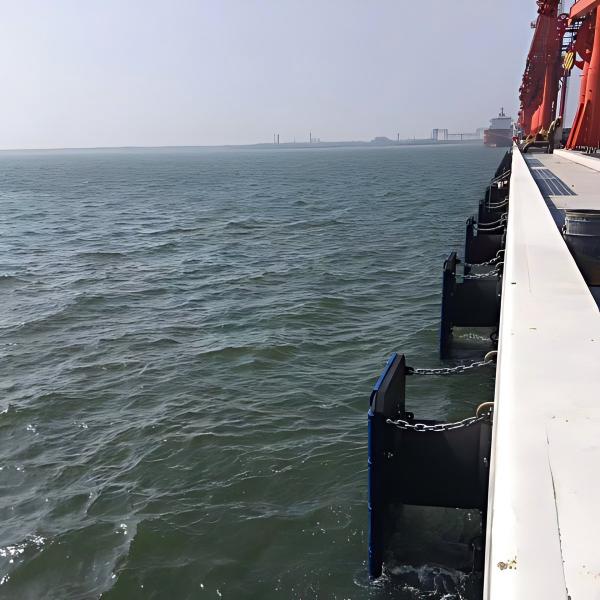

This experience reinforced a fundamental truth in marine engineering: the steel panel is the unsung hero of any fender system. While much attention is given to the rubber or pneumatic fender units, the frontal steel panel is the component that directly interfaces with the vessel's hull, transfers impact forces to the supporting structure, and determines the longevity of the entire berthing system .
This comprehensive guide explores the design work of marine rubber fender frontal steel panels, drawing from industry best practices, international standards (ISO 12944, PIANC WG211), and real-world European project case studies. Whether you are designing for a container terminal in Rotterdam, an LNG facility in Norway, or a ferry berth in Denmark, the principles outlined here will help you create steel panels that deliver decades of reliable service.
A poorly designed or inadequately specified steel panel ranks among the leading causes of rubber fender system malfunctions, shortened service life, and safety hazards in ports worldwide . Common design flaws include:
| Design Flaw | Consequence |
|---|---|
| Uneven force distribution | Localized rubber cracking, tearing, permanent deformation |
| Insufficient structural strength | Panel bending, weld failure, complete detachment |
| Incompatible mounting dimensions | Misalignment, bolt shear, installation delays |
| Substandard material selection | Rapid corrosion, thickness reduction within 2-3 years |
| Non-compliance with standards | Rejection by classification societies, insurance issues |
Before diving into design parameters, it is essential to define what frontal steel panels must accomplish:
Material selection directly dictates structural strength, corrosion resistance, and operational lifespan . The table below outlines recommended steel grades based on application:
All steel materials must meet these baseline mechanical standards :
| Property | Carbon Steel | HSLA Steel |
|---|---|---|
| Yield Strength (ReL) | ≥235 MPa | ≥355 MPa |
| Tensile Strength (Rm) | 375–500 MPa | 490–650 MPa |
| Elongation (A) | ≥21% | ≥21% |
| Impact Toughness (AKV) | ≥34J at -20°C | ≥34J at -20°C (mandatory for cold climates) |
The design work of steel panels must include precise thickness calculations based on berthing load and fender type :
| Panel Component | Recommended Thickness | Application Context |
|---|---|---|
| Plates exposed on two surfaces | ≥12 mm | High-load commercial terminals |
| Plates exposed on one surface | 9–10 mm | Medium-load berths |
| Internal members (not exposed) | 8 mm | Reinforcing ribs, backing plates |
| Small fenders (D-type, arch) | 10–16 mm | Low to moderate energy |
| Large fenders (cone, cell) | 20–50 mm | High-energy berthing, LNG terminals |
Steel panel design must be rooted in actual site-specific berthing loads, calculated in accordance with PIANC WG211 guidelines :
| Load Type | Description | Design Consideration |
|---|---|---|
| Berthing Impact Load | Horizontal force from vessel velocity and displacement | Core load for structural strength and thickness design |
| Mooring Horizontal Load | Lateral forces from wind, waves, currents | Critical for long-term structural stability |
| Vertical Load | Self-weight + installation/maintenance loads | Affects attachment design |
| Fatigue Load | Cyclic repeated loads from frequent berthing | Requires formal fatigue strength checking |
The permissible hull pressure is the single most important constraint in frontal steel panel design. The formula is :
P = ΣR / (A1 × B1) ≤ Py
Where:
- P = Actual hull pressure (kN/m²)
- ΣR = Sum of maximum reaction forces of all fenders (kN)
- A1 = Valid panel width excluding lead-in chamfers (m)
- B1 = Valid panel height excluding lead-in chamfers (m)
- Py = Allowable hull pressure (kN/m²)
The following table provides PIANC-recommended hull pressure limits :
| Vessel Type | Allowable Hull Pressure (kN/m²) |
|---|---|
| Container vessels (1st–2nd generation) | <400 |
| Container vessels (3rd generation/Panamax) | <300 |
| Container vessels (5th–6th generation/Super Post-Panamax) | <200 |
| Gas Carriers (LNG/LPG) | 100–200 |
| Oil Tankers (<60,000 DWT) | <300 |
| VLCC (>60,000 DWT) | <350 |
| Bulk Carriers | <200 |
| General Cargo (<20,000 DWT) | 400–700 |
| General Cargo (>20,000 DWT) | <400 |
> Important Note: Arch fenders can produce hull pressures of 760–1,300 kN/m², while cylindrical fenders produce 460–780 kN/m². Despite exceeding the limits in the table above, these fender types are used safely worldwide when properly designed .
Two mainstream structural designs are used globally :
Flat Solid Steel Panel
- Single-piece flat plate with uniform thickness
- Ideal for small to medium fenders (D-type, arch, cylindrical)
- Standard thickness: 10–20 mm
- Advantages: Simplified structure, straightforward installation, cost-effective

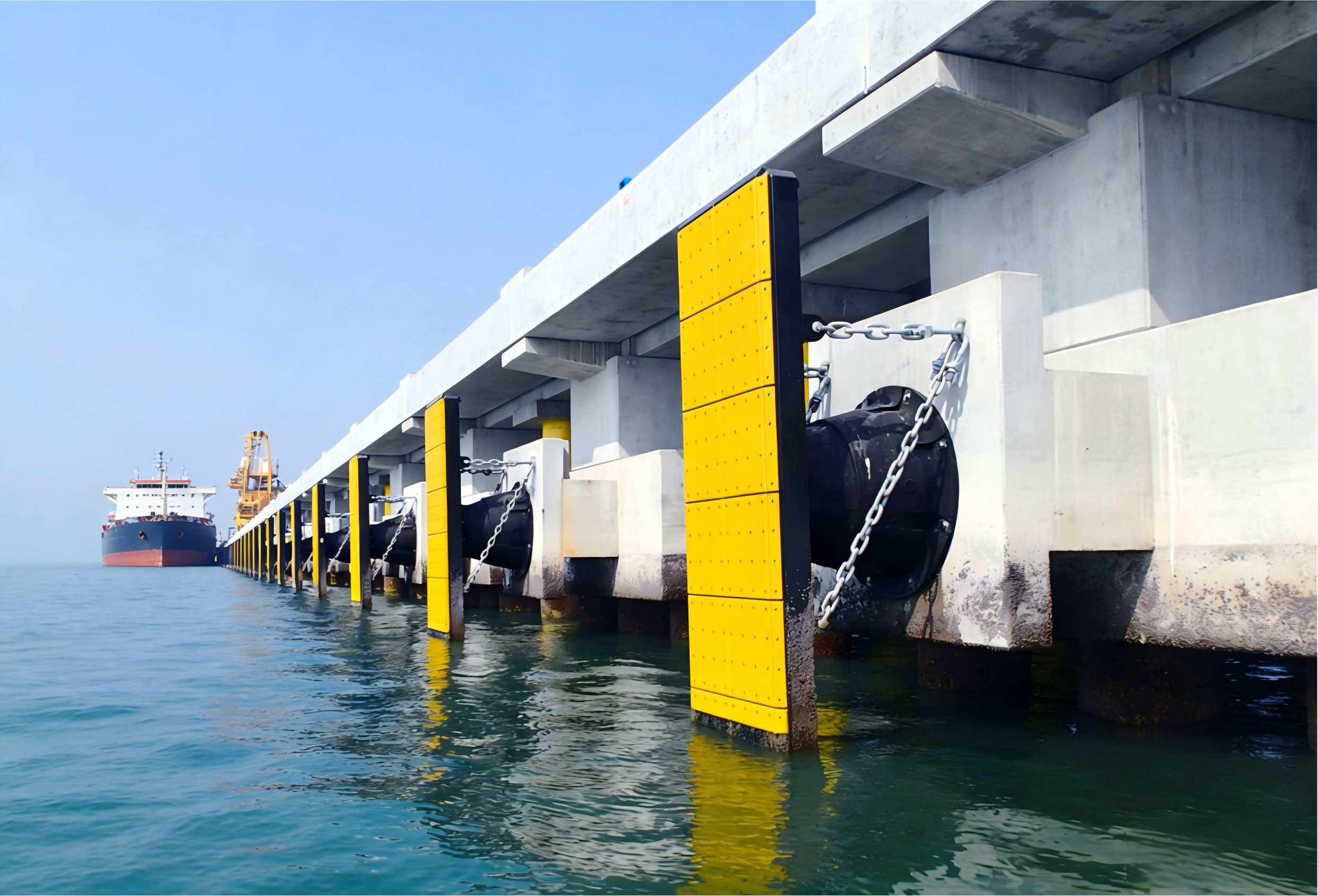

Profiled Panel with Reinforcing Ribs
- Front face plate + welded vertical/horizontal ribs (I-beam, channel steel, square steel)
- Designed for large fenders (cone, cell, drum) and high-load terminals
- Face plate: 12–20 mm; reinforcing ribs: 10–16 mm
- Advantages: Higher rigidity, reduced weight, maximum structural strength
Precision is non-negotiable for installation compatibility and force distribution :
Marine salt spray, persistent moisture, and seawater corrosion pose the greatest threat to steel panel longevity. Inadequate anti-corrosion treatment leads to rapid rusting, thickness reduction, and structural failure within just 2–3 years .
Regardless of coating system, surface preparation must meet ISO 8501-1 Sa 2.5 (near-white metal blast cleaning) :
- All rust, mill scale, and old coating removed
- Surface appears clean white metal with slight gray staining
- Surface roughness Ra ≤6.3μm for optimal coating adhesion
European ports experience significant tidal variations—the Bristol Channel has a range exceeding 14 meters, while Antwerp sees over 5 meters. Large fender panels are required to accommodate these variations .
Case Study: Shannon Foynes, Ireland
For the Shannon Foynes expansion, Nanjing Taidun supplied seven sets of Double Cell Fenders 1000 with closed-box steel panels measuring 7,600 × 2,000 mm—among the largest ever installed in Ireland. A custom flange was designed to fix the lower fender to the combi wall, accommodating tidal variations while maximizing energy absorption .
Ferry terminals face a unique challenge: vessel beltings can catch on standard panel edges, causing severe damage.
Case Study: Kalundborg Port, Denmark
When Molslinjen relocated ferry operations to a different berth, SFT designed four Pile Fender Systems with oversized chamfers on one side of every panel. This simple but critical design feature prevents the vessel's beltings from catching during berthing operations—a lesson learned from years of operational experience .
For ports in Northern Europe, steel panels must withstand extreme cold and ice loading. Requirements include :
- Impact toughness testing at -20°C (AKV ≥34J)
- Ice-resistant design with reinforced edges
- Thicker panels to withstand ice abrasion
To ensure quality and insurability, frontal steel panels must comply with :
Third-party certification from Lloyd's Register, ABS, DNV, or Bureau Veritas adds credibility and facilitates project approval .
- [ ] Define vessel mix (types, sizes, DWT, berthing velocities)
- [ ] Determine maximum berthing energy and reaction forces
- [ ] Identify tidal range and environmental conditions
- [ ] Assess existing quay wall condition and anchor points
- [ ] Review applicable standards (PIANC, ISO, national codes)
- [ ] Select steel grade based on load and corrosion environment
- [ ] Calculate required plate thickness using hull pressure formula
- [ ] Choose structural form (flat vs. ribbed) based on fender type
- [ ] Design reinforcing ribs for large panels
- [ ] Verify flatness tolerance ≤3 mm/m
- [ ] Specify surface preparation to Sa 2.5
- [ ] Select coating system (hot-dip galvanizing ≥85μm, or three-layer paint)
- [ ] Verify coating thickness with DFT gauge
- [ ] For weathering steel, confirm appropriate alloy and exposure conditions
- [ ] Verify mounting hole alignment with fender and quay anchors
- [ ] Specify marine-grade 316 stainless steel fasteners
- [ ] Design for crane access and lifting points
- [ ] Include replacement strategy for UHMW-PE wear pads
The design work of marine rubber fender frontal steel panels is not a routine engineering task—it is a critical investment in port safety, operational reliability, and long-term cost performance.
The projects profiled in this article—Shannon Foynes with its 7.6-meter panels, Kalundborg with its oversized chamfers, and the countless ports where poorly designed panels have failed—demonstrate a clear truth: cutting corners on steel panel design inevitably leads to higher costs in the long run.
By adhering to international standards (PIANC WG211, ISO 12944), selecting appropriate materials (S355JR for high load, hot-dip galvanizing for corrosion resistance), and incorporating site-specific design features (tidal adaptation, hull geometry considerations), you can create frontal steel panels that deliver 20–25 years of reliable service.
Ready to ensure your next fender system meets the highest design standards? Contact our engineering team for a consultation on your frontal steel panel design requirements.
1. Nanjing Taidun Marine Equipment Engineering Co., Ltd. *Complete Specification and Design Guide for Fender Steel Panels*, March 2026. Available at: [https://www.taidunmarine.com/complete-specification-and-design-guide-for-fender-steel-panels-ensuring-durability-safety-and-performance-in-marine-berthing-systems.html]
2. PIANC Working Group 211 (2024). *Guidelines for the Design, Manufacturing and Testing of Fender Systems 2024*. Available at: [https://www.pianc.org/publications/wg/wg-211]
3. Nanjing Taidun Marine Equipment Engineering Co., Ltd. *Design Work of the Steel Panels for Marine Rubber Fender*, March 2026. Available at: [https://www.taidunmarine.com/design-work-of-the-steel-panels-for-marine-rubber-fender-complete-technical-guide-best-practices.html]
Q1: What is the minimum steel plate thickness for frontal panels in commercial ports?
A: For commercial ports with vessels over 5,000 DWT, the recommended minimum thickness is 12 mm for plates exposed on two surfaces and 9–10 mm for plates exposed on one surface . For high-load terminals with container or LNG vessels, thickness typically ranges from 20–50 mm depending on berthing energy calculations .
Q2: How do I calculate the required panel size using hull pressure limits?
A: Use the formula P = ΣR / (A1 × B1) ≤ Py, where Py is the allowable hull pressure for your vessel type (e.g., <200 kN/m² for LNG carriers). By rearranging, the minimum panel area is A1 × B1 ≥ ΣR / Py . This ensures hull pressure stays within safe limits.
Q3: What is the difference between open-type and closed-type steel panel structures?
A: Open-type panels consist of steel pad, H-beam, and cross steel—lighter weight, suitable for moderate loads. Closed-type panels consist of steel pad, back steel, and H-beam—higher rigidity, better load distribution, preferred for large fenders and high-energy berthing .
Q4: Why is hot-dip galvanizing preferred over paint for fender steel panels?
A: Hot-dip galvanizing provides cathodic protection—even if scratched, the surrounding zinc corrodes preferentially, protecting the underlying steel. Paint systems, by contrast, offer only barrier protection. With minimum 85μm coating thickness, hot-dip galvanizing delivers 15–20 years of service life in marine environments, compared to 5–10 years for standard paint systems .
Q5: How do I design steel panels for ports with extreme tidal ranges?
A: For tidal variations exceeding 5 meters, panels must be designed with sufficient vertical coverage to maintain contact across the entire tidal range. The Shannon Foynes project used 7,600 × 2,000 mm closed-box panels with custom flanges to fix the lower fender to the combi wall, ensuring stability across the tidal cycle .
Q6: What is the significance of UHMW-PE facing on steel panels?
A: UHMW-PE (ultra-high molecular weight polyethylene) provides a low-friction, non-marking surface that protects vessel hulls from abrasion and reduces shear forces during berthing. In the Shannon Foynes project, UHMW-PE pads were secured with capnuts for additional shear resistance . Thickness typically ranges from 50–70 mm for heavy-duty applications.
