An Admiralty anchor uses a transverse stock to orient one fluke toward the seabed. A Hall anchor uses a stockless design with pivoting flukes, making it more convenient for shipboard handling and hawsepipe stowage.
Neither design automatically provides a safe solution for salvage operations or an exposed floating breakwater. This guide explains their practical differences and the information an OEM buyer should establish before requesting production.
The central trade-off is straightforward: the Admiralty pattern offers a traditional stocked arrangement, while the Hall pattern prioritizes compact handling and integration with vessel anchoring equipment.
| Selection factor | Admiralty anchor | Hall anchor |
|---|---|---|
| Basic arrangement | Fixed arms and transverse stock | Stockless arrangement with pivoting flukes |
| Setting mechanism | Stock helps orient one fluke downward | Crown geometry and pull help rotate flukes into the bottom |
| Shipboard storage | Stock and arms require additional clearance | Generally more convenient for hawsepipe stowage |
| Seabed assessment | Engagement depends on penetration or suitable features | Embedment depends on soil conditions and fluke engagement |
| Operational concern | Exposed upper fluke can create fouling risks | Moving components require inspection |
| Procurement priority | Stock arrangement, clearances, handling method | Shank geometry, pivot assembly, hawsepipe fit |
The practical conclusion is not that one anchor is universally stronger. It is that each design creates different installation, handling, and verification requirements.
For heavy-duty work, a buyer should compare documented performance under relevant conditions rather than rely on appearance, historical reputation, or a generic holding-power ratio.
An Admiralty-pattern anchor has a central shank, two arms, flukes, and a stock positioned perpendicular to the arms.
When tension develops in the anchor line, the stock helps turn the anchor so that one fluke can engage the bottom. Its effectiveness depends on what that fluke encounters and whether the loading geometry supports continued engagement.
An Admiralty anchor may be considered where a project specifically requires a stocked anchor and the deployment arrangement can accommodate it.
Its geometry can engage certain seabed features, but this should not become a blanket claim that it is reliable on all rock, weed, or hard ground. A fluke caught in a feature may resist movement, yet its capacity and recovery behavior can remain uncertain.
For engineered salvage positioning, that uncertainty matters.
The stock complicates deck storage and handling. One fluke may remain exposed after setting, creating a potential fouling hazard as the vessel or mooring line changes direction.
Before specifying this pattern, assess:
- Stock assembly and locking arrangements.
- Lifting points and handling clearances.
- Potential interaction with neighboring mooring lines.
- Expected changes in pull direction.
- A practical recovery method.
An anchor that can be deployed but cannot be recovered safely is an incomplete operational solution.

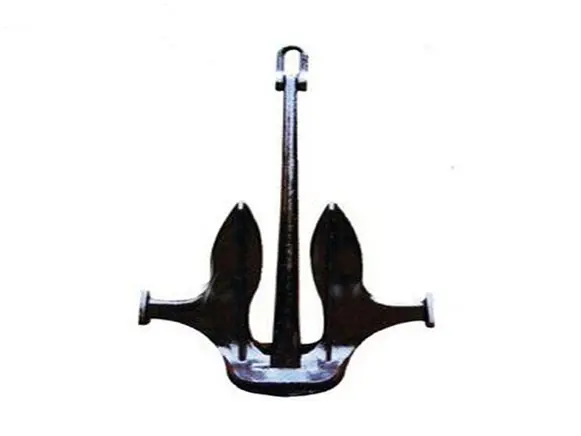

A Hall anchor eliminates the transverse stock. Its head incorporates flukes that pivot relative to the shank.
This arrangement supports compact storage and practical deployment from shipboard anchoring equipment. However, "stockless" describes a configuration, not a guarantee of high holding power.
For vessels equipped with compatible hawsepipes and windlasses, a Hall anchor can simplify handling compared with a stocked pattern.
The important word is compatible. Shank dimensions, head geometry, clearances, and the final stowed position must match the vessel arrangement.
An anchor ordered by mass alone may still create installation problems.
Performance depends on the anchor's geometry, the seabed, installation quality, and the load applied through the line.
Sand, mud, clay, and mixed bottoms are not interchangeable. Dense sand and soft mud can produce substantially different embedment behavior.
Buyers should also distinguish an ordinary stockless anchor from a formally approved high-holding-power design. A Hall-pattern label should not substitute for evidence of a particular performance classification.
Salvage projects can involve casualty stabilization, work-barge positioning, controlled movement, or support for lifting and recovery equipment.
These operations create different demands. An anchor used to keep a support barge within a working area is not necessarily suitable for resisting a recovery pull.
A useful specification identifies:
1. The object or vessel being restrained.
2. Expected wind, wave, and current conditions.
3. Operational loads from towing, winching, or lifting.
4. Maximum permissible movement.
5. Changes in load direction during the operation.
6. Consequences of anchor movement or line failure.
These inputs allow the responsible engineer to assess the system rather than merely select an anchor from a catalog.
No supplier should promise that a particular anchor mass will safely support a salvage operation without this context.
Multiple anchors do not necessarily share loads equally.
Different line lengths, pretensions, stiffnesses, and directions can cause one line to attract more load than another. Movement of the casualty or support vessel can further change the distribution.
The engineering review should therefore consider the intended operating arrangement and credible failure conditions.
In this article, emergency breakwater anchoring refers to temporary floating protection systems, including floating modules or pontoons deployed to reduce wave exposure.
A fixed rubble-mound breakwater presents a different engineering problem and is not addressed here.
Floating protection systems experience environmental loading through their moorings. Their effectiveness also depends on wave conditions, dimensions, orientation, and allowable movement—not simply whether the anchors remain stationary.
Conventional ship anchoring requirements primarily address temporary anchoring within defined operating assumptions.
They should not be treated as automatic approval for a floating breakwater exposed to severe weather.
A breakwater mooring assessment may need to address:
- Maximum line tensions and anchor resistance.
- Cyclic loading and fatigue.
- Water-level changes.
- Permissible movement and clearance.
- Damaged conditions following a line failure.
- Inspection, maintenance, and removal.
Emergency deployment changes the available time. It does not remove these design requirements.
If the expected loads, seabed, or uplift requirements exceed the suitability of an Admiralty or Hall anchor, consider an alternative foundation concept.
Options may include purpose-designed drag-embedment anchors, gravity anchors, piles, or suction foundations.
Each has different installation and ground requirements. The appropriate choice must follow project engineering and seabed assessment, not a universal ranking of anchor types.
A structural proof test assesses the anchor under a prescribed load and test arrangement.
It does not establish how much resistance that anchor will develop in the project's soil.
Likewise, a successful field setting check does not replace manufacturing quality control.
A credible procurement package distinguishes material documentation, structural testing, and site-specific installation verification.
Drag-embedment performance depends partly on how the load reaches the anchor.
A favorable low-angle pull during setting does not guarantee that the same geometry will remain under higher environmental loading.
Water depth, tide, line length, line properties, and system movement all influence the angle.
Avoid using one universal scope ratio as a complete design method for salvage or floating breakwater systems.
An anchor can meet drawing requirements and still be installed incorrectly.
The installation plan should identify how position, orientation, setting, and movement will be checked.
Where a controlled installation load test is required, its load level, acceptance criteria, equipment, and safety procedures should be specified by the responsible engineer.
A test is only meaningful when its purpose and acceptance conditions are clear.
Consider a temporary floating barrier protecting a repair area over a sediment seabed. Available deck space is limited, and the support vessel already uses compatible stockless anchoring equipment.
A Hall anchor may offer handling advantages. However, that does not establish sufficient resistance for the barrier's design loads.
Now consider a salvage positioning task where a stocked arrangement has been specified and deployment uses dedicated lifting equipment. An Admiralty anchor may fit that operational requirement, but directional loading and recovery still need assessment.
These are illustrative scenarios, not documented Nanjing Taidun project results.
Their lesson is transferable: operational convenience can help shortlist an anchor, but verified system suitability must determine final selection.
Nanjing Taidun Marine Equipment Engineering Co.,Ltd serves buyers seeking OEM manufacturing for marine equipment.
For anchor procurement, the strongest starting point is a documented specification that separates the buyer's design requirements from the manufacturer's production obligations.
Provide:
- Anchor pattern, nominal mass, and quantity.
- Drawings and critical dimensional tolerances.
- Material and manufacturing requirements.
- Required inspection and testing.
- Applicable classification or project requirements.
- Surface protection specification.
- Marking, packaging, and traceability requirements.
- Delivery destination and requested schedule.
For Hall anchors, include the hawsepipe interface and stowage clearances. For Admiralty anchors, clarify stock construction, assembly, and handling requirements.
Request written confirmation of the agreed scope.
Confirm which certificates and inspection records will accompany the actual order. Do not assume that a general company statement establishes approval for every anchor design, size, or manufacturing route.
If third-party witnessing is required, agree on the inspection points before production begins.
This approach helps overseas brands and wholesalers build a clearer technical file for their customers.
Not universally. Structural strength and seabed holding resistance are separate questions. Compare the specified design, manufacturing records, soil conditions, and expected loading.
No. Stockless construction does not establish high-holding-power status. Buyers should request the applicable approval and supporting documentation for the offered design.
Potentially, if the complete system is suitable for the operation. Anchor selection must account for environmental loads, operational forces, ground conditions, line geometry, and failure consequences.
Neither is automatically preferable. Handling requirements may favor a Hall anchor, but the mooring analysis and seabed assessment determine whether either design is suitable.
No. Mass is only one input. Geometry, soil resistance, embedment, installation quality, and loading direction also affect performance.
No. Structural proof testing and seabed resistance verification serve different purposes. Both may be necessary, depending on the project.
