Introduction
Upgrading to UHMW-PE pads for fenders is one of the smartest investments for ports, marinas, and offshore platforms. But even the highest-quality marine fender backing pads won’t deliver their full benefits unless they’re installed correctly.
Improper mounting can cause:
Uneven load distribution → premature fender or hull damage
Pad movement during impact → safety hazards
Water ingress behind the pad → material degradation
This guide explains how to install UHMW-PE pads on existing fenders safely, efficiently, and in compliance with marine engineering standards.
1. Tools & Materials Checklist
Before starting, gather these items:
Category | Items |
Measurement | Tape measure, caliper, angle finder |
Cutting | Circular saw with carbide blade / water jet cutter (for precision) |
Drilling | Heavy-duty drill, marine-grade stainless steel bits |
Fasteners | 316 stainless steel bolts, lock washers, nuts |
Adhesion | Marine-grade epoxy adhesive (optional for extra bonding) |
Safety Gear | Gloves, goggles, ear protection, non-slip footwear |
Pad Material | Pre-cut UHMW-PE pad sized for your fender (custom sizes available) |
Pro Tip: Always order UHMW-PE pads slightly oversized (5–10 mm per side) to allow precise trimming after fitting.
2. Step-by-Step Installation Process
Step 1 – Inspect Existing Fenders
Check for cracks, deformation, or corrosion on fender body and mounting brackets.
Confirm bolt holes are clean and undamaged.
Verify fender deflection under load matches manufacturer specs.
Why it matters: Installing retrofit UHMW-PE fender pads on damaged fenders compromises performance.
Step 2 – Measure & Mark Pad Position
Measure the flat contact area on the fender where the pad will sit.
Transfer measurements to the UHMW-PE sheet and mark cutting lines.
Account for bolt hole alignment — holes must match existing fender bolt pattern.
Step 3 – Cut UHMW-PE Pad to Size
Use a carbide-tipped circular saw for straight cuts. For complex shapes, a water jet cutter ensures smooth edges.
Deburr all edges to prevent sharp protrusions that could damage hull coatings.
Expert Insight: Clean cuts reduce stress concentrations, extending pad life.
Step 4 – Drill Bolt Holes
Align pad over fender and mark hole positions.
Drill holes using stainless steel drill bits matching bolt diameter.
Chamfer hole edges to avoid cracking under torque.
Note: Pre-drilled pads are available for common fender models — ask your supplier.
Step 5 – Dry Fit & Adjust
Place pad onto fender without fasteners to check alignment.
Ensure full contact along the entire surface — no gaps.
Make final adjustments to hole positions if necessary.
Pro Tip: A dry fit prevents expensive mistakes before permanent assembly.
Step 6 – Apply Adhesive (Optional)
For high-impact or tidal zones, apply marine-grade epoxy to the fender contact area.
Press pad firmly into place, ensuring even adhesive spread.
Allow curing as per adhesive manufacturer instructions.
Why do this? Epoxy bonds prevent pad movement in dynamic loading conditions.

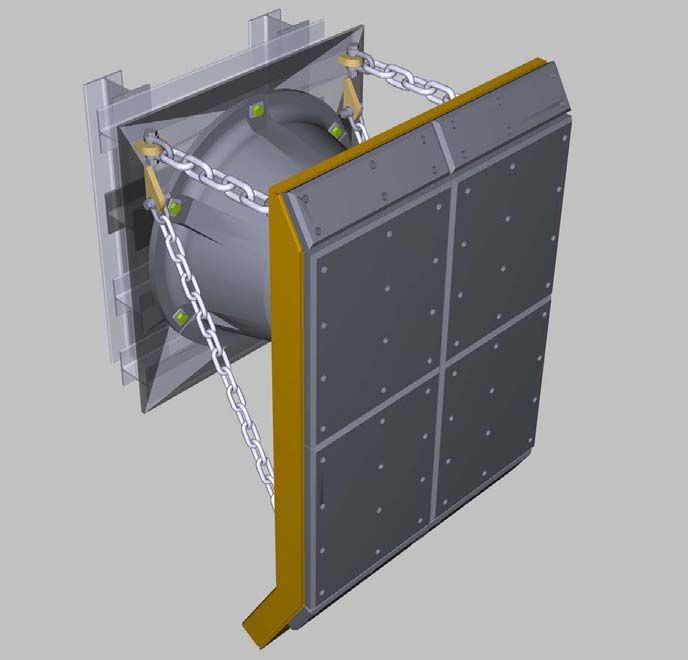

Step 7 – Secure with Stainless Steel Fasteners
Insert 316 stainless steel bolts through pre-drilled holes.
Add lock washers and tighten to manufacturer torque specs.
Check for even compression across the pad.
Critical: Using non-corrosive fasteners is essential for UHMW-PE fender pad installation guide compliance in saltwater environments.
Step 8 – Final Inspection & Testing
Visually inspect for uniform contact, no overhang, and secure fastening.
Conduct a low-speed vessel approach test to observe pad behavior.
Log installation date, batch number, and torque values for maintenance records.
3. Common Mistakes to Avoid
Mismatched hole patterns → misalignment, stress fractures.
Using carbon steel fasteners → rapid corrosion in marine settings.
Skipping dry fit → costly rework.
Over-tightening bolts → cracking UHMW-PE or damaging fender.
4. Real-World Example: Caribbean Marina Retrofit

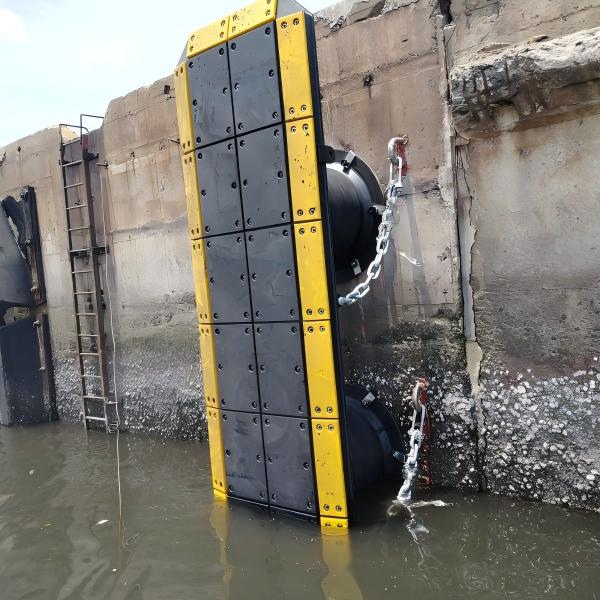

A marina in the British Virgin Islands retrofitted 18 existing fenders with UHMW-PE pads for fenders to combat rapid wear from coral dust and saltwater. By following the above method:
Installation took 2 days (vs. 4 days with incorrect prep)
Pad movement reduced to zero in 12 months
Maintenance calls dropped by 70%
Marina Manager Elena Rodriguez said:“Proper installation made all the difference. Our hull damage claims disappeared, and the crew noticed smoother docking immediately.”
5. Maintenance Tips Post-Installation
Inspect pads annually for wear or bolt loosening.
Clean debris from pad surface to maintain low friction.
Replace if wear exceeds 30% of original thickness.
6. Why Work With Experts?
While DIY installation is possible for small projects, large-scale retrofits benefit from professional engineering support:
Custom CAD layout for complex fender geometries
On-site supervision to ensure compliance with international marine standards
Access to pre-engineered UHMW-PE pad kits for faster deployment
