How to Select and Design the Complete Marine Fender System

How to Select and Design the Complete Marine Fender System



Introduction

In today’s global maritime industry, the selection and design of a complete marine fender system is not just a matter of compliance — it is a strategic decision that impacts vessel safety, port efficiency, and long-term operational costs. Whether you are managing a busy container terminal, an offshore oil platform, or a shipyard, having the right fender system can mean the difference between smooth operations and costly accidents.

This guide provides a step-by-step approach to selecting and designing a marine fender system that meets international standards, withstands local environmental conditions, and maximizes return on investment.



Step 1: Understand the Purpose of Your Marine Fender System

A marine fender system serves as a protective interface between a vessel and a berthing structure (quay wall, jetty, offshore platform). Its primary functions are:

①Absorbing kinetic energy during vessel berthing

②Preventing structural damage to both the ship and the pier

③Reducing recoil forces that could destabilize moored vessels

Before selecting any product, define the operational goals:

①Is the system for cargo ships, tankers, ferries, or naval vessels?

②Will it operate in tidal zones, open seas, or protected harbors?

③What is the expected frequency and intensity of berthing impacts?



Step 2: Assess Vessel Parameters

Accurate vessel data is critical for proper fender sizing and energy absorption calculation. Key parameters include:

①Length overall (LOA)

②Displacement tonnage

③Berthing speed (typically 0.1–0.2 m/s for large vessels)

④Hull type and contact area

These values feed into the energy absorption equation and determine the required fender reaction force and deflection characteristics.



Step 3: Evaluate Environmental Conditions

The marine environment directly influences fender material selection and design life. Consider:

①Water temperature range (affects rubber elasticity)

②Salinity and chemical exposure (corrosion risk)

③UV radiation and ozone levels (degrades exposed surfaces)

④Tidal range and wave action (impacts fender compression cycles)

For example, fender systems in the Persian Gulf must withstand high salinity and summer temperatures above 40°C, while those in Northern Europe require cold-temperature flexibility.



Step 4: Choose the Right Fender Type

There are several common types of marine fenders, each suited to different applications:

Fender Type	Best For	Pros	Cons
Pneumatic Rubber Fenders	Large vessels, STS operations	High energy absorption, low reaction force	Requires regular pressure checks

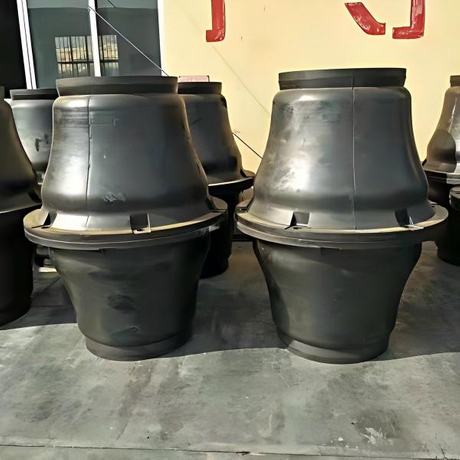

Solid Rubber Fenders  (D-type, Cone, Cell)	General cargo, ferries	Low maintenance, durable	Heavier, higher reaction force
Foam-Filled Fenders	Harsh environments, no air pressure	No risk of deflation, good for ice-prone areas	More expensive upfront
Hydro-Pneumatic Fenders	Navy, LNG terminals	Adjustable stiffness, high performance	Complex installation

Select the type that matches your vessel size, berthing energy, and maintenance capability.



Step 5: Calculate Energy Absorption and Reaction Force

Using the PIANC Guidelines (2002) or ISO 17357 standards, calculate:

①Total Berthing Energy (E) = 0.5 × mass × velocity²

②Required fender energy absorption (E_fender) = E × safety factor (usually 1.2–1.5)

③Reaction force (R) = E_fender / deflection

Ensure the selected fender’s performance curve meets or exceeds these requirements without causing excessive load on the quay structure.

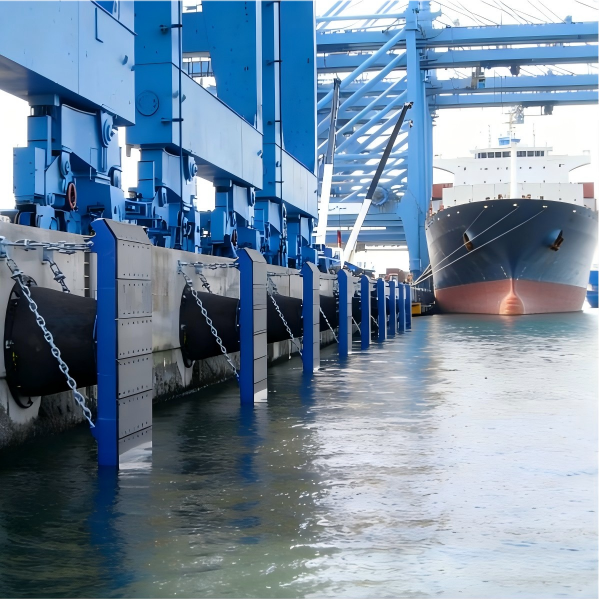

Step 6: Design the Fender Panel and Mounting System

A complete fender system includes:

①Fender units (size, type, quantity)

②Front panel (HDPE, stainless steel, or composite) to distribute load

③Chain and bolt assemblies for secure attachment

④Spacer bars and guides to maintain alignment

The mounting system must account for tidal variation, vessel drift, and mechanical wear over time.



Step 7: Ensure Compliance with International Standards

Choose fender systems tested and certified to:

①ISO 17357 (Pneumatic rubber fenders)

②PIANC WG33/44 guidelines

③ASTM F2192 (for performance testing)

④DNVGL-ST-0378 (for offshore applications)

Certification ensures predictable performance and insurability of your port or platform.



Step 8: Plan for Maintenance and Lifecycle Management

Even the best fender system requires upkeep. Implement:

①Regular pressure testing (for pneumatic fenders)

②Visual inspections for cracks, cuts, or corrosion

③Replacement schedules based on deflection limits

④Performance monitoring with IoT sensors for advanced ports

A proactive maintenance plan extends service life and prevents unexpected failures.



Step 9: Partner with an Experienced Supplier

Work with a supplier who offers:

①Engineering calculations and site-specific designs

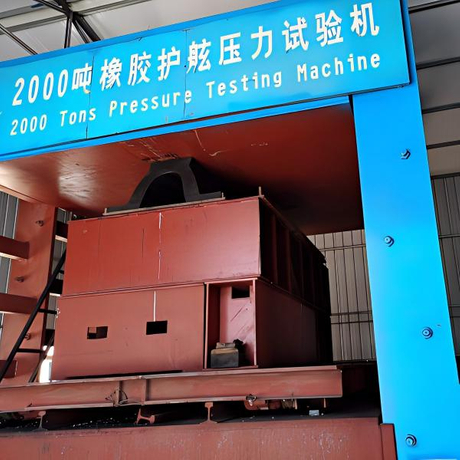

②Prototyping and testing capabilities

③Global logistics for timely delivery

④After-sales support and spare parts availability

This partnership ensures your fender system performs reliably for decades.



Conclusion

Designing and selecting a complete marine fender system is a complex but critical task that demands expertise in naval architecture, materials science, and environmental engineering. By following this step-by-step guide, you can ensure your port, terminal, or offshore facility is equipped with a safe, efficient, and durable fender solution that protects assets and optimizes operations.
