How to Select the Right Marine Fenders

How to Select the Right Marine Fenders

Marine fenders are the unsung heroes of port operations and vessel safety—absorbing kinetic energy during berthing, mooring, and vessel-to-vessel contact to protect hulls, docks, and cargo. Choosing the wrong marine fenders can lead to costly damage, operational downtime, and safety risks. But with the right approach—aligned with vessel needs, environmental conditions, and industry standards—you can select marine fenders that deliver long-term reliability and performance.

In this guide, we’ll break down the critical factors for selecting marine fenders, demystify sizing calculations, and highlight the most effective types for different applications. Whether you’re outfitting a commercial cargo ship, a luxury yacht, or a coastal port, this step-by-step framework ensures you make an informed decision.



Key Factors to Consider When Selecting Marine Fenders

1. Vessel Size, Type, and Displacement

The foundation of marine fender selection lies in matching the fender’s capacity to your vessel’s specifications. Larger vessels (e.g., container ships, tankers) generate more impact energy due to their weight and displacement, requiring heavy-duty marine fenders with high energy absorption. Smaller vessels (e.g., fishing boats, yachts) thrive with compact, flexible options like pneumatic or cylindrical rubber fenders.

Vessel Length: As a general rule, vessels over 50 meters require industrial-grade marine fenders (e.g., cell fenders, super arch fenders), while vessels under 20 meters perform well with lightweight alternatives.

Vessel Type: Tankers and bulk carriers need marine fenders that withstand high-pressure impacts, while passenger ships prioritize low reaction forces to protect delicate hulls.

Displacement: Heavier vessels (over 10,000 DWT) demand marine fenders with minimum deflection and maximum energy absorption—such as cone fenders or composite fender systems.

2. Berthing Conditions and Impact Energy

Berthing dynamics directly influence marine fender performance. Calculate the expected impact energy (in kilojoules) using this formula:

Impact Energy (kJ) = 0.5 × Vessel Mass (tonnes) × Berthing Speed² (m/s)

Key variables to assess:

Berthing Speed: High-speed berthing (over 0.3 m/s) requires marine fenders with rapid energy dissipation (e.g., pneumatic fenders or cell fenders).

Berthing Structure: Concrete docks need robust marine fenders with abrasion resistance, while floating docks benefit from flexible, shock-absorbent options.

Tidal Variations: In areas with significant tide changes (over 3 meters), choose marine fenders with adjustable mounting systems (e.g., ball fenders or articulated fender arrays) to maintain protection at all water levels.

3. Environmental Conditions

Marine fenders must withstand harsh marine environments—saltwater, UV radiation, extreme temperatures, and corrosion. Select materials and designs tailored to your operating conditions:

Saltwater Exposure: Opt for marine fenders made from high-density rubber (HDPE) or EPDM rubber, which resist saltwater degradation.

Extreme Temperatures: For cold climates (below -10°C), avoid rigid materials—pneumatic marine fenders or foam-filled rubber fenders maintain flexibility in freezing conditions.

Climate Change Impacts: Align with PIANC WG 211 guidelines (2024 update) to select marine fenders that account for rising sea levels and increased storm activity.

4. Marine Fender Type and Material

Choose a marine fender type that balances energy absorption, reaction force, and durability for your use case:

Marine Fender Type	Best For	Key Advantages
Pneumatic Marine Fenders	Yachts, ferries, offshore platforms	Lightweight, low reaction force, easy installation
Solid Rubber Fenders (D-type, cylindrical)	Small to medium vessels, coastal docks	Cost-effective, low maintenance, abrasion-resistant
Cell Marine Fenders	Commercial ports, large cargo ships	High energy absorption, minimal deflection

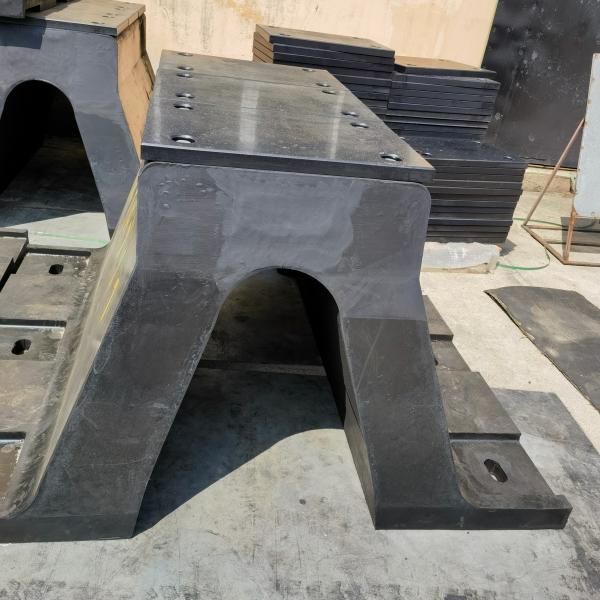

Super Arch Marine Fenders	Tankers, bulk carriers	Handles extreme impacts, long service life
Ball Marine Fenders	Tidal zones, floating docks	360° protection, adjustable positioning

Materials matter too: High-quality marine fenders use synthetic rubber (nitrile, neoprene) or HDPE for longevity. Avoid low-grade rubber, which degrades quickly in marine environments.

5. Installation, Maintenance, and Compliance

Installation Requirements: Fixed berths need permanent marine fender systems (e.g., bolted cell fenders), while temporary moorings benefit from portable pneumatic fenders.

Maintenance Needs: Choose marine fenders with accessible inspection points—solid rubber fenders require annual checks for cracks, while pneumatic fenders need pressure monitoring.

Industry Standards: Ensure compliance with PIANC WG 211 (2024) and ISO 17357 for marine fender performance and safety. Certified marine fenders reduce liability and ensure reliability.

6. Cost vs. Long-Term Value

While upfront cost is a factor, prioritize marine fenders that offer total cost of ownership (TCO) savings. Cheap marine fenders may require frequent replacement, while high-quality options (e.g., Trelleborg-approved marine fenders) last 10+ years with minimal maintenance. Consider:

Replacement frequency

Maintenance costs

Downtime risk of failed marine fenders



Step-by-Step Process to Select Marine Fenders

Assess Vessel and Berthing Data: Gather length, displacement, berthing speed, and dock type.

Calculate Impact Energy: Use the formula above to determine required energy absorption.

Match Fender Type to Needs: Select from the table above based on vessel size and conditions.

Verify Material and Compliance: Ensure marine fenders meet PIANC/ISO standards and environmental requirements.

Evaluate Installation and Maintenance: Confirm compatibility with your infrastructure.

Compare Quotes and TCO: Prioritize quality over upfront cost for long-term savings.



Common Mistakes to Avoid

Undersizing Marine Fenders: Underestimating impact energy leads to premature failure.

Ignoring Environmental Factors: Saltwater or extreme temperatures degrade unsuitable materials.

Overlooking Compliance: Non-certified marine fenders pose safety risks and may void insurance.

Neglecting Maintenance Access: Hard-to-reach marine fenders lead to delayed inspections.



Final Thoughts: Invest in the Right Marine Fenders

Selecting marine fenders isn’t just about protection—it’s about optimizing operational efficiency and reducing risk. By aligning your choice with vessel specs, environmental conditions, and industry standards, you’ll ensure reliable performance for years to come.
