When a 200,000-ton LNG carrier approaches a deep-water terminal in monsoon-season seas, the margin for error is zero. The fender and mooring systems separating that vessel from catastrophic hull damage must perform flawlessly—every time, under every condition.
Deep-water LNG terminals present unique engineering challenges: extreme vessel drafts, massive windage areas, powerful currents, and the highest safety standards in the maritime industry. This is why PIANC certified rubber fender & mooring bollard systems have become the global benchmark for LNG terminal protection.
I have spent two decades manufacturing OEM rubber fender systems for global brands. In this guide, I will explain the critical role of PIANC certification in LNG terminal projects, the transition from PIANC 2002 to PIANC 2024 guidelines, and how to specify the right system for your application.
PIANC (The World Association for Waterborne Transport Infrastructure) is the international authority on fender system design guidelines. Its recommendations are referenced by every major port authority, classification society, and oil major worldwide .
For nearly two decades, the industry operated under PIANC MarCom WG33 (2002) guidelines. In March 2024, PIANC published WG211 — a complete replacement that fundamentally changes how fender systems are designed and tested .
| Aspect | PIANC WG33 (2002) | PIANC WG211 (2024) |
|---|---|---|
| Safety approach | Global safety factor | Partial safety factors based on statistics |
| Cyclic loading consideration | Limited | Central design requirement |
| Berthing velocities | Lower estimates | Higher for large vessels (per WG145) |
| Mooring load analysis | Static methods | Dynamic Mooring Analysis (DMA) required |
| Fender testing | Basic | Enhanced protocols for fatigue and creep |
> *"In light of the new PIANC2024 Guidelines, special attention was paid to cyclic loading to avoid fender overloading under mooring conditions."*
For deep-water LNG terminals, the PIANC 2024 guidelines are now mandatory for new projects. Transition periods are ending, and fender suppliers must reorganize their catalogues accordingly.

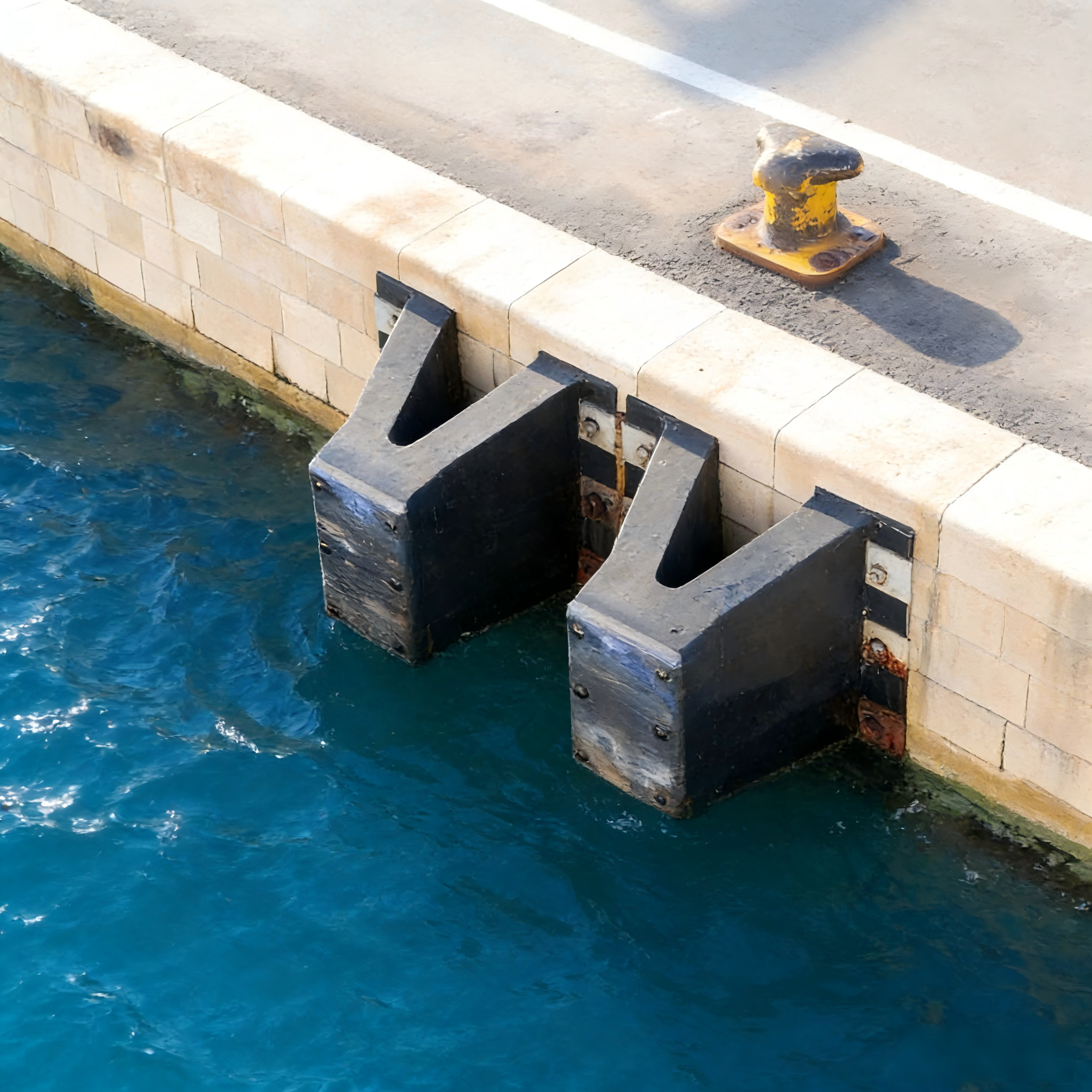

A complete PIANC certified rubber fender & mooring bollard system for deep-water LNG terminal projects consists of several integrated components.

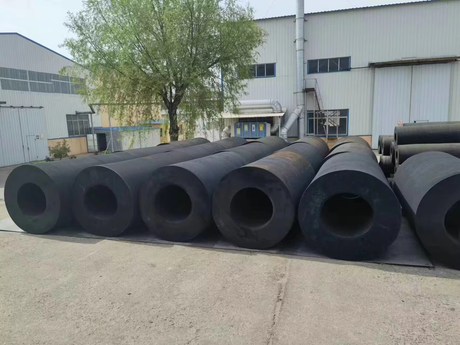

LNG carriers have specific hull pressure limitations. The right fender type must balance:
- Energy absorption capacity — Sufficient to stop a 200,000+ DWT vessel
- Reaction force — Low enough to protect the LNG carrier's hull
- Angular performance — Capable of handling oblique berthing up to 10-15°
- Cyclic loading resistance — Withstanding repeated mooring forces without fatigue
Recommended fender types for LNG terminals:
The mooring system is equally critical. LNG terminals require high-capacity bollards capable of withstanding the extreme mooring loads determined by Dynamic Mooring Analysis (DMA).
Typical specifications for LNG bollards:
- Capacity range: 150T to 300T (300T for large FLNG projects)
- Configuration: Tee bollards or double-bollard configurations
- Material: Cast steel with corrosion protection
- Certification: PIANC compliant with third-party witnessing
In the recent Petronas FLNG project, 24 sets of 300T Tee Bollards were supplied alongside the fender systems to accommodate the vessel's significant draft and windage area .

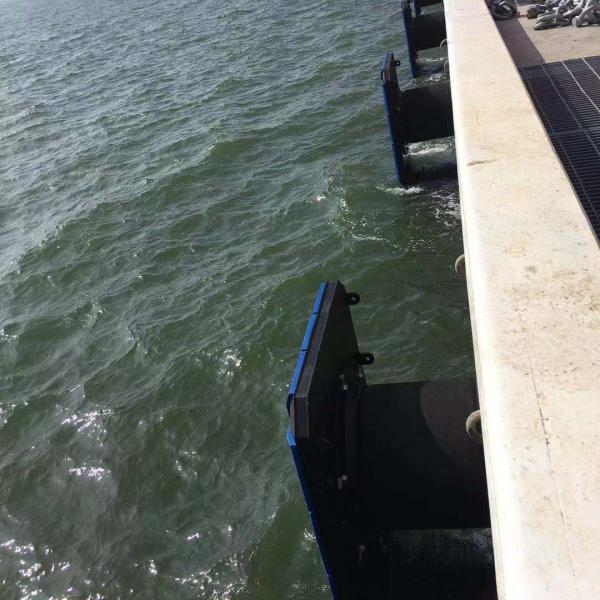

The fender panel is the interface between the fender and the vessel hull. For LNG terminals, panels must be engineered to:
| Requirement | Specification |
|---|---|
| Size | Up to 4000×4500 mm for large installations |
| Coating | C5M-grade corrosion protection (ISO 12944) |
| Face pads | UHMW-PE for low friction (<0.2 coefficient) |
| Chain systems | Tension chains, weight chains, uplift chains (custom configurations) |
| Structural design | FEM-verified for stress distribution |
The recent Petronas FLNG project in Sabah, East Malaysia, exemplifies best practices in PIANC certified rubber fender & mooring bollard system for deep-water LNG terminal projects .
| Parameter | Detail |
|---|---|
| Project | Petronas third FLNG vessel (PFLNG3) |
| Location | Sipitang Oil and Gas Industrial Park (SOGIP), Sabah, Malaysia |
| LNG capacity | 2 million tonnes per year |
| Commissioning | Second half of 2027 |
| Lead contractors | Samsung Heavy Industries, JGC Corporation |
| Marine support | China Communications Construction Company |
Nanjing Taidun supplied four Cell Fender Systems (CSS3000, G3.1) — the largest available and made from the hardest rubber grade .
Key specifications:
| Component | Specification |
|---|---|
| Fender type | SUC3000 Cell Fender System |
| Rubber grade | G3.1 (hardest available) |
| Steel panel size | 4000×4500 mm |
| Tension chains | 4 per system |
| Weight chains | 2 per system |
| Uplift chains | 2 per system (non-standard configuration) |
| Bollards | 24 sets of 300T Tee Bollards |
The project was engineered with PIANC 2024 guidelines as the central design framework :
1. Cyclic loading analysis — Special attention to avoid fender overloading under repeated mooring conditions
2. Dynamic Mooring Analysis (DMA) — Mooring loads calculated considering extreme winds, waves, and currents
3. Worst-case scenario testing — Systems tested to withstand maximum environmental forces
4. Maintenance-free service life — Engineered for long-term reliability without frequent intervention
> *"Given these operating conditions, the hull, with its significant draft and windage area, is exposed to the full range of forces expected during its design life, including strong winds, waves, and currents. The resulting mooring loads, determined through Dynamic Mooring Analysis (DMA), must be absorbed reliably without fatigue, creep, or overloading."*
One of the most significant changes in PIANC 2024 is the emphasis on cyclic loading — how fenders behave under repeated pressure during mooring .
LNG carriers are permanently moored or frequently berthed at the same terminal. Unlike general cargo vessels that come and go, LNG carriers subject fenders to repeated, predictable loading cycles.
Risks of inadequate cyclic loading design:
| Risk | Consequence |
|---|---|
| Fatigue | Progressive rubber degradation over time |
| Creep | Permanent deformation under sustained load |
| Overloading | Sudden failure during extreme events |
| Hull pressure exceedance | Damage to LNG carrier‘s membrane tanks |
The new guidelines require:
- Enhanced testing protocols for cyclic loading conditions
- Partial safety factors based on statistical analysis rather than global estimates
- Site-specific berthing data to validate design assumptions
- DMA validation of mooring loads under extreme environmental conditions
For LNG terminal projects, the following certifications are typically required:
> *"Our products meet international standards, with approvals from CCS and BV to PIANC 2002 guidelines."*
Fender systems must be tested to verify:
| Test Type | Purpose | Standard |
|---|---|---|
| Compression testing | Verify energy absorption and reaction force | ASTM F2192 / ISO 17357 |
| Cyclic loading test | Validate fatigue resistance | PIANC 2024 WG211 |
| Dynamic Mooring Analysis | Confirm mooring load capacity | Industry best practice |
| Material certification | Verify rubber compound properties | ASTM / ISO standards |
We asked our global OEM clients and industry partners about their experience with PIANC-certified fender systems for LNG terminals:
> *"The transition to PIANC 2024 was challenging initially, but it has made our specifications much clearer. The cyclic loading requirements forced us to rethink our fender selection, and we ended up with a more robust system as a result."*
> — *Senior Marine Engineer, European LNG Terminal Operator*
> *"For our FLNG project, we required full PIANC 2024 compliance from all suppliers. The fender systems we selected had to undergo DMA validation and cyclic loading testing. It added time to the procurement process, but the safety benefits are undeniable."*
> — *Project Manager, Asian Oil & Gas Company*
> *"We've used cylindrical fenders on our LNG berth for over a decade without issues, even though they technically didn't meet PIANC 2002 hull pressure recommendations. The new PIANC 2024 guidelines, with their emphasis on site-specific analysis and FEM validation, finally recognize that real-world performance matters as much as theoretical calculations."*
> — *Port Engineer, Rotterdam Port Authority*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we understand the critical requirements of PIANC certified rubber fender & mooring bollard system for deep-water LNG terminal projects.
Our LNG terminal capabilities include:
| Service | Description |
|---|---|
| PIANC 2024 compliance | Systems designed and tested to the latest guidelines |
| DMA integration | Fender specifications aligned with mooring analysis results |
| Third-party certification | BV, ABS, CCS, or LR witnessing available |
| Custom engineering | Cell, Cone, Parallel Moving, and Leg fender systems |
| High-capacity bollards | Up to 300T Tee bollards |
| Complete accessories | Steel panels, UHMW-PE pads, chain systems, anchors |
PIANC certified rubber fender & mooring bollard system for deep-water LNG terminal projects is not just a specification requirement—it is a safety imperative. The transition from PIANC 2002 to PIANC 2024 brings enhanced focus on cyclic loading, Dynamic Mooring Analysis, and site-specific design validation.
When selecting your fender and mooring systems for LNG applications, demand:
- Full PIANC 2024 compliance
- DMA-validated mooring loads
- Third-party certification from recognized classification societies
- Proven track record in similar applications
[Contact the Nanjing Taidun Engineering Team] for a consultation on your LNG terminal fender requirements. Send us your vessel specifications and berthing conditions, and we will provide a PIANC-compliant system proposal with full certification documentation.
Q1: What is the difference between PIANC 2002 and PIANC 2024 guidelines?
A: PIANC 2024 (WG211) replaces the 2002 guidelines (WG33). Key changes include: partial safety factors instead of global factors, enhanced cyclic loading requirements, higher recommended berthing velocities for large vessels, and integration with Dynamic Mooring Analysis (DMA) .
Q2: What fender types are best for LNG terminals?
A: Super Cone fenders offer the highest energy absorption with 70% design deflection. Cell fender systems (SUC) are also widely used, with multiple rubber hardness grades (P01 through P3) for precise performance tuning .
Q3: What mooring bollard capacity is required for LNG carriers?
A: LNG terminals typically require bollards ranging from 150T to 300T capacity. For large FLNG projects, 300T Tee bollards are standard, as seen in the recent Petronas FLNG project in Malaysia .
Q4: Is PIANC certification mandatory for LNG terminal fenders?
A: Yes, for new projects. PIANC guidelines are referenced by major port authorities, classification societies (ABS, BV, CCS), and oil majors. The transition to PIANC 2024 is currently underway, with full implementation expected soon .
Q5: How does cyclic loading affect fender selection for LNG terminals?
A: Cyclic loading—repeated pressure during mooring—can cause fatigue and creep in fender systems. PIANC 2024 places special emphasis on this, requiring fenders to be tested and validated for cyclic conditions to avoid overloading .
