Choosing between a Super Cell Fender and a Super Cone Fender for angular berthing scenarios requires a nuanced understanding of shear stress dynamics. For port operators and marine engineers, the decision directly impacts berth safety, maintenance costs, and operational longevity. At Nanjing Taidun Marine Equipment Engineering Co., Ltd, we have spent years manufacturing these critical components for global brands, and our analysis shows that while both fenders excel, their performance diverges significantly under high-angle, high-shear conditions.
Angular berthing is the norm, not the exception, in modern ports. When a vessel approaches a quay at an angle, the fender system does not just absorb vertical impact energy; it must also resist horizontal shear forces caused by the vessel's momentum parallel to the dock.
* Shear Stress Defined: This is the internal force per unit area that resists the sliding of one layer of rubber over another. Excessive shear stress leads to tearing, delamination, and premature failure.
* The Angular Factor: As the berthing angle increases, the effective energy absorption capacity of a fender typically decreases, while reaction forces and shear loads can spike unpredictably.
Industry data indicates that berthing angles can frequently exceed 10 degrees, particularly for large tankers and container ships in restricted basins. Standard design calculations often underestimate the energy absorbed during these events, leading to under-specified fender systems.
As a leading OEM manufacturer based in Nanjing, China, Nanjing Taidun Marine Equipment Engineering Co., Ltd integrates R&D, testing, and production to deliver PIANC 2002-compliant marine fenders. Our facility produces over 8,000 tons of rubber fenders annually, including Super Cell and Super Cone variants, for international distributors and engineering firms.
Our production data and client feedback reveal a critical trend: port operators increasingly prioritize shear resistance over pure energy absorption in high-traffic terminals. This shift is driven by the rising cost of downtime and the complexity of replacing damaged fender units in deep-water berths.
The Super Cell Fender (SUC) is renowned for its robust, cylindrical geometry. Its design prioritizes stability and uniform stress distribution.
* Large Contact Area: The wide, circular base provides a substantial footprint, naturally resisting lateral deformation without additional hardware.
* Thick Sidewalls: The structural integrity of the cell design allows it to handle high shear loads independently, making it ideal for heavy bulk and ore terminals where vessels exert significant lateral pressure.
* Minimal Performance Drop: Data shows that Super Cell fenders maintain consistent energy absorption even under tilt compression, with rated compression limits typically around 52.5% to 55%.
Expert Insight: In our experience, Super Cell fenders are the preferred choice for legacy quay rehabilitation and small ferry berths due to their ease of installation and lower upfront cost, while still offering superior robustness under extreme shear.

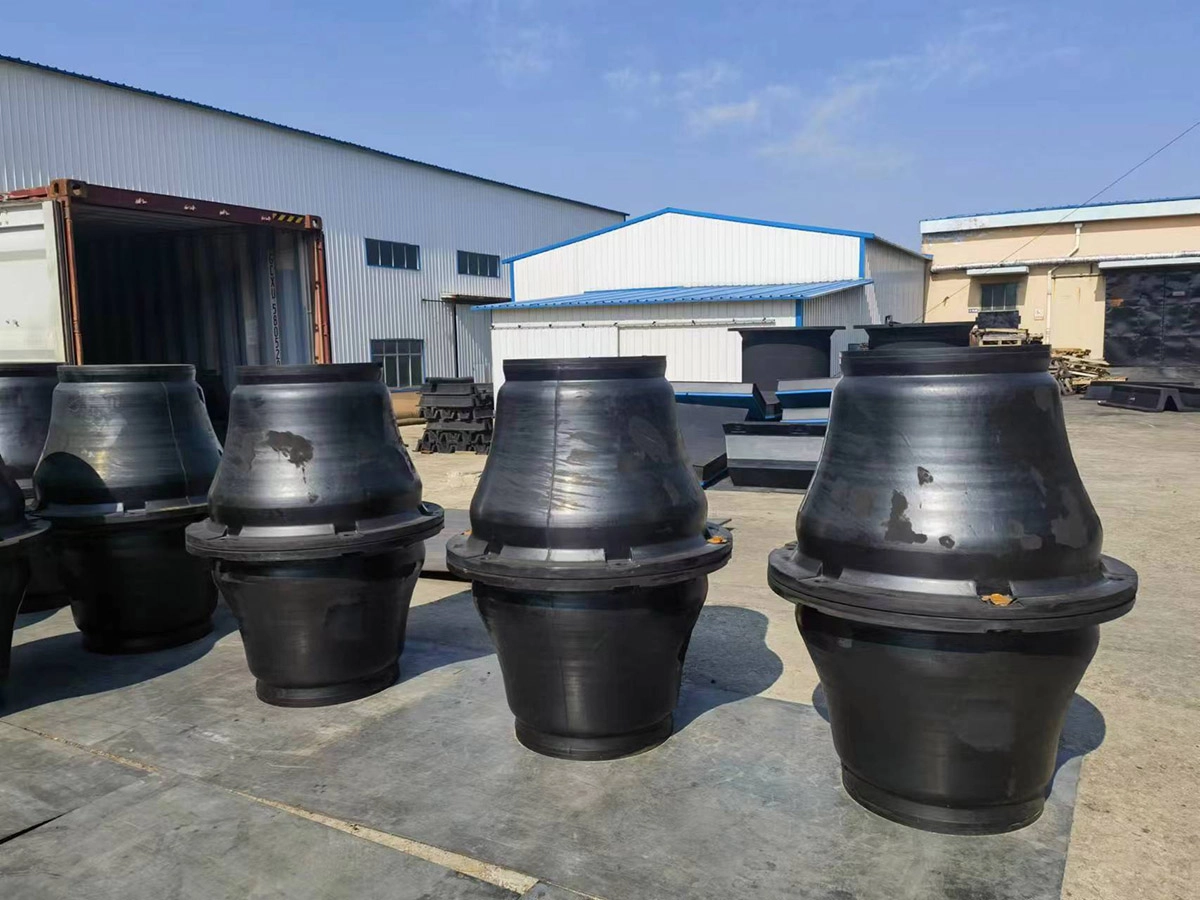

The Super Cone Fender (SCN) utilizes a truncated conical shape to achieve high energy absorption with lower reaction forces.
* Conical Stability: The conical body shape inherently stabilizes the fender against large compression angles, providing excellent shear strength up to a certain threshold.
* Higher Energy Absorption: Cone fenders can achieve rated compression of 72% to 72.5%, offering a longer cushioning stroke than a cell fender of the same height.
* Angular Correction Factors: Performance tables indicate that Super Cone fenders can actually see an *increase* in energy factor at low angles (3-5 degrees) before declining, whereas Super Cell fenders show a steady decline.
Critical Limitation: While modern cone fenders have improved, their narrower midsection can experience higher bending moments under extreme lateral forces. Consequently, shear chains are commonly required in high-current or high-wave environments to share the lateral load, adding system complexity.
The following table summarizes the performance characteristics of both fender types under angular berthing conditions, based on industry standards and manufacturer data.
| Feature | Super Cell Fender (SUC) | Super Cone Fender (SCN) |
|---|---|---|
| Shear Resistance | Excellent (Inherent due to large base) | Good (Often requires shear chains) |
| Angular Performance | Stable, gradual decline in energy factor | Superior at low angles (3-5°), then declines |
| Compression Limit | ~52.5% - 55% | ~72% - 72.5% |
| Reaction Force | Low | Lower (High E/R ratio) max-groups+1 |
| Ideal Application | Heavy bulk terminals, high-shear environments | Ultra-large container/LNG terminals, large tidal ranges |
Consider a scenario involving an ultra-large container terminal with significant tidal variations. The primary challenge is accommodating vessels with varying hull flares and berthing angles up to 15 degrees.
* Initial Assessment: A Super Cell Fender was initially proposed due to its shear resistance.
* Expert Recommendation: However, given the need for high energy absorption to handle the mass of 24,000 TEU vessels, a Super Cone Fender system with integrated shear chains was recommended.
* Outcome: The conical shape allowed for the necessary compression stroke, while the shear chains mitigated the lateral loads during angular berthing, ensuring the fender remained stable and effective.
This aligns with industry guidelines suggesting Cone Fenders for offshore terminals with large tidal ranges due to their better support for large steel panels and eccentric loads.
When specifying fenders for a new project or retrofit, engineers should consider the following decision matrix:
1. Assess Berthing Angles: If angles consistently exceed 10 degrees, prioritize fenders with proven angular correction factors.
2. Evaluate Shear Loads: For terminals with strong currents or wave action, the inherent shear resistance of a Super Cell Fender may reduce long-term maintenance costs.
3. Consider Vessel Type:
* LNG/Container Giants: Super Cone Fender (High Energy, Low Reaction).
* Bulk Carriers/Ore: Super Cell Fender (Robustness, Shear Resistance).
4. Factor in Installation: Super Cell fenders often offer simpler bolt alignment, beneficial for retrofitting older quays.
The debate between Super Cell Fender vs Super Cone Fender ultimately hinges on the specific operational profile of the berth. For shear stress resistance under angular berthing, the Super Cell Fender offers unparalleled inherent stability, making it a "set and forget" solution for harsh environments. Conversely, the Super Cone Fender provides superior energy efficiency and angular performance at low angles, ideal for high-value, high-traffic terminals where reaction force minimization is critical.
At Nanjing Taidun Marine Equipment Engineering Co., Ltd, we leverage our ISO9001, ISO14001, and OHSAS18001 certified manufacturing capabilities to produce both types to exacting international standards. Our engineering team is ready to collaborate with your designers to optimize fender selection for your specific port conditions.
Ready to optimize your berth safety? Contact Nanjing Taidun today for a custom fender solution that balances shear resistance, energy absorption, and cost-efficiency.
1. Eskenazi, J. (2015). *Analysis of angular side berthing against a rubber Cone Fender*. [Link to source context]
2. Fender Application Design Manual. (n.d.). *Angle Factor (AF) Table and Performance Data*. [Link to source context]
3. Super Cone Fenders. (2025). *Product Specifications and Performance Characteristics*. [Link to source context]
4. *Guidelines for Design and Testing of Rubber Fender Systems*. (n.d.). *PIANC and Industry Standards*. [Link to source context]
5. *Cone vs Cell Rubber Fender: A Selection Guide*. (2026). *Engineering Rationale and Application Scenarios*. [Link to source context]
6. *High Performance Cell Fender / Super Cell Fender*. (2016). *Technical Specifications and Features*. [Link to source context]
7. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (n.d.). *Company Overview and Product Capacity*. [Link to source context]
8. *Berthing Reactions and Load Distribution*. (2016). *Shear Capacity and Fender Reaction Guidelines*. [Link to source context]
1. What is the maximum berthing angle for Super Cone Fenders without performance loss?
Super Cone Fenders maintain or slightly increase energy absorption up to approximately 5 degrees. Beyond 10 degrees, performance begins to decline, and at 15 degrees, the energy factor drops to roughly 0.856 of the rated value. [trelleborg]
2. Do Super Cell Fenders require shear chains?
Generally, no. Due to their large circular base and thick sidewalls, Super Cell Fenders possess inherent high shear force resistance and typically do not require additional shear chains unless subjected to extreme lateral loads. [ysmarines]
3. Which fender type is better for large tidal ranges?
The Super Cone Fender is often recommended for offshore terminals with large tidal ranges because its design better supports large steel panels and accommodates eccentric loads resulting from significant vertical vessel movement. [ysmarines]
4. How does compression limit differ between the two fenders?
Super Cone Fenders are designed for high-efficiency travel with a rated compression typically reaching 72% to 72.5%. In contrast, Super Cell Fenders are generally limited to 52.5%, though high-performance variants may reach 55%. [ysmarines]
5. Can Nanjing Taidun customize fender sizes for specific projects?
Yes. As an OEM manufacturer, Nanjing Taidun produces several hundred specifications of Super Cell and Super Cone fenders, ranging from 400mm to 3000mm, and can customize dimensions to meet specific project requirements. [taidunmarine.goldsupplier]
