When a 300,000-ton VLCC approaches a berth, the fender system must absorb millions of joules of kinetic energy. But what happens inside the rubber during that split-second compression? Where do the stresses concentrate? And how can we engineer a fender that distributes those forces evenly to maximize both performance and service life?
The answer lies in Finite Element Method (FEM) analysis—a computational engineering tool that has revolutionized marine fender design.
I have spent two decades manufacturing OEM rubber fender systems for global brands. In this article, I will explain the science behind super cell fender design: FEM analysis and stress distribution, and show you why this technology creates fenders that are stronger, more durable, and more economical than ordinary cell fenders.
Finite Element Method (FEM) is a computational technique that divides a complex structure into thousands of small, simple elements. Engineers can then analyze how stress, strain, and deflection propagate through the structure under load .
Rubber is a hyperelastic material. Unlike steel, which follows predictable linear stress-strain relationships, rubber behaves non-linearly. Under compression, it stiffens. Under shear, it deforms differently. Accurately predicting rubber behavior under berthing impacts requires sophisticated modeling.
FEM analysis allows engineers to:
- Visualize stress concentrations before physical prototyping
- Optimize geometry for uniform load distribution
- Predict failure points under extreme conditions
- Validate design improvements without costly trial-and-error
> *"Its wider dispersion of stress has been corroborated by the FEM (Finite Element Method)."*
Without FEM, fender design relied on empirical formulas and physical testing alone—a slower, more expensive, and less precise process.
To understand the breakthrough of super cell fender design, we must first examine the limitations of ordinary cell fenders.
Ordinary cell fenders have a hollow cylindrical body designed to deflect axially under compression . However, traditional designs suffered from a critical flaw: stress concentration at the buckling point.
When an ordinary cell fender compresses, the rubber legs buckle at specific points. At these buckling points, stress accumulates unevenly. The result is:
- Premature material fatigue at high-stress zones
- Limited design deflection (only 47.5% before performance degrades)
- Uneven energy absorption across the fender structure
Another weakness of ordinary cell fenders is the shape of the edge of the leg. The transition between the fender body and the mounting flange creates a natural stress riser—a point where forces concentrate rather than disperse .
This geometry flaw means that ordinary cell fenders cannot achieve their full theoretical energy absorption potential. Some of the berthing energy is wasted on localized deformation rather than distributed evenly.

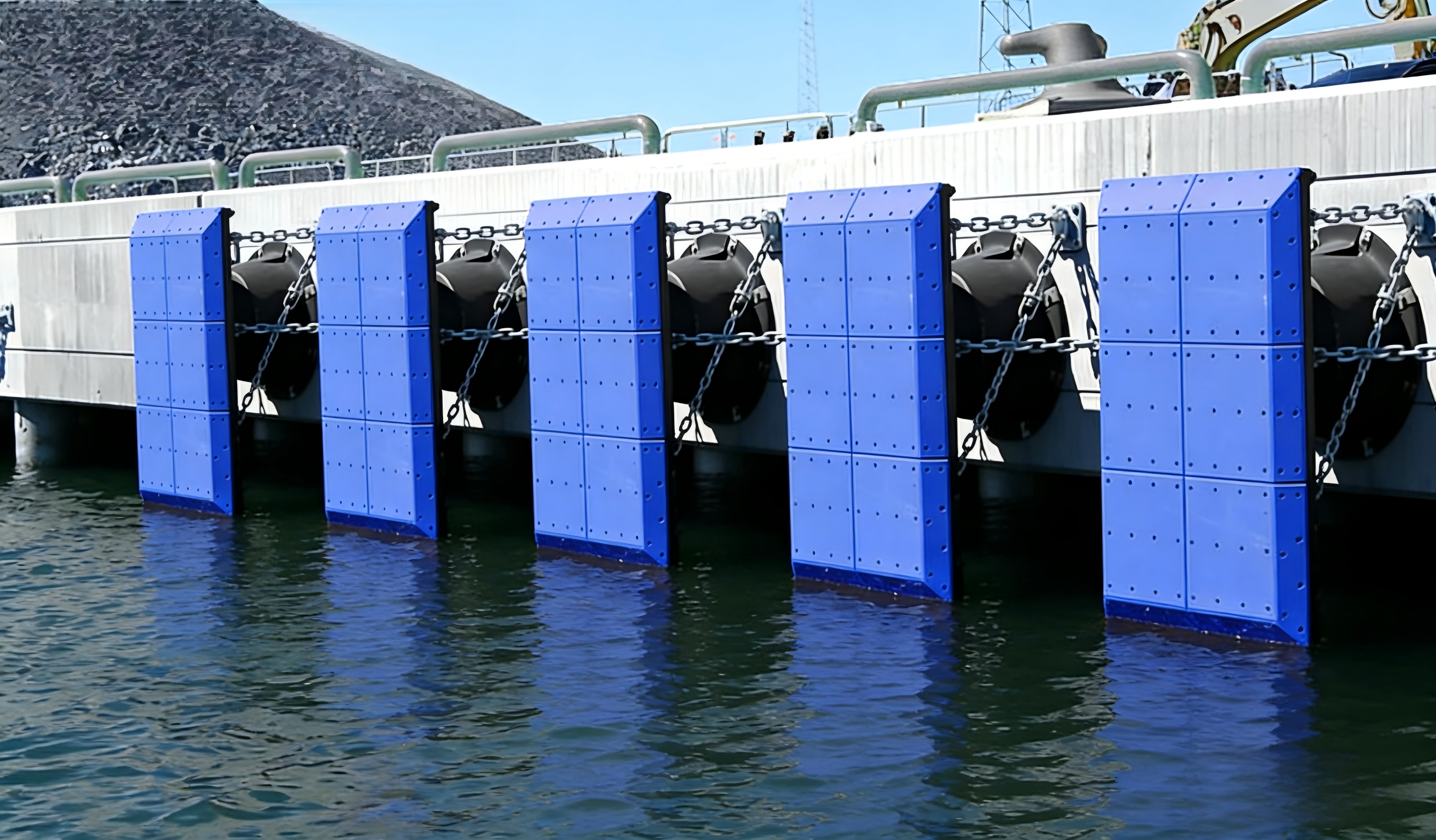

The super cell fender represents a fundamental redesign of the traditional cell fender geometry. Using FEM analysis, engineers identified two key improvements.
The super cell fender features an optimized buckling point design that fundamentally changes how the fender responds to compression .
What changed: The internal geometry at the buckling point was redesigned to create a smoother, more gradual transition during deflection.
The result: Instead of a single point of stress concentration, the load spreads across a wider area of the rubber structure.
The super cell fender also improves the shape of the edge of the leg—the critical junction where the fender body meets the mounting flange .
What changed: The edge geometry was refined to eliminate sharp transitions that create stress risers.
The result: Forces transfer more smoothly from the fender body to the mounting structure, reducing localized stress and improving overall durability.
These improvements are not theoretical. FEM analysis has corroborated the wider dispersion of stress in super cell fenders compared to ordinary cell fenders .
Multiple manufacturers, including Nanjing Taidun Marine have published FEM verification data confirming that super cell fenders achieve measurably better stress distribution than ordinary cell fenders .
The FEM-optimized design of super cell fenders delivers three quantifiable performance improvements.
The most direct benefit of wider stress dispersion is the ability to increase design deflection from 47.5% to 52.5% .
| Parameter | Ordinary Cell Fender | Super Cell Fender | Improvement |
|---|---|---|---|
| Design deflection | 47.5% | 52.5% | +13% |
| Energy absorption (at same reaction force) | 167 kN·m | 195 kN·m | +17% |
| E/R·H value | 0.383 | 0.439–0.450 | +15% |
> *"On the basis that counterforce do not increase, if deflection distance augments by 13%, energy absorption will rise by 17% while counterforce energy absorption ratio (E/R·H) of each unit will go up by 15%."*
What this means for port operators: A super cell fender can absorb significantly more energy than an ordinary cell fender of the same size—or you can use a smaller super cell fender to achieve the same performance as a larger ordinary fender .
The E/R·H value (Energy Absorption ÷ (Reaction Force × Fender Height)) is the industry's primary metric for fender efficiency .
| Fender Type | E/R·H Value | Relative Efficiency |
|---|---|---|
| Ordinary Cell Fender | 0.383 | Baseline (100%) |
| Super Cell Fender | 0.439–0.450 | 115% of ordinary |
The super cell fender's E/R·H value is 15% higher than ordinary cell fenders . This means super cell fenders deliver more energy absorption per unit of reaction force—a critical advantage for both vessel protection and quay wall design.
Why E/R·H matters:
- Lower reaction forces mean less stress on vessel hulls
- Higher energy absorption means better protection
- Combined effect enables more economical quay wall construction
For selecting a fendering system suitable for berthing of large vessels, angular performance is one of the most important factors to be considered .
Vessels rarely approach berths at perfect 0° angles. Wind, current, and human factors create berthing angles from 3° to 15°. The super cell fender's optimized geometry maintains consistent performance across a range of approach angles .
Angular performance correction factors allow engineers to accurately predict fender behavior at angles up to 15° .
The science behind super cell fender design translates directly into economic benefits.
Because super cell fenders have higher E/R·H values, engineers can specify smaller fenders without sacrificing performance .
> *"This super cell fender with the new grade of rubber can be a size smaller but perform as well as a size larger."*
Cost implications:
- Lower material costs for the fender itself
- Reduced quay wall structural requirements
- Smaller mounting hardware and panels
- Lower transportation and handling costs
The large fender footprint and good force distribution of super cell fenders can lead to relatively light panel construction . Wider stress dispersion means the forces are spread across a larger area of the mounting panel, reducing the required panel thickness and weight.
By eliminating stress concentration points, super cell fenders experience less localized fatigue. The result is a more durable fender with extended service life .
We asked our global OEM clients about their experience with FEM-optimized super cell fenders. Here is what they shared:
> *"We replaced ordinary cell fenders with super cell fenders at our container terminal three years ago. The performance difference is noticeable. The super cell fenders feel 'softer' at initial contact but absorb more energy as they compress. Our vessel masters have commented on the smoother berthing experience."*
> — *Terminal Operations Manager, Southeast Asia*
> *"The FEM data convinced our engineering team to specify super cell fenders for a new dolphin berth. We were able to use SC1450H fenders where ordinary cell fenders would have required SC1600H or larger. The cost savings on hardware alone justified the upgrade."*
> — *Port Engineer, Middle East*
> *"We've had super cell fenders in service for over five years at our oil terminal. Inspections show no signs of the stress cracking we used to see with ordinary cell fenders at the buckling points. The FEM-optimized design really works."*
> — *Maintenance Director, European LNG Terminal*

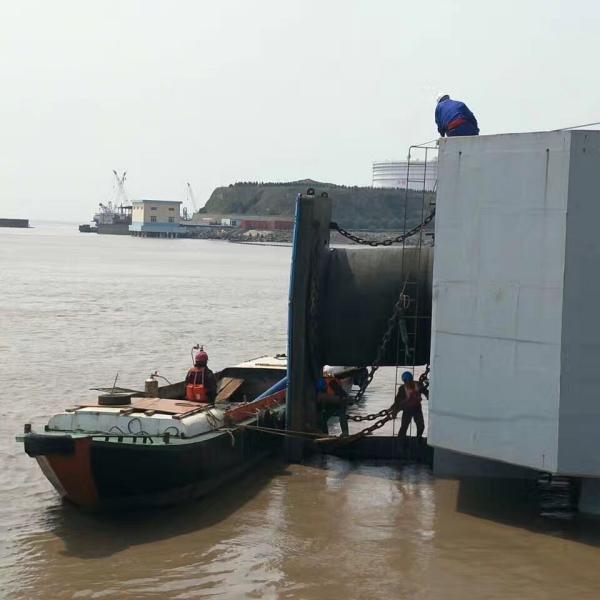

At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we use FEM analysis as an integral part of our super cell fender design and manufacturing process.
Our FEM implementation includes:
| Stage | Activity |
|---|---|
| Initial design | Geometry optimization using commercial FEM software |
| Material modeling | Hyperelastic rubber property calibration from laboratory testing |
| Load case simulation | Axial compression, angular berthing, and shear scenarios |
| Stress visualization | Identification of potential failure points before prototyping |
| Design iteration | Geometry refinement based on FEM results |
| Physical validation | Prototype testing to confirm FEM predictions |
We supply super cell fenders that meet PIANC 2002 and ASTM FZ192-05 protocols, with third-party verification available from BV, ABS, CCS, and Lloyd's Register .
The science behind super cell fender design: FEM analysis and stress distribution represents a genuine engineering breakthrough. By using computational modeling to optimize geometry at the buckling point and leg edge, super cell fenders achieve:
- +13% design deflection (52.5% vs. 47.5%)
- +17% energy absorption at same reaction force
- +15% E/R·H efficiency (0.450 vs. 0.383)
- Superior angular berthing performance
- Longer service life through reduced stress concentration
Don't settle for ordinary cell fenders when FEM-optimized super cell technology delivers measurably better performance.
[Contact the Nanjing Taidun Engineering Team] for a free FEM analysis consultation. Send us your berthing requirements, and we will provide stress distribution modeling and performance predictions for your specific application.
Q1: What is FEM analysis and how is it used in fender design?
A: FEM (Finite Element Method) analysis is a computational technique that divides a fender into thousands of small elements to simulate stress, strain, and deflection under load. Engineers use FEM to optimize geometry before physical prototyping .
Q2: How does super cell fender stress distribution compare to ordinary cell fenders?
A: Super cell fenders achieve wider dispersion of stress through optimized buckling point geometry and improved leg edge shape. FEM analysis confirms that stress spreads more evenly, reducing localized fatigue .
Q3: What performance improvements result from better stress distribution?
A: Wider stress dispersion enables 13% higher design deflection (52.5% vs. 47.5%), 17% higher energy absorption, and a 15% higher E/R·H value (0.450 vs. 0.383) .
Q4: What is E/R·H and why is it important?
A: E/R·H = Energy Absorption ÷ (Reaction Force × Fender Height). It measures fender efficiency. A higher value means more energy absorption per unit of reaction force—better for vessel protection and quay wall design .
Q5: Which super cell fender sizes are available?
A: Standard sizes range from SC400H to SC3000H (fender heights from 400mm to 3000mm). Each size is available in 5 hardness grades for precise selection .
