This installation guide for steel front panels on marine rubber fenders draws from industry best practices, manufacturer guidelines, and real-world European project experience. Whether you are installing cone fenders at an LNG terminal, cell fenders at a container port, or arch fenders at a ferry berth, this guide will help you achieve a secure, durable, and compliant installation.
Before diving into installation procedures, let's understand why steel front panels matter.
| Function | Description |
|---|---|
| Impact force distribution | Spreads concentrated berthing forces uniformly across the rubber fender surface, eliminating local stress concentration |
| Hull protection | Provides a smooth, low-friction surface (often with UHMW-PE facing) to minimize vessel hull stress and abrasion |
| Structural reinforcement | Reinforces the overall fender assembly, boosting impact resistance and load-bearing capacity |
| Corrosion barrier | Isolates rubber fenders from corrosive concrete substrates and saltwater |
| Sacrificial layer | Acts as a replaceable wear surface in high-energy berthing scenarios |
| Configuration | Best Application | Key Feature |
|---|---|---|
| Flat panel (closed box) | Container terminals, general cargo | Sealed steel box with C5M-grade paint; full water tightness |
| Ribbed panel (open design) | High-energy berthing (LNG, tankers) | Reinforced ribs for extra strength; easier inspection |
| Curved panel | Tugboat bow protection | Custom-molded to vessel contour |
| Articulated panel | Floating fender systems | Hinged design for tidal movement |
Thorough pre-installation planning eliminates on-site errors, costly delays, and workplace safety risks. Rushing this preparatory stage almost always leads to expensive rework .
Before any lifting or mounting begins, conduct a thorough inspection of every steel panel and all matching hardware .
Steel Panel Checklist:
- [ ] Check for chipped hot-dip galvanized coating, surface rust spots, dents, or bending
- [ ] Examine steel-rubber bonding lines for signs of weakness (a key red flag for future delamination)
- [ ] Verify panel dimensions, pre-drilled hole spacing, and thickness match approved engineering drawings
- [ ] Confirm flatness tolerance ≤3mm per meter
Hardware Checklist:
- [ ] Use only marine-grade 316 stainless steel bolts — the gold standard for saltwater corrosion resistance
- [ ] Verify flat washers, lock washers, and nuts are corrosion-rated
- [ ] Discard any damaged or defective components immediately
Thorough cleaning and preparation of the mounting surface ensures a tight, stable fit .
For Concrete Surfaces:
| Task | Specification |
|---|---|
| Cleaning | Remove debris, salt deposits, marine growth, loose concrete |
| Repair | Fix cracks, uneven sections with high-strength marine-grade concrete |
| Flatness | Ensure ≤5mm per 2m |
| Compressive strength | Minimum C35 |
For Steel Surfaces:
Gather all required tools and equipment before starting .
| Category | Items |
|---|---|
| Fastening tools | Calibrated torque wrench (mandatory for accurate bolt tightening) |
| Lifting equipment | Certified crane or forklift with soft slings |
| Measuring tools | Precision level, measuring tape, total station for 3D layout |
| Sealing materials | Marine-grade polyurethane sealant, waterproof adhesive |
| PPE | Safety helmets, cut-resistant gloves, safety harnesses, non-slip marine boots |
Critical Note: Bolt torque values must be manufacturer-specified (typically 80–120 Nm for M20–M24 bolts). Over-tightening cracks the rubber core; under-tightening leads to loose panels .
Conduct a full safety and operational briefing for all installation team members :
- Clearly outline individual roles and step-by-step workflow
- Review emergency response protocols
- Ensure compliance with ISO 17357 international marine fender standards
- Confirm weather conditions are suitable (avoid heavy rain, strong winds, or rough seas)
Embedded Parts Acceptance Checklist:

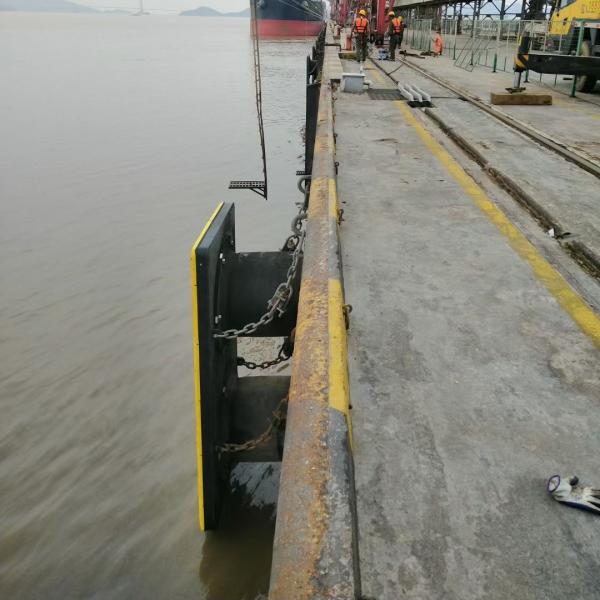

This is the most common configuration: dock-mounted steel panels for commercial ports, container terminals, and general berthing facilities .
1. Use certified lifting equipment with soft slings to avoid damaging the steel panel coating
2. Carefully lift the steel panel into its designated position
3. Align pre-drilled mounting holes with pre-marked anchor points on the dock wall
4. Use a precision level to confirm the panel is perfectly vertical and horizontal
> Critical Note: Even minor misalignment causes uneven impact distribution, accelerated wear, and premature panel failure. For oversized panels, use temporary support brackets to hold the panel securely during bolting .
1. Insert marine-grade 316 stainless steel bolts through the steel panel mounting holes and dock anchor points
2. Add flat washers and lock washers between the steel panel surface and bolt head to:
- Prevent friction damage to the steel coating
- Stop fasteners from loosening due to berthing vibration
3. Thread nuts onto bolts from the backside of the dock structure
> Warning: Never use standard carbon steel hardware. It will rust and degrade rapidly in saltwater environments, leading to structural failure .
This is the single most critical step in the installation process .
| Error | Consequence |
|---|---|
| Over-tightening | Cracks rubber core, warps steel backing plate |
| Under-tightening | Loose panels, shifting, full detachment |
Proper Procedure:
1. Use a fully calibrated torque wrench
2. Tighten bolts to the exact manufacturer's recommended torque specification
3. Tighten bolts in a crisscross pattern to ensure even pressure distribution across the entire panel surface
1. Apply high-quality marine-grade polyurethane sealant evenly around all outer edges of the steel panel and the mounting surface junction
2. Seal all bolt holes completely to block saltwater intrusion
3. Allow sealant to cure according to manufacturer specifications
> Saltwater intrusion is the primary cause of steel corrosion and hardware rust in marine environments .
1. Gently push and apply light pressure to the panel
2. Check for movement, shifting, or visible gaps between the panel and dock surface
3. Adjust positioning or re-tighten loose bolts as needed before finalizing
Ship-mounted steel panels require extra precision and reinforced installation, as they must withstand constant vessel movement and open-sea conditions .
- Only install panels over reinforced, load-bearing hull framing — never directly to thin, unsupported hull plating
- Add an internal steel backing plate inside the hull to distribute panel weight and berthing impact evenly
- This prevents hull deformation, dents, or structural damage
Use a combination of heavy-duty, water-resistant marine adhesive and 316 stainless steel bolts for maximum holding strength:
1. Apply a uniform layer of adhesive to the back of the steel panel
2. Press firmly against the prepared hull surface
3. Insert and torque-tighten bolts to manufacturer specification
> This dual mounting method prevents panel detachment during rough seas, high-speed travel, or heavy impact .
- Seal all panel edges and bolt holes with marine-grade hull-specific sealant
- Ensure full watertight integrity of the vessel
- Prevent corrosion on the hull surface around the panel

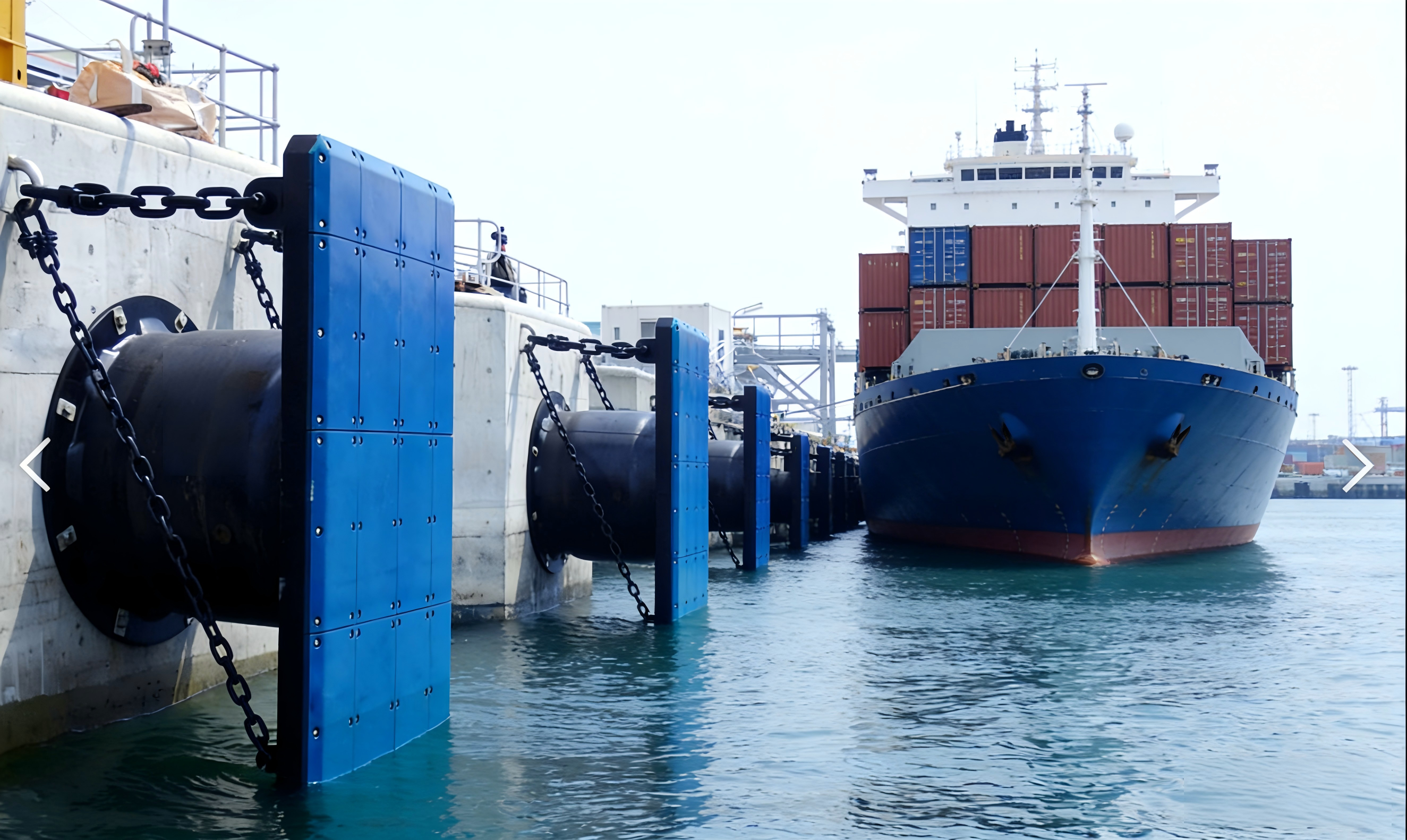

Cone fenders are widely used in LNG terminals and high-energy berthing applications .
Installation Sequence:
1. Assemble steel frame and PE pad together, placing them horizontally
2. Hoist the cone fender onto the back of the steel frame, ensuring mounting holes align
3. Use bolts to fix the steel frame and cone fender body together
4. Lift the fastened assembly to the dock, aligning with embedded anchor points
5. Partially tighten bolts — do not fully tighten yet
6. Connect anchor chains from U-rings to steel frame lifting eyes
7. Adjust chains to ensure the cone fender is installed in a horizontal position without sagging
8. Tighten horizontal chains, then finally tighten all bolts
9. Clean up any smudge or debris from construction
Cell fenders are common in container terminals and ferry berths .
Installation Sequence:
1. Place the frontal pad (with face pad installed) on a flat rectangular sleeper
2. Hang the cell rubber fender on the frontal pad, aligning mounting holes
3. Use connecting bolts to combine the rubber fender and frontal pad; install and fasten
4. Move the fastened assembly to the dock, aligning with embedded sleeves
5. Secure with sleeve bolts but do not tighten completely
6. Connect maximum length anchor chain to U-rings and frontal frame lifting eyes
7. Adjust the chain to ensure horizontal installation with no sag
8. Finally tighten all bolts
9. Clean up installation traces
Once all installation work is complete, conduct a comprehensive post-installation inspection to verify quality, compliance, and safety .
Master Control Projects (Mandatory):
| Inspection Item | Acceptance Criterion |
|---|---|
| Anchor system bearing capacity | Static load ≥1.2 × design load |
| Fender compression deformation | ≤ design value ±10% |
| Anti-corrosion coating adhesion | Notched method ≥ grade 3 |
General Items:
| Inspection Item | Acceptance Criterion |
|---|---|
| Seam misalignment | ≤3mm |
| Buffer layer thickness uniformity | ±2mm |
| Signage installation | Wind pressure resistance ≥ level 10 |
Documentation Requirements:
- Inspect every bolt for accurate torque
- Verify perfect panel alignment, level positioning, and full, gap-free contact with the mounting surface
- Document the full inspection, record all torque values, and take on-site photos for project records, warranty validation, and future maintenance reference
The new ferry terminal at Aarhus, Denmark — one of the largest industrial ports in the country — provides an excellent example of proper steel panel installation .
Project Overview:
- Operator: Molslinjen (operating some of the fastest and largest ferries in the world)
- Scale: 21 sets of Double Cone 800 Fender Systems for the berth; 9 sets for the pier head
- Challenge: Heavy-duty beltings on ferry hulls required special steel panel design
Innovative Steel Panel Design:
- Extremely thick steel frontal plates to withstand repeated impact
- Large chamfers on panel sides to prevent beltings from getting stuck and causing severe fender damage
Operator Feedback:
> *"The steel panels were customized with large chamfers to prevent beltings from getting stuck — a common problem with high-speed ferries. The installation team followed a meticulous step-by-step process, and the result has been flawless performance."*
> — Steffen Maagaard Jensen, Port Facility Manager at Molslinjen
To maximize the lifespan of installed steel panels, follow these professional maintenance tips :
| Tip | Action | Frequency |
|---|---|---|
| Follow-up torque inspection | Re-torque bolts after rubber settles | 30 days after initial use |
| Regular cleaning | Remove salt deposits and marine growth; avoid high-pressure washers | Quarterly |
| Full performance inspection | Check steel corrosion, rubber cracking, loose hardware | Every 6 months |
| Coating touch-up | Repair chipped or scratched coating immediately | As needed |
| Load compliance | Never exceed rated impact capacity | Always |
We asked our global OEM clients about their steel panel installation experiences. Here is what they shared:
> *"The biggest lesson we learned was the importance of torque specifications. On one project, a contractor used impact wrenches without torque control. Three months later, half the bolts were loose, and one panel had shifted 40mm. Now we require calibrated torque wrenches and witnessed tightening."*
> — Port Engineer, Northern Europe
> *"We switched to 316 stainless steel hardware after seeing carbon steel bolts rust through in less than two years. The upfront cost difference was minimal compared to the replacement cost."*
> — Maintenance Manager, Southeast Asian Container Terminal
> *"The Aarhus project taught us that custom chamfers on steel panels are essential for high-speed ferries. Standard panels caused beltings to catch. The chamfered design eliminated the problem completely."*
> — Marine Consultant, Denmark
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we understand that a reliable installation guide for steel front panels on marine rubber fenders can save your operation significant time and money.
Our installation support services include:
| Service | Description |
|---|---|
| Custom steel panel fabrication | S355JR, Corten, or 316L stainless steel; closed-box or ribbed design |
| Full hardware kits | 316 stainless steel bolts, washers, nuts, and sealants |
| Installation supervision | On-site technical support available for large projects |
| Torque specifications | Detailed, fender-specific torque values provided with every order |
| Third-party certification | BV, ABS, CCS, Lloyd‘s Register inspection available |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get factory-direct pricing, custom engineering, and full installation documentation.
Proper installation of steel front panels is not optional — it is essential. Poor installation accounts for over 60% of premature fender failures .
Remember the critical success factors:
- Conduct thorough pre-installation inspection of all components
- Prepare mounting surfaces to specified standards (Sa 2.5 for steel, C35 minimum for concrete)
- Use only marine-grade 316 stainless steel hardware
- Tighten bolts with a calibrated torque wrench using a crisscross pattern
- Seal all gaps with marine-grade polyurethane sealant
- Perform post-installation inspection and documentation
[Contact the Nanjing Taidun Engineering Team] for a free installation consultation, custom steel panel quote, or on-site technical support. We help ports, terminals, and marine operators worldwide achieve flawless fender installations.
Q1: What type of bolts should be used for steel panel installation in saltwater environments?
A: Only marine-grade 316 stainless steel bolts should be used. Standard carbon steel bolts will rust rapidly in saltwater environments, leading to structural failure within 1–2 years .
Q2: What is the correct torque specification for steel panel mounting bolts?
A: Torque specifications vary by bolt diameter and panel size, typically 80–120 Nm for M20–M24 bolts. Always use the manufacturer's exact specification and a calibrated torque wrench. Over-tightening cracks the rubber core; under-tightening causes loose panels .
Q3: How do I prepare a concrete dock wall for steel panel installation?
A: Remove all debris, salt deposits, and marine growth. Repair cracks with high-strength marine-grade concrete. Ensure surface flatness ≤5mm per 2m and compressive strength ≥C35 .
Q4: What is the difference between flat (closed box) and ribbed (open) steel panels?
A: Flat (closed box) panels are fully sealed and ideal for container terminals. Ribbed (open) panels have reinforced ribs for extra strength, making them suitable for high-energy berthing applications like LNG terminals .
Q5: How soon after installation should bolts be re-torqued?
A: Schedule a follow-up torque inspection and bolt re-tightening 30 days after initial use, as rubber may settle slightly after absorbing regular berthing impact .
1. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (2026). *Step-by-Step Installation for Marine Rubber Fender Frontal Steel Panels: A Comprehensive Guide for European Contractors*. [https://www.taidunmarine.com/step-by-step-installation-for-marine-rubber-fender-frontal-steel-panels-a-comprehensive-guide-for-european-contractors.html]
2. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (2026). *Installation Best Practices for Marine Rubber Fender Steel Panels*. [https://www.taidunmarine.com/installation-best-practices-for-marine-rubber-fender-steel-panels.html]
3. Nanjing Taidun Marine Equipment Engineering Co., Ltd. (2026). *News — Marine Rubber Fender Frontal Steel Panels Design & Installation*. [https://www.taidunmarine.com/News-ic3999626.html]
