Article OverviewThis article provides a comprehensive guide to UHMW-PE (Ultra-High Molecular Weight Polyethylene) pads used in marine rubber fender systems. Covering material properties, performance characteristics, selection criteria, installation methods, and maintenance practices, this content helps port engineers, terminal operators, marine contractors, and procurement professionals understand why UHMW-PE pads are essential for protecting both fender systems and vessel hulls. The article explores how these sliding pads reduce friction, accommodate tidal movements, prevent rubber abrasion, and extend overall system service life. Application-specific guidance is provided for container terminals, bulk facilities, LNG terminals, Ro-Ro berths, and high-tidal-range locations.



Introduction

When discussing marine rubber fender systems, most attention focuses on the rubber unit itself—the cone fender, cell fender, or arch fender that absorbs berthing energy. However, there is another component that is equally critical to system performance and longevity: the UHMW-PE pad.UHMW-PE (Ultra-High Molecular Weight Polyethylene) pads serve as the sliding interface between the steel fender panel and the vessel hull. This seemingly simple component performs several vital functions: it reduces friction, protects the rubber fender from abrasion, accommodates vessel movement, prevents hull damage, and significantly extends the service life of the entire fender system.

This article provides a comprehensive guide to UHMW-PE pads for marine rubber fenders, helping you understand why they matter, how to select the right ones, and how to ensure they deliver optimal performance throughout their service life.



What Is UHMW-PE?

Ultra-High Molecular Weight Polyethylene (UHMW-PE) is a subset of the polyethylene family characterized by extremely long molecular chains. This unique structure gives UHMW-PE exceptional properties that make it ideal for marine fender applications.

Key Material Properties

Property	Value	Benefit
Molecular Weight	3.5-7.5 million g/mol	Extremely long chains provide outstanding wear resistance
Abrasion Resistance	10x better than carbon steel	Withstands repeated vessel contact without wearing
Coefficient of Friction	0.10-0.15 (self-lubricating)	Allows vessel movement without damaging rubber or panel
Impact Strength	150-200 kJ/m²	Absorbs impacts without cracking or breaking
Water Absorption	< 0.01%	No swelling or degradation in marine environments
Operating Temperature	-200°C to +80°C	Suitable for all global climates
Density	0.93-0.94 g/cm³	Lightweight, easy to handle and install



Why UHMW-PE Is Ideal for Marine Fender Applications

1. Self-Lubricating Surface:UHMW-PE has a very low coefficient of friction and does not require external lubrication, even in wet conditions.

2. Exceptional Wear Resistance:The material resists abrasion from repeated vessel contact, providing long service life even under heavy use.

3. Impact Resistance: UHMW-PE absorbs impacts without cracking or shattering, even in cold temperatures.

4. Corrosion Resistance:Unlike steel, UHMW-PE does not corrode in marine environments.

5. Non-Marking:The material does not leave marks on vessel hulls, preserving vessel appearance.

6.UV Resistance:With appropriate additives, UHMW-PE resists degradation from sunlight exposure.



The Critical Role of UHMW-PE Pads in Fender Systems

To understand why UHMW-PE pads are essential, it is important to understand what happens without them.

1,Without UHMW-PE Pads

When a vessel contacts a steel fender panel directly:

- High Friction:Steel-on-steel contact creates high friction, making it difficult for vessels to move vertically with tides or horizontally during mooring.

- Rubber Abrasion:Vessel movement wears the rubber fender surface, leading to premature failure.

- Hull Damage:Steel-to-steel contact can damage vessel hull coatings and even the hull itself.

- Noise:Metal-to-metal contact generates significant noise during berthing operations.

- Accelerated Wear:Both the fender system and vessel hull experience accelerated wear.

2,With UHMW-PE Pads

When UHMW-PE pads are installed on steel panels:

- Low Friction: The self-lubricating surface allows vessels to move freely, reducing mooring line tensions and accommodating tidal movements.

- Rubber Protection:The sliding surface prevents direct abrasion of the rubber fender, extending its service life.

- Hull Protection:The smooth, non-marking surface protects vessel hull coatings and structure.

- Quiet Operation:The polymer surface eliminates metal-to-metal contact noise.

- Extended System Life:The entire fender system lasts significantly longer with proper UHMW-PE pads.



How UHMW-PE Pads Function

UHMW-PE pads serve as the interface between the steel fender panel and the vessel hull. Their function can be understood through several key mechanisms:

1. Sliding Interface

When a vessel is alongside, it moves vertically with tides and horizontally due to wind, current, and vessel loading. The UHMW-PE pad provides a low-friction surface that allows this movement without transferring significant forces to the fender system or mooring lines.

2. Abrasion Barrier

The vessel hull constantly moves against the fender panel during berthing and while alongside. Without a UHMW-PE pad, this movement would abrade the rubber fender, leading to premature failure. The pad acts as a sacrificial wear surface that can be replaced when worn.

3. Load Distribution

UHMW-PE pads, when properly installed, help distribute contact forces across the steel panel face, reducing localized pressure points that could damage the rubber fender or vessel hull.

4. Corrosion Protection

By preventing direct metal-to-metal contact, UHMW-PE pads protect the steel panel coating from damage that could lead to corrosion.



Types of UHMW-PE Pads

UHMW-PE pads for marine fender applications come in several configurations.

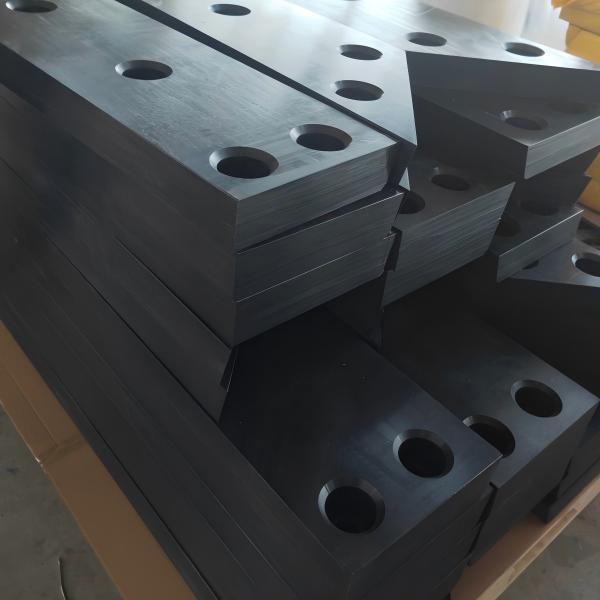

1,Standard Flat Pads

Rectangular or square pads of uniform thickness, typically 20-100 mm thick.

- Applications:Most standard fender installations

- Advantages:Simple, cost-effective, easy to replace

- Typical Sizes:500 x 500 mm, 1000 x 500 mm, custom sizes

2,Interlocking Pads

Pads with tongue-and-groove or other interlocking features that create a continuous sliding surface.

- Applications:Large steel panels requiring seamless coverage

- Advantages: No gaps between pads, uniform sliding surface

- Typical Sizes:Custom designed for specific panel dimensions

3,Chamfered Pads

Pads with beveled edges designed for Ro-Ro terminals and applications where vessel belting could catch on pad edges.

- Applications:Ro-Ro berths, ferry terminals

- Advantages:Prevents vessel belting from catching, smooth transition

- Typical Sizes:Custom chamfer angles (typically 30-60 degrees)

4,Composite Pads

Pads incorporating additional materials or features for specific requirements.

- Applications:Specialized applications

- Advantages:Enhanced properties (e.g., fire resistance, enhanced UV protection)

- Typical Sizes:Custom



Pad Thickness Selection

Pad thickness is one of the most critical selection parameters.

Typical Thickness Ranges

Thickness	Applications	Expected Wear Life
20-30 mm	Low-traffic facilities, small vessels	5 -10 years
40-60 mm	Medium-traffic commercial terminals	10-15 years
70-100 mm	High-traffic terminals, large vessels	15-25 years
100+ mm	Extreme-duty applications, critical facilities	20+ years

Factors Influencing Thickness Selection

1. Traffic Intensity:Higher traffic requires thicker pads to achieve acceptable service life.

2. Vessel Size:Larger vessels generate higher contact pressures and may require thicker pads.

3. Tidal Range:Greater tidal movement increases sliding distance, requiring thicker pads.

4.Maintenance Access:If access for replacement is difficult or costly, thicker pads are preferred.

5.Budget Considerations:Thicker pads have higher initial cost but lower lifecycle cost due to less frequent replacement.

Fastening Systems

Proper fastening is essential to keep UHMW-PE pads securely attached to steel panels.

Types of Fasteners

Fastener Type	Description	Advantages	Applications
Recessed Capnuts	Countersunk fasteners with protective caps	Protects hardware from vessel contact, flush surface	Most standard applications
Stud Welding	Welded studs with recessed nuts	No drilling through steel panel, secure attachment	New panel fabrication
Through-Bolts	Bolts passing through panel and pad	Simple, strong	Retrofit applications, thicker pads
Adhesive Bonding	Structural adhesive attachment	No hardware exposed, continuous surface	Light-duty applications, specific requirements

Fastener Design Considerations

- Recess Depth:Fasteners should be recessed sufficiently below the pad surface to prevent vessel contact.

- Material:Fasteners should be stainless steel or heavily coated to resist corrosion.

- Spacing:Fastener spacing should be adequate to prevent pad lifting under load.

- Replaceability:Fastener design should allow for pad replacement without damaging the steel panel.

Selection Criteria for UHMW-PE Pads

Selecting the right UHMW-PE pads requires consideration of several factors.

1. Material Grade

UHMW-PE is available in different grades with varying properties:

- Standard Grade: General-purpose material suitable for most applications

- UV-Stabilized Grade:Enhanced UV resistance for exposed locations

- High-Wear Grade:Enhanced abrasion resistance for high-traffic applications

- ESD Grade: Electrostatic dissipative for special applications

2. Pad Dimensions

-Thickness:As discussed above

-Length and Width:Should cover the full contact area of the steel panel

- Edge Details:Chamfered edges may be required for Ro-Ro applications

3. Fastening System

- New Installation:Stud welding or through-bolt systems

- Retrofit:Through-bolt systems or adhesive bonding

- Replacement:Match existing fastening pattern

4. Environmental Conditions

- UV Exposure:UV-stabilized grade for exposed locations

- Temperature:Standard UHMW-PE performs well in most climates

- Chemical Exposure:Standard grade resists most marine chemicals

5. Vessel Types

- Container Ships:Standard flat pads

- Ro-Ro Vessels:Chamfered pads to prevent catching

- Tankers:Standard flat pads

- Mixed Traffic:Consider chamfered pads for versatility

Installation Best Practices

Proper installation ensures that UHMW-PE pads perform as intended and achieve their expected service life.

Pre-Installation

1. Surface Preparation:Clean steel panel surface thoroughly; remove any rust, scale, or old adhesive

2. Layout:Mark pad positions according to installation drawings

3. Drilling:Drill fastener holes accurately; deburr holes to prevent damage to pads

Installation Process

1. Dry Fit:Position pads to verify fit and alignment

2.Fastener Installation:Install fasteners with appropriate torque; ensure recessed caps are properly seated

3. Alignment:Verify pads are flush with panel edges and properly aligned with adjacent pads

4. Inspection: Check for gaps, misalignment, or fastener issues

Quality Control

- Verify fastener torque meets specifications

- Ensure all fasteners are recessed below pad surface

- Check for any raised edges or protrusions

- Document installation for maintenance records



Maintenance and Inspection

Regular maintenance extends the service life of UHMW-PE pads and ensures continued fender system performance.

1，Inspection Schedule

- Monthly:Visual inspection for obvious damage or wear

- Quarterly:Detailed inspection of pad surfaces and fasteners

- Annually:Comprehensive inspection with wear measurement

- Post-Event: Inspection after any overload event or unusual occurrence

2，Wear Measurement

- Use depth gauges to measure remaining pad thickness

- Compare to original thickness to determine wear rate

- Establish wear rate to predict replacement timing



Replacement Criteria

Consider replacement when:

- Pad thickness worn to 50-60% of original (depending on application)

- Fasteners are damaged or cannot be properly secured

- Cracking or delamination is evident

- Pad surface no longer provides adequate sliding performance

Service Life and Wear Factors

The service life of UHMW-PE pads depends on several factors.

Factors Affecting Wear Rate

Factor	Impact on Wear	Explanation
Traffic Frequency	Higher traffic = faster wear	More vessel contacts increase cumulative wear
Vessel Size	Larger vessels = faster wear	Higher contact pressures increase wear rate
Tidal Range	Larger range = faster wear	Greater sliding distance per vessel visit
Hull Coating Condition	Rough coatings = faster wear	Abrasive hull coatings accelerate wear
Pad Material Grade	Higher grade = slower wear	Premium grades offer enhanced wear resistance
Environmental Conditions	Harsh conditions = variable	Abrasive particles in water can accelerate wear

Typical Service Life

Application	Typical Service Life
Low-traffic, small vessels	10-15 years
Medium-traffic commercial	8-12 years
High-traffic container terminals	5-10 years
Extreme-duty, high-traffic	3-8 years

Note:These are typical ranges; actual service life depends on specific conditions and maintenance practices.

UHMW-PE Pads vs. Alternative Materials

While UHMW-PE is the industry standard, alternative materials are sometimes used.

Material	Advantages	Disadvantages	Typical Applications
UHMW-PE	Low friction, excellent wear resistance, impact resistant	Higher initial cost than some alternatives	Most marine fender applications
Nylon	Good wear resistance, lower cost	Absorbs water,less impact resistant	Light-duty applications
Polyurethane	Good abrasion resistance, flexible	Higher friction than UHMW-PE	Specialized applications
Steel (No Pads)	Low initial cost	High friction, hull damage, rapid fender wear	Not recommended for modern terminals



Application-Specific Considerations

Different terminal types have specific requirements for UHMW-PE pads.

1,Container Terminals

- Requirements:High wear resistance, large pad coverage

- Recommendations:70-100 mm thickness, UV-stabilized grade, recessed capnut fasteners

- Special Considerations:High traffic intensity requires durable materials

2,Ro-Ro and Ferry Terminals

- Requirements:Chamfered edges to prevent catching, impact resistance

- Recommendations:Chamfered pads (30-60 degree angle), robust fastening

- Special Considerations:Vessel belting can catch on square edges; chamfers are essential

3,LNG Terminals

- Requirements:Non-sparking, high reliability, corrosion resistance

- Recommendations:Standard UHMW-PE with stainless steel fasteners

- Special Considerations:Enhanced inspection and maintenance protocols

4,Bulk Terminals

- Requirements:Abrasion resistance, large vessels

- Recommendations:70-100 mm thickness, high-wear grade material

-Special Considerations:Dust and debris may accumulate on pads; regular cleaning recommended

5,High-Tidal-Range Locations

- Requirements:Accommodate large vertical movement

- Recommendations:Thicker pads, full panel coverage

- Special Considerations: Extended sliding distance increases wear; thicker pads provide longer life

 Common Problems and Solutions

Problem	Cause	Solution
Excessive wear	High traffic, abrasive hull coatings, inadequate thickness	Increase pad thickness; upgrade to high-wear grade; inspect more frequently
Loose fasteners	Vibration, improper torque, fastener corrosion	Use locking fasteners; apply anti-seize; specify stainless steel
Pad cracking	Impact overload, low temperature, material defect	Verify material quality; ensure impact resistance specifications
Pad lifting	Fastener failure, adhesive failure	Replace fasteners; consider through-bolt system
Edge damage	Vessel belting catching, angular berthing	Install chamfered pads; increase panel coverage
Grooving	Concentrated contact from vessel features	Increase pad thickness; consider higher-grade material

Cost Considerations

1,Initial Cost

UHMW-PE pad costs depend on:

- Pad thickness

- Total surface area

- Material grade

- Fastening system

- Quantity (economies of scale)

2,Lifecycle Cost Analysis

While UHMW-PE pads represent an initial investment, they significantly reduce lifecycle costs by:

- Extending Rubber Fender Life:Protecting rubber from abrasion can double or triple fender service life

- Reducing Maintenance:Less frequent replacement of worn components

- Preventing Hull Damage:Avoiding expensive hull repairs

- Minimizing Downtime:Quick pad replacement vs. extensive fender system repairs

3,Cost-Saving Tip

Selecting thicker pads (70-100 mm) typically provides better lifecycle economics than thinner pads that require more frequent replacement, especially in high-traffic applications where access for replacement is costly.



Procurement Specifications

When procuring UHMW-PE pads, include the following in your specifications:

1,Material Requirements

- Material: Ultra-High Molecular Weight Polyethylene

- Molecular Weight: Minimum 3.5 million g/mol

- Grade: UV-stabilized for exposed applications

- Color: [Specify, typically black or natural]

2,Dimensional Requirements

- Thickness: [Specify] mm

- Dimensions: [Specify length and width]

- Tolerances: ± [Specify] mm

3,Fastening Requirements

- Fastener Type: Recessed capnuts or as specified

- Fastener Material: Stainless steel (304 or 316)

- Recess Depth: Minimum [Specify] mm below surface

4,Performance Requirements

- Coefficient of Friction: ≤ 0.15

- Abrasion Resistance: Per ASTM D4060

- Impact Strength: Per ASTM D256

5,Documentation

- Material test certificates

- Dimensional inspection reports

- Fastener certifications



Conclusion

UHMW-PE pads are an essential component of modern marine rubber fender systems. While often overlooked in favor of the rubber fender units themselves, these sliding pads perform critical functions that protect both the fender system and the vessel hull, accommodate tidal movements, reduce mooring loads, and significantly extend overall system service life.

Selecting the right UHMW-PE pads—considering thickness, material grade, fastening system, and application-specific requirements—is essential to achieving optimal fender system performance. Proper installation and regular maintenance ensure that these pads deliver their expected service life, providing excellent return on investment through reduced maintenance costs, extended equipment life, and enhanced operational safety.

For assistance with UHMW-PE pad selection, specification, or procurement, consult with experienced marine equipment specialists who can evaluate your specific requirements and provide tailored recommendations.
