In marine fender systems, the rubber unit gets all the attention. It absorbs energy, compresses under load, and protects the vessel. But there is another component just as critical: the steel frontal panel.
I have seen a fender system fail not because the rubber cone cracked, but because the frontal panel's UHMW-PE pads wore through and the steel frame made direct contact with the vessel hull. The result? Hull damage exceeding $500,000 and three days of lost berth operations.
The steel frontal panel for rubber fender systems is the only component that touches the vessel. It distributes loads, provides a low-friction sliding surface, and protects both the rubber fender and the ship's hull. When designed and maintained correctly, it is invisible. When it fails, the consequences are immediate and expensive.
This guide answers the critical question: Which steel frontal panel for rubber fender fits your marine berthing needs? Drawing from PIANC guidelines, patented innovations like Trelleborg's SISO system, the Igoumenitsa Port expansion in Greece (2025), and field-verified practices, we cover frontal panel design types, UHMW-PE material selection, load distribution principles, and emerging trends.

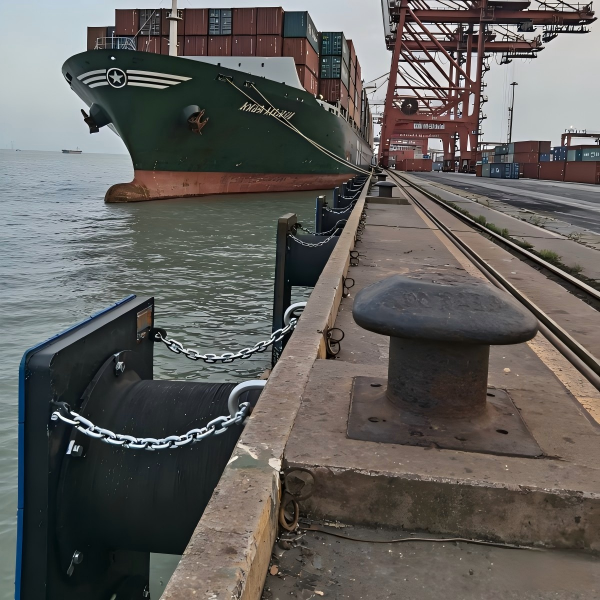

A steel frontal panel (also called frontal frame or steel facing panel) is a rigid structure—typically fabricated from steel—mounted on the face of a rubber fender. It serves as the direct contact point between the fender system and the vessel hull.
| Component | Function |
|---|---|
| Steel Frame | Provides structural rigidity and load transfer to rubber fender |
| UHMW-PE Pads | Low-friction sliding surface; protects hull and reduces shear forces |
| Fastening System | Bolts, capnuts, or recessed hardware securing pads to frame |
| Mounting Brackets | Connect frontal panel to rubber fender or quay structure |
1. Load Distribution: Spreads the concentrated reaction force from the rubber unit across a wider hull area, keeping hull pressure below safe limits (typically ≤200 kN/m²).
2. Low-Friction Interface: UHMW-PE pads allow vessels to move vertically with tides and horizontally during mooring without damaging rubber or steel.
3. Rubber Protection: Prevents direct abrasion of the rubber fender, extending service life significantly.
4. Hull Protection: Non-marking, smooth surface protects vessel coatings and plating.
Frontal panels are manufactured in two primary configurations, each with distinct performance characteristics.
Characteristics: Fully welded, sealed perimeter, internal stiffeners.
| Advantages | Limitations |
|---|---|
| Superior torsional rigidity | Higher weight |
| Enhanced corrosion protection (sealed interior) | Higher fabrication cost |
| Excellent edge load resistance | Complex manufacturing |
Best for: High-energy container terminals, exposed locations, large vessel traffic.
Characteristics: Structural members with open spaces, accessible internal surfaces.
| Advantages | Limitations |
|---|---|
| Lighter weight | Lower torsional rigidity |
| Lower initial cost | All surfaces exposed to corrosion |
| Easy inspection access | Reduced edge load resistance |
Best for: Low-energy berths, budget-constrained projects, small craft harbors.
The Igoumenitsa Port expansion—one of Greece's most important transport hubs—required frontal panels capable of handling both Ro-Ro vessels and ferries. ShibataFenderTeam delivered 26 Cone Fender Systems with closed-box frontal panels measuring 2,050 x 2,750 mm.
> *Critical design feature:* The steel panels were designed with large chamfers to prevent hull beltings from getting caught beneath panel edges. Additionally, shear chains were incorporated to absorb horizontal forces during berthing.
> *"The selected models were specifically adapted to ensure optimal performance and adaptability, providing a reliable solution for mixed-traffic operations."*
> — *Marine Construction Magazine, reporting on Igoumenitsa Port expansion*

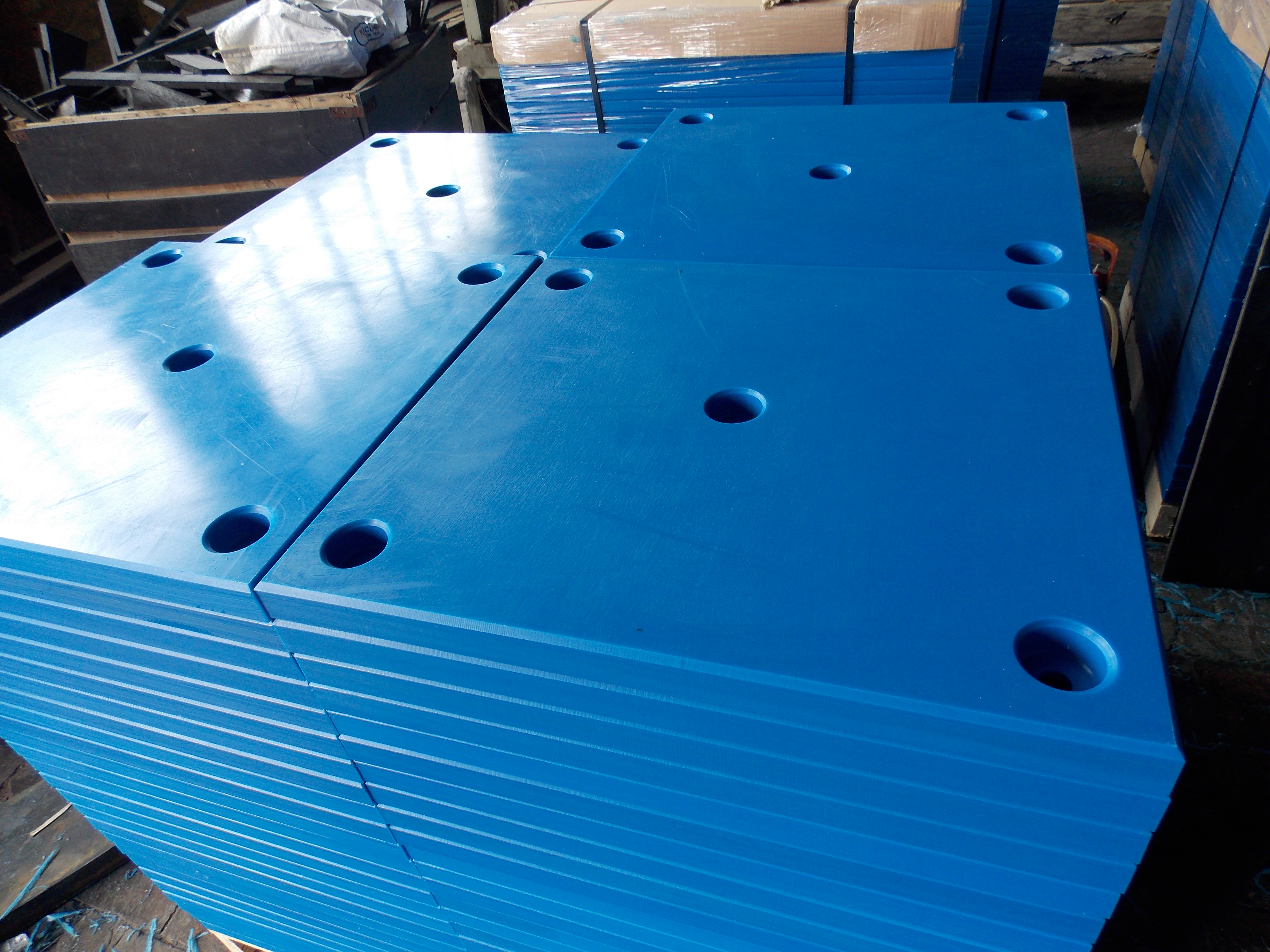

The UHMW-PE (Ultra-High Molecular Weight Polyethylene) pad is the only component that contacts the vessel. Its properties directly impact fender system performance and vessel safety.
Nanjing Taidun's FQ1000 UHMW-PE combines:
- Very low friction coefficient (self-lubricating, <0.2)
- Excellent abrasion resistance (10x better than carbon steel)
- UV and ozone resistance – does not degrade in marine environments
- Impact strength – 150-200 kJ/m², will not crack under impact
- 100% recyclable at end of service life
| Grade | Features | Best Application |
|---|---|---|
| Double-sintered (DS) | Work-hardened, extra durable | High-traffic commercial terminals |
| Virgin (V) | Available in multiple colors | Applications requiring color coding |
| Standard | Good general-purpose | Low to medium traffic |
| Thickness | Expected Service Life | Best Application |
|---|---|---|
| 20-30 mm | 5-10 years | Low-traffic, small vessels |
| 40-60 mm | 10-15 years | Medium-traffic commercial |
| 70-100 mm | 15-25 years | High-traffic terminals, large vessels |
> *"UHMW fender facings bolted or bonded to a fender front creates an unbreakable, low friction shield which protects surfaces from impact and abrasion."*
> — *Nytef Plastics material specification*
One of the most significant innovations in frontal panel maintenance comes from Trelleborg's patented SISO system.
In conventional fender systems, UHMW-PE wear pads are bolted directly to a fixed frontal frame. When pads wear out:
- The entire berth may need to be shut down
- Replacement requires working from a workboat (safety risks)
- Downtime typically 1-2 days per pad replacement
In Nanjing Taidun's patented design:
1. UHMW-PE pads are bolted onto two stainless steel removable panels
2. These panels slide into guide rails on the front face of the fixed frontal frame
3. Worn panels are lifted out and replacements inserted within two hours
4. Original panels are transported onshore for maintenance and refurbished as spares
> *"The sliding panels can then be easily lifted out of the frontal frame and replacements reinserted within two hours – reducing downtime on the berth and keeping operations running punctually."*
The SISO system is now in operation at a site in Dampier, Western Australia. Each fender module was hoisted into position and bolted onto the supporting dolphin headstock structure. By removing final assembly from the offshore environment, both time and labor costs were considerably reduced.
A properly designed steel frontal panel for rubber fender ensures that hull pressure remains within safe limits.
According to PIANC guidelines, frontal panels should keep surface pressure below specific limits based on vessel type:
| Vessel Type | Allowable Hull Pressure (kN/m²) |
|---|---|
| Container vessels (1st–2nd generation) | <400 |
| Container vessels (3rd generation/Panamax) | <300 |
| Container vessels (5th–6th generation/Super Post-Panamax) | <200 |
| Gas Carriers (LNG/LPG) | 100–200 |
| VLCC (>60,000 DWT) | <350 |
| Bulk Carriers | <200 |
The permissible hull pressure is calculated using the following formula:
> P = ΣR / (A1 × B1) ≤ Py
Where:
- P = Actual hull pressure (kN/m²)
- ΣR = Sum of maximum reaction forces of all fenders (kN)
- A1 = Valid panel width excluding lead-in chamfers (m)
- B1 = Valid panel height excluding lead-in chamfers (m)
- Py = Allowable hull pressure (kN/m²)
> *Important Note:* Arch fenders can produce hull pressures of 760–1,300 kN/m², while cylindrical fenders produce 460–780 kN/m². Despite exceeding the limits in the table above, these fender types are used safely worldwide when properly designed.
Marine environments are extremely corrosive. Frontal panel material selection directly impacts service life.
| Steel Grade | Application | Service Life |
|---|---|---|
| Q235B / A36 / SS400 | Small to medium ports, vessels <5,000 tons | 10-15 years (with coating) |
| Q355B / S355JR / A572 Gr50 | Large commercial ports, container terminals | 15-20 years (with coating) |
| Corten A/B | High-corrosion environments, offshore terminals | 20-25 years (minimal maintenance) |
| 316L Stainless Steel | Chemical ports, LNG terminals, ultra-corrosive | 30+ years (no coating) |
| Panel Component | Recommended Thickness |
|---|---|
| Plates exposed on two surfaces | ≥12 mm |
| Plates exposed on one surface | 9–10 mm |
| Internal members (not exposed) | 8 mm |
| Large fenders (cone, cell) | 20–50 mm |
| Property | Carbon Steel | HSLA Steel |
|---|---|---|
| Yield Strength (ReL) | ≥235 MPa | ≥355 MPa |
| Tensile Strength (Rm) | 375–500 MPa | 490–650 MPa |
| Elongation (A) | ≥21% | ≥21% |
| Impact Toughness at -20°C | ≥34J | ≥34J |
Marine salt spray, persistent moisture, and seawater corrosion pose the greatest threat to steel panel longevity. Inadequate anti-corrosion treatment leads to rapid rusting, thickness reduction, and structural failure within just 2–3 years.
| System | Process | Service Life |
|---|---|---|
| Hot-Dip Galvanizing | Sa 2.5 + minimum 85μm zinc coating | 15–20 years |
| Three-Layer Organic Coating | Epoxy zinc-rich primer (80-100μm) + epoxy intermediate (100-120μm) + polyurethane topcoat (60-80μm) | 10–15 years |
| Weathering Steel (Corten) | Forms protective patina naturally | 20–25 years |
| Stainless Steel (316L) | No coating required | 30+ years |
Regardless of coating system, surface preparation must meet ISO 8501-1 Sa 2.5 (near-white metal blast cleaning):
- All rust, mill scale, and old coating removed
- Surface appears clean white metal with slight gray staining
- Surface roughness Ra ≤6.3μm for optimal coating adhesion
Ferry terminals face a unique challenge: vessel beltings can catch on standard panel edges, causing severe damage.
Case Study – Kalundborg Port, Denmark: When Molslinjen relocated ferry operations to a different berth, SFT designed four Pile Fender Systems with oversized chamfers on one side of every panel. This simple but critical design feature prevents the vessel's beltings from catching during berthing operations.
European ports experience significant tidal variations—the Bristol Channel has a range exceeding 14 meters. Large fender panels are required to accommodate these variations.
Case Study – Shannon Foynes, Ireland: For the Shannon Foynes expansion, Nanjing Taidun supplied seven sets of Double Cell Fenders 1000 with closed-box steel panels measuring 7,600 × 2,000 mm—among the largest ever installed in Ireland. A custom flange was designed to fix the lower fender to the combi wall, accommodating tidal variations while maximizing energy absorption.
For ports in Northern Europe, steel panels must withstand extreme cold and ice loading. Requirements include:
- Impact toughness testing at -20°C (AKV ≥34J)
- Ice-resistant design with reinforced edges
- Thicker panels to withstand ice abrasion
We asked our global OEM clients about their experience with steel frontal panels:
> *"We switched from open-frame to closed-box frontal panels five years ago. The difference in corrosion resistance is remarkable. Our old panels showed rust after three years; the closed-box panels still look like new at year five."*
> — *Port Engineer, Southeast Asia*
> *"The SISO system changed our maintenance game. What used to take two days with a workboat now takes two hours from the dock. The labor savings alone paid for the upgrade within 18 months."*
> — *Maintenance Manager, Australian LNG Terminal*
> *"We learned the hard way that UHMW-PE thickness matters. We tried thinner pads to save money. They wore through in three years and we had steel-on-hull contact. Now we specify 70mm minimum for all our high-traffic berths."*
> — *Operations Director, European Container Terminal*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we manufacture steel frontal panels for rubber fender systems that meet international standards and real-world operational demands.
Our frontal panel capabilities include:
| Service | Description |
|---|---|
| Custom design | Closed-box or open-frame, sized to your berthing energy requirements |
| UHMW-PE facing | DS or virgin grade, 20-100mm thickness |
| Corrosion protection | Hot-dip galvanizing or epoxy coating per ISO 12944 |
| SISO-style systems | Quick-maintenance removable panels |
| Third-party certification | BV, LR, ABS, DNV, CCS available |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get factory-direct pricing, custom engineering, and full certification documentation.
Which steel frontal panel for rubber fender fits your marine berthing needs? The answer depends on:
| Factor | Consideration |
|---|---|
| Vessel type | Container, Ro-Ro, tanker, or bulk carrier |
| Berthing energy | High, medium, or low impact frequency |
| Tidal range | High variation requires larger panels |
| Environmental conditions | Corrosive, cold, or exposed locations |
| Maintenance capability | SISO-style for quick pad changes |
Use the decision framework above, and consult with an experienced OEM who understands both the standards and real-world operations.
[Contact the Nanjing Taidun Engineering Team] for a free frontal panel consultation. Send us your berthing data, vessel types, and site conditions, and we will recommend the optimal panel design for your terminal.
Q1: What is the difference between closed-box and open-frame frontal panels?
A: Closed-box panels are fully welded and sealed, offering superior rigidity and corrosion protection, ideal for high-energy terminals. Open-frame panels are lighter and less expensive but have lower torsional rigidity and all surfaces exposed to corrosion.
Q2: What thickness of UHMW-PE pads do I need?
A: 20-30 mm for low-traffic/small vessels (5-10 years), 40-60 mm for medium-traffic commercial (10-15 years), and 70-100 mm for high-traffic terminals/large vessels (15-25 years).
Q3: What is the SISO system and why is it important?
A: The Slide-In, Slide-Out system allows UHMW-PE pads to be replaced within two hours from the berth (not from a workboat), dramatically reducing downtime and safety risks. Patented by Trelleborg.
Q4: What hull pressure limits should I design to?
A: For 5th/6th generation container vessels and LNG carriers, keep hull pressure below 200 kN/m². For VLCCs, below 350 kN/m². For smaller container vessels, below 300-400 kN/m².
Q5: How do I protect steel frontal panels from corrosion?
A: Hot-dip galvanizing (15-20 year life) is most cost-effective. For premium projects, 316L stainless steel (30+ years, no coating) or weathering steel (Corten) (20-25 years, minimal maintenance). Surface preparation must meet ISO 8501-1 Sa 2.5.
