When designing a marine terminal, selecting the right fender is critical. But even after you have chosen a Super Cell Rubber Fender, one of the most important decisions remains: Which rubber hardness grade do you need?
I have spent two decades manufacturing OEM rubber fender systems for global brands. In this guide, I will explain exactly how to select the right hardness grade for your Super Cell Fender—covering the five standard grades, their performance characteristics, and the key factors that should drive your decision.
The hardness grade of a Super Cell Fender determines its reaction force and energy absorption profile at a given deflection. Choose the wrong grade, and you risk:
| Consequence | Impact |
|---|---|
| Under-protection | Vessel may contact the quay wall during berthing |
| Hull damage | Reaction force too high for vessel design |
| Quay wall overloading | Structural stress beyond design limits |
| Premature fender failure | Grade mismatched to berthing frequency |
| Wasted capital | Paying for performance you don‘t need |
> *"Cell Rubber fenders are available in heights between 400 and 3,000 mm, each in 5 different main hardness grades for the most precise fender selection."*
Understanding these grades allows you to match fender performance precisely to your operational requirements—neither over-specifying (wasting money) nor under-specifying (creating risk).
Super Cell Fenders are available in five standard hardness grades, each optimized for different berthing scenarios .
| Grade | Designation | Reaction Force Level | Energy Absorption | Best Application |
|---|---|---|---|---|
| RL | P01 / L6 | Low | Low-medium | Small vessels, low-energy berths |
| RO | P0 / S1 | Standard | Medium | General cargo, moderate berthing speeds |
| RH | P1 / H1 | High | Medium-high | Bulk carriers, container terminals |
| RS | P2 / SH1 | Super high | High | Large vessels, exposed terminals |
| RE | P3 / UH1 | Ultra high | Very high | VLCC, LNG, high-energy impacts |
Different manufacturers use different naming systems, but the performance grades are standardized:
| Performance Level | Nanjing Taidun | Industry Alternative |
|---|---|---|
| Low reaction force | P01 | L6 |
| Standard reaction force | P0 | S1 |
| High reaction force | P1 | H1 |
| Super high reaction force | P2 | SH1 |
| Ultra high reaction force | P3 | UH1 |
> *"Cell Rubber fenders are available in heights between 400 and 3,000 mm, each in 5 different main hardness grades for the most precise fender selection."*
Using the SC1600H (1600mm height) as an example, here is how each hardness grade performs at rated deflection (52.5%) :
| Grade | Reaction Force (kN) | Energy Absorption (kN·m) | E/R·H Value |
|---|---|---|---|
| RL (P01 / Low) | 750 | 478 | 0.398 |
| RO (P0 / Standard) | 936 | 596 | 0.425 |
| RH (P1 / High) | 1,215 | 776 | 0.426 |
| RS (P2 / Super High) | 1,402 | 895 | 0.426 |
| RE (P3 / Ultra High) | 1,580 | 1,008 | 0.425 |
> *Note: Performance tolerance is ±10% for all grades.*
- Reaction force increases significantly from RL to RE (from 750 kN to 1,580 kN)
- Energy absorption follows a similar upward trend (from 478 kN·m to 1,008 kN·m)
- E/R·H value remains consistently high across RO through RE (≈0.425–0.426)
This means: as you move to higher hardness grades, you get proportionally more energy absorption without sacrificing efficiency.
The first step in learning how to select the right hardness grade for your Super Cell Fender is calculating the berthing energy your fender must absorb.
Basic formula:
> Berthing Energy = ½ × Vessel Mass × Berthing Speed⊃2; × Eccentricity Factor × Hydrodynamic Factor
Typical berthing energies by vessel type:
| Vessel Type | Typical DWT | Required Energy Absorption (kN·m) |
|---|---|---|
| Small cargo / fishing | < 5,000 | 50–150 |
| General cargo | 10,000–30,000 | 150–400 |
| Container ship | 30,000–80,000 | 400–1,000 |
| Bulk carrier | 80,000–150,000 | 1,000–2,000 |
| VLCC / LNG | > 150,000 | 2,000–5,000 |

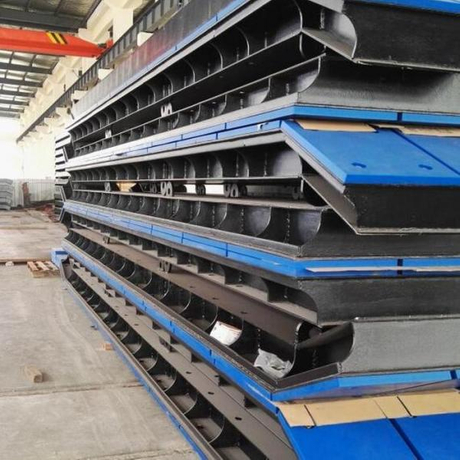

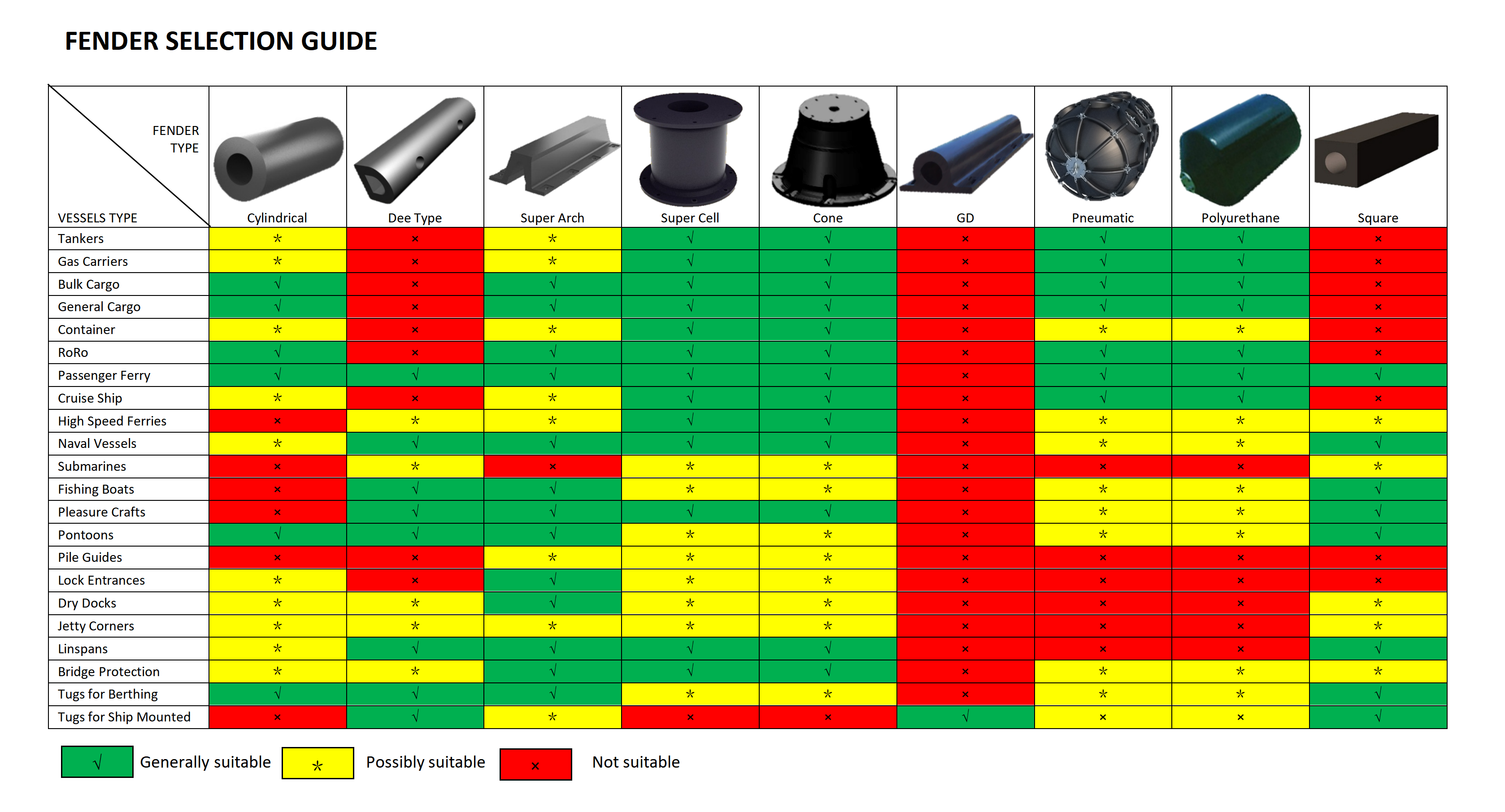

| Application | Recommended Grade | Rationale |
|---|---|---|
| Small harbors, fishing vessels | RL (Low) | Lower cost; sufficient for light impacts |
| General cargo, moderate traffic | RO (Standard) | Balanced performance for typical operations |
| Container terminals, bulk carriers | RH (High) | Higher energy for larger vessels |
| Exposed terminals, frequent STS | RS (Super High) | Maximum energy without over-stressing hull |
| VLCC, LNG, high-impact berths | RE (Ultra High) | Extreme energy absorption for largest vessels |
Higher reaction forces transfer more load to your quay wall. If your quay wall has structural limitations, you may need to select a lower hardness grade or use a larger fender with lower reaction force density.
> *"The combination of super cell fender and new grade of rubber fender helps to make designing more economical. This super cell fender with the new grade of rubber can be a size smaller but perform as well as a size larger."*
| Berthing Scenario | Grade Recommendation |
|---|---|
| Single vessel type, predictable | Match exactly to that vessel‘s energy requirement |
| Mixed vessel sizes | Select grade that covers 80% of operations; supplement with additional fenders |
| Very frequent berthing | Consider RL or RO (lower reaction force reduces cumulative stress) |
| Infrequent but high-energy | RS or RE (designed for occasional extreme impacts) |
The Scenario: A container terminal handles vessels from 10,000 DWT feeder ships to 80,000 DWT mainline vessels. The quay wall has moderate structural capacity.
The Challenge: Find a single fender size and hardness grade that protects both vessel types without overloading the quay wall.
The Solution:
| Fender Size | Grade | Reaction Force @ 52.5% | Energy Absorption | Suitable for |
|---|---|---|---|---|
| SC1250H | RO (Standard) | 696 kN | 382 kN·m | Feeder ships (10k–20k DWT) |
| SC1250H | RH (High) | 1,200 kN | 650 kN·m | Mainline vessels (50k–80k DWT) |
Result: By installing two different hardness grades of the same fender size, the terminal can protect all vessel types. The RO grade handles smaller vessels with lower reaction force, while the RH grade provides the higher energy absorption needed for larger vessels.

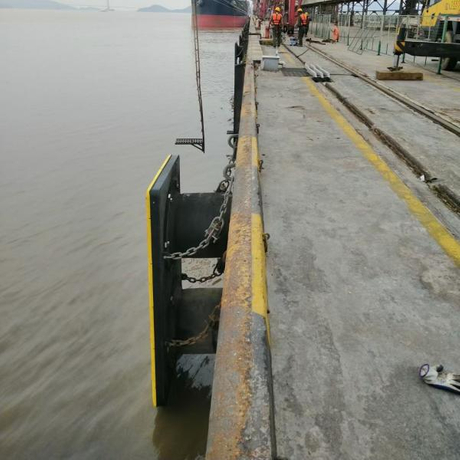

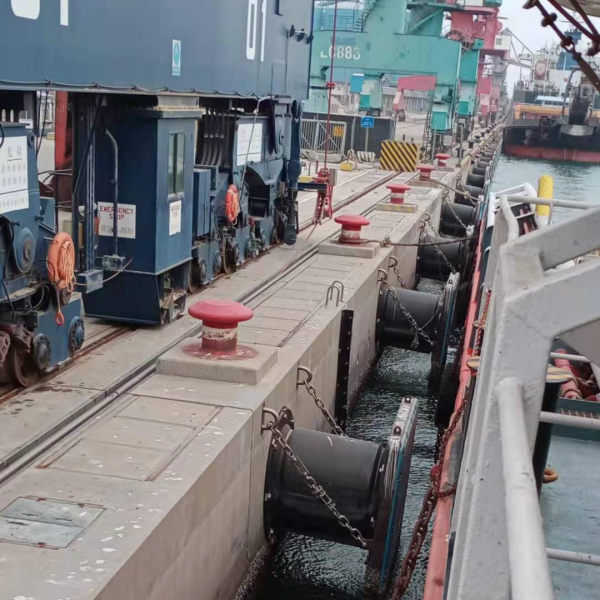

> *"The cell rubber fender is installed on docks to absorb the collision energy between ship and dock at the time of berthing. In comparison to common marine fenders, the design compressive deflection of cell rubber fender is increased by 13%, the energy absorption is increased by 17%, and the E/R is increased by 15%."*
We asked our global OEM clients about their experience selecting hardness grades. Here is what they shared:
> *"We initially selected the standard RO grade for all our fenders. But after analyzing our vessel mix, we realized that 60% of our berthings were smaller feeder ships. Switching those berths to RL grade reduced hull pressure significantly and extended fender life."*
> — *Terminal Operations Manager, Southeast Asia*
> *"Our LNG terminal only handles VLCCs. We went straight to RE grade. The higher upfront cost was justified by the superior energy absorption—we sleep better knowing those fenders can handle worst-case berthing scenarios."*
> — *Port Engineer, Middle East LNG Terminal*
> *"We made the mistake of mixing hardness grades on the same dolphin without proper labeling. Maintenance couldn't tell which was which during replacement. Now we color-code every fender by grade."*
> — *Maintenance Director, European Port Authority*
Regardless of which hardness grade you select, Super Cell Fenders offer a 15% higher E/R·H value than ordinary cell fenders .
| Fender Type | E/R·H Value | Advantage |
|---|---|---|
| Ordinary Cell Fender | 0.383 | Baseline |
| Super Cell Fender | 0.439–0.450 | 15% higher |
This means: a Super Cell Fender can be one size smaller than an ordinary cell fender while delivering the same performance.
Real-world impact:
- Lower material cost
- Reduced quay wall loading
- Smaller physical footprint
- Easier installation and maintenance
Super Cell Fenders are available in heights from 400mm to 3000mm .
| Model | Height H (mm) | Weight (kg) | Typical Application |
|---|---|---|---|
| SC400H | 400 | 78 | Small craft, fishing harbors |
| SC500H | 500 | 110 | Small cargo terminals |
| SC630H | 630 | 230 | General cargo berths |
| SC800H | 800 | 410 | Medium terminals |
| SC1000H | 1,000 | 790 | Container terminals |
| SC1150H | 1,150 | 1,200 | Bulk carriers |
| SC1250H | 1,250 | 1,500 | Large container ships |
| SC1450H | 1,450 | 2,300 | Panamax vessels |
| SC1600H | 1,600 | 3,000 | Post-Panamax |
| SC1700H | 1,700 | 3,600 | Large bulk carriers |
| SC2000H | 2,000 | 5,200 | Capesize vessels |
| SC2250H | 2,250 | 7,400 | VLCC / LNG |
| SC2500H | 2,500 | 10,500 | Ultra-large vessels |
| SC3000H | 3,000 | 18,500 | Largest commercial vessels |
> *"Super Cell Fenders are the most durable rubber fenders available and are currently the largest molded fenders made. 2000–2500 mm high cell fenders are typically used for LNG berths."*
At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we understand that selecting the right hardness grade is critical to your terminal's safety and efficiency.
Our support includes:
| Service | Description |
|---|---|
| Needs assessment | Analysis of your vessel types, berthing speeds, and structural limits |
| Grade recommendation | Data-driven selection from all five hardness grades |
| Custom formulations | Tailored rubber compounds for unique requirements |
| Performance verification | PIANC 2002 and ASTM FZ192-05 testing |
| Third-party certification | BV, SGS, CCS, ABS inspection available |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get precise hardness grade selection backed by verified performance data.
Learning how to select the right hardness grade for your Super Cell Fender comes down to three factors: required energy absorption, quay wall structural limits, and vessel mix.
- RL (Low) – Small vessels, low-energy berths
- RO (Standard) – General cargo, moderate impacts
- RH (High) – Container terminals, bulk carriers
- RS (Super High) – Large vessels, exposed terminals
- RE (Ultra High) – VLCC, LNG, extreme impacts
Use the 15% E/R·H advantage of Super Cell Fenders to potentially reduce your fender size while maintaining performance.
[Contact the Nanjing Taidun Engineering Team] for a free hardness grade consultation. Send us your vessel specifications and berthing data, and we will recommend the optimal grade for your application.
Q1: What are the five hardness grades for Super Cell Fenders?
A: The five standard grades are RL (Low), RO (Standard), RH (High), RS (Super High), and RE (Ultra High). Each offers different reaction force and energy absorption profiles for different vessel types and berthing conditions .
Q2: How do I know which hardness grade I need?
A: Calculate your required berthing energy based on vessel mass and berthing speed. Then match that energy requirement to the performance data of each grade. Consider also your quay wall's structural limits and the mix of vessel sizes at your terminal.
Q3: What is the difference between P0, P1, P2, and P3 grades?
A: P0 is standard reaction force, P1 is high, P2 is super high, and P3 is ultra high. As the grade increases, both reaction force and energy absorption increase proportionally while maintaining a consistent E/R·H value of approximately 0.425–0.426 .
Q4: Can I mix different hardness grades at the same berth?
A: Yes, mixing grades can optimize protection for mixed vessel traffic. However, clearly label each fender by grade to avoid confusion during maintenance and replacement.
Q5: How much better is a Super Cell Fender than an ordinary cell fender?
A: Super Cell Fenders offer a 15% higher E/R·H value (0.450 vs. 0.383), allowing the same performance from a smaller fender size. Design deflection is also increased from 47.5% to 52.5% .
