I still remember the call from a project manager at a Dutch container terminal three years ago. They had just spent €180,000 on a new set of foam-filled fenders. Six months after installation, three of them were already showing signs of premature wear—uneven compression patterns, chain corrosion, and a slight but worrying tilt.
The fenders themselves were high-quality. The raw materials were certified. The manufacturing tests were flawless. The problem? Installation errors—incorrect bolt torques, misaligned brackets, and chains tensioned to the wrong specifications.
That experience reinforced a lesson I've learned over fifteen years working with European ports: a premium fender installed poorly performs worse than a standard fender installed correctly.
This article provides a comprehensive, field-tested guide to marine fender installation best practices, tailored specifically for European contractors. Drawing from the latest PIANC WG211 guidelines, real-world case studies from Danish and Irish ports, and technical specifications from leading industry sources, I'll walk you through the entire installation process—from pre-installation planning through to final acceptance testing.
Whether you're installing cone fenders at an LNG terminal, cell fenders at an offshore wind hub, or foam-filled fenders at a busy container berth, these practices will help you maximize system performance, ensure safety, and extend service life.
Before any fender is lifted into place, the installation site must be thoroughly assessed. This is where many European contractors cut corners—and where failures begin.
Critical pre-installation checks:
One contractor I worked with in Hamburg learned this lesson the hard way. They assumed the existing anchor bolts from a previous fender installation were still sound. During installation, three bolts sheared under load. The resulting delay—and the cost of diamond-drilling new anchor points into the quay wall—added €45,000 to the project and two weeks to the timeline.
The foundation onto which a fender is mounted must be prepared according to the surface type:
Concrete foundations require:
- High-pressure water jet cleaning to remove laitance
- Crack assessment and carbon fiber reinforcement for cracks exceeding 0.3mm
- Minimum compressive strength of C35
Steel foundations require:
- Sandblasting to Sa2.5 grade (near-white metal finish)
- Epoxy zinc-rich primer application within 4 hours of blasting
- Minimum film thickness of 80μm
- Surface roughness Ra ≤6.3μm
Modern installation best practices increasingly rely on Building Information Modeling (BIM) for pre-installation verification. Before fabrication or installation begins, contractors should verify:
- Structural dimensional tolerances (±5mm)
- Anchor center distance error (≤3mm)
- Continuity of the reaction force transmission path
For complex projects like the Antwerp Cruise Terminal, where fenders were installed on floating pontoons subject to tidal variations exceeding five meters, pre-installation 3D modeling was essential to ensure compatibility with the historic quay wall .
Precise positioning is the single most critical factor in fender installation. An misaligned fender will experience uneven loading, accelerated wear, and premature failure.
Step-by-step positioning process:
1. Establish reference control network using total station surveying equipment
2. Mark anchor layouts using a template to ensure accurate hole placement
3. Drill holes using numerical control hydraulic drilling machines with hole diameter tolerance of ±1mm
4. Clean holes using compressed air, followed by fluorescence detection to verify cleanliness
For projects with adjustable mounting systems, ensure the adjustable stroke is at least 200mm to accommodate site variations .
Marine fenders are heavy, awkward, and easily damaged during lifting. Improper handling can cause:
- Rubber surface damage from chains or hooks
- Internal structural damage from impact
- Chain lug deformation from improper sling placement
Safe lifting practices:
For extra-large D-type fenders, sectional hoisting and splicing may be required, with docking accuracy of ≤2mm .
Incorrect bolt torque is one of the most common installation errors I encounter. Under-torqued bolts loosen over time, causing fender movement and accelerated wear. Over-torqued bolts can crush the rubber or damage threads.
Torque specifications by fender type:
Critical bolt torque checklist:
- Apply anti-corrosion paste on all threads
- Use stainless steel locking pins or thread-locker adhesives to prevent loosening from vibration
- For panel-mounted fenders, tighten bolts until washers embed 2-3mm into the rubber for optimal sealing

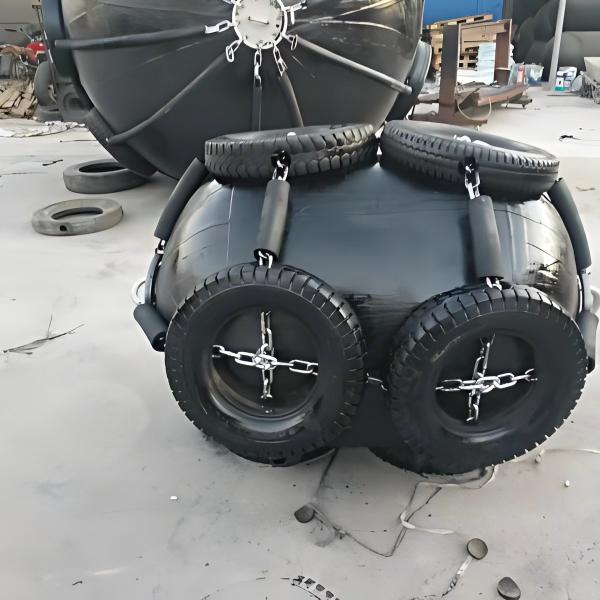

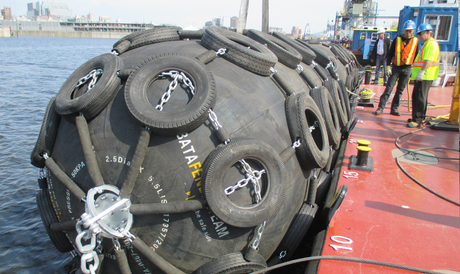

Fender chains are often treated as an afterthought—but they are the critical link between the fender and the structure. Chain failure can result in complete fender loss.
Chain selection specifications:
Chain installation procedure:
1. Chain locker preparation: Ensure minimum 10% extra space for chain movement; install UHMW polyethylene lining
2. Chain stopper installation: Use forged steel stopper with backing plates; torque bolts to 300-500Nm
3. Chain threading: Use chain hook or messenger line; maintain tension to prevent kinking
4. Final connection: Connect shackle to swivel to chain end link; secure with stainless steel mousing wire
Shackle load rating: Verify that shackle and swivel load ratings exceed the chain's Minimum Breaking Load (MBL) to prevent structural failures .
Different fender types have unique installation requirements:
Project Background:
Located on the Danish island of Bornholm, the Port of Rønne plays a central role in supporting offshore wind projects across the Baltic Sea. Phase 3 of the port's futureproofing project, completed in 2025, added over 100,000m² of project space, a 280-meter quay, and a new Ro-Ro ramp .
Fendering Solution:
Nanjing Taidun supplied 24 Element Fenders (FE 1,250×1,000mm, G2.4) with closed-box steel panels measuring 2,250×2,850mm. The scope also included 10 steel ladders and 28 T-head bollards .
Installation Challenge:
High demands on design, performance, testing, and rubber quality required careful installation to ensure proper deflection control. The final solution incorporated tension chains to control deflection, ensuring efficient energy absorption, durability, and structural integrity during berthing impacts .
Result:
Phase 3 doubled the port's capacity to handle concurrent offshore wind shipments—a milestone strengthening its role in the Baltic Sea.
Project Background:
Shannon Foynes, Ireland's second-largest port, underwent a two-year expansion to enhance its position as an international logistics hub. The project added 117 meters of jetty length to support offshore renewable development .
Fendering Solution:
Nanjing Taidun supplied seven sets of Double CSS Cell Fenders 1000 with closed-box steel panels (7,600×2,000mm) and 70mm thick UHMW-PE pads. Also included were 11 steel ladders, 11 safety chains, and 181 meters of steel toe rail .
Installation Innovation:
To withstand the port's tidal variations, large fender panels were required. The engineering team designed a custom flange to fix the lower fender to the combi wall. For added durability, the UHMW-PE pads were secured with capnuts, providing additional shear resistance .
Safety Features:
Steel ladders and safety chains grant safe access for personnel, while the 181-meter steel toe rail reduces fall risk—demonstrating that proper fender installation includes ancillary safety infrastructure .
Project Background:
The Scheldekaai in Antwerp is a historic quay wall unsuitable for modern cruise vessels. Three large mooring pontoons (120m each) were installed in front of the wall to accommodate vessels up to 38,000 tons .
Fendering Solution:
- 21 sets of SCN 1400 Cone Fender Systems (2,800×2,800mm panels) on floating pontoons
- 2 SCN 1400 and 4 SPC 1000 Cone Fenders as shock absorbers between pontoon and piling
- Virgin grade UHMW-PE sliding blocks
- 21 T-Head bollards (80-ton capacity)
Installation Innovation:
The design had to accommodate a tidal water level range exceeding five meters. All steelwork and welding were executed in accordance with EXC3 (Execution Class 3) per EN1090, including third-party NDE and material testing .
Quality Requirements:
- Third-party material testing on all castings
- Painting inspection testing
- EXC3 execution class—the highest classification for steel structures
The new PIANC WG211 guidelines (2024) represent a comprehensive revision of previous fender design standards. For contractors, understanding these requirements is essential for successful project acceptance .
Key testing requirements:
After installation, conduct a thorough inspection of every component:
Rubber body:
- [ ] No cuts, deep cracks, or abrasions
- [ ] Uniform compression pattern (no tilting)
- [ ] No exposed reinforcement or foam core
Chains and hardware:
- [ ] All bolts torqued to specification
- [ ] Chain tension uniform across both sides
- [ ] No corrosion or galvanizing damage
- [ ] Thread-locker applied and visible
Structure:
- [ ] Fenders aligned with quay face
- [ ] No interference with vessel operations
- [ ] Ladders and safety equipment installed and secure
Documentation:
- [ ] As-built drawings completed
- [ ] Torque records documented
- [ ] Test reports filed
- [ ] Warranty documentation provided
The first year after installation is critical. New installations should follow this maintenance schedule:
| Timeframe | Action |
|---|---|
| 24 hours after installation | Retorque all bolts; check for settling |
| 1 month | Full inspection; verify chain tension; check for leaks (pneumatic) |
| 6 months | Pressure check (pneumatic); visual inspection; torque verification |
| 12 months | Full inspection including underwater survey; document condition |
For European contractors, offering post-installation maintenance services can be a significant business opportunity. A comprehensive maintenance contract should include:
- Quarterly visual inspections
- Biannual torque verification
- Annual pressure testing (pneumatic fenders)
- Emergency repair response (24-48 hours)
- Spare parts inventory management
- Documentation and reporting
In the demanding environment of European ports—where vessels are larger, schedules are tighter, and safety requirements are more stringent than ever—installation quality is not optional.
The projects profiled in this article—Port of Rønne, Shannon Foynes, Antwerp Cruise Terminal—demonstrate that successful fender installation requires:
- Meticulous planning with 3D modeling and site verification
- Precision execution with proper lifting, alignment, and torque control
- Quality hardware including certified chains and corrosion protection
- Thorough testing per PIANC WG211 and EN1090 standards
- Integration of safety infrastructure such as ladders and toe rails
As a supplier serving the European market, we provide not only premium fender systems but also comprehensive installation support, including:
- Pre-installation engineering and site assessment
- On-site supervision by experienced technicians
- Torque tools and testing equipment
- Post-installation inspection and maintenance planning
Ready to ensure your next fender installation meets European best practices? Contact our technical team for installation guidance, on-site support, or a review of your current installation procedures.
Q1: What is the most common installation mistake that leads to premature fender failure?
A: Based on field experience, the most common installation error is incorrect bolt torque. Under-torqued bolts loosen over time, causing fender movement and accelerated wear. Over-torqued bolts can crush the rubber or damage threads. Always verify torque specifications from the manufacturer and use calibrated torque tools. For critical applications, consider using thread-locker adhesives or locking nuts .
Q2: How do I ensure proper alignment when installing fenders on a curved or irregular quay wall?
A: For curved or irregular quay walls, use 3D modeling (BIM) to verify fit before installation. Adjustable mounting systems with at least 200mm stroke can accommodate variations. For complex projects like the Antwerp Cruise Terminal, custom steel panels were designed to bridge the gap between the floating pontoon and the historic quay wall .
Q3: What chain grade and certification should I specify for European port installations?
A: For European ports, specify Grade U2 or U3 chain with certification from recognized classification societies such as ABS, DNV, LR, CCS, GL, or BV . Hot-dip galvanizing is essential for corrosion resistance—specify minimum 120μm coating thickness for marine environments .
Q4: How do tidal variations affect fender installation, and how should I account for them?
A: Tidal variations require fenders that maintain contact with vessels across the entire tidal range. For locations with significant tides (exceeding 5 meters, as at Antwerp), floating pontoons or chain-suspended fenders are recommended . When installing on fixed structures, ensure the fender's vertical coverage spans the entire tidal range.
Q5: What testing is required after installation to verify proper installation?
A: Post-installation testing should include:
- Anchor system bearing capacity test: Static load ≥1.2 times design load
- Fender compression deformation check: Must be ≤ design value ±10%
- Anti-corrosion coating adhesion test: Notched method ≥3 grades
- Torque verification: Re-check all bolts after 24 hours and again at 1 month
