In modern marine infrastructure, fender steel panels play a critical role in protecting both vessels and port structures during berthing operations. While much attention is given to the rubber or pneumatic fender units themselves, the steel panel is the component that directly interfaces with the ship’s hull and transfers impact forces to the supporting structure. A poorly specified or inadequately designed steel panel can lead to structural failure, vessel damage, and costly downtime.



1. Understanding the Function of Fender Steel Panels

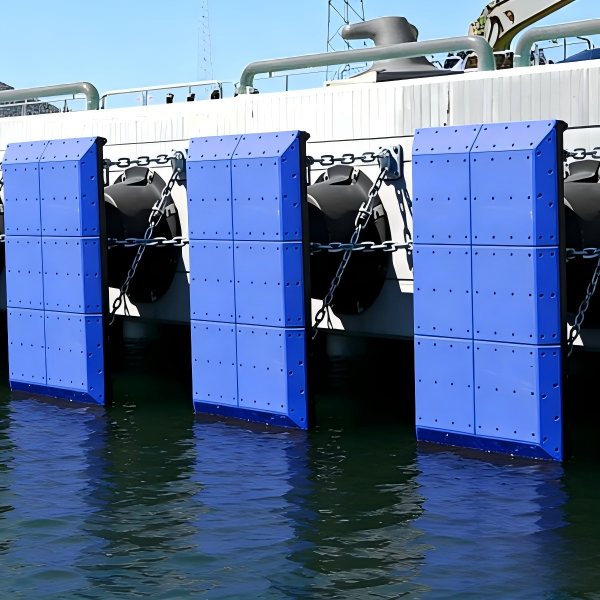

Fender steel panels are typically mounted in front of the main fender system (such as pneumatic, solid rubber, or foam-filled fenders) to:

Distribute impact forces over a larger area of the vessel hull

Protect the fender body from abrasion and cutting by sharp hull plates

Provide a smooth, low-friction surface to minimize hull stress

Act as a sacrificial layer in high-energy berthing scenarios

They are commonly used in container terminals, LNG ports, naval bases, and offshore platforms where vessel sizes and berthing energies are significant.



2. Key Material Specifications for Steel Panels

The correct material choice is fundamental to performance and longevity. Recommended specifications include:

Property	Recommended Value	Rationale
Steel Grade	S355JR or equivalent (EN 10025)	High yield strength, good weldability
Plate Thickness	10 mm – 25 mm (varies with fender type & energy)	Balances strength and weight
Surface Hardness	250–300 HBW	Resists indentation and gouging
Corrosion Protection	Hot-dip galvanized (≥85 μm) or marine epoxy coating	Prevents rust in saline environments
Flatness Tolerance	≤ 3 mm per meter	Ensures uniform contact with hull

For harsh environments (e.g., Persian Gulf, tropical ports), consider duplex stainless steel or weathering steel with enhanced corrosion resistance.



3. Design Considerations for Fender Steel Panels

3.1 Panel Dimensions

Width: Should match the frontal width of the fender unit (e.g., 2.0 m for a standard cell fender)

Height: Determined by the expected point of contact with the vessel’s side shell

Length: Covers the full length of the fender system or as per mooring dolphin spacing

3.2 Attachment System

Front Face: Smooth, rounded edges to avoid hull damage

Rear Side: Designed for bolting or welding to the fender body or chain net

Mounting Hardware: Galvanized bolts, nuts, and backing plates rated for marine use

3.3 Load Distribution

Engineers must calculate:

Impact pressure on the panel surface

Deflection limits to avoid permanent deformation

Fatigue cycles based on berthing frequency

Finite Element Analysis (FEA) is recommended for large-scale or high-energy installations.



4. Compliance with International Standards

To ensure quality and insurability, specify steel panels that meet:

EN 10025 (Structural steel grades)

ISO 12944 (Corrosion protection of steel structures)

PIANC WG33/44 (Guidelines for fender system design)

DNVGL-ST-0378 (Offshore and marine fender systems)

Certification from third-party inspectors (e.g., Lloyd’s Register, ABS, DNV) adds credibility and facilitates project approval.



5. Environmental and Operational Adaptability

Design panels for:

Temperature extremes (-20°C to +60°C)

UV radiation and salt spray

Mechanical abrasion from repeated vessel contacts

Ice loading (for Arctic or Baltic ports)

Consider replaceable panel inserts for high-wear zones to extend service life without replacing the entire fender system.



6. Maintenance and Inspection Protocols

A proactive maintenance plan includes:

Annual visual inspections for cracks, corrosion, or deformation

Torque checks on bolts and connections

Coating touch-ups in damaged areas

Performance logging linked to berthing events

Digital monitoring with strain gauges or IoT sensors can predict fatigue and schedule replacements proactively.



7. Working with a Qualified Supplier

Partner with manufacturers who offer:

Custom engineering design services

In-house fabrication with CNC cutting and robotic welding

Testing capabilities (impact tests, hardness checks, coating thickness measurement)

Global delivery and installation support

This ensures your steel panels are delivered on spec, on time, and ready for integration.



Conclusion

Specifying and designing fender steel panels is not merely a mechanical task — it is a critical engineering decision that affects the safety, efficiency, and cost-effectiveness of marine berthing operations. By adhering to international standards, selecting the right materials, and incorporating robust design principles, you can build a fender system that protects your assets and enhances port performance for decades.
