Step-by-Step Installation for Marine Rubber Fender Frontal Steel Panels: A Comprehensive Guide for European Contractors

Views: 425     Author: Nanjing Taidun     Publish Time: 2026-04-01      Origin: Site

Inquire

Content Menu

Introduction: Why Proper Installation of Frontal Steel Panels Is Critical

Part I: Understanding Frontal Steel Panels—Functions and Types

>> 1.1 Why Steel Panels Matter

>> 1.2 Common Frontal Steel Panel Configurations

Part II: Pre-Installation Preparation—Setting the Stage for Success

>> 2.1 Full Product and Hardware Quality Inspection

>> 2.2 Mounting Surface Preparation

>> 2.3 Tools, Equipment, and Safety Preparation

>> 2.4 Team Briefing and Compliance Check

Part III: Step-by-Step Installation for Dock-Mounted Frontal Steel Panels

>> Step 1: Lifting and Precise Positioning

>> Step 2: Corrosion-Resistant Hardware Installation

>> Step 3: Calibrated Torque Tightening—The Make-or-Break Step

>> Step 4: Waterproof Gap Sealing

>> Step 5: Initial Stability Test

Part IV: Step-by-Step Installation for Ship-Mounted Frontal Steel Panels

>> Step 1: Hull Reinforcement First

>> Step 2: Dual-Security Mounting Method

>> Step 3: Watertight Hull Sealing

Part V: Special Installation Scenarios—Cone and Cell Fenders

>> 5.1 Cone Fender Installation with Frontal Steel Frame

>> 5.2 Cell Fender Installation with Frontal Pad

Part VI: European Case Study—Aarhus Ferry Terminal, Denmark

Part VII: Post-Installation Inspection and Commissioning

>> 7.1 Inspection Checklist

>> 7.2 Controlled Light Impact Test

>> 7.3 Documentation

Part VIII: Pro Tips for Long-Term Performance

Conclusion: Installation Excellence as an Investment

References

Frequently Asked Questions (FAQ)

Introduction: Why Proper Installation of Frontal Steel Panels Is Critical

I recall a project at a busy container terminal in Rotterdam where the port operator had invested heavily in high-quality cone fender systems. The rubber units were top-grade. The steel panels were custom-fabricated to exact specifications. Yet within eight months, three panels showed signs of uneven wear, two bolts had sheared, and one panel had developed a visible tilt.

The cause  Installation shortcuts. The contractor had rushed the alignment step, used standard carbon steel bolts instead of marine-grade stainless steel, and failed to torque the fasteners to the manufacturer's specifications.

Industry data reveals that poor installation accounts for over 60% of premature fender failures, including loose mounting, steel-rubber delamination, uneven impact pressure distribution, bolt breakage, and structural warping—all of which trigger unplanned port downtime and severe berthing safety hazards .

This article provides a step-by-step installation guide for marine rubber fender frontal steel panels, drawing from industry best practices, manufacturer guidelines, and real-world European project experience. Whether you are installing cone fenders at an LNG terminal, cell fenders at a container port, or arch fenders at a ferry berth, this guide will help you achieve a secure, durable, and compliant installation.

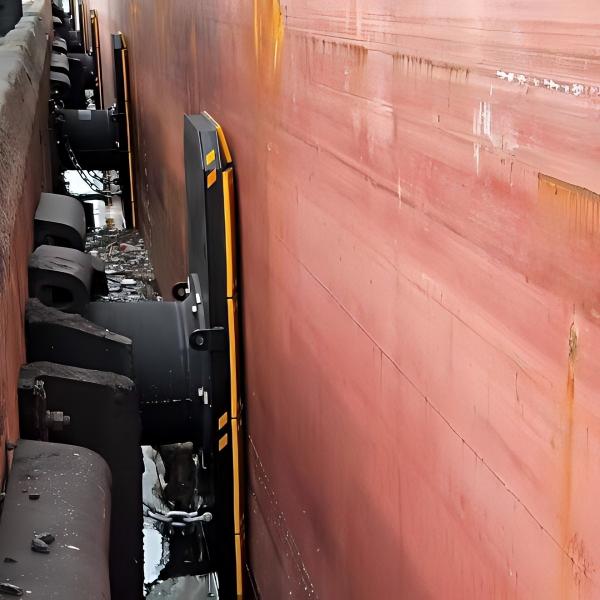

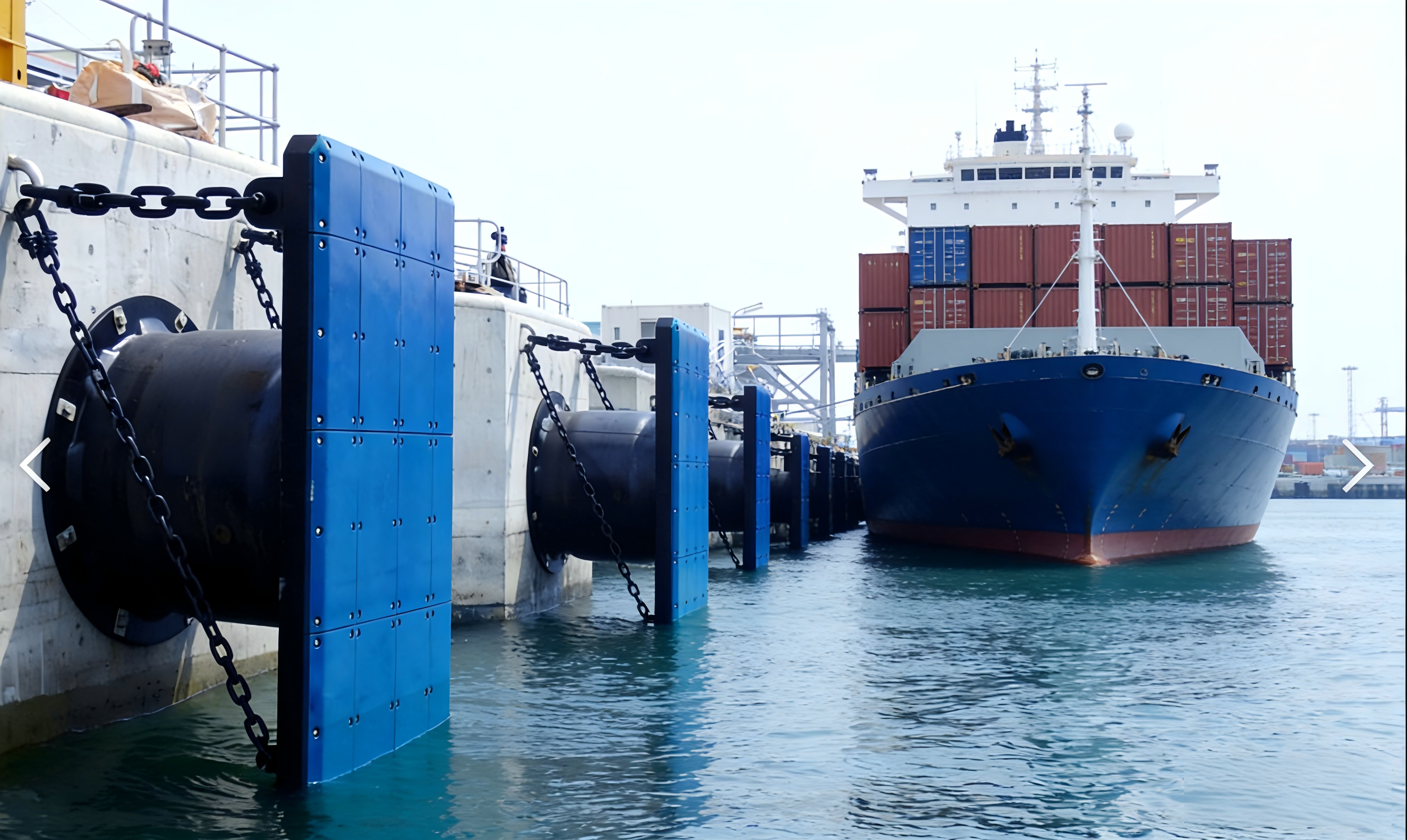

生成类似图片 (18)(1)

Part I: Understanding Frontal Steel Panels—Functions and Types

1.1 Why Steel Panels Matter

Marine rubber fender frontal steel panels serve as the critical interface between the rubber fender body and the vessel's hull . Their primary functions include:

Function Description
Impact force distribution Spreads concentrated berthing forces uniformly across the rubber fender surface, eliminating local stress concentration
Hull protection Provides a smooth, low-friction surface (often with UHMW-PE facing) to minimize vessel hull stress and abrasion
Structural reinforcement Reinforces the overall fender assembly, boosting impact resistance and load-bearing capacity
Corrosion barrier Isolates rubber fenders from corrosive concrete substrates and saltwater
Sacrificial layer Acts as a replaceable wear surface in high-energy berthing scenarios

1.2 Common Frontal Steel Panel Configurations

Panel Type Application Characteristics
Flat solid panel Small to medium fenders (D-type, arch, cylindrical) Single-piece steel plate, 10-20mm thickness, simplified structure
Profiled panel with ribs Large cone and cell fenders Front face plate with welded reinforcing ribs (I-beam or channel steel), 12-20mm face plate with 10-16mm ribs
SISO sliding panel system High-maintenance terminals Removable stainless steel panels that slide into guide rails; allows rapid wear pad replacement within two hours

Part II: Pre-Installation Preparation—Setting the Stage for Success

2.1 Full Product and Hardware Quality Inspection

Before any lifting or mounting begins, conduct a thorough inspection of every marine rubber fender frontal steel panel and all matching hardware .

Steel panel checklist:

- [ ] Check for chipped hot-dip galvanized coating, surface rust spots, dents, or bending

- [ ] Examine steel-rubber bonding lines for signs of weakness (a key red flag for future delamination)

- [ ] Verify panel dimensions, pre-drilled hole spacing, and thickness match approved engineering drawings

- [ ] Confirm flatness tolerance ≤3mm per meter

Hardware checklist:

- [ ] Use only marine-grade 316 stainless steel bolts—the gold standard for saltwater corrosion resistance

- [ ] Verify flat washers, lock washers, and nuts are corrosion-rated

- [ ] Discard any damaged or defective components immediately

2.2 Mounting Surface Preparation

Thorough cleaning and preparation of the mounting surface—whether concrete dock wall, quay face, or steel structure—ensures a tight, stable fit .

For concrete surfaces:

- Remove all debris, salt deposits, marine growth (barnacles, algae), and loose concrete particles

- Repair cracks, uneven sections, or weakened areas with high-strength marine-grade concrete

- Ensure surface flatness ≤5mm per 2m

For steel surfaces:

- Sandblast to Sa 2.5 grade (near-white metal finish) to remove all rust and old coating

- Apply epoxy zinc-rich primer within 4 hours of blasting (minimum 80μm thickness)

- Reinforce thin plating with additional steel backing plate if needed

2.3 Tools, Equipment, and Safety Preparation

Gather all required tools and equipment before starting :

Category Items
Fastening tools Calibrated torque wrench (mandatory for accurate bolt tightening)
Lifting equipment Certified crane or forklift with soft slings
Measuring tools Precision level, measuring tape, permanent marker
Sealing materials Marine-grade polyurethane sealant, waterproof adhesive
PPE Safety helmets, cut-resistant gloves, safety harnesses, non-slip marine boots

2.4 Team Briefing and Compliance Check

Conduct a full safety and operational briefing for all installation team members :

- Clearly outline individual roles and step-by-step workflow

- Review emergency response protocols

- Ensure compliance with ISO 17357 international marine fender standards

- Confirm weather conditions are suitable (avoid heavy rain, strong winds, or rough seas)

Part III: Step-by-Step Installation for Dock-Mounted Frontal Steel Panels

This section covers the most common configuration: dock-mounted marine rubber fender frontal steel panels for commercial ports, container terminals, and general berthing facilities .

Step 1: Lifting and Precise Positioning

1. Use certified lifting equipment with soft slings to avoid damaging the steel panel coating

2. Carefully lift the steel panel into its designated position

3. Align pre-drilled mounting holes with pre-marked anchor points on the dock wall

4. Use a precision level to confirm the panel is perfectly vertical and horizontal

> Critical Note: Even minor misalignment causes uneven impact distribution, accelerated wear, and premature panel failure . For oversized panels, use temporary support brackets to hold the panel securely during bolting.

Step 2: Corrosion-Resistant Hardware Installation

1. Insert marine-grade 316 stainless steel bolts through the steel panel mounting holes and dock anchor points

2. Add flat washers and lock washers between the steel panel surface and bolt head to:

- Prevent friction damage to the steel coating

- Stop fasteners from loosening due to berthing vibration

3. Thread nuts onto bolts from the backside of the dock structure

> Warning: Never use standard carbon steel hardware. It will rust and degrade rapidly in saltwater environments, leading to structural failure .

Step 3: Calibrated Torque Tightening—The Make-or-Break Step

This is the single most critical step in the installation process .

1. Use a fully calibrated torque wrench

2. Tighten bolts to the exact manufacturer's recommended torque specification (typically 80-120 Nm, varying by panel size and bolt diameter)

3. Tighten bolts in a crisscross pattern to ensure even pressure distribution across the entire panel surface

Error Consequence
Over-tightening Cracks rubber core, warps steel backing plate
Under-tightening Loose panels, shifting, full detachment

Step 4: Waterproof Gap Sealing

1. Apply high-quality marine-grade polyurethane sealant evenly around all outer edges of the steel panel and the mounting surface junction

2. Seal all bolt holes completely to block saltwater intrusion

3. Allow sealant to cure according to manufacturer specifications

> Saltwater intrusion is the primary cause of steel corrosion and hardware rust in marine environments .

Step 5: Initial Stability Test

1. Gently push and apply light pressure to the panel

2. Check for movement, shifting, or visible gaps between the panel and dock surface

3. Adjust positioning or re-tighten loose bolts as needed before finalizing

Part IV: Step-by-Step Installation for Ship-Mounted Frontal Steel Panels

Ship-mounted frontal steel panels require extra precision and reinforced installation, as they must withstand constant vessel movement and open-sea conditions .

Step 1: Hull Reinforcement First

1. Only install panels over reinforced, load-bearing hull framing—never directly to thin, unsupported hull plating

2. Add an internal steel backing plate inside the hull to distribute panel weight and berthing impact evenly

3. This prevents hull deformation, dents, or structural damage

Step 2: Dual-Security Mounting Method

1. Use a combination of heavy-duty, water-resistant marine adhesive and 316 stainless steel bolts for maximum holding strength

2. Apply a uniform layer of adhesive to the back of the steel panel

3. Press firmly against the prepared hull surface

4. Insert and torque-tighten bolts to manufacturer specification

> This dual mounting method prevents panel detachment during rough seas, high-speed travel, or heavy impact .

Step 3: Watertight Hull Sealing

1. Seal all panel edges and bolt holes with marine-grade hull-specific sealant

2. Ensure full watertight integrity of the vessel

3. Prevent corrosion on the hull surface around the panel

Part V: Special Installation Scenarios—Cone and Cell Fenders

5.1 Cone Fender Installation with Frontal Steel Frame

Cone fenders are widely used in LNG terminals and high-energy berthing applications. Their installation follows a specific sequence :

1. Assemble steel frame and PE pad together, placing them horizontally

2. Hoist the cone fender onto the back of the steel frame, ensuring mounting holes align

3. Use bolts to fix the steel frame and cone fender body together

4. Lift the fastened assembly to the dock, aligning with embedded anchor points

5. Partially tighten bolts—do not fully tighten yet

6. Connect anchor chains from U-rings to steel frame lifting eyes

7. Adjust chains to ensure the cone fender is installed in a horizontal position without sagging

8. Tighten horizontal chains, then finally tighten all bolts

9. Clean up any smudge or debris from construction

5.2 Cell Fender Installation with Frontal Pad

Cell fenders are common in container terminals and ferry berths :

1. Place the frontal pad (with face pad installed) on a flat rectangular sleeper

2. Hang the cell rubber fender on the frontal pad, aligning mounting holes

3. Use connecting bolts to combine the rubber fender and frontal pad; install and fasten

4. Move the fastened assembly to the dock, aligning with embedded sleeves

5. Secure with sleeve bolts but do not tighten completely

6. Connect maximum length anchor chain to U-rings and frontal frame lifting eyes

7. Adjust the chain to ensure horizontal installation with no sag

8. Finally tighten all bolts

9. Clean up installation traces

Part VI: European Case Study—Aarhus Ferry Terminal, Denmark

The new ferry terminal at Aarhus, Denmark—one of the largest industrial ports in the country—provides an excellent example of proper frontal steel panel installation for demanding applications .

Project Overview:

- Operator: Molslinjen (operating some of the fastest and largest ferries in the world)

- Scale: 21 sets of Double Cone 800 Fender Systems for the berth; 9 sets for the pier head

- Challenge: Heavy-duty beltings on ferry hulls required special steel panel design

Innovative Steel Panel Design:

The steel panels were customized with:

- Extremely thick steel frontal plates to withstand repeated impact

- Large chamfers on panel sides to prevent beltings from getting stuck and causing severe fender damage

Operator Feedback:

Steffen Maagaard Jensen, Port Facility Manager at Molslinjen, noted: *"High-quality fenders are extremely important so that maintenance on the hull can be kept to a minimum. The fender system was our wish as the operator since the other bidders were not able to fulfill our desire"* .

This case demonstrates that proper steel panel design and installation directly impact vessel hull maintenance costs and operational reliability.

Part VII: Post-Installation Inspection and Commissioning

Once installation is complete, conduct a comprehensive post-installation inspection to verify quality, compliance, and safety .

7.1 Inspection Checklist

Item Check
Bolts Inspect every bolt for accurate torque; confirm no hardware is missing or damaged
Steel-rubber bond Check for signs of separation or delamination
Panel alignment Verify perfect level positioning and full, gap-free contact with mounting surface
Rubber condition Inspect for compression, cracks, or damage sustained during installation
Chains and hardware Verify correct tension and secure connections
Coating integrity Check for scratches or chips; touch up immediately if found

7.2 Controlled Light Impact Test

Perform a controlled light impact test to confirm the panel absorbs force properly without shifting, moving, or sustaining damage .

7.3 Documentation

Document the full inspection, including:

- All torque values recorded

- On-site photos for project records

- Warranty validation information

Part VIII: Pro Tips for Long-Term Performance

To maximize the lifespan of installed marine rubber fender frontal steel panels, follow these professional maintenance tips :

Interval Action
After 30 days Schedule follow-up torque inspection and bolt retightening (rubber settles after initial use)
Quarterly Clean panels to remove salt deposits and marine growth; avoid high-pressure washers that can damage coating
Every 6 months Conduct full performance inspection: steel corrosion, rubber cracking, loose hardware
As needed Touch up chipped or scratched steel coating immediately to prevent rust spread
Ongoing Never exceed the panel’s rated impact capacity—overloading causes permanent structural damage and voids warranties

Conclusion: Installation Excellence as an Investment

The installation of marine rubber fender frontal steel panels is not merely a construction task—it is a critical engineering activity that directly impacts port safety, operational reliability, and long-term cost performance.

Industry data confirms that poor installation accounts for over 60% of premature fender failures . Yet with proper planning, precise execution, and adherence to manufacturer specifications, these failures are entirely preventable.

Whether you are installing cone fenders at an LNG terminal, cell fenders at a container port, or arch fenders at a ferry berth, the principles outlined in this guide—meticulous preparation, calibrated torque, corrosion-resistant hardware, and thorough post-installation verification—will ensure your fender system delivers its full design life.

Ready to ensure your next fender installation meets the highest standards? Contact our technical team for installation guidance, on-site support, or a review of your installation procedures.

References

1. Nanjing Taidun Marine Equipment Engineering Co., Ltd. *Installation Best Practices for Marine Rubber Fender Steel Panels*, March 2026. Available at: [https://www.taidunmarine.com/installation-best-practices-for-marine-rubber-fender-steel-panels.html]

2. Nanjing Taidun Marine Equipment Engineering Co., Ltd. *Complete Specification and Design Guide for Fender Steel Panels*, March 2026. Available at: [https://www.taidunmarine.com/complete-specification-and-design-guide-for-fender-steel-panels-ensuring-durability-safety-and-performance-in-marine-berthing-systems.html]

3. Marine Construction Magazine. *SFT Fenders at New Ferry Terminal in Aarhus, Denmark*, Issue IV, 2020. Available at: [https://digitaledition.marineconstructionmagazine.com/publication/?article_id=3743119&i=670702&view=articleBrowser]

4. Walker Rubber. *How to Install a Rubber Fender*, 2021. Available at: [https://www.walker-rubber.co.uk/blog/the-walker-rubber-blog-1/how-to-install-a-rubber-fender-12]

5. Nanjing Taidun Marine Equipment Engineering Co., Ltd. *Design Work of the Steel Panels for Marine Rubber Fender*, March 2026. Available at: [https://www.taidunmarine.com/design-work-of-the-steel-panels-for-marine-rubber-fender-complete-technical-guide-best-practices.html]

Frequently Asked Questions (FAQ)

Q1: What torque specification should I use for mounting bolts on frontal steel panels?

A: Torque specifications vary by bolt diameter and panel size. Typical ranges are 80-120 Nm for M12-M16 bolts . Always consult the manufacturer's installation manual for exact specifications and use a calibrated torque wrench. Tighten in a crisscross pattern to ensure even pressure distribution.

Q2: Why must I use 316 stainless steel bolts instead of carbon steel?

A: Marine environments are highly corrosive due to saltwater, salt spray, and humidity. Carbon steel bolts will rust rapidly, leading to thread seizure, reduced clamping force, and eventual structural failure. 316 stainless steel offers superior corrosion resistance and is the industry standard for marine fender installations .

Q3: How do I prevent steel-rubber delamination during installation?

A: Delamination is often caused by over-tightening bolts or uneven pressure distribution. To prevent this:

- Always tighten bolts to manufacturer specifications—never exceed

- Use the crisscross pattern to distribute force evenly

- Ensure the mounting surface is perfectly flat and clean

- Inspect the steel-rubber bond line before installation for any pre-existing weakness

Q4: What is the SISO system, and how does it simplify installation?

A: The SISO ("slide in, slide out") system, patented by Nanjing Taidun, uses removable stainless steel panels that slide into guide rails on the frontal frame. Wear pads can be replaced within two hours without removing the entire fender assembly, reducing berth downtime and improving safety . This system is particularly valuable for high-traffic terminals where maintenance windows are limited.

Q5: How soon after installation should I perform the first torque re-check?

A: Schedule a follow-up torque inspection and bolt retightening after 30 days of initial use. Rubber materials settle slightly after absorbing regular berthing impacts, which can reduce initial clamping force . Regular quarterly inspections thereafter are recommended.

Q6: Can frontal steel panels be installed on curved or irregular quay walls?

A: Yes, but special considerations apply. For curved surfaces, use adjustable mounting systems or custom-fabricated panels with tapered backing plates. For irregular surfaces, consider using grout reinforcement to create a level mounting surface . The Aarhus ferry terminal project used customized steel panels with large chamfers to accommodate vessel hull geometry .

Nanjing Taidun Marine Equipment Engineering Co.,Ltd is the world class production enterprise integrating R&D, testing and production.

MENU

PRODUCTS

CONTACT US

Email:
service@taidunmarine.com
Phone / WhatsApp:
+86-18751950876
Add:
NO.1, Gangcheng Road, Longtan Street, Qixia District,Nanjing City, Jiangsu Province, China
Copyright © Nanjing Taidun Marine Equipment Engineering Co.,Ltd. All Rights Reserved.
