When a 200,000-ton container ship approaches a terminal berth, the only thing standing between safe docking and catastrophic hull damage is a marine fender system. But the rubber fender itself never touches the vessel.
The frontal panel does.
I have spent two decades manufacturing OEM marine fender systems—including rubber fenders, steel frontal panels, and mooring bollards—for global brands, wholesalers, and production facilities. In that time, I have seen the industry experiment with alternative materials. Yet steel remains the dominant material for marine fender frontal panels for compelling reasons that go far beyond tradition.
In thisguide, I will explain why steel continues to outperform composites in heavy-duty applications, how modern design and coating technologies address steel's historical weaknesses, and how to select the right frontal panel for your specific berthing conditions.

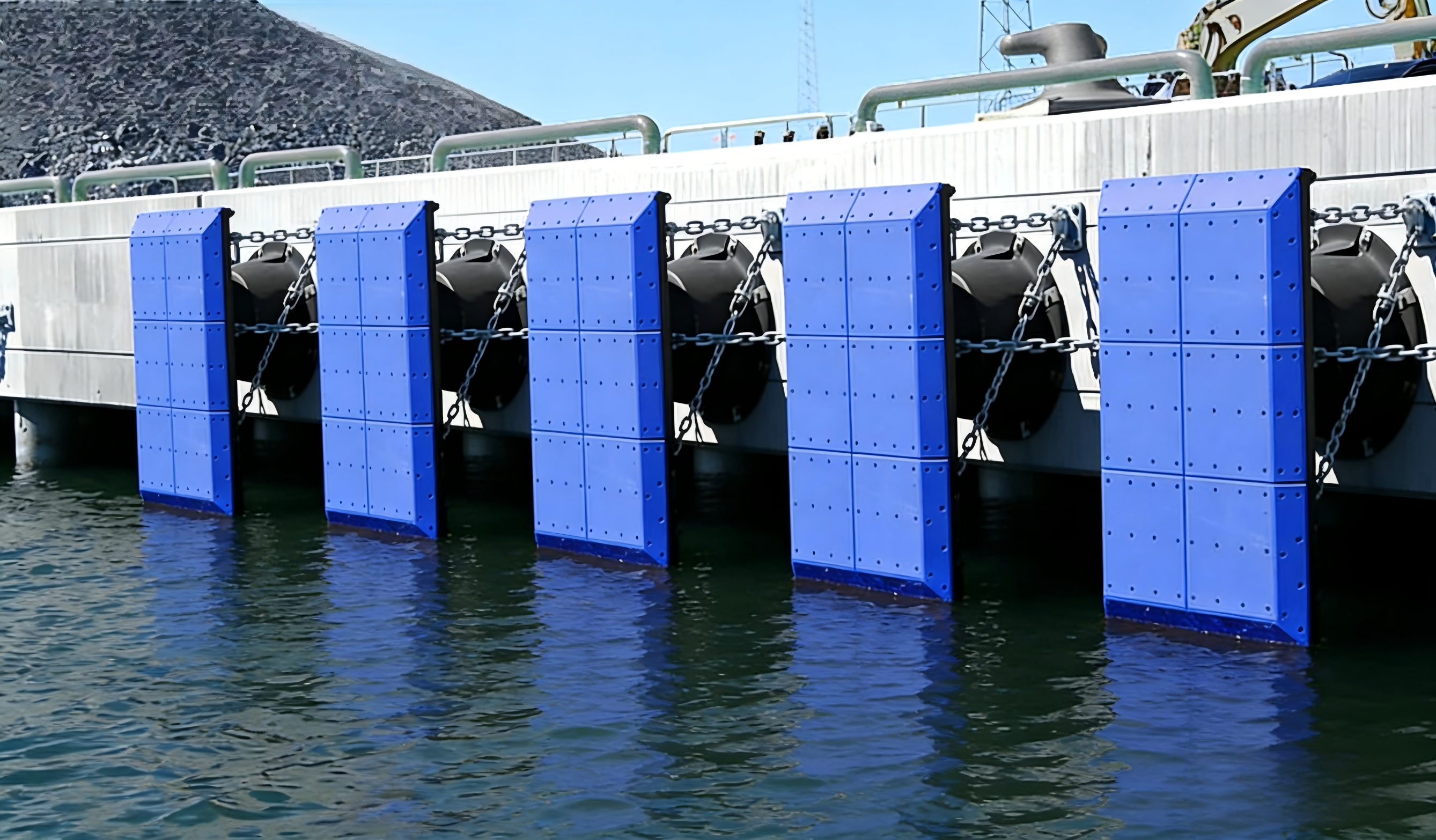

A frontal panel (also called fender panel or steel facing panel) is the rigid structure mounted on the face of a rubber fender . It serves as the direct contact point between the fender system and the vessel hull.
Primary functions of a frontal panel:
- Load distribution – Spreads concentrated reaction forces across a wider hull area
- Hull protection – Prevents point loading that can dent or puncture vessels
- Low-friction interface – UHMW-PE pads allow vessels to slide during tidal movement
- Rubber protection – Shields rubber units from direct abrasion
- Chain connection – Provides secure attachment points for tension, shear, and weight chains
> *"Fender panels are just as important as the rubber units on high-performance systems. That's why every panel can be purpose designed using structural analysis programs and 3D CAD modeling for optimum strength."*
The material choice for these panels directly impacts:
- Safety – A failed panel means steel-to-steel contact and hull damage
- Maintenance costs – Corrosion resistance determines inspection frequency
- Service life – Material fatigue determines replacement intervals
- Installation complexity – Weight affects crane requirements and quay loading
Engineers now have two primary material options for frontal panels: steel and composite (typically fiberglass-reinforced polymers or FRP). Understanding their trade-offs is essential for informed selection .
| Parameter | Steel Performance | Why It Matters |
|---|---|---|
| Strength-to-weight | High | Absorbs high-impact forces without deformation |
| Load capacity | Excellent (industry benchmark) | Handles tankers, container ships, bulk carriers |
| Fabrication flexibility | High – can be cut, welded, shaped | Custom designs for specific berth geometries |
| Availability | Widely available globally | Short lead times, cost-effective |
| Corrosion resistance | Poor without coating | Requires protection systems (addressed below) |
| Initial cost | Lower than composite | Attractive for budget-constrained projects |
| Weight | Heavy | Requires cranes; increases quay load |
> *"Steel remains the benchmark for frontal frame construction due to its exceptional strength and load-bearing capacity. In large-scale port facilities handling massive vessels such as tankers, container ships, or bulk carriers, steel frontal frames deliver the structural stability necessary to absorb high-impact forces."*
| Parameter | Composite Performance | Why It Matters |
|---|---|---|
| Corrosion resistance | Excellent (natural) | No rust; ideal for tropical/salty environments |
| Weight | Light (1/8 of steel weight) | Easier installation; lower quay loading |
| Maintenance | Minimal – no repainting | Lower lifecycle costs |
| Initial cost | 2-3x higher than steel | Budget impact |
| Repair complexity | Difficult – may require replacement | Higher downtime if damaged |
| Impact resistance | Good but lower than steel | May not suit heavy-duty applications |
> *"The main drawback of composite frontal frames is their relatively higher initial cost compared to steel. Manufacturing composite panels requires specialized materials and controlled production processes. Furthermore, while composites are durable, repairing them after impact damage can be more complex than welding or patching steel."*
Steel is not always the right choice, nor is composite. The decision depends on your specific conditions :
| Application | Recommended Material | Rationale |
|---|---|---|
| Container terminals (high energy) | Steel | Unmatched load capacity |
| Oil/LNG terminals | Steel | Safety-critical; proven reliability |
| Cruise terminals | Steel or hybrid | High vessel value demands proven protection |
| Small craft harbors | Composite | Lower loads; corrosion benefit |
| Remote locations | Composite | Reduced maintenance access |
| Tropical/high-salinity | Composite (or coated steel) | Corrosion is primary concern |
| Budget-constrained projects | Steel | Lower upfront cost |
> *"For berths handling heavy-duty vessels—such as oil tankers, cruise liners, or large cargo ships—steel frontal frames provide unmatched structural resilience. For smaller or mid-sized vessels, composite frames are often sufficient and provide the added benefit of lower maintenance."*
For heavy-duty commercial ports, steel remains the dominant material for marine fender frontal panels because no alternative matches its strength, proven performance, and cost-effectiveness at scale.
Not all steel panels are created equal. Modern engineering has produced two distinct design philosophies.
The fundamental design choice is between open structure and closed box structure .
Open Steel Structure Panels
- Characteristics: Steel pads, H-beams, cross-bracing without full enclosure
- Advantages: Lower initial cost, lighter weight, easy inspection access
- Disadvantages: Water intrusion; hidden internal corrosion; shorter service life
Closed Box Steel Structure Panels
- Characteristics: Fully welded, sealed perimeter, internal stiffeners, pressure-tested
- Advantages: Complete water exclusion; superior corrosion resistance; longer service life
- Disadvantages: Higher fabrication cost; heavier
- PIANC minimum thickness requirements: 12mm for plates exposed on two faces, 9-10mm for one face
> *"Closed box designs are used almost exclusively – all fully sealed and pressure checked."*
The Verdict: For high-performance berthing systems, closed box steel panels are the industry standard. The sealed design prevents the single biggest threat to steel in marine environments: saltwater intrusion into internal cavities.
Steel's historical weakness is corrosion. But modern protection systems have transformed steel into a durable, long-life material even in the harshest marine environments.
Marine splash zones are classified as C5-M (very high corrosion) under ISO 12944 . This requires the highest-grade protection systems.
Standard coating system for closed box panels :
| Layer | Material | Purpose |
|---|---|---|
| Primer | Epoxy zinc-rich | Adhesion and cathodic protection |
| Intermediate | C5M modified epoxy | Barrier protection; corrosion resistance |
| Topcoat | Polyurethane (RAL5005 blue or custom) | UV resistance; appearance |
> *"Corrosion protection is provided by high durability C5M class paint systems to ISO 12944, and additional corrosion allowances can be designed where required."*
Hot-dip galvanizing provides sacrificial protection: the zinc coating corrodes before the underlying steel. Even if the surface is scratched, the steel remains protected .
Galvanizing advantages:
- No ongoing coating maintenance
- Uniform coverage including internal surfaces
- Proven in automotive and marine applications
- Extends service life by decades
Beyond coatings, smart design prevents corrosion :
| Design Feature | Corrosion Benefit |
|---|---|
| Closed box construction | No water entry to internal surfaces |
| Pressure testing | Verifies watertight integrity before delivery |
| Corrosion allowance | Extra thickness for long-term sacrificial protection |
| Drainage provisions | Precludes standing water on horizontal surfaces |
When specifying a steel frontal panel, these features determine performance and longevity.
Lead-in bevels and chamfers are angled edges at the top and bottom of the panel . They serve a critical safety function: preventing vessel beltings from snagging beneath the panel.
> *"The heavy-duty beltings of the ferries had an important impact on the final design of the fender systems as well as on the geometry of the steel panel. Large chamfers on the side of the fender panels make sure that the beltings do not get stuck on or below the panel and cause severe fender damages."*
Standard practice: Large chamfers (300-500mm) are now standard for terminals handling Ro-Ro vessels, ferries, or any ships with protruding belt lines .
Ultra-High Molecular Weight Polyethylene (UHMW-PE) face pads attach to the front of the steel panel .
Why UHMW-PE is essential:
| Property | Value | Benefit |
|---|---|---|
| Wear resistance | 3-7x carbon steel | Dramatically longer life than steel-on-steel |
| Coefficient of friction | <0.2 | Vessel slides freely during tidal movement |
| Specific gravity | 0.93-0.98 (1/8 of steel) | Lightweight; easy replacement |
| Corrosion resistance | Excellent | No rust; no coating required |
| Self-lubricating | Yes | No external lubrication needed |
> *"The OEM UHMW Marine Fender Face Panels have wear resistance 3 to 7 times that of carbon steel and stainless steel; the friction coefficient is small, self-lubricating, non-absorbent, non-bonding material."*
Properly designed steel panels include integrated connection points for :
- Tension chains – Absorb pulling forces during vessel impact
- Shear chains – Control lateral movement
- Weight chains – Maintain vertical position and prevent drooping
- Lifting points – Facilitate safe installation and maintenance
Modern steel panel design uses finite element analysis to validate structural integrity before manufacturing .
FEA simulates:
- Collision forces and impact energy
- Shear pressure and surface pressure
- Bending moment and local buckling
- Stress distribution under real-world conditions
> *"We adopt the finite element analysis software on the frontal frame specification size, hardness, shear pressure, surface pressure and so on. Fully simulated conditions include the construction of the terminal, the ship's tonnage level, the ship loaded with draft, wind speed, water drop, wave crowding force, the effective impact energy when landing, and all other related natural conditions."*
The Port of Aarhus equipped its new ferry terminal with double cone fender systems featuring steel panels .
Project scope: 21 double cone 800 fender systems for the berth; 9 for the pier head
Key design consideration: The heavy-duty beltings of the ferries required:
- Extremely thick steel frontal plates
- Very large chamfers to prevent snagging
> *"The chamfers make sure that the beltings do not get stuck on or below the panel and cause severe fender damages."*
The Port of Vigo upgraded its Bouzas Terminal (Ro-Ro) and Cruise Terminal .
Project scope:
- 14 Cone Fenders (CT 1200, G2.7) with closed-box steel panels (2000×4800mm)
- 500mm-high chamfers to prevent Ro-Ro snagging
- Exceptionally high panels to accommodate Atlantic tidal ranges
This historic Mediterranean port refurbished its cruise berth with 19 CT Cone 1100 fenders with closed steel panels .
Result: Improved corrosion resistance compared to old open panels; reduced maintenance requirements.
We asked our global OEM clients about their experience with steel frontal panels. Here is what they shared:
> *"We tried composite panels on one of our container berths as a trial. After 18 months, we saw stress cracks at the mounting points. The impact energy at our terminal was just too high. We went back to steel. Steel doesn't flex—it distributes force exactly where the engineering says it will."*
> — *Terminal Operations Manager, Southeast Asia*
> *"Our old open steel panels were rusting from the inside out. We couldn't see the corrosion until a panel failed during a storm. Switching to closed box panels with C5M coating solved the problem. Five years later, they still look like new."*
> — *Maintenance Director, North American Port Authority*
> *"The upfront cost of composite was hard to justify for our budget. Steel gave us the strength we needed at a price that worked. With proper coating maintenance, we expect 20+ years of service."*
> — *Port Engineer, European Terminal*

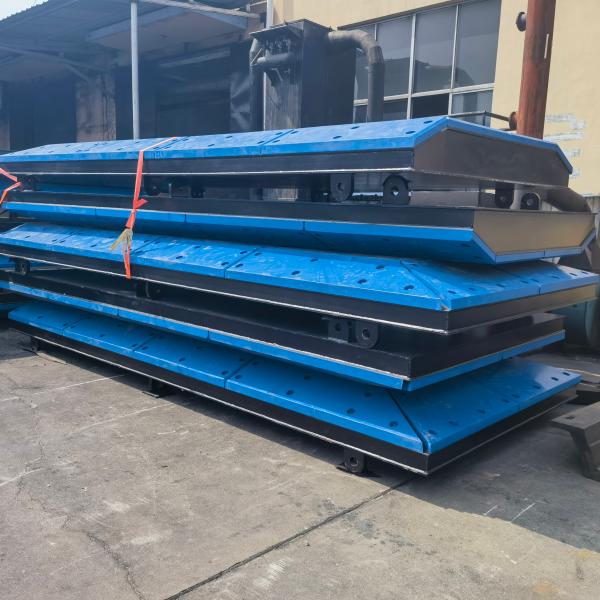

At Nanjing Taidun Marine Equipment Engineering Co., Ltd. , we manufacture steel frontal panels that meet the highest industry standards.
Our capabilities include:
| Service | Description |
|---|---|
| Closed box construction | Fully sealed, pressure-tested steel enclosures |
| Open frame construction | For lower-energy, budget-conscious applications |
| C5M coating systems | ISO 12944 compliant; epoxy zinc-rich + polyurethane topcoat |
| UHMW-PE face pads | High-wear, low-friction sliding surfaces |
| FEA validation | Computer-simulated design verification |
| Custom sizes | Any dimensions to match your berthing requirements |
| Third-party certification | ABS, BV, DNV, LR, CCS inspection available |
We serve brand owners, wholesalers, and production facilities in over 80 countries. When you partner with Taidun, you get factory-direct pricing, custom engineering, and full certification documentation.
Why steel remains the dominant material for marine fender frontal panels comes down to four factors: unmatched strength for heavy-duty applications, fabrication flexibility for custom designs, cost-effectiveness at scale, and proven reliability over decades of service.
Modern steel panels—with closed box construction, C5M coating systems, UHMW-PE face pads, and FEA-validated design—address historical corrosion concerns while delivering performance that composites cannot match for large vessels.
[Contact the Nanjing Taidun Engineering Team] for a free frontal panel consultation. Send us your berthing requirements, vessel types, and environmental conditions, and we will recommend the optimal steel panel design for your terminal.
Q1: Why is steel better than composite for heavy-duty marine fender panels?
A: Steel offers superior load-bearing capacity and impact resistance, making it the only choice for terminals handling large vessels like container ships, tankers, and bulk carriers. Composites may be sufficient for smaller craft but cannot match steel's performance under high-energy impacts .
Q2: What is the difference between open and closed box steel panels?
A: Open panels have exposed internal structures that allow water intrusion and hidden corrosion. Closed box panels are fully sealed, pressure-tested steel enclosures that prevent water ingress and provide superior corrosion resistance. PIANC recommends closed box designs for high-performance systems .
Q3: How long do steel frontal panels last with proper maintenance?
A: With proper C5M coating systems and regular inspections, steel frontal panels typically last 20-25 years. The steel structure itself can last indefinitely with proper corrosion protection; UHMW-PE face pads may need replacement every 5-10 years depending on usage .
Q4: What coating system is required for marine steel panels?
A: Marine environments are classified as C5-M under ISO 12944. The standard system includes: epoxy zinc-rich primer (adhesion + cathodic protection), C5M modified epoxy intermediate (barrier protection), and polyurethane topcoat (UV resistance + appearance) .
Q5: Why are chamfers important on steel frontal panels?
A: Lead-in bevels and chamfers prevent vessel beltings from snagging beneath the panel. This is especially critical for Ro-Ro vessels and ferries with protruding belt lines. Snagging can cause catastrophic panel damage or vessel damage .
