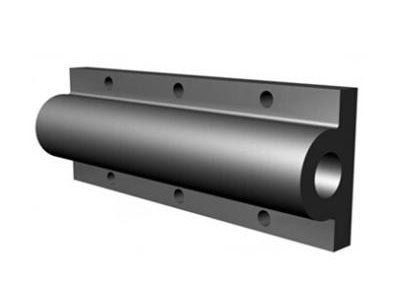

GD Wing Type Rubber Fender

GD Type Rubber Fender is a new one type of fender developed from D type fender, double wing installation, can be used under the most severe conditions.
Availability:

Features

Higher reaction force

Easy to install and maintenance

Simple design

Applications

Tug and workboats

Inland waterways

Jetties and wharves for small craft

Pontoon protection



2

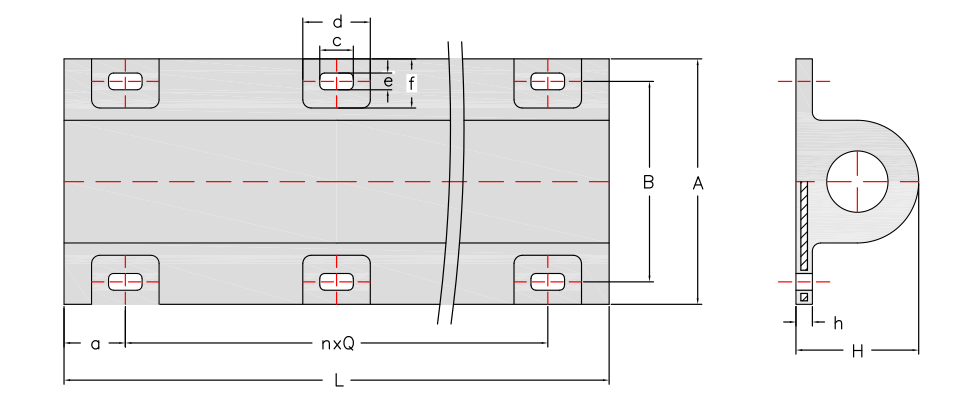

Specifications

GD Wing Type Rubber Fender



H

A

B

h

c

e

d

f

GD280HX540

280

540

430

40

82

41

165

120

GD300HX540

300

540

430

40

82

41

165

120

GD300HX600

600

600

490

40

82

41

165

120

[Units:mm]

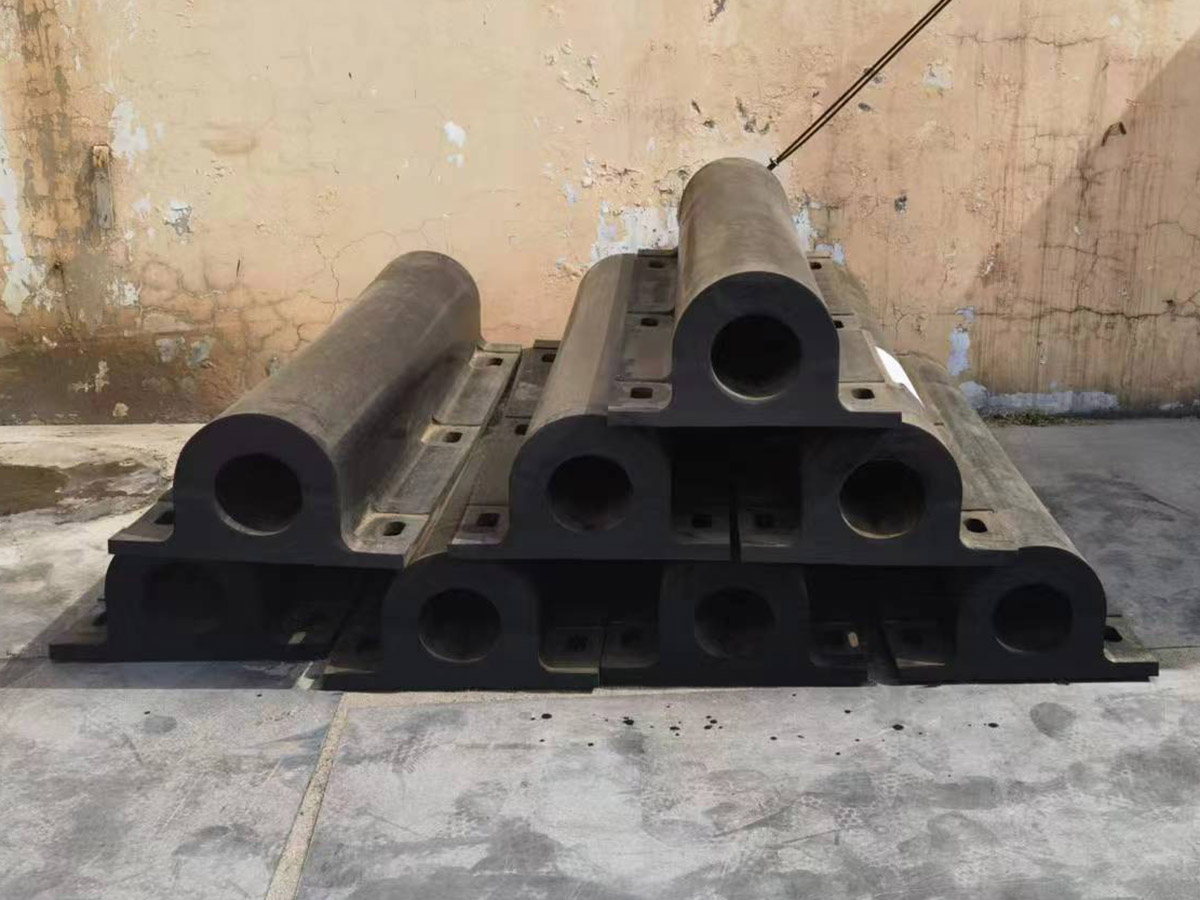

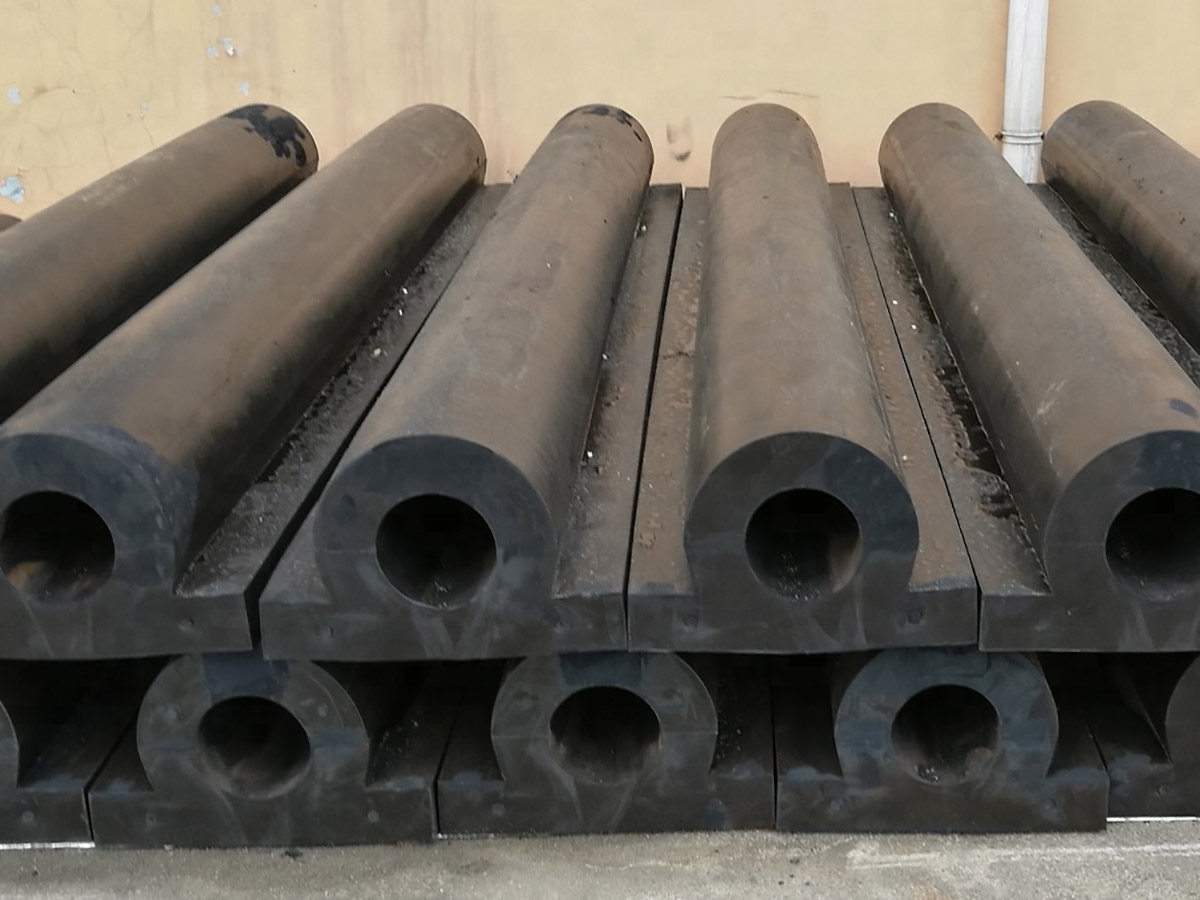

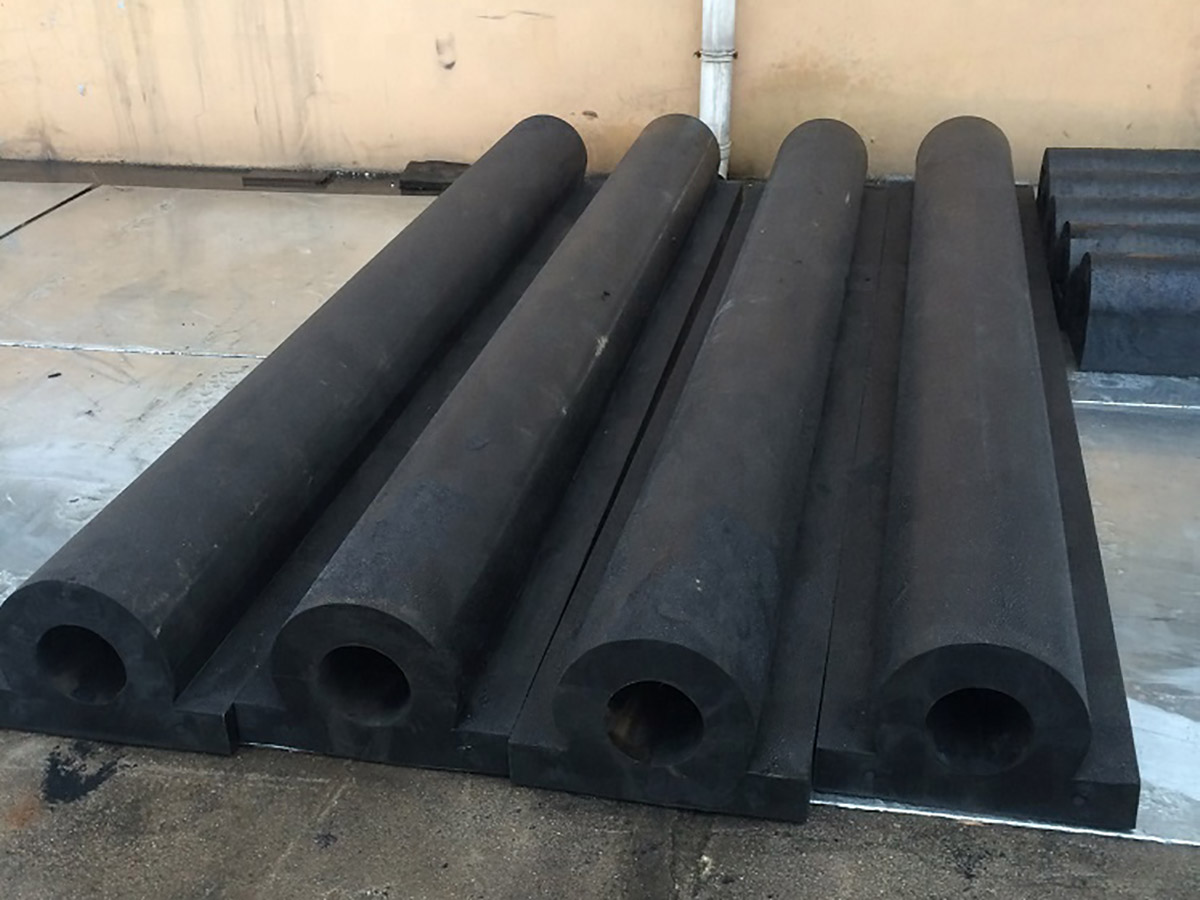

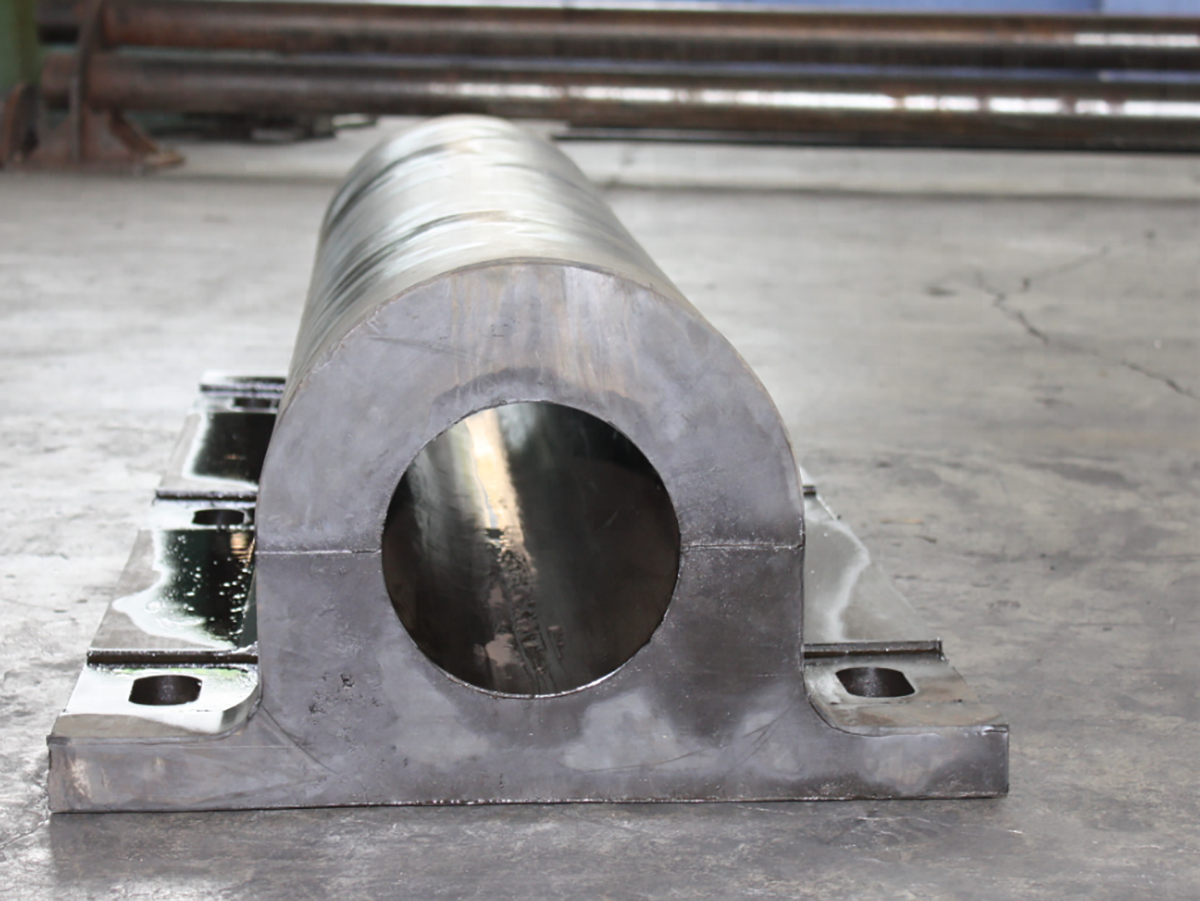

GD Wing Type Rubber Fender1

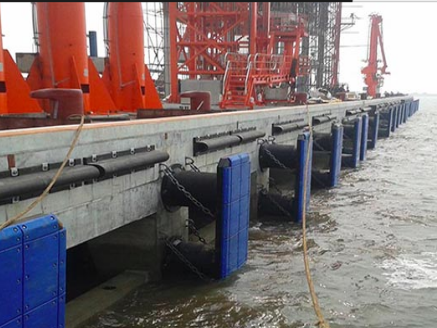

GD Wing Type Rubber Fender2
