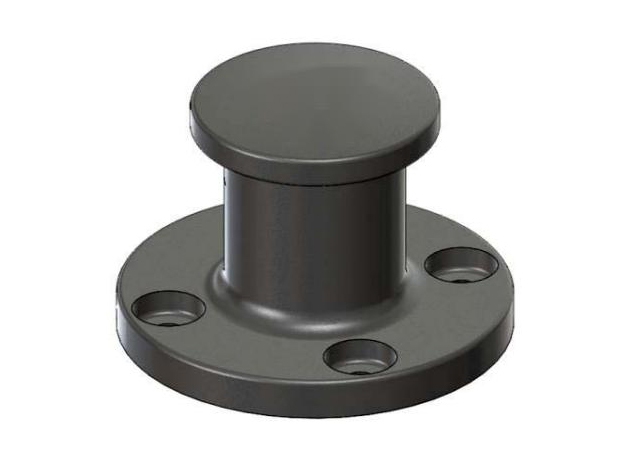

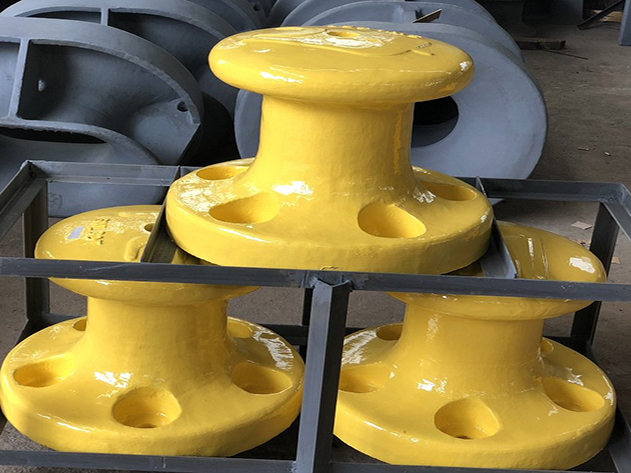

Pillar Bollards

Material: Cast Iron, cast steel and ductile iron(Spheroidal Graphite)
Mounting Hardware: Galvanized Grade 8.8 bolts, nuts and washers
Surface and Paint: Fully painted or with rust preventative primer
Availability:

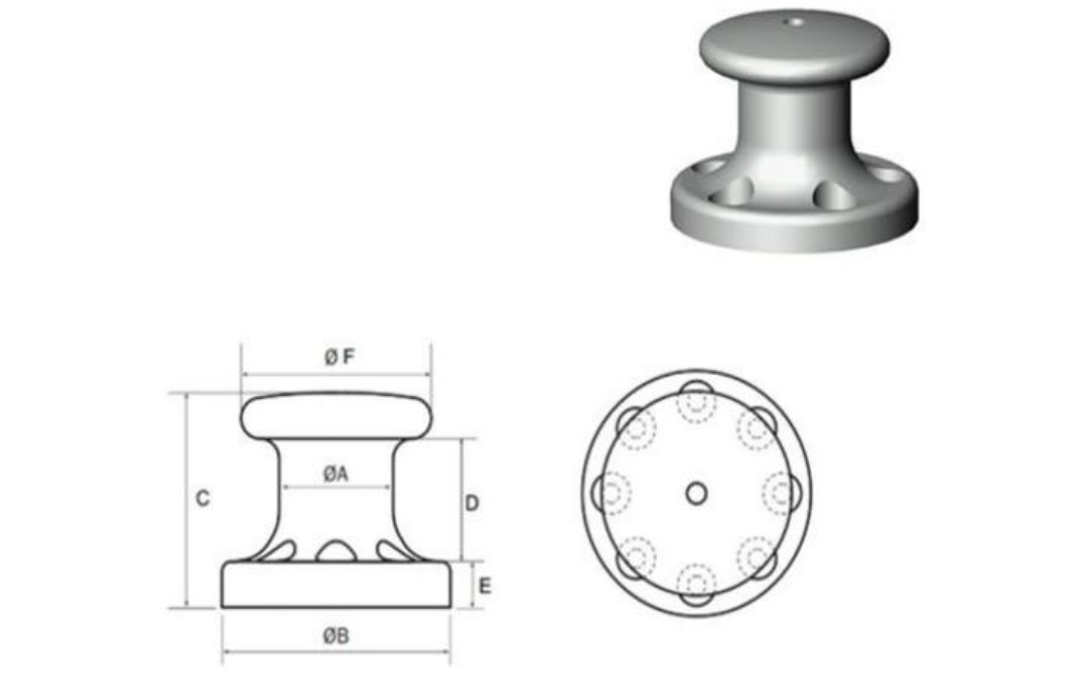

Pillar Bollards

SWL

(Ton)

Dimension(mm)

Bolts

A

B

C

D

E

F

NO.

Dia.

10

204

300

350

248

57

280

4

24

15

229

381

368

254

51

356

4

24

30

254

559

426

254

83

432

5

30

50

305

610

533

305

114

508

8

30

75

457

914

864

648

102

610

8

36

100

559

1067

762

510

102

813

8

45

150

559

1067

762

510

102

813

8

48

Dimension may vary according to different mold.


Material: Cast Iron, cast steel and ductile iron(Spheroidal Graphite)

Mounting Hardware: Galvanized Grade 8.8 bolts, nuts and washers

Surface and Paint: Fully painted or with rust preventative primer
