| Availability: | |
|---|---|

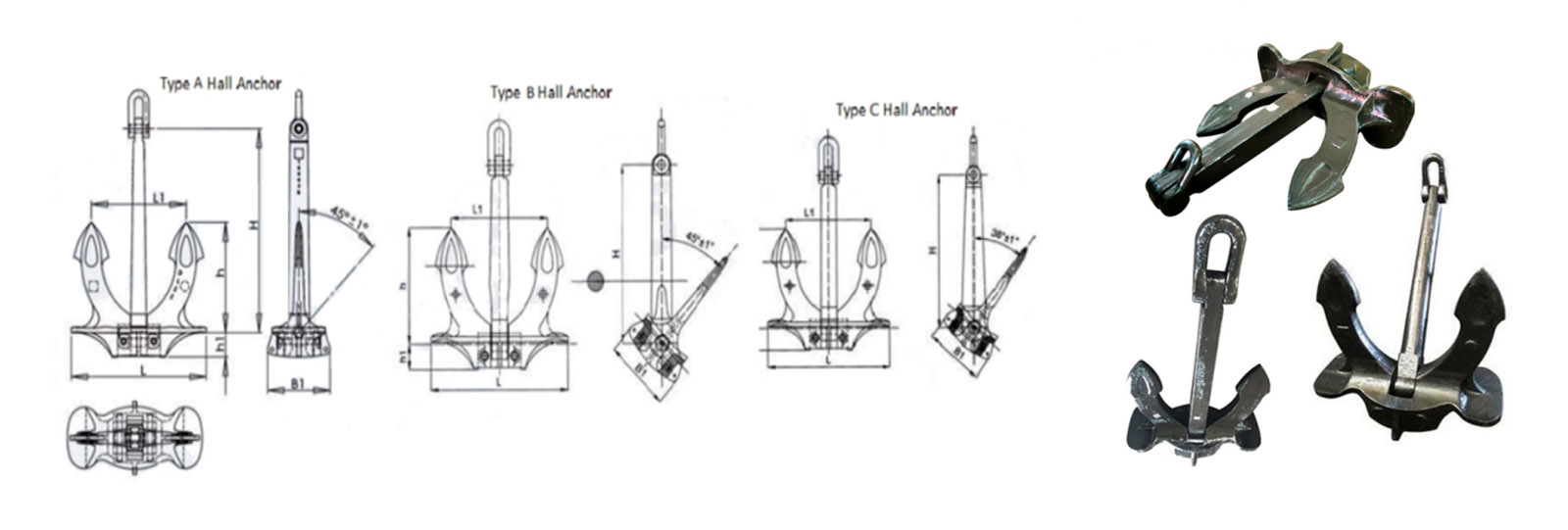

Nominal Weight (KG) | SIZE(mm) | |||||||
H | h | h1 | L | L1 | B1 | |||
A Type | B Type | C Type | ||||||
40 | 557 | 557 | 430 | 303 | 67 | 430 | 303 | 198 |
60 | 637 | 637 | 492 | 347 | 76 | 492 | 347 | 227 |
100 | 760 | 760 | 590 | 410 | 90 | 584 | 410 | 227 |
125 | 814 | 814 | 629 | 443 | 97 | 629 | 443 | 290 |
150 | 866 | 866 | 665 | 470 | 103 | 760 | 470 | 308 |
180 | 919 | 919 | 718 | 500 | 109 | 710 | 500 | 327 |
240 | 1019 | 1019 | 788 | 552 | 120 | 790 | 552 | 361 |
300 | 1095 | 1095 | 850 | 595 | 130 | 844 | 595 | 388 |
360 | 1160 | 1160 | 898 | 630 | 138 | 898 | 630 | 412 |
420 | 1160 | 1160 | 946 | 660 | 145 | 946 | 660 | 434 |
480 | 1222 | 1222 | 986 | 690 | 152 | 988 | 690 | 454 |
570 | 1355 | 1355 | 1042 | 732 | 161 | 1042 | 732 | 481 |
660 | 1356 | 1356 | 1093 | 769 | 169 | 1096 | 769 | 506 |
780 | 1506 | 1506 | 1170 | 813 | 178 | 1160 | 813 | 535 |
900 | 1580 | 1580 | 1215 | 855 | 188 | 1220 | 855 | 560 |
1020 | 1645 | 1645 | 1268 | 855 | 188 | 1220 | 855 | 560 |
1140 | 1705 | 1705 | 1316 | 926 | 203 | 1319 | 926 | 605 |
1290 | 1778 | 1778 | 1378 | 891 | 195 | 1268 | 891 | 584 |
1440 | 1844 | 1844 | 1448 | 965 | 203 | 1379 | 965 | 630 |
1590 | 1906 | 1906 | 1511 | 1035 | 226 | 1475 | 1035 | 677 |
1740 | 1966 | 1966 | 1571 | 1068 | 234 | 1517 | 1068 | 698 |
1920 | 2031 | 2031 | 1602 | 1104 | 241 | 1568 | 1104 | 722 |
2100 | 2093 | 2093 | 1651 | 1120 | 245 | 1560 | 1120 | 732 |
2280 | 2150 | 2150 | 1716 | 1165 | 225 | 1657 | 1165 | 763 |
2460 | 2207 | 2207 | 1785 | 1194 | 262 | 1700 | 1194 | 784 |
2640 | 2259 | 2259 | 1843 | 1222 | 265 | 1730 | 1222 | 796 |
2850 | 2318 | 2318 | 1890 | 1253 | 275 | 1787 | 1253 | 822 |
3060 | 2374 | 2374 | 1935 | 1283 | 282 | 1832 | 1283 | 841 |
3300 | 2432 | 2432 | 1985 | 1317 | 288 | 1880 | 1317 | 862 |
3540 | 2490 | 2490 | 2032 | 1349 | 295 | 1926 | 1394 | 883 |
3780 | 2547 | 2547 | 2077 | 1376 | 302 | 1965 | 1376 | 902 |
4050 | 2610 | 2610 | 2125 | 1406 | 309 | 2008 | 1406 | 924 |
4320 | 2695 | 2695 | 2171 | )435 | 316 | 2051 | 1435 | 943 |
4590 | 2712 | 2712 | 2216 | 1465 | 332 | 2093 | 1465 | 962 |
4890 | 2769 | 2769 | 2263 | 1498 | 329 | 2135 | 1498 | 984 |
5000 | 2800 | 2800 | 2317 | 1510 | 332 | 2156 | 1510 | 992 |
5610 | 2899 | 2899 | 2369 | 1569 | 345 | 2234 | 1569 | 1031 |
6000 | 2965 | 2965 | 2422 | 1605 | 352 | 2284 | 1605 | 1054 |
6450 | 3037 | 3037 | 2482 | 1644 | 361 | 2340 | 1644 | 1080 |
6900 | 3100 | 3100 | 2538 | 1681 | 369 | 2393 | 1681 | 1105 |
7350 | 3100 | 3100 | 2592 | 1688 | 370 | 2400 | 1688 | 1109 |
7800 | 3235 | 3235 | 2644 | 1752 | 385 | 2493 | 1752 | 1152 |
8300 | 3363 | 3363 | 2699 | 1788 | 393 | 2545 | 1788 | 1176 |
8700 | 3355 | 3355 | 2742 | 1816 | 399 | 2585 | 1816 | 1195 |
9300 | 3430 | 3430 | 2804 | 1850 | 417 | 2632 | 1850 | 1226 |
9900 | 3502 | 3502 | 2863 | 1896 | 417 | 2699 | 1896 | 1248 |
10500 | 3571 | 3571 | 2920 | 1934 | 425 | 2752 | 1934 | 1273 |
11100 | 3638 | 3638 | 2975 | 1970 | 433 | 2803 | 1970 | 1297 |
11700 | 3702 | 3702 | 3028 | 2005 | 441 | 2853 | 2005 | 1320 |
12300 | 3764 | 3764 | 3079 | 2039 | 448 | 2901 | 2039 | 1342 |
12900 | 3824 | 3824 | 3128 | 2072 | 455 | 2947 | 2072 | 1363 |
13500 | 3882 | 3882 | 3176 | 2104 | 462 | 2992 | 2104 | 1384 |
14100 | 3939 | 3939 | 3222 | 2135 | 469 | 3036 | 2135 | 1404 |
14700 | 3994 | 3994 | 3267 | 2165 | 476 | 3078 | 2165 | 1424 |
15400 | 4056 | 3318 | 2199 | 2199 | 483 | 3126 | 2199 | 1446 |
16100 | 4117 | 4117 | 3368 | 2232 | 490 | 3173 | 2232 | 1468 |
16900 | 4184 | 4184 | 3423 | 2268 | 498 | 3225 | 2268 | 1492 |
17800 | 4252 | 4252 | 3479 | 2308 | 506 | 3281 | 2308 | 1518 |
18800 | 4330 | 4330 | 3543 | 2350 | 516 | 3341 | 2350 | 1546 |
20000 | 4420 | 4420 | 3617 | 2399 | 526 | 3411 | 2399 | 1578 |
21500 | 4528 | 4528 | 3705 | 2458 | 539 | 3494 | 2458 | 1617 |
23000 | 4631 | 4631 | 3789 | 2514 | 551 | 3573 | 2514 | 1654 |
24500 | 4730 | 4730 | 3870 | 2568 | 563 | 3649 | 2568 | 1689 |
26000 | 4825 | 4825 | 3947 | 2619 | 574 | 3722 | 2619 | 1723 |
27500 | 4916 | 4916 | 4021 | 2668 | 585 | 3792 | 2668 | 1756 |
29000 | 5004 | 5004 | 4093 | 2716 | 595 | 3860 | 2716 | 1787 |
31000 | 5126 | 5126 | 4188 | 2774 | 609 | 3949 | 2774 | 1822 |
33000 | 5234 | 5234 | 4276 | 2833 | 622 | 4032 | 2833 | 1860 |
35500 | 5363 | 5363 | 4381 | 2903 | 637 | 4132 | 2903 | 1906 |
38500 | 5510 | 5510 | 4502 | 2982 | 655 | 4245 | 2982 | 1958 |
42000 | 5672 | 5672 | 4634 | 3070 | 674 | 4370 | 3070 | 2015 |
46000 | 5847 | 5847 | 4777 | 3165 | 695 | 4505 | 3165 | 2078 |
