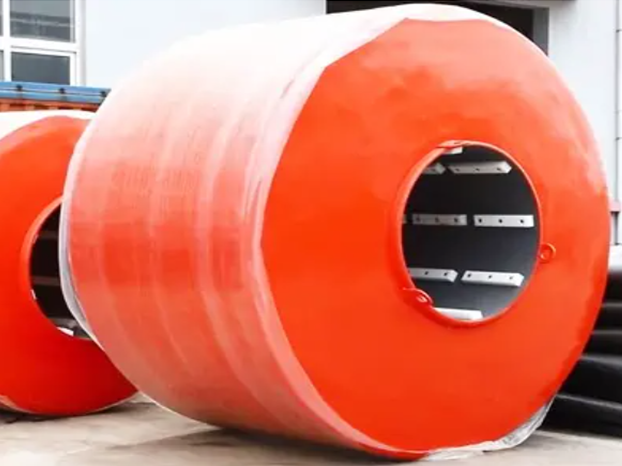

Donut Fender

Donut Fenders are ideal for turning structures, lead-in jet ties, berthing dolphins, and guiding support. Donut Fenders offer exceptional energy absorption, hassle-free installation, and low maintenance, making them a top choice for protecting vessels and structures from damage at dock and port entrances, particularly bridge supports and mono piles.
Availability:

Features

High energy absorption

Low maintenance and installation cost

Freely float with water level

Low hull pressure

Good visibility

Non-marking Fender surface

Self-adjusting during tidal variations

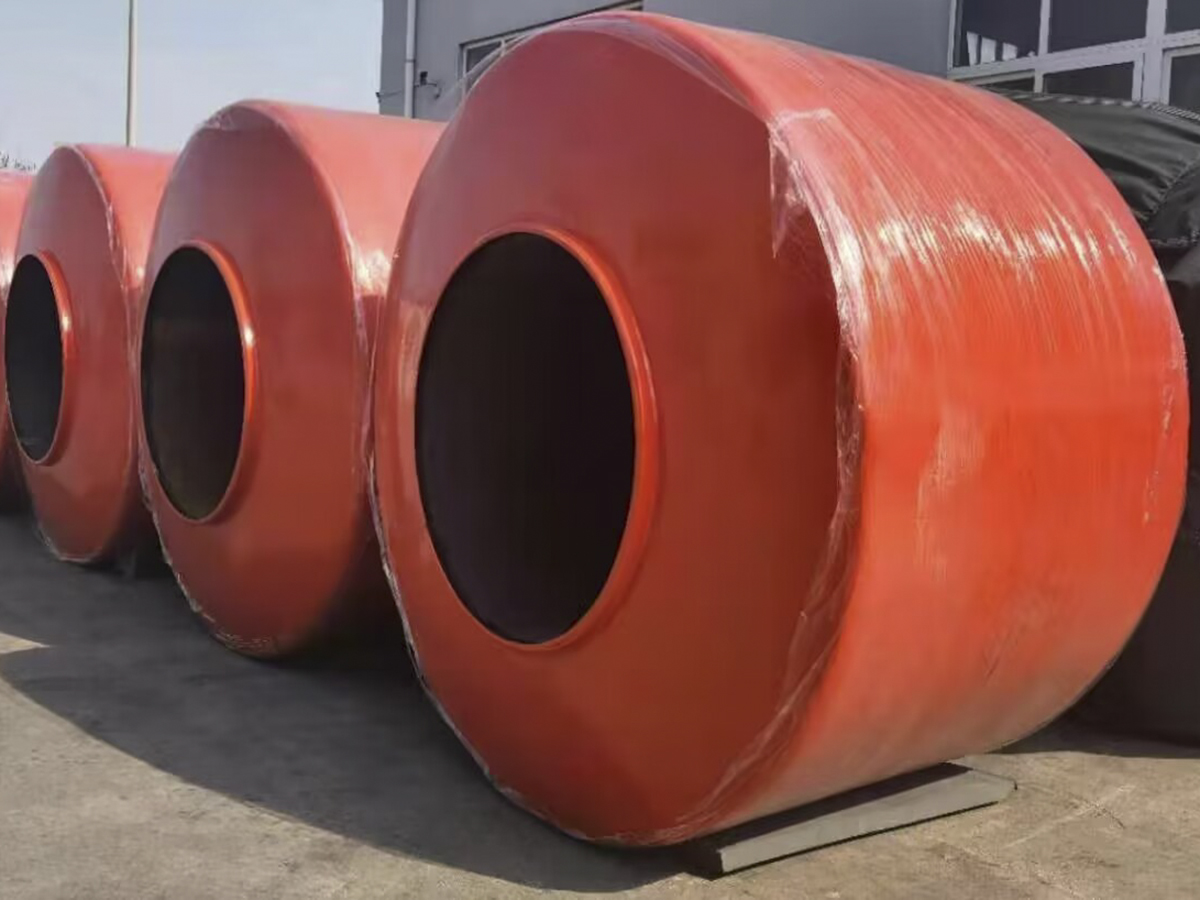

Donut Fender (2)

Donut Fender (4)



Applications

Lead-in Jetties

Dolphins

Turning Structures

Corner protection

Bridge protection

Encroached areas

Monopile structures

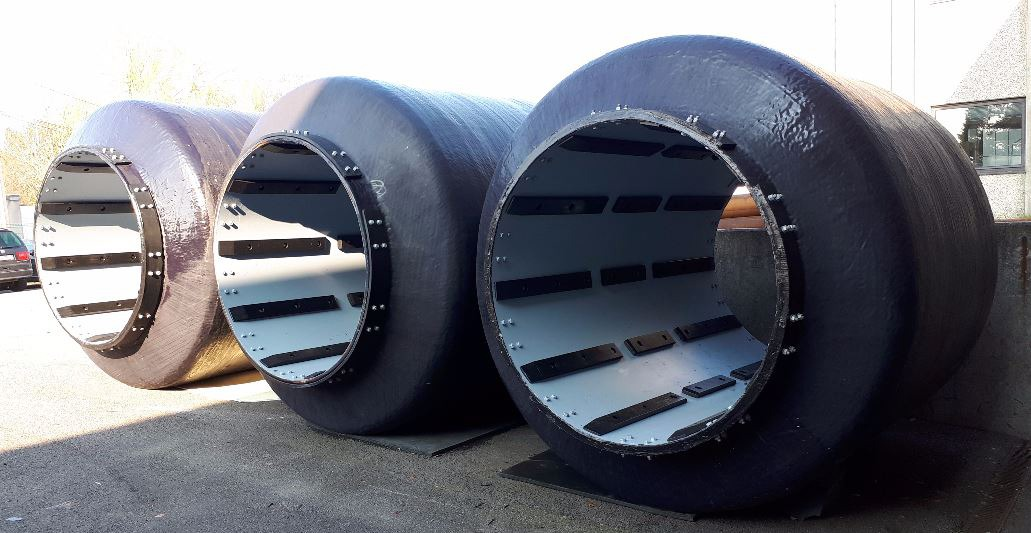

Donut Fender (1)


Specifications

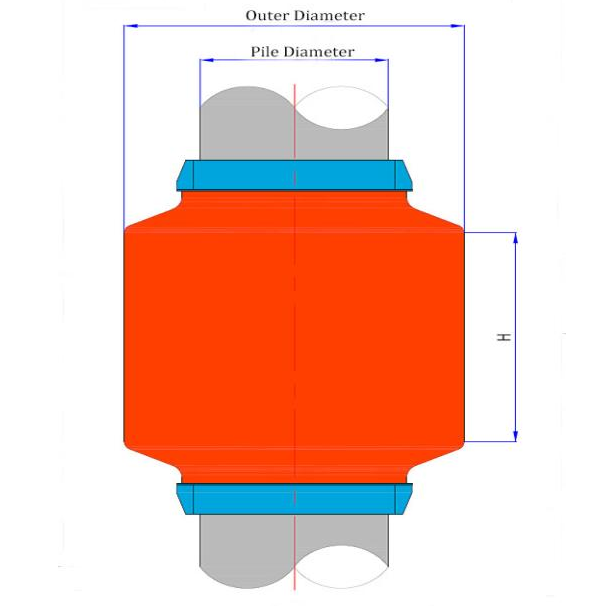

Donut Fender (2)
Donut Fender (3)


Donut Outer Dia

Pile Dia

At 60% Compression

Energy Absorption

Reaction Force

mm

ft

mm

ft

KN-m

Ft-kip

KN

Kip

1270

4.2

610

2.0

7.2

1.6

116

7.9

1450

4.8

710

2.3

9.2

2.1

131

9.0

1520

5.0

762

2.5

10.5

2.4

140

9.6

1780

5.8

914

3.0

14.1

3.2

162

11.2

1910

6.3

995

3.3

16.4

3.7

175

12.0

2030

6.7

1067

3.5

18.6

4.2

186

12.8

2210

7.3

1185

3.9

22.3

5.0

204

14.0

2290

7.5

1219

4.0

23.6

5.3

210

14.4

2490

8.2

1345

4.4

28.0

6.3

229

15.7

2540

8.3

1372

4.5

29.3

6.6

234

16.0

2790

9.2

1524

5.0

35.3

7.9

256

17.6

2970

9.8

1636

5.4

40.1

9.0

273

18.7

3050

10.0

1676

5.5

42.1

9.5

280

19.2

3300

10.8

1829

6.0

49.5

11.1

304

20.8

3450

11.3

1933

6.3

54.6

12.3

319

21.9

3530

11.6

1981

6.5

57.2

12.9

327

224

3810

12.5

2134

7.0

65.9

14.8

350

24.0

3960

13.0

2241

7.4

72.1

16.2

366

25.1

4060

13.3

2286

7.5

75.1

16.9

374

25.6

4220

13.8

2388

7.8

81.3

18.3

389

26.7
