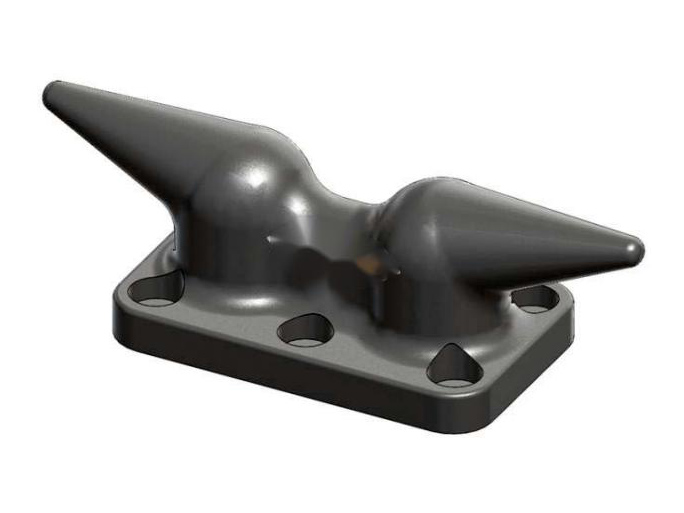

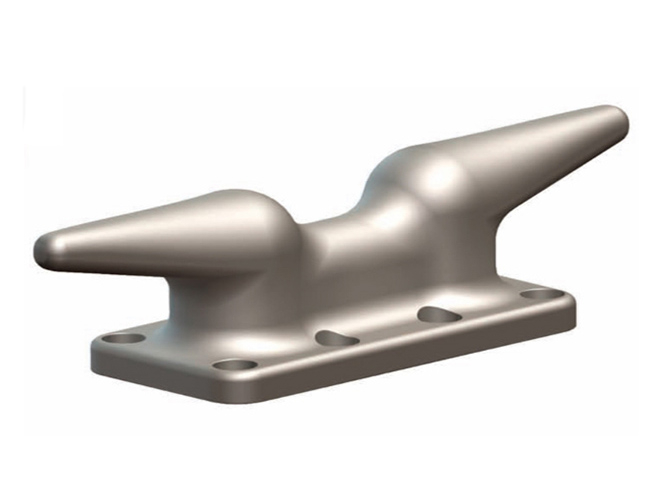

Cleat Bollards

Material: Cast Iron, cast steel and ductile iron(Spheroidal Graphite)
Mounting Hardware: Galvanized Grade 8.8 bolts, nuts and washers
Surface and Paint: Fully painted or with rust preventative primer
Availability:

Cleat Bollards

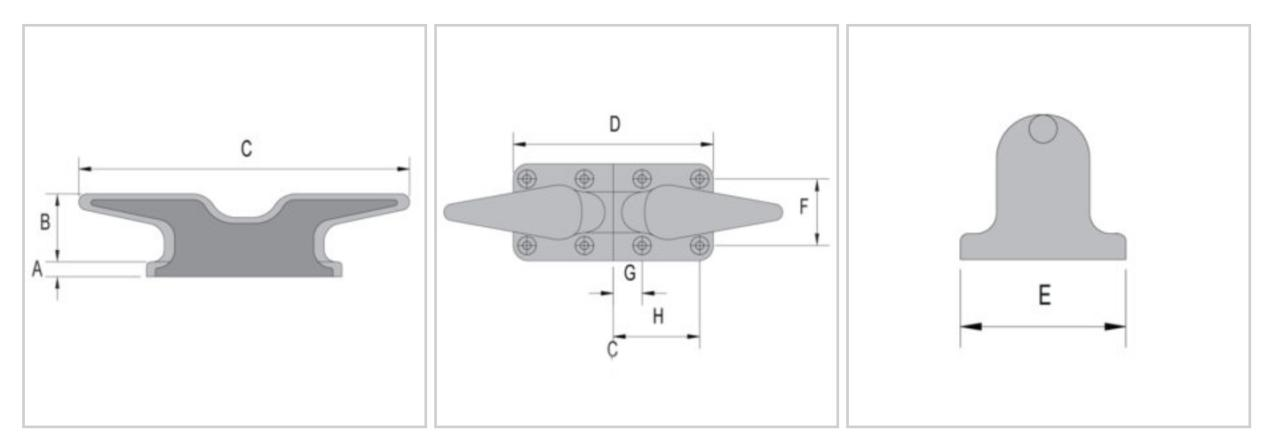

Size

Dimension(mm)

Bolts

A

B

C

D

E

F

G

H

NO.

Dia.

24

44

159

610

406

216

140

-

165

6

20

30

51

178

762

508

267

178

-

203

6

24

36

51

203

914

610

305

209

-

254

6

24

42

51

229

1067

660

305

216

95

285

8

24

54

64

292

1371

838

406

279

121

362

8

30

Dimension may vary according to different mold.


Material: Cast Iron, cast steel and ductile iron(Spheroidal Graphite)

Mounting Hardware: Galvanized Grade 8.8 bolts, nuts and washers

Surface and Paint: Fully painted or with rust preventative primer
