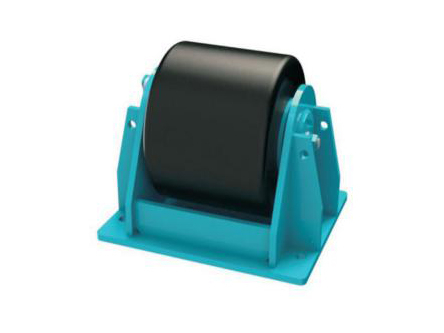

Roller Rubber Fender

Roller/Wheel fenders are widely used on exposed corners to help ships manoeuvre into berths and narrow channels such as locks and dry-dock entrances.
Availability:

Features

Low rolling resistance

Low maintenance cost

Use single or multiple stacks

Applications

Dry-dock entrances and walls

Lock approaches

Exposed corners


Roller Rubber Fender (2)

Specification

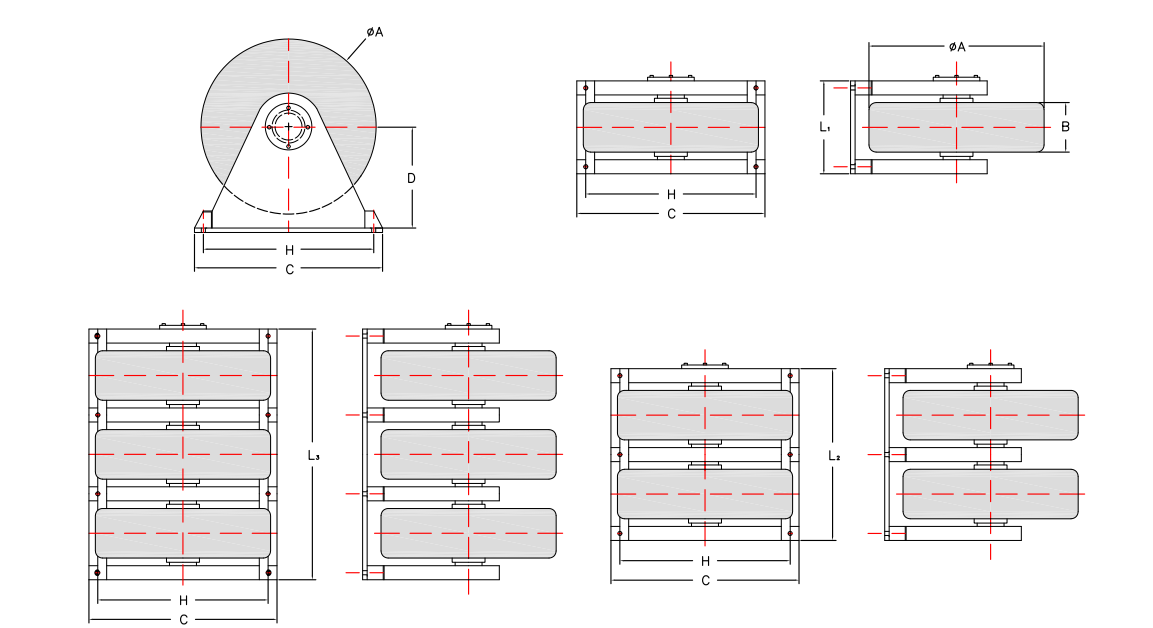

Type A

Roller Rubber Fender (1)


AxB(MM)

Z1

Z2

Z3

A

B

C

D

L1

H

Weight

L2

Weight

L3

Weight

600X200

600

200

695

320

420

620

127

770

245

1120

365

750X250

750

250

870

400

510

775

249

935

501

1360

735

900X300

900

300

1040

480

610

930

465

1120

878

1630

1291

1200X400

1200

400

1380

640

820

1240

1045

1500

2041

2180

3005

1500X500

1500

500

1740

800

1010

1550

2011

1850

3915

2690

5784

1800X600

1800

600

2080

960

1210

1860

3441

2215

6701

3220

9891

2100X700

2100

700

2440

1155

1410

2205

5610

2590

10925

3770

15895

2400X800

2400

800

2770

1280

1610

2480

8115

2950

15701

4290

23300


Performance

AXB(mm)

Max.Deflection

(mm)

Z1

Z2

Z3

Reaction Force

KN

Energy Absorption

KN.M

Reaction Force

KN

Energy Absorption

KN.M

Reaction Force

KN

Energy Absorption

KN.M

600x200

125

67

2

134

5

202

7

750x250

159

105

5

210

9

315

14

930x300

185

151

8

302

16

453

24

1200x400

260

269

19

539

39

814

58

1500x500

325

419

38

843

76

1264

113

1800x600

390

608

65

1215

130

1823

196

2100x700

455

823

102

1647

204

2470

306

2400x800

510

1108

140

2156

280

3234

420

Note: Tolerance:±10%

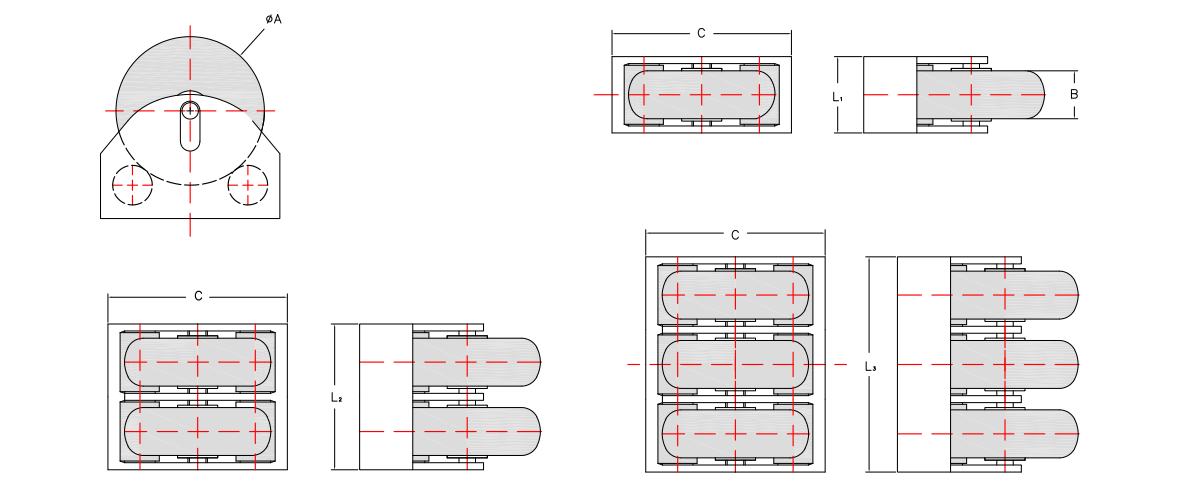

Type B

Roller Rubber Fender (2)

AXB(mm)

Max.Deflection

(mm)

Z1

Z2

Z3

Reaction Force

KN

Energy Absorption

KN.M

Reaction Force

KN

Energy Absorption

KN.M

Reaction Force

KN

Energy Absorption

KN.M

1200x400

431

248

48

496

96

744

144

1500x500

541

388

94

776

187

1166

281

1800x600

650

559

162

117

323

1676

485

2100x700

762

761

257

1519

514

2283

770

2400x800

851

990

383

1980

766

2969

1147

Note: Tolerance:±10%
